Complement
8 x 1 - man cabins 8 men
18 x 2 - man cabins 36 men
64 x 4 - man cabins 256 men
Total 300 men

Tankage
SWB - approx 17077 m3
Fresh water tank (potable) –approx 1568 m3
Fuel oil tank - approx 2022 m3
Dirty oil tank (approx.) 34 m3
Overflow tank (approx.) 17 m3
Sludge tank (approx.) 17 m3
Bilge tank (approx.) 34 m3
Grey water tank (approx.) 252 m3
Lube oil tank(approx.) 10 m3

Main deck strength 20 tonnes/m2

Machinery & Main Equipment
Generating set 8 x 1000KW each
Mooring System 10 x single drum winch

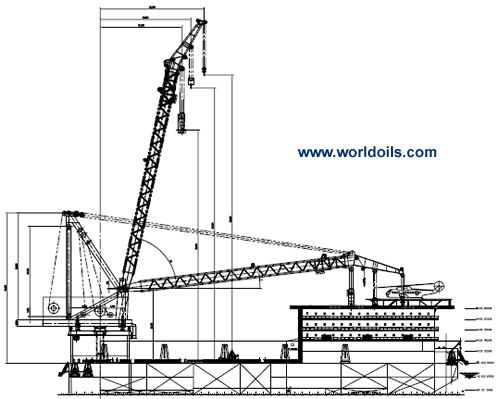

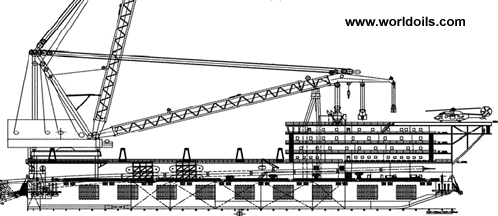

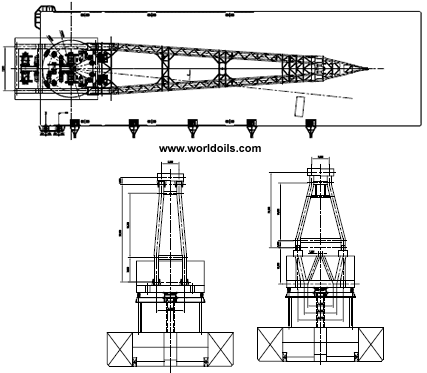

Deck Floating Crane (WISON make and install)
Lifting capacity : 1600tons
Rated over stern load : 1600t
Revolving load : 1200t out reach 32m
Auxiliary hook : 300t
Whip hook : 50t

Price & terms : Please enquire using the email form below.

If you cannot find the vessel, crane, rig or equipment that you need,
please send us an email to mail@worldoils.com stating your
requirements and we shall find it for you.

We can arrange delivery of equipment and towage of rigs and vessels where needed.

The details mentioned above are believed to be accurate but are not guaranteed.
------------------------------------------------------------------------------------------------
