LCT for Sale

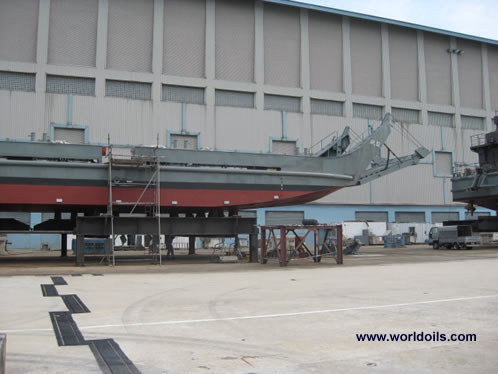

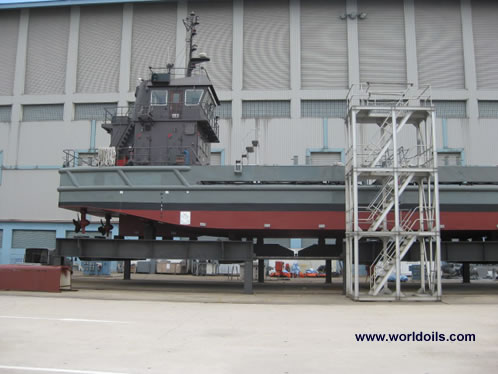

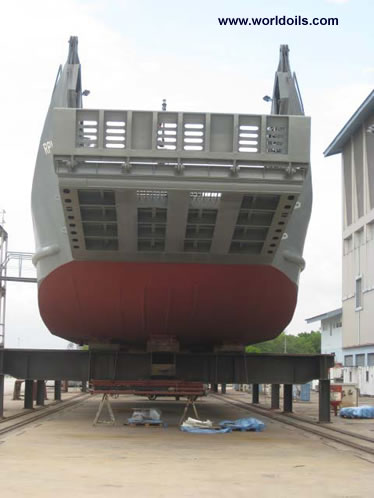

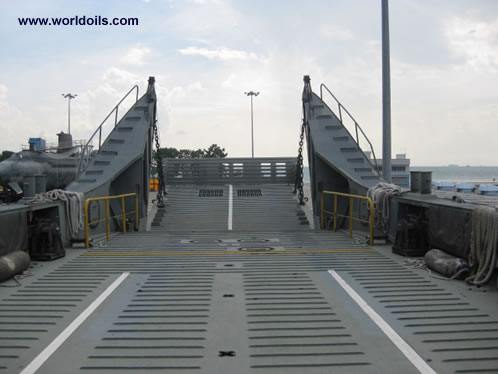

37M Landing Craft for sale
1985 built LCT for sale

Technical Specifications :

Craft Type :
Twin Screw Steel Ramp Powered Lighter (Landing Craft)
Plan approval for major structures was obtained from ABS
Not class-maintained.

Year Construction 1985
Length (LOA) : 36.70m
Breadth (Moulded) : 8.50m
Depth (Moulded) : 2.50m
Maximum Draft (up to Loadline mark) : 1,647m
Displacement : 334.60 tonnes
Maximum Deadweight : 148 tonnes

Propulsion Engine :
2 X M.A.N D2540 MLE
Watercooled with keel coolers
Direct injection with turbocharger
Power output : 320kW at 1800rpm

Rudder Propeller : 2 X Schottel Rudder Propeller SRP 152/151
Generator Engine :
2 X Deutz F6L912
Air-cooled direct injection
Power output : 57kW at 1800rpm

Alternator :
2 X AVK, DKBN 32/50-4TS
Rated capacity : 54KVA

Main Switchboard :
Manufacturer : LK-Nes (SEA) Pte Ltd
Type : Marine, multi-cubicle, front and back
Access, floor standing design
Class : ABS

Battery Charger :
E/R battery charger rating : 115V/24V, 40V
Wheelhouse battery charger rating : 115V/24V, 20A

Bilge and Ballast :
Pump : Desmi self-priming centrifugal pump
(Rated capacity : 20cbm /h at 30m head ; Identical pumps with interconnecting
piping such that any two can be used for servicing bilge, ballast or fire system)
Motor : Electrim SF 132S-4X (7.5hp, 404V, 3 phase, 60Hz, 1750rpm)

Fuel Oil Transfer :
Pump : Desmi self-priming centrifugal pump, S-70-50-275
(Rated capacity : 20cbm /h at 30m head
Motor : Electrim SF 132S-4X (7.5hp, 404V, 3 phase, 60Hz, 1750rpm)

Fresh Water :
Transfer Pump : Desmi self-priming centrifugal pump, S-70-50-275
(Rated capacity : 20 cbm /h at 30m head
Motor : Electrim SF 132S-4X (7.5hp, 404V, 3 phase, 60Hz, 1750rpm)

Domestic F.W. :
Pump : Sony CK series centrifugal pump
Motor : ASEA MT 80A19-2 (1hp, 440 V, 3 phase, 60Hz, 3480rpm)

Ramp Winch :
Winches : 2 X Electric Ramp Door Winch KERW-2010 (2-tonne capacity, 10m/min
winding speed, 14mm dia X 50m wire size)
Motor : Miyako Seisakusho MIC-B-132S (3.7kW, 440V, 3 phase 60Hz, 1150rpm)

Anchor Winch :
Winch : Electric Anchor Winch KEAW-2010 (2-tonne capactiy, 10m/mm
winding speed, 16mm dia x 190m wire size)
Motor : Miyako Seisakusho MIK-B-160M (7.5W, 440V, 3 phase 60Hz, 1150rpm)

Public Address System : Phonico P.A. System p-2700/4
Echo Sounder : NJA-550MII
Navigational Radar : Decca 270

Price & terms : Please enquire using the email form below.

If you cannot find the vessel, crane, rig or equipment that you need,
please send us an email to mail@worldoils.com stating your
requirements and we shall find it for you.

We can arrange delivery of equipment and towage of rigs and vessels where needed.

The details mentioned above are believed to be accurate but are not guaranteed.

------------------------------------------------------------------------------------------------
