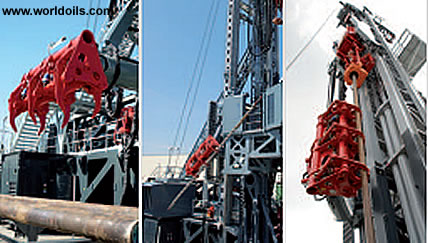

Hydraulic Land Drilling Rig for Sale
New 2000hp Hydraulic Land Drilling Rig
Hydraulic Land Drilling Rig - 2000hp - For Sale
New Drilling Land Drilling Rig for Sale
New Hydraulic Land Drilling Rig - 2000hp
2000hp Hydraulic Land Drilling Rig for sale

Specifications
Mast
Max. hook load : 440 tn (880,000 lbs)
Height : 33.0 m (108.3 ft)
Stroke length : 20.0 m (65.6 ft)
Total height incl. substructure : 42.3 m (138.8 ft)

Substructure
Drill floor height : 9.0 m (29.5 ft)
Clear height below RT : 7.7 m (25.3 ft)
Drill floor dimensions : 12.2 m x 4.2 m (40 ft x 18.8 ft)
BOP hoisting system : 2 x 27.5 tn (2 x 55,000 lbs)

Hoisting System
Hybrid system (winch & cylinder system combined)
Max. hook load : 440tn (880,000 lbs)

Cylinder System (fast drill pipe installation)
Pulling capacity : 176 tn (352,000 lbs)
Pushing capacity : 22 tn (44,000 lbs)
Max. drill pipe length (super single range III) : 12.4 m (40.7 ft)

Winch System (casing installation)
Pulling capacity (8 lines) : 300 tn (600,000 lbs)
Pulling capacity single line : 44 tn (88,000 lbs)
Max. casing length (range III) : 14.6 m (48 ft)

Top Drive - TDK 65-500 hydraulically driven
Load capacity : 500 tn (1,000,000 lbs)
Max. continuous torque* : 53.000 Nm (39,000 ft-lbs)
Max. intermediate torque* : 137.000 Nm (101,000 ft-lbs)
Speed range : 0 – 180 rpm
Rated power : 530 kW (710 HP)
* nominal value

Hydraulic Power Unit - Electro-hydraulic
Rated power (main system) : 2 x 500 kW (2 x 670 HP)
Rated power (rig-up & emergency system) : 1 x 160 kW (1 x 218 HP)

Pipe Handling System
Tubular weight capacity : 3.8 tn (7,000 lbs)
Max. tubular length : 14.6 m (48 ft)
Max. tubular diameter : up to 20"

Price & terms : Please enquire using the email form below.

If you cannot find the vessel, crane, rig or equipment that you need,
please send us an email to mail@worldoils.com stating your
requirements and we shall find it for you.

We can arrange delivery of equipment and towage of rigs and vessels where needed.

The details mentioned above are believed to be accurate but are not guaranteed.
---------------------------------------------------------------------------------------------------------------------------
