Lifting Capacity Crane - 2000 ton - For Sale or Charter - Worldoils Oil, gas and offshore equipment marketplace

Lifting Capacity Crane - 2000 ton - For Sale or Charter

Equipment ID: 614
Equipment name: Lifting Capacity Crane - 2000 ton - For Sale or Charter
Category: Cranes / Lifting equipment
Specifications: Lifting Capacity Crane for Sale
2000 Ton Lift Sheer Leg Crane - For Sale
Used 2000 Ton Lifting Floating Crane - For Charter

Principal Dimensions
SAM-A 2000 ton F/C

Length O.A : 85.000 m
Breadth (mld.) : 42.000 m
Depth (mld.) : 7.000 m
Draft (D.L.W.L) : m
Light weight : ton
Deck camber : 500 mm
Ballast pump : ton/hr

Boom angle 65.0 deg. – normal lifting
Main hook (500 ton x 4 sets)

Lifting capacity : 2000.0 ton
Lifting height (from W.L) : 80.000 m
Outreach (from bow) : 31.000 m

Equipment List
Part : Lifting hook
Equipment : Capacity / Quantity -
Main hook : 500 ton lift / 4
Aux. hook : 200 ton lift / 1
Whip hook : 10 ton lift / 4
Drop hook : 7 ton lift / 2

Part : Hoisting winch
Equipment : Capacity / Quantity -
Luffing winch : 70/35 ton x 7.5/15 m/min. / 2
Main hoist : 60/30 ton x 12/24 m/min. / 4
Aux. hoist : 30/15 ton x 12/24 m/min. / 1
Whip hoist : 10 ton x 15 m/min. / 3
Drop hoist : 7 ton x 15 m/min. / 2
Assist hoist : 10 ton x 15 m/min. / 2

Part : Mooring winch
Equipment : Capacity / Quantity -
Aft windlass/winch : 40/20 ton x 6/12 m/min. / 1
Aft mooring winch : 30/15 ton x 20/40 m/min. / 2
Fwd mooring winch : 30/15 ton x 20/40 m/min. / 4

Part : Ballast system
Equipment : Capacity / Quantity -
Ballast pump : 1000 cub.mt/hr / 2

Part : Crane
Equipment : Capacity / Quantity -
Hydro-crane : 10 ton capacity / 1

Price & terms : Please enquire using the email form below.

If you cannot find the vessel, crane, rig or equipment that you need,
please send us an email to mail@worldoils.com stating your
requirements and we shall find it for you.

We can arrange delivery of equipment and towage of rigs and vessels where needed.

The details mentioned above are believed to be accurate but are not guaranteed.
----------------------------------------------------------------------------------------------------
Search words (for official use only) -
Lifting Capacity Crane for Sale
Floating Crane 2000ton For Sale
Used 2000 Ton Lifting Floating Crane - For Charter
2000 Ton Lift Sheer Leg Crane - For Sale
Used Floating Crane 2000Ton
2000 ton Lifting Capacity Crane For Sale
Used Lift Sheer Leg Crane For Charter
--------------------------------------------------------------------------------------------------

Worldoils Oil, Gas and Offshore Marketplace - Lifting Capacity Crane - 2000 ton - For Sale or Charter

Images

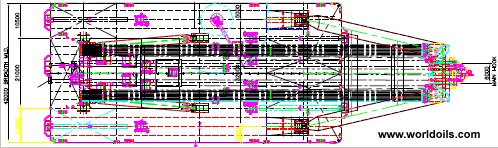

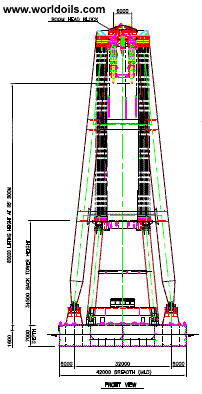

2000 Ton Lift Sheer Leg Crane - For Sale or Charter
