Handysize Bulk Carrier - 47000 DWT - for Sale

Equipment ID: 669
Equipment name: Handysize Bulk Carrier - 47000 DWT - for Sale
Category: Ships/Vessels
Sub Category: Bulk Carriers
Specifications: Handysize Bulk Carriers available For Sale
Handysize Bulk Carrier for Sale - 1983 built
47000dwt Bulk Carrier for Sale
Used Handysize Bulk Carriers available For Sale

General Specifications :
Year Built : 1983
Class :
LLoyd's + 100A1 (Bulk carrier strengthened for heavy cargoes, hods 2 & 4 may be empty)
ICE Class 1 C.Part H.T. + LMC & UMS, Finnish Ice due class IC

Dimensions :
L.O.A. : 189.00 m
L.B.P. : 180.97 m
Breadth (Moulded) : 32.20 m
Depth (Moulded) : 16.60 m

Tonnages :
Summer DWT / Draft : 47,442 mt / 11.709 m
Tropical DWT / Draft : 48,759 mt / 11.953 m
Winter Draft (S.W) : 46,130 mt / 11.465 m
Lightship / Draft : 9,488 mt / 2.2 m
International Tonnage : GT 28,330 mt / NT 14,802 mt
Suez Tonnage : GT 29,732 mt / NT 24,885 mt
Panama Tonnage : GT 30,464 mt / NT 21,737 mt
F.W.Allowance : 264 mm
Constant : 270 mt

Distances / Clearances :
Freeboard : 4.925 m (Summer Draft)
Airdrafts :
Light Ballast : 43.94 m
Heavy Ballast : 38.97 m
Fully Loaded : 36.28 m

T.P.C. :
53.87 t/cm (Summer)
53.67 t/cm (Winter)
54.08 t/cm (Tropical)

Distance from water level to top of hatch coaming

Hatch 3 :
Light Ballast : 14.350 m
Heavy Ballast : 9.380 m
Fully Loaded : 6.691 m

Height of Hatch Coaming : 1000 mm
Camber of ship : 800 mm
Dist Keel to Hatch Cover : 19.21 m
Dist Keel - Hatch Coaming : 18.400 m
Dist Keel - Highest Point : 47.990 m

Holds / Hatches :
Hold / Hatches : 5HO / 5HA
Hatch Sizes :
# 1 15.50 x 11.20 m
# 2 19.80 x 15.60 m
# 3 19.80 x 15.60 m
# 4 19.80 x 15.60 m
# 5 19.80 x 15.60 m

Hatch Cover Sizes :
# 1 15.50 x 11.20 m
# 2 19.80 x 15.60 m
# 3 19.80 x 15.60 m
# 4 19.80 x 15.60 m
# 5 19.80 x 15.60 m

Tank Top Sizes :
# 1 24.50 x 22.40 (aft) tapering to 8.1 (fwd)
# 2 25.14 x 22.40 m
# 3 25.42 x 22.40 m
# 4 25.42 x 22.40 m
# 5 26.24 x 22.40 (fwd) tapering to 12.9 (aft)

Hold Capacities :
Grain -
#1 : 9,710 cbm , 342,905 cuft
#2 : 11,827 cbm , 417,667 cuft
#3 : 11,910 cbm , 420,598 cuft
#4 : 11,999 cbm , 423,741 cuft
#5 : 11,382 cbm , 401,952 cuft
TTL : 56,828 cbm , 2,006,863 cuft

Bale -
#1 : 9,364 cbm , 330,687 cuft
#2 : 11,391 cbm , 402,269 cuft
#3 : 11,434 cbm , 403,788 cuft
#4 : 11,525 cbm , 407,002 cuft
#5 : 11,084 cbm , 391,428 cuft
TTL : 54,798 cbm , 1,935,174 cuft

Make of Hatch covers : KVAERNER
Type of Hatch covers : Hydraulic - end folding type
Ventilation in Holds : Mechanical (top and bottom)
Fire Fighting System in Holds : Yes
Co2 in Engine Room : Yes
Smoke Detection in Holds : No
Great Lakes : No
Incinerator : Yes
Fresh Water Generator : SASAKURA AFGUS 41 of 21mt / day
Suez Canal Search Light : Yes
Cement Holes : No

Machinery :
Main Engine : SULZER – 6RLB66
M.C.R. 12,600 bhp at 139 rpm
N.S.O. 10,800 bhp at 129 rpm
Aux. Engines : 3 nos x Man-B&W
Model – 6S28LH-4
Bow Thruster : 1,200 bhp
Emergency Generator : TAIYO 80kw powered by 124 bhp DAIHATSU diesel

Bunker Grades :
Fuel Oil (IFO) :
380 CST [RMG 35] at 50°C not exceed ISO fuel standard 8217, RMG380
Diesel Oil (MDO) :
Marine diesel oil not exceed ISO 8217 : 2005 (E), DMB

Bunker of different grades/qualities/suppliers not to be mixed.

Speed/Consumption :
In good weather, winds not exceeding 4 of Beaufort Scale, sea state not exceeding No. 3 of Douglas Scale and not adverse current.

Speed & Consumptions :
At Sea :
Abt 12 knots on Abt IFO 32.9mt (Laden)
Abt 13.0 knots on Abt IFO 30 mt (Ballast)

In Port :
Abt IFO 5.0mt (Idle)
Abt IFO 7.0mt (Cargo gear working - 24 hours)
(When entering/leaving port/ in restricted water when navigation in rivers or canals vessel's main engine burns IFO)

P.S : Speed and consumption is given only for represntation purpose and not to form a part of any discussion or contract or negotiation.

Tank Capacities :
Tank Capacity :
Diesel Oil 282.80 cbm
Fuel Oil 1,555.10 cbm
FW & DW 310.30 cbm
Ballast Water 29,687.50 cbm (Incl no 3 hold)
Hold floodable with SW : Hold no.3 (To be flooded only in extreme weather conditions, at Master’s discretion.
Capacity : 11,947.20 m

Cargo Gear :
Cranes :
4 x 30MT SWL
Type : K2530-4, Electro-Hydraulic
Make : HAGGLUND

Slewing : 1.2 rev/min
Slewing Range : 360 degrees
Hoisting Speed : 0-25t at 40m/min
Luffing Time : max to min 44 sec
Max Outreach : 11.4m from Shipside
Situated : Crane # 1, between holds 1 – 2
Crane # 2, between holds 2 – 3
Crane # 3, between holds 3 – 4
Crane # 4, between holds 4 – 5
(Cranes are fitted with Grab Operating Mechanism)

Grabs (Specification) : Bofors (wire operated grab buckets)
Grab Fitted : 4 x 15cbm

Allowable Loads :
Allowable Cargo Load
Tanktops :
#1 : 30.0 mt/sqm
#2 : 23.0 mt/sqm
#3 : 33.0 mt/sqm
#4 : 22.0 mt/sqm
#5 : 29.0 mt/sqm

Hatch Covers :
#1 : 1.7 mt/sqm
#2 : 1.7 mt/sqm
#3 : 2.9 mt/sqm
#4 : 1.7 mt/sqm
#5 : 1.7 mt/sqm

Price & terms : Please enquire using the email form below.

If you cannot find the vessel, crane, rig or equipment that you need,
please send us an email to mail@worldoils.com stating your
requirements and we shall find it for you.

We can arrange delivery of equipment and towage of rigs and vessels where needed.

The details mentioned above are believed to be accurate but are not guaranteed.
-----------------------------------------------------------------
Search Words(for official use only) :
Handysize Bulk Vessel for sale
Handysize Bulk Carrier for Sale in Asia
47000 dwt - Handysize Bulk Carrier For Sale
Used Cargo Ship for sale - 1983 Built
47000 dwt bulker for Sale - Handysize
----------------------------------------------------------------

Worldoils Oil, Gas and Offshore Marketplace - Handysize Bulk Carrier - 47000 DWT - for Sale

Images

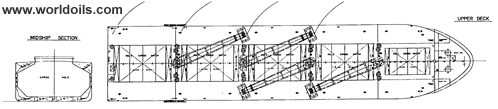

Bulk Carrier for Sale in Asia - 1983 built
