Description :

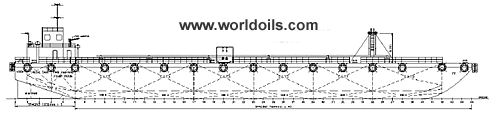

This double hull and double bottom oil barge is designed for
carrying base oil and finished oil, which flashpoint is below 60°C.
Particulars :
Length overall : 230 ft (70.104 m)
Length bp : 67.30 m
Breadth moulded : 60 ft (18.290 m)
Depth moulded : 18 ft (5.490 m)
Draft moulded : 3.63 m
Gross tonnage : 1834 t
Net tonnage : 807 t
Lightship weight : 970.19 mt
Displacement : 4247.55 mt at summer draft
Tank capacity : +/- 3277.50 mt
Hull material : steel
Tank age :
Cargo tank : +/- 3750 cub.mt
Fuel oil : +/- 8 cub.mt
Dirty oil tank : +/- 16 cub.mt
Fresh water : +/- 21 cub.mt
Sewage : +/- 16 cub.mt
Machinery, equipment & piping :
Cargo fuel pump :
2 x 2GC/BL350 Q=350 cub.mt/hr, P=0.8 mpa, 1500 rpm
Diesel engine :
2 x for starting cargo fuel pump, 6135 AZcaf, w=190 kW/220hp, n=1500 rpm
Reduction gear box : 2 x 135 r = 1:1
Generator : 2 x 24 kW daewoo, 415v / 50 hz / 3ph
General pump : 1 x 22 cub.mt/hr x 26 m/h
Fire pump : 1 x 22 cub.mt/hr x 26 m/h
Oily dirty water seperator : 0.5 cub.mt/hr
Hall's anchour : 1 x 900kg, wire cable Ø 28 x 200m
Price & terms : Please enquire using the email form below.
If you cannot find the vessel, crane, rig or equipment that you need,
please send us an email to mail@worldoils.com stating your
requirements and we shall find it for you.
We can arrange delivery of equipment and towage of rigs and vessels where needed.
The details mentioned above are believed to be accurate but are not guaranteed.
---------------------------------------------------------------------------------------------------
