Platform Modular Rig for Sale

Equipment ID: 806
Equipment name: Platform Modular Rig for Sale
Category: Rigs

Specifications:

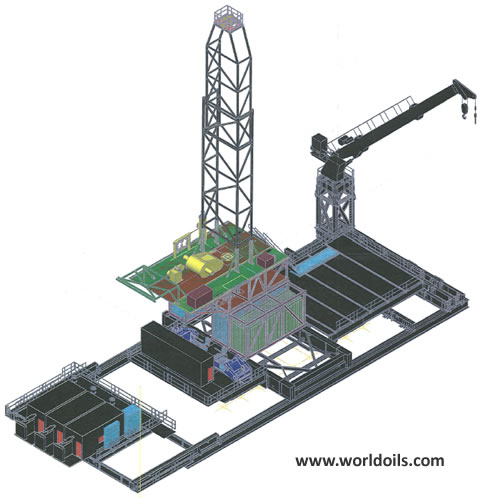

Platform Modular Rig For Sale
Used Modular Platform Rig
Platform Rig Module - Diesel Electric - Used

Main rig technical specifications :-
Workover depth : 13,000 ft (dual, 3 - 1/2 ", 13.3 ppf drill pipe)
Hook load capacity : 350,000 lbs (158.78 mt)
Drawwork powers : 1000 hp
Top drive system : tesco 250 t, 400 hp
Derrick clear height : 100 ft
Drilling line diameter : 1 - 1/8 inch
Traveling system : web wilson 250 t
Mud pumps : two 1000 hp gardner denver, compact
Mud pumps max wp : 5,000 psi
Capping beams spacing : 30 ft
Well covering area : 30 ft to 65 ft
Rig max total weight : 1,873,910 lbs (850 mt)

Rig capability :
The rig is capable of performing the following services and/or functions :

* Work over services at a well depth of 13,000 ft
* Pulling and running single or dual completion strings and downhole equipment to repair,
convert configurations and change completion intervals.
* Fishing operations including milling and retrieving of multiple packers, etc.
* Diagnostic electric line tools and surveys.
* Tubing, work strings, casing, liner, sand screens etc.
* Well killing, cleanout, pumping acid, squeeze cementing, cementing, stimulation,
sand control, fishing, completion, perforating, swabbing, concentric tubing, electric line
operations and wire line operations.
* Well plug and abandonment operations including pulling tubing/casing and
setting cement plugs.
* The rig is also upgraded with latest equipments to comply with latest safety codes and
is equipped with TDS (top drive system) for efficient work over operations.

Price & terms : Please enquire using the email form below.

If you cannot find the vessel, crane, rig or equipment that you need,
please send us an email to mail@worldoils.com stating your
requirements and we shall find it for you.

We can arrange delivery of equipment and towage of rigs and vessels where needed.

The details mentioned above are believed to be accurate but are not guaranteed.

----------------------------------------------------------------------------------------------------------------------
