Soilmec R-620 Crawler Drilling Rig - For Sale

Equipment ID: 832
Equipment name: Soilmec R-620 Crawler Drilling Rig - For Sale
Category: Land Rigs
Sub Category: Land Rigs
Specifications: Soilmec R-620 Crawler Drilling Rig for Sale
Drilling Rig - Soilmec R-620 Crawler - For sale

Model : R-620 Drill Rig - Crawler
Manufacturer : Soilmec
Year : 2006
Condition : Used

Description :

2006 Soilmec R-620 Crawler Drill Rig
Hours: 6,200
R-620
Hydraulic Drilling Rig
A new model : The R-620 drilling rig on caterpillar 3.30C high power
module has been designed to perform the follwing jobs :
Bored pile, with dry or bentonite system;
Bored pile, with casing installed by oscillator or rotary crowd system;
C.F.A (Continuous flight Auger) piles.

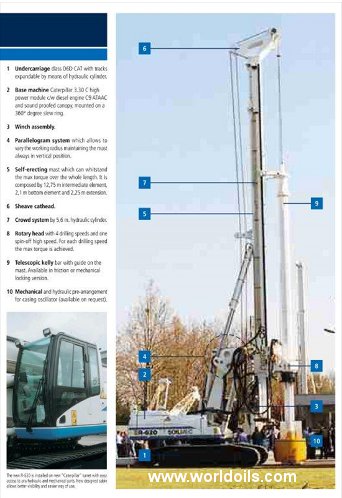

The main features of R-620 are the following:

Machine class: 60 tons
New machine caterpillar type 3.30C module c/w diesel engine and
sound proofed canopy,mounted on 360 degrees slew ring
New electronic engine C9 ATAAC wth more power(355Bhp) and
meeting the most recent emission regulations.
New powerful rotary : 201 kNm
Completely self erecting;mast able to withstand the max torque
over the whole length.
Casing installation by rotary crowd system
Advanced instrumentation
Reliability and safety
Stability and easy to handle
High productivity
Easy to transport
Cable crowd system(optional)
Mechanical and hydraulic pre - arrangement for casing

oscillator(available on request)

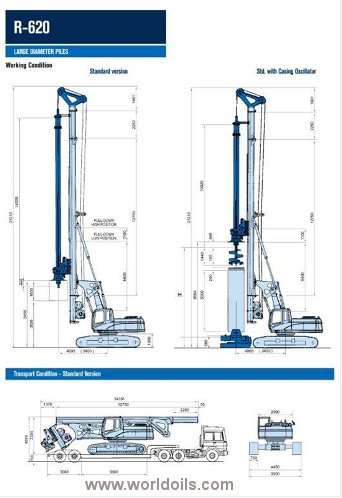

Large diameter bored pile
Max pile diameter	mm	1800
Max cased diameter	mm	1500
Max pile depth	m	66
Max nominal torque	kNm	201
Max drilling speed	rpm	34
Spin off	rpm	144
Main winch nominal line pull	kN	192
Service winch nominal pull	kN	80
Engine¹	type	Caterpillar C9 ATAAC-HEUI
Max power	Kw (bhp)	261(355)
Crowd system by cylinder	kN	210/150
Pull down stroke	mm	5600
Cable crowd system(13m stroke)	kN	200/200
Operating weight	ton	63

Continuous Flight Auger (CFA)
Max pile diameter	mm	900/1000
Max pile depth	m	22.5
Max nominal extraction force	kN	600
Max nominal torque	kNm	201
Max drilling speed	rpm	34
Operating weight	ton	60-63

Location : USA

Price & terms : Please enquire using the email form below.

If you cannot find the vessel, crane, rig or equipment that you need,
please send us an email to mail@worldoils.com stating your
requirements and we shall find it for you.

We can arrange delivery of equipment and towage of rigs and vessels where needed.

The details mentioned above are believed to be accurate but are not guaranteed.

---------------------------------------------------------------------------------------------------------
