Sanderson-Cyclone Drill Co. 36-R Drill Rig & Package for Sale

Equipment ID: 837
Equipment name: Sanderson-Cyclone Drill Co. 36-R Drill Rig & Package for Sale
Category: Land Rigs
Sub Category: Land Rigs
Specifications:

Sanderson-Cyclone Drill Co. 36-R Drill Rig & Package
1970 Built Drilling Rig for sale
Sanderson-Cyclone - for Sale in USA

Model : 36-R Drill Rig
Manufacturer : Sanderson-Cyclone Drill Co.
Year : 1970
Condition : Used

Description :

Cyclone 36-R Cable Tool Rotary Table Drilling Package

Includes As Follows:
- 1970 Sanderson-Cyclone 36-R Drill Rig - S/N 95035
- PTO powered from truck engine
- Leroi 100 SDS Compressor 600 CFM / 150 PSI
- FMC Bean A0413C ( 10 GPM) 2 Cylinder Water Pump (S/N A801784)
- Hammer Oiler
- Mounted on a CCC (Crane Carrier Company) Truck Model 1587 - VIN 66D-53D
- Detroit 6V92 Diesel Engine (330 HP)
- Includes services/repairs into good working order, new paint, and basic testing.
- 200 ft. of 1/2 in. multi-sheave winch cable 6x36 RPL
- 800 ft. of ½ in. sand line 6x7 poly core right regular lay
- 800 ft. of 5/8 in. drilling line 6x21 poly core

- 3 Mandrels for 5/8" Drill Line
- Rope Socket 4-1/2" (for running above drill stem or just mixing sub)
- Replacement Drill Stem ( 4-1/2 in. OD x 14-15 ft. Length x 2-1/4x3-1/4 Thread)
- Set of Used Tool Wrenches / J-Wrenches
- Bar and Chain Tightener for Wrenches
- Bailer(s) for 8-12" holes
- 8” Carbide Bit, 2-1/4x3-1/4 Thread
- 10” Carbide Bit, 2-1/4x3-1/4 Thread
- 12” Carbide Bit, 2-1/4x3-1/4 Thread
- 8" Chisel Bit, 2-1/4x3-1/4 Thread
- 10" Chisel Bit, 2-1/4x3-1/4 Thread
- 12" Chisel Bit, 2-1/4x3-1/4 Thread

- Mixer Sub (7-1/2" x 4', 4") for running carbide bits only Jar Bumper to lower
with sandline in case of getting tools stuck Used Drive Clamps with new bolts
Used Drive Head 8", Used Drive Head 10"
- 2 New 11r 24.5 Tire on Used Rim
- Tri-Cone Bit, 7-7/8", TCI Medium Formation, Sealed Bearing, Rerun Tri-Cone
Bit, 8-3/4", TCI Medium Formation, Sealed Bearing, Rerun Tri-Cone Bit, 9
7/8", TCI Medium-Hard Formation, Sealed Bearing, Rerun Tri-Cone Bit, 12
1/4", TCI Soft Formation, Sealed Bearing, Rerun Tri-Cone Bit, 12-1/4", Steel
Tooth, Sealed Bearing, Rerun Used - 6" DTH Hammer (Mission 85 or similar)
with 8" bit

- (32) Used - 6-3/4" Range x 12 ft. stabilizer, 2-7/8 in. IF threads
- Used Drill pipe for Cyclone 36-R, 15 ft. length x 3-1/2 in. OD x 2-3/8 in. IF Thread
- (Sub Adapter, 2-3/8” IF Pin x 2-3/8” IF Pin, shortest length possible, no
wrench flats (this sub to be built as needed, configuration may vary
depending on set-up)
- Sub Adapter, 2-3/8” IF Box x 3-½” Reg. API Box, 9” Shoulder to Shoulder Length,
4” Wrench Flats Sub Adapter, 2-3/8” IF Box x 4-½” Reg. API Box, 36” Shoulder to Shoulder
Length, 2-½” Wrench Flats Sub Adapter, 6 5/8” Regular API Box x 4 ½” Regular API Pin, 8 ¼”
Shoulder to Shoulder Length IR 260 DTH hammer with 2 hammer bits (6-1/2” or 6-3/4”)

Location : USA

Price & terms : Please enquire using the email form below.

If you cannot find the vessel, crane, rig or equipment that you need,
please send us an email to mail@worldoils.com stating your
requirements and we shall find it for you.

We can arrange delivery of equipment and towage of rigs and vessels where needed.

The details mentioned above are believed to be accurate but are not guaranteed.

--------------------------------------------------------------------------------------------------------------
Search words(for official use only) :
Sanderson-Cyclone Drill Co. 36-R Drill Rig & Package
Sanderson-Cyclone - for Sale in USA
Land Drilling Rig for Sale - 1970 built
Used Dtilling Rig for Sale in USA
Drilling Rig - Sanderson-Cyclone 36-R - for Sale
1970 built Drilling Rig for sale in USA
Sanderson-Cyclone Land Drilling Rig for Sale
-----------------------------------------------------------------------------------------------------------------

Worldoils Oil, Gas and Offshore Marketplace - Sanderson-Cyclone Drill Co. 36-R Drill Rig & Package for Sale

Images

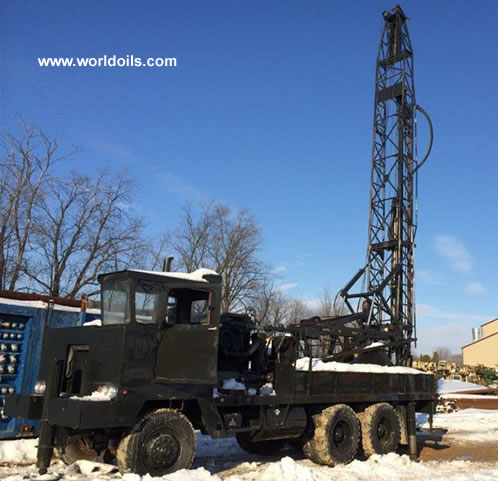

Sanderson-Cyclone Drill Co. Rig for Sale

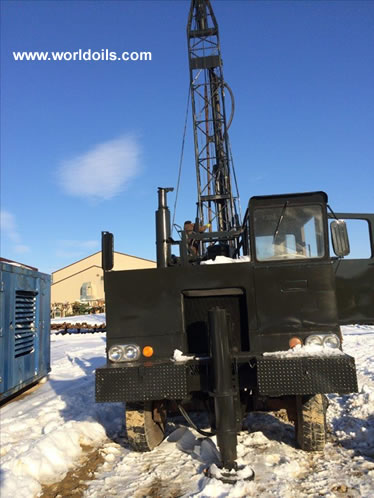

Sanderson-Cyclone Used Drill Rig for Sale
