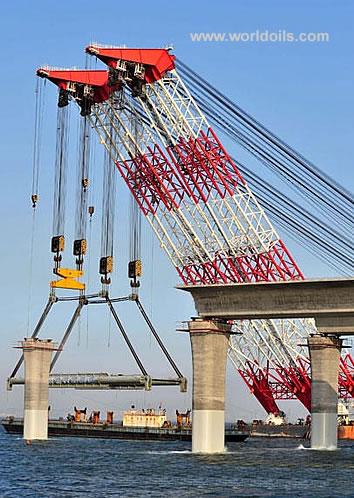

New Sheerleg Floating Crane - 2600 ton- For Sale and Charter

Equipment ID: 868
Equipment name: New Sheerleg Floating Crane - 2600 ton- For Sale and Charter
Category: Cranes / Lifting equipment
Specifications: Floating Crane for Sale
2600 ton Sheerleg Floating Crane For Sale or Charter
Over 2500 ton Floating crane For Sale (self-propelled)
New Self Propelled Floating Crane for Rent

Specifications
LOA ï¼š108.0M
Water line length ï¼š108.0M
LBP (length between perpendiculars) ï¼š104.9M
Breadth ï¼š44.6M
Depth ï¼š7.8M
Draft ï¼š5.1M
Displacement ï¼š22252T

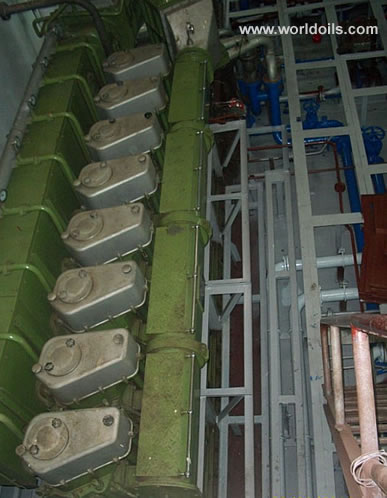

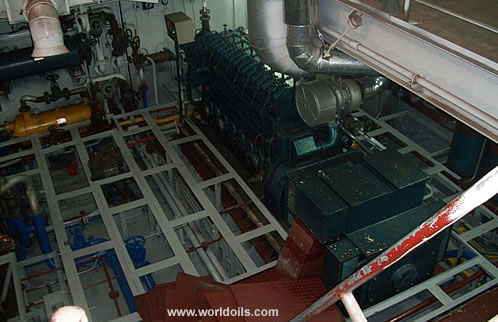

Main Engine ï¼š
Ningdong -
G8300ZC6B
G8300ZC7B

Main Engine power ï¼š1471KW×2
RPM ï¼š500r/min
Gear box ï¼šMG49.54 2.9827:1
Rating crew ï¼š14

Working personnel ï¼š16
Navigation area ï¼š
Coastwise/Offshore / Cover sea area

Max lifting ï¼š
2×650t+2×650tï¼ˆMain hookï¼‰
1×250t+1×250tï¼ˆAux hook)

Main hook safe working load -
Boom elevation (deg) : 70
Working load (t) : 2 x 650+2 x 650
Radius (m) : 33.1
Lifting height (m) : 86

Boom elevation (deg) : 65
Working load (t) : 2 x 650+2 x 650
Radius (m) : 40.1
Lifting height (m) : 82.8

Boom elevation (deg) : 60
Working load (t) : 2 x 500+2 x 500
Radius (m) : 46.7
Lifting height (m) : 79

Boom elevation (deg) : 55
Working load (t) : 2 x 400+2 x 400
Radius (m) : 52.9
Lifting height (m) : 74.7

Boom elevation (deg) : 50
Working load (t) : 2 x 300+2 x 300
Radius (m) : 58.8
Lifting height (m) : 69.8

Boom elevation (deg) : 45
Working load (t) : 2 x 200+2 x 200
Radius (m) : 64.2
Lifting height (m) : 64.4

Aux hook safe working load -
Boom elevation (deg) : 70
Working load (t) : 2 x 250
Radius (m) : 42.9
Lifting height (m) : 100

Boom elevation (deg) : 65
Working load (t) : 2 x 250
Radius (m) : 50.7
Lifting height (m) : 95.9

Boom elevation (deg) : 60
Working load (t) : 2 x 250
Radius (m) : 58.1
Lifting height (m) : 91.2

Boom elevation (deg) : 55
Working load (t) : 2 x 250
Radius (m) : 65
Lifting height (m) : 85.8

Boom elevation (deg) : 50
Working load (t) : 2 x 250
Radius (m) : 71.5
Lifting height (m) : 79.8

Boom elevation (deg) : 45
Working load (t) : 2 x 250
Radius (m) : 77.4
Lifting height (m) : 73.3

The ship is now designed to live in 30 people, including
10 double rooms, 6 single rooms, 4 Suites; Equipped
with a 20 persons conference room.

Winch Quantities :
tool hook 8 sets, anchor machine 1 set, anchor windlass
6 sets, mooring winch 4 sets, luffing winch 4 sets, main
hook winch 4 sets, aux hook winch 2 sets, boat and
lifting winch 4 sets
(Note: 2 sets of anchor windlass and mooring winch are shared)

Winch Type :
All are electric, including 19 sets of main winches using
transducer, the electronic control systems are made by
domestic public company HITE, the main parts of the system
are imported.

The max test lifting is 2860 tons, which is the requirement for
class (which can lift this weight to 88 meters height), if short-term
lifting, 3000 tons is no problem, because when the vessel over the
bridge, its max pull capacity is 3,600 tons. According to the lifting
height, it can 3200 tons in manageable range.

Price & terms : Please enquire using the email form below.

If you cannot find the vessel, crane, rig or equipment that you need,
please send us an email to mail@worldoils.com stating your
requirements and we shall find it for you.

We can arrange delivery of equipment and towage of rigs and vessels where needed.

The details mentioned above are believed to be accurate but are not guaranteed.
---------------------------------------------------------------------------------------------------------
