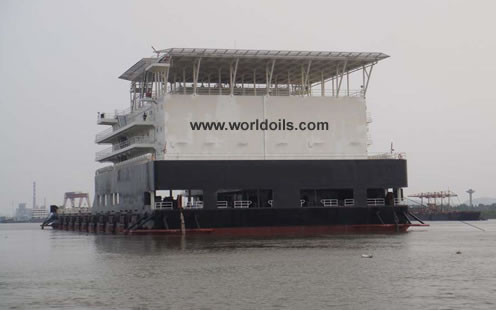

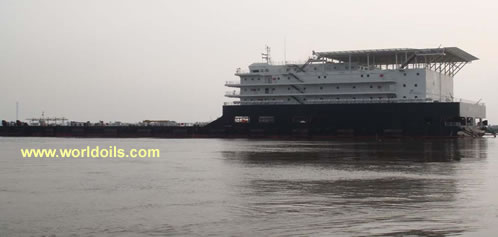

Accommodation Barge for Time Charter

Principal Particulars :
Classification : ABS & KR
Year Built  : 2009
Length Overall  : 110.57m
Breadth : 31.70m
Depth Mould : 7.30m
Summer Load Draft : 5.0m
Lightship Weight Draft : 1.80m

At Summer Load Draft :
Displacement : 17373.18 Tons
Dead Weight : 11344.69 Tons
Lightship Weight : 6017.49 Tons
Main Deck Strength : 15 Tons/m2
Net Tonnage : 3363 Tons
Gross Tonnage : 11210 Tons

Deck Equipment :
8-point Anchor : 8 Single drum
Mooring Winches : electro-hydraulic winches
Drum Capacity :
(1500m x 52mmø IWRC)
Wire c/w load monitoring
System and 8 sets of CCTV
Mooring Wire : 8 x 1500m x 52mmø IWRC
Mooring Anchors : Flipper Delta Anchors  ( 9 x 8,000 kg)

Crane :
250T, Crawler Crane
Boom Length 65m
(Charterer Option)

Machinery :
Generator :
4 units CAT3412/500Kw,@1500rpm
Heat-Exchanger Cool, Batter Start
Emergency G/E :
1 unit Cummins/136Kw,@1500rpm
Air Cool, Battery Start
Portable G/E : 1 unit SINFON/50Kw,@1500rpm
Air Compressors : 2 x 80 m3/hr @10 bar

Capacities :
Fuel Oil : 1500 m3 approx
Fresh Water : 1400 m3 approx
Sea Water Ballast : 7500 m3 approx
Sewage : 125 m3 approx
Bilge Holding Tank : 70 m3 approx
Dirty Oil Tank : 52 m3 approx
Settle Tank : 48 m3 approx
F.O Daily Tank : 48 m3 approx

Accomodation :
Single Berth : 10 x 1 Berth
Double Berth : 14 x 2 Berth
Four Men Berth : 83 x 4 Berth
Total : 370 Berth

Discharge Rates :
Fire Water Transfer : 2 x 160 m3/hr @ 100m head
G.S Transfer : 1 x 130 m3/hr @ 80m head
Em’cy Fire : 1 x 100 m3/hr @ 65m head
Ballast Water : 2 x 500 m3/hr @ 40m head (Centrifugal)
F.W Transfer : 2 x 30 m3/hr
F.O Transfer :
1 x 10 m3/hr
 1 x 45 m3/hr

Radio & Navigation Equipment :
2 x SSB Radio : 2 x VHF Radio Telephone
1 x MF/HF Radio Sys’ : 2 x Inmarsat Mini M System
1 x Inmarsat C Sys’ : 1 x Navtex Receiver
1 x GPS   : 3 x VHF Handby Talky
1 x Radar 24 n/miles : With Battery Charger
1 x Weather Fax  : 1 x Wind Speed Indicator

Other Facilities :
Hospital : 1 x 3 Bed, Locker, Toilets
Galley : 1 Cooking, Utensils, Refrigerator etc.
Medic Room : 1 on Main Deck
Radio & Control Room : 1 x Radio Equipment on Roof Top
Site Manager Room : 1 on Main Deck
Office : 5 on Deck -3, 6 on Deck -4, and 3 on Roof Top
Mess Room : Upto 180 person
Conference Room : 1 on Deck -3, & 1 on Roof Top

Fire Fighting & Survivial Equipment :

Fire Monitors :
2 Units for Helideck
2 Units for Deck 3
Fire Hose Station : 19 x 50mmø 15m Fire Hose / Nozzle
Portable Fire : 4 x 6.7 Kg CO2

Extinguishers :
2 x 22.5kg Dry Powder
27 x 4.5kg Dry Powder
8 x 2.25kg Dry Powder
3 x 1kg Dry Powder
3 x 9 L Foam Applicator

CO2 System : Machine Room, Winch, Power Pack Room, Paint Store, Deisel Engine

Fire Alarm / Central :
1 Central  Panel
 32 Manual Call Points
Life Rafts : 46 x 25 men on each side of Barge
Life Jackets : 200% coverage of the total maximum Onboard
Ring Buoys : 10 Lifebuoy over 27.5m
Rescue Boat : 1 x 6 Persons rigid Rescue Boat with Davit

Other Facilities :
Sewage Treat  :
1 x 370 men  Capacity
Vacuum Unit
Recreation Treat  : 1 on Deck – 4
Cinema Room : 2 on Deck – 4 (Smoking / Non-smoking)
Water Maker : 2 x 80 tons/day
Workshop : 1 x Workshop (15m x 40m)
Gymnasium : 1 on Deck – 5
Forklift  : 1 x 3 tons
Helideck  : Sikorsky  S – 61N

Fixed auto water sprinkler system for whole Accomodation
Fixed  Auto smoke detection sys’ for whole Accomodation

Price & terms : Please enquire using the email form below.

If you cannot find the vessel, crane, rig or equipment that you need,
please send us an email to mail@worldoils.com stating your
requirements and we shall find it for you.

We can arrange delivery of equipment and towage of rigs and vessels where needed.

The details mentioned above are believed to be accurate but are not guaranteed.

--------------------------------------------------------------------------------------------------------------------------
