New CE5 Submarine for Sale

Equipment ID: 2138
Equipment name: New CE5 Submarine for Sale
Category: ROVs & Submarines
Specifications: New CE5 Submarine for Sale
5 persons New CE5 Submarine for Sale

General Characteristics
Occupants : 1 pilot and 4 passengers
Maximum Operating Depth : 200 meters / 650 feet
Operational Autonomy : Up to 16 hours
Type : Dry, 1 atmosphere
Classification : DNV-GL

Dimensions and Weight
Dimensions LxWxH : 514 cm x 300 cm x 227 cm
Weight (ex. passengers) : 7,250 kg (Salt water)
Maximum Allowable Payload : 550 kg (Salt water)

Pressure Hull
Pressure Hull Material : Acrylic and Steel
Hatch Type : Top-Hatch

Propulsion
Propulsion Type : Electrical
Propulsion Horizontal : 2 x 5.5 kW Thrusters
Propulsion Vectored Vertical : 4 x 6.4 kW Thrusters
Surface Speed : 4 knots
Underwater Speed : 3 knots

Life Support Systems
Oxygen System : Continuous Flow
Mission Oxygen Capacity : 5 Liter (Quick Exchange)
Emergency Oxygen Capacity :
2 x 20 Liter @ 200 bar
2 x 13.4 Liter @ 200 bar

Carbon Dioxide Removal : 8 hours with Calcium Hydroxide
Survival Period : 96 hours
Emergency CO2 Removal : Lithium Hydroxide Blankets
Autonomous Breathing Devices : 5
Life Support Monitoring : 2 independent life support monitors (O2 - CO2)

Ballast and Buoyancy Systems
Number of Ballast Tanks 4
Main Ballast Tank Capacity 3,400 Liter
Compressed Air Capacity 4 x 50 Liter @ 200 bar
Hydraulically Releasable Weight 100 kg

Power Capacity
Buoyancy Tank : 100 Liter
Total Power Capacity : 43.2 kWh
Battery Type High Capacity : Lithium-ion
Propulsion System Capacity : 4 x 130 VDC Battery Packs - 31.2 kWh
House System Capacity : 4 x 24 VDC Battery Packs - 12 kWh

Navigation, Communication, Auxiliary
Charging (Optimal Cycle) : 4 - 6 hours
Emergency Battery : 96 hours for Critical Systems
Air Conditioner System : 7,000 BTU
Underwater Communication : Single sideband acoustic telephone
Surface Communication : VHF Handheld Unit
Navigation : Echosounder, Magnetic Compass, Electronic Compass
Control System : “MANTA“ controller

Information System
Alarm System, Battery Status, Thruster Status, Sensor Status,
Internal Pressure, Depth, Electrical Insulation Monitoring, Water
Ingress Sensors, Freon Sensor, Buoyancy Tank Level Indicator,
Internal and External Temperature

Safety Equipment
Pinger Locator Beacon System, Emergency Releasable Buoy,
Maximum Depth Protection, Deadman Switch, Fire Extinguisher,
External Air Connection for diverassisted ascent, Xenon Flasher

Other
Protective Cover for Acrylic Viewport, Checklists and Manuals,
Topside Communication Unit, Charger

Price & terms : Please enquire using the email form below

If you cannot find the vessel, crane, rig or equipment that you need,
please send us an email to mail@worldoils.com stating your
requirements and we shall find it for you.

We can arrange delivery of equipment and towage of rigs and vessels where needed.

The details mentioned above are believed to be accurate but are not guaranteed.

------------------------------------------------------------------------------
Search words (for official use only) :
New CE5 Submarine for Sale
200 meter diving depth - New CE5 Submarine
5 persons CE5 Submarine for Sale
New CE5 Submarine with 200 meter diving depth for Sale
DNV-GL Classification CE5 Submarine
------------------------------------------------------------------------------

Worldoils Oil, Gas and Offshore Marketplace - New CE5 Submarine for Sale

Images

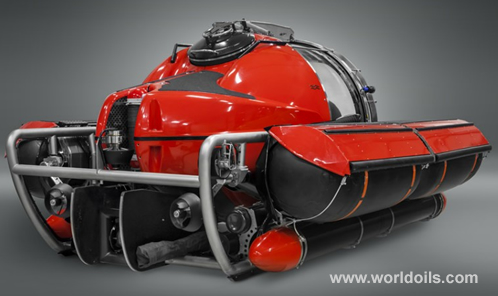

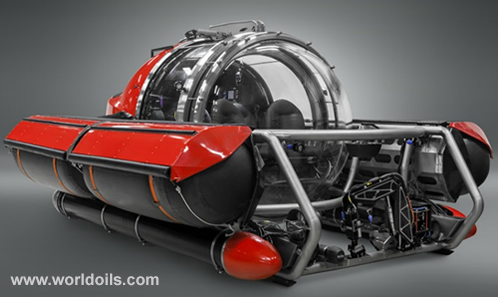

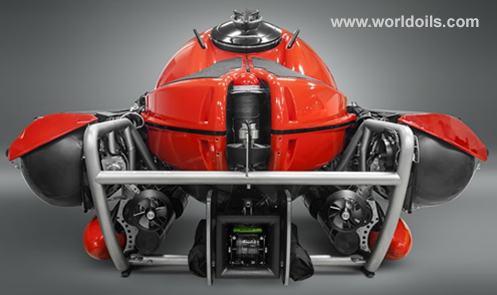

CE5 Submarine with 200 meter diving depth for Sale
