Platform Supply Vessel For Sale
4200bhp Platform Supply Vessel For Sale in West Africa
PSV for sale for Nigeria, Angola, Ghana

Built :
Year : 1976
Builder : Ulstein Hatio A/S, (UT-706 design)
Class : BV + 1A1-EO, Oil Recovery

Dimensions :
Length Overall : 67.80m 222.38ft
Breadth Mid : 17.50m 57.40ft
Depth : 7.30m 23.94ft
Draft : 4.60m 15.08ft
Dead Weigth : 2,200t
Gross Tonnage : 2,019t
Net Tonnage : 606t

Machinery :
Main Engines : 2×Wartsila Nohab F212-V, 4200bhp
Bow Thursters : 2×Ulstein 90TV-800BHP / 9.4t total
Stem Thursters : 1×Ulstein 90TV-500BHP / 5.9t total
Propellers : 2×Ulstein 600 AGSC 2500mm V.P.P.
Rudders : 2 ×Ulstein high lift
Auxillary generators 2×Seimens 133kva, 380/220v, 50Hz
Shaft generators : 2×Seimens 815kva, 380/220v, 50Hz
Emergency generator : 1×Stram ford 80kva, 440/110v, 50Hz

Speed/Consumption :
Maximum Speed : 13 knots on about 13t/day
Economic Speed : 10 knots on about 13t/day
In port : 0.8t/day
Stand-by at sea : 2.2t/day

Capacities/Transfer Rates :
Fuel oil (with flow meter)  : 971.8m3-100m 3/hr @ 60m head
Drill water/Ballast water : 1086.9m 3/hr @ 60m head
Potable Water : 751.2m3-70m 3/hr @ 60 head
Oil base mud(2.2g-2150bbis) : 342.0m 3-2×75m3/hr @ 6 bar
Connection : Weco 4"
Dispersant : 4m 3
Free deck space : 44.0m × 14.5m = 638sq.mts
Deck Strength : 2,000t-5tm 2

Accommodation :
Berths : 34 in 20 cabins = 4×1 berth cabins
Crew maximum : 13 = 12×2 berth cabins
Passengers : 21 2×3 berth cabins
Hospital : 1 berth
Mess room : 1× 20 and 1 × 14

Deck Equipment :
Tugger Winches : 2×Hydraulic Brattvaag 10t, 0-18 m/min
Capstans : 2×Hydraulic Brattvaag 10t, 0-28 m/min
Windlass : 2×32mm Brattvaag 17.51 pull, 12 m/min
Dock Crane : 1×Tico 130, 1.5t with 8.5m reach
Anchors : 2×1740kg + 1 spare
Anchor Chain : 2×750m × 36mm
Bow Mooring : 2×Plim sol, 20t
Drum Capacity : 2×2000m × 32mm diameter
Brake Holding : 50t/hr @ 60m head
Joystick : Ustein/ Siemens
Stability Tanks : 3×170m 3 Ulstein passive stability tanks

Fire Fighting :
Pumps : 1×1400m 3/hr and 1×650m 3/hr
Monitors : 2×Monitors with 2050m 3/hr total
Range / Height : 120m / 45m

Stand-By Rescue :
Life Raft : 4×20 persons inflatable
FRC vessel : 1×Holen Tender Ht24, 7m 200hp waterjet
MOB craft : 1×Zodiac 2355, 6 person,25 hp
Rescue zone : Two, one on each side

Anti-Pollution system :
Dispersant Storage : 4m 3
Dispersant Booms : 2×6m spray boom, one on each side

Navigation/Communication :
Radars : 1×Furuno FR-810DA with ARPA
Gyro : 1
Autopilot : 1
GDMSS : A3
GDMSS : 3×Jotron 'Tron'
Immarsat-C : 2
VHF : 2×Sailor RT 146, 25w
VHF : 3×Motorola MT700, 5w

Price & terms : Please enquire using the email form below.

If you cannot find the vessel, crane, rig or equipment that you need,
please send us an email to mail@worldoils.com stating your
requirements and we shall find it for you.

We can arrange delivery of equipment and towage of rigs and vessels where needed.

The details mentioned above are believed to be accurate but are not guaranteed.

 ---------------------------------------------------------------------------------------------------------------------------
Search words(for official use only) -
Platform Support Vessel For sale
4200BHP PSV For sale
PSV For sale in West Africa
4000bhp PSV FOr Sale
PSV For Sale in Nigeria, Angola, Ghana
PSV for Sale
4200BHP PSV For sale in Ghana, Angola, Nigeria
-------------------------------------------------------------------------------------------------------------------------------

Max Ice Class DP2 10 Streamer Seismic Vessel For Sale
Ultra-modern, High Ice Class, 10 Streamer 3D/4D Seismic Vessel

Subject to prior sale

Oil Tanker 250000 for Rebuilding

Description

Length overall (LOA) 324 Metres
Length between perpendiculars (LBP) 311 Metres
Extreme breadth 58.037 Metres
Moulded breadth 58 Metres
Moulded depth 27.7 Metres
Built date: 01 Dec 1988
Light ship is 31,199 tns.

Price & terms : Please enquire using the email form below.

If you cannot find the vessel, crane, rig or equipment that you need,
please send us an email to mail@worldoils.com stating your
requirements and we shall find it for you.

We can arrange delivery of equipment and towage of rigs and vessels where needed.

The details mentioned above are believed to be accurate but are not guaranteed.

------------------------------------------------------------------------------------------------------------------
Search words(for official use only) :
Oil Tanker 1988 Built For Sale
Oil Tanker For Sale
1988 Built Oil tanker for Sale
---------------------------------------------------------------------------------------------------------------------

Glove Dredger For Sale
1997 Built Dredger for Sale

25m3 Full-Dressed Glove Dredger For Sale
Built : 1997
LBD : 62 x 23 x 4.5m
D.W : 1700T
Deck Space : 21 x 22m

Crane : SKK-31025CDT-N
Capa of lifting : 310T
Speed of Roll-up : 0-60m/min
Speed of Roll-down : 0-30m/min
Operation depth : ~50m
Length of jib : 46.5m

M/E : Yanmar : 6M2NIW 2580 ps

Glove : 25m3 + hard 10m3 (82T)

Spud : 130mm x 65T x 2 units

Thruster : 5T x 1

Inspectable : Southern Japan

Price & terms : Please enquire using the email form below.

If you cannot find the vessel, crane, rig or equipment that you need,
please send us an email to mail@worldoils.com stating your
requirements and we shall find it for you.

We can arrange delivery of equipment and towage of rigs and vessels where needed.

The details mentioned above are believed to be accurate but are not guaranteed.

-----------------------------------------------------------------------------------------------------------------
Search words -
Glove Dredger for Sale
Dredger for sale
1997 Built Dredger for Sale
Full-Dressed Glove Dredger for Sale
---------------------------------------------------------------------------------------------------------

Catamaran type passenger ship for Sale
25M pax Passenger Ferry
2001 built Passenger Ship for Sale
219 pax Crew boat For Sale

Specifications
Vessel type : Passenger ship
Built Year : 2001
Capacity : 219 pax

Ship type : Catamaran type passenger ship
Built : 2001
GRT : 140T
LOA/LBP/B : 25.0M/23.43M/8.5M
Depth : 3.1m
Draft : 1.296 (BOW 1.244 / STERN 1.347)
Pax : 219 persons (passengers : 215, crew : 4)

Speed :
Designed speed (25 knots)
Current speed : 17 knots (max) , 15 knots (service)
M/E : Caterpillar 570KW X 2, 3112C DITA
AlE : Caterpillar 99HP X 65KW, 3304 DINA(3054)
Propellar : 2 screws
Hull mat : Aluminum alloy
Fuel cons. : MGO 154 liter X 2 engines / hour
Delivery : Promptly

Price & terms : Please enquire using the email form below.

If you cannot find the vessel, crane, rig or equipment that you need,
please send us an email to mail@worldoils.com stating your
requirements and we shall find it for you.

We can arrange delivery of equipment and towage of rigs and vessels where needed.

The details mentioned above are believed to be accurate but are not guaranteed.

------------------------------------------------------------------------------------------------------------------------------
Search words(for official use only) -
Catamaran type passenger ship for Sale
25M pax Passenger Ferry
2001 built Passenger Ship for Sale
Crewboats  for sale in South America, Africa, Middle east
Crewboats for sale for West Africa, Nigeria, Libya
219 person Crewboat for sale
Over 200 person Passenger Ferry for sale
219pax Passenger Ferry For sale
Over 200 person Crewboat for sale
219 pax Crewboat - 2001 built - for sale
25M Crewboat for sale in Singapore, Malaysia, Indonesia
----------------------------------------------------------------------------------------------------------------------------

Passenger Ship for Sale
26M Passenger Ferry for Sale
130 person Crewboat for sale
1991 built Passenger Ferry for sale

General
Built Year : 1991
Capacity : 130PAX
Class : JG Smooth Area

Specifications
Hull Material : Light Metal Alloy
GRT : 85T
LOA/LBP/B/D : 26.2/24.91/5.5/2.48M
M/E : GM 16V-92TA X 2, 2 X 1130PS
Speed : 30 knots
Passenger : 130 pax
Crews : 4 crews

Delivery : Prompt

Price & terms : Please enquire using the email form below.

If you cannot find the vessel, crane, rig or equipment that you need,
please send us an email to mail@worldoils.com stating your
requirements and we shall find it for you.

We can arrange delivery of equipment and towage of rigs and vessels where needed.

The details mentioned above are believed to be accurate but are not guaranteed.
--------------------------------------------------------------------------------------------------------------------------
Search words(for official use only) -
Passenger Ship for Sale
26M Passenger Ferry for Sale
1991 built Crewboat for sale
Used Crewboat for sale in Singapore, Malaysia, Indonesia
Crewboats for sale for West Africa, Nigeria, Libya
130 person Crewboat for sale
1991 built Passenger Ferry for sale
130pax Passenger Ferry For sale
Crewboats for sale in South America, Middle east
--------------------------------------------------------------------------------------------------------------------------

Tugboat for Sale
2009 Built Tug for Sale

Call sign : TBN
Class : China domestic class”ZC”
Date of built : Aug.2009

Dimensions : 35.80mx9.20mX4.30m
Navigation area/gmdss : China great coastal/A1+A2
Hull: Double skinMaterial : Steel

M/E : 2x1200hp, Shandong Weifang
Aux. Engine : Steyr 161kw X 2 sets, ZC
Gen. : 120KW X 2sets, CCS

Hook capacity : 35Mtons, CCS
Towing winch capacity : 35Mtons ZC
Anchor winch : 800Kg Hall anchor, Ø28mm Chain,ZC
Auto. Wheelhouse, 3 in 1 controller

Naviaids : MHF(SRG-3150DN,CCS),VHF(STR-6000APSC,CCS),
VHF(6000A, CCS), RACON(SAR-9, CCS),TWRT(FT-2800,CCS),
EPIRB(SEP-406,CCS),RADAR(FR-1941,licensed),
RADAR(FR- 1831,licensed),GPS(2116, licensed),WEFAX(FR-4088, licensed)

Lifesaving : fitted

Price & terms : Please enquire using the email form below.

If you cannot find the vessel, crane, rig or equipment that you need,
please send us an email to mail@worldoils.com stating your
requirements and we shall find it for you.

We can arrange delivery of equipment and towage of rigs and vessels where needed.

The details mentioned above are believed to be accurate but are not guaranteed.

------------------------------------------------------------------------------------------------------------------------
Search words(for official use only) :
Tug For Sale,
Tugboat 2 x 1200hp For sale
Tugboat 2009 Built
2009 Built Tugboat For sale
--------------------------------------------------------------------------------------------------------------------------

Tug boat 2008 Built for Sale
Harbour and towing Tug Boat with FiFi For Sale

Description

Type of Ship : Harbour and towing Tug Boat with FiFi
Built Year : 26 Nov,2008
Class : ZC
Navigation/service area : Coastal/A1+A2GRT/NRT: 493t/148Mt

Dimensions
Loa : 43.80 m
Lpp : 39.50 m
Breadth (M) : 10.80 m
Depth(M) : 4.80 m
Draft(light/loaded) : 2.806/3.600 m
light/loaded displacement : 580.680/863.580 Mtons
Material(hull/deck) : Steel/steel

Engine
M/E(type/output/rpm/set) : 6320ZCd-6,1471kw,525,,2sets, Made in China
Aux.(type/output/rpm/set) : WD615.67CD,138KW,1500RPM, 3sets, Made in China
Generator(type/output/rpm/set) : TFXW-250L4-H,120KW,1500RPM, 3sets, Made in China
Bow thrust : Fitted

Oil: Heavy oil and light oil

Navaids : 2 Radar, GMDSS A1+A2, 2 VHF,1 EPIRB, 1NAVTEX, 2SART, 2GPS,1 AIS…

Annual survey : 8 April,2010
Special survey : 8 April, 2012
Doch survey : 8 April,2012

Inspectable in China.

Price & terms : Please enquire using the email form below.

If you cannot find the vessel, crane, rig or equipment that you need,
please send us an email to mail@worldoils.com stating your
requirements and we shall find it for you.

We can arrange delivery of equipment and towage of rigs and vessels where needed.

The details mentioned above are believed to be accurate but are not guaranteed.

--------------------------------------------------------------------------------------------------------------------
Search words (for official use only) -
Towing Tug Boat with FiFi For Sale
Tugboat for Sale
2008 Built Towing Tug Boat for Sale
Towing Tug Boat for Sale
2008 Built Tug Boat for Sale
--------------------------------------------------------------------------------------------------------------------

Product Tanker for sale
129M Product Tanker for sale in South America
9600T dwt Newbuilding Tanker For Sale
Newbuilding Product Tanker For Sale in South America

General Specifications :
Type of ship : Product Carrier  - Double Hull
Flash point below 60 º C
Classification :
Lloyd´s Register of Shipping
+100A1  double hull oil tanker LI; + LMC
Traffic : River ways/Ocean

Dimensions:
Length over all : 129.00m
Length between perp. : 122.80m
Beam : 20.50m
Max. draught : 6.10m
Depth : 8.95m
Deadweight at max. draught : 9600 MT

Main Engines :
Type : 2 x Sulzer – 8ATL – 25 – H
Max. power : 2 x 1600Kw at 1000 rpm
Serv. power : 2 x 1440Kw at 966 rpm
Fuel oil : IFO 180 cst at 32 deg. cent.
Reduction gear : Reversable w/clutch : Qty = 2 – Reintjes
Propeller : Fixed pitch : Qty = 2

Speed :
Trial speed at 5.5. m draught : 11,5 knots (twin vessel)

Range :
Fuel oil consumption : 14 t/d
F.O. tank capacity : 702,50cm
D.O. tank capacity : 126,60cm
Distiller capacity : 10 t/d

Cargo tanks :
Central tanks : Epoxy painted : Qty = 4
Wing tanks : Epoxy painted : Qty = 8
Capacity 100% full : 10.261,20cm
Slop tanks : Epoxy painted : Qty = 2
Slop tanks capacity : 292,50cm
Segregations : 9 + Slop Tanks.

Boilers :
Type : Scotch : Qty = 2ea
Capacity : 2 x 2500Kg/h
Pressure : 7Bar
Maker : Salcor Caren

Cargo pumps:
Type : Deep well : Qty = 14ea
Capacity :
4 x 250cm/h
6 x 100cm/h
4 x 50cm/h
Maker : KSB

Segregated ballast pumps :
Type : Centrifugal : Qty = 2ea
Capacity : 2 x 250cm/h
Maker : Itur

Cargo rating : 1300cm/h segregation

Cargo heating :
Max. cargo temp. : 66º C
Cargo tanks : Steam heaters on main deck
Slop tanks : Steam coils

Crew :
Room for : 24

Additional Information :
Washing machines :
Central tks fixed
Wing tanks portables – Polar Jet
Communications : VHF-SSB Furuno
Galley equipment : Electrical
Anchor winches : Qty = 2ea Norwinch
Mooring winches : Qty = 4ea Norwinch
Deck cranes : Qty = 2 : 5swl  Hagglungs
Rudder gear : Sperry
Bow thruster : Intermarin
Auxiliaries : Guascor E318 TA : Qty = 3ea
Generators : Burban 650Kva : Qty = 3ea
Air conditioned : Flakt – Svenska
Service pumps : Itur

Price & terms : Please enquire using the email form below.

If you cannot find the vessel, crane, rig or equipment that you need,
please send us an email to mail@worldoils.com stating your
requirements and we shall find it for you.

We can arrange delivery of equipment and towage of rigs and vessels where needed.

The details mentioned above are believed to be accurate but are not guaranteed.

----------------------------------------------------------------------------------------------------------------------------
Search words(for official use only) -
Product Tanker for sale
129M Product Tanker for sale in South America
9600T dwt Newbuilding Tanker For Sale
New Product Tanker For Sale
Newbuilding Product Tanker For Sale in South America
New 9600T dwt Tanker for sale in South America
Small New Product Tanker For Sale in Brazil, Argentina
Product Tanker for Sale in Venezuela
Newbuilding 9600dwt Product Tanker For Sale
-----------------------------------------------------------------------------------------------------------------------------------

Double Hull Bulkers - 7500T dwt for Sale
Double Hull New Building Mini Bulk Carriers
New Building Bulk carriers available - slots
Double Hull New Building Mini Bulk Carriers available For Sale
Double Hull Bulk Carriers 7500T Dwt for Sale

Double Hull Bulk Carriers - 7,500MT - 2 slots

Type : Bulk Carrier
Hull Configuration : Double hull-box type
Quantities : 2
Class : I + hull + Mach bulk carrier (esp unrestricted navigation)
Classing body : DNV

DWT (Metric Tons) : 7,500 dwt
Charter : Charter back option available

Day rate : Please enquire

Price & terms : Please enquire using the email form below.

If you cannot find the vessel, crane, rig or equipment that you need, please send us
an email to mail@worldoils.com stating your requirements and we shall find it for you.

We can arrange delivery of equipment and towage of rigs and vessels where needed.

The details mentioned above are believed to be accurate but are not guaranteed.
------------------------------------------------------------------------------------------------------------------------------
Search words(for official use only) -
Double Hull Bulkers - 7500 T dwt  for Sale
Double Hull New Bulkers of 7.5k dwt for Sale
7500T dwt Double Hull Bulk Carriers for Sale with charter options
Bulk Carrier slots available at shipyards with charter options
New Building Double Hull 7500T dwt Bulkers For Sale
Double Hull New Building Bulk Carriers available For Sale
New double Hull Mini Bulk Carrier Slots for Sale
New Building Mini Bulkers for sale with charter option
---------------------------------------------------------------------------------------------------------------------------

ASD Tug For Sale
4500hp ASD Tugboat For Sale

Principle dimensions
L x B x D x d : 38 x 10 x 4.5 x 3.4m
Speed (sea trial, 100% MCR) : About 13.5 knots
Bollard Pull : About 56 tons
Complements : 10 persons
Navigating area : Coasting area
Class : KR
F.O.tank : 120 cubic meter
F.W.T : 25 cubic meter

Main engine & propeller :
Niigata 6L28HX, 2,250ps x 750rpm x 2 sets Z-peller x 2 sets (Niigata, ZP-31).

Deck machinery :
electo-hydraulic type
Windlass & towing winch : 3.0ton x 12m/min x 2 sets
Towing winch : 15ton x 12m/min x 1 set
Rope reel : 2.0ton x 40m/min x 1 set

Lifesaving equipment :
Life raft (10p) x 2 sets

Fire fighting equipments :
Portable fire-extinguisher in E/R. accommodation

Air condition :
Package type air condition

Aux.generators :
168kw x 225v x 60hz x 1,800rpm x 2 sets, 80kw x 1,800rpm x 1

Aux. machinery :
Air compressor x 2, oil bilge separator x 1, F.O.purifier x 1, L.O.purifier x 1,
sewage treatment x 1,

Navigation equipment :
Anemometer x 1, radar 10kw x 1, aux.radar 4kw x 1.
Air horn x 1, magnetic compass x 1, satellite compass x 1, GPS x 1,
echo sounder x 1, speed log x 1, AIS x 1, weather fax. x 1, inmarsat C x 1.
MF/HF radio(250w) x 1, VHF(25w) x 1, two way radio telephone x 2,
EPIRB x 1, radar transponder x 1

Price & terms : Please enquire using the email form below.

If you cannot find the vessel, crane, rig or equipment that you need,
please send us an email to mail@worldoils.com stating your
requirements and we shall find it for you.

We can arrange delivery of equipment and towage of rigs and vessels where needed.

The details mentioned above are believed to be accurate but are not guaranteed.

---------------------------------------------------------------------------------------------------------------------
Search words(for official use only) :
ASD Tug 4500hp For Sale
ASD Tug For Sale in Asia
4500hp ASD Tugboat for sale
ASD Tugs For sale
ASD Tugboat for sale in Singapore
----------------------------------------------------------------------------------------------------------------------

Twin Screw Tugboat - 2400bhp For Sale
2400bhp Twin Screw Tugboat For Sale - 2004 built
Used Twin Screw Tugboat For Sale

General
Class : Bureau Veritas
Type of Vessel : Tugboat
Built : 25 Nov.2001 / 2004
Bollard Pull : 30 MT

Dimension and Capacities :
Length O.A (Mld.Hull) : (27.03 M - Art.2 (8) by NKK)
Breadth / Beam (Mld.) : (8.53 M – Reg.2 (3) by NKK)
Moulded Depth : (4.27 M – Reg.2 (2) by NKK)
Moulded Draught : 3.55 meter (Reg.4(2) )
GRT/NRT : 229 / 69
Fuel Tank max : 150 tonnes
Fresh Water Tank max : 40 tonnes

Speed/ fuel consumption (Free Running)
Max Speed :
11.8 knots/ 6.25 MT
Service Speed :
9.24 knots / 4.1 MT
Main Engines :
Cummins KTA38 – M2, 2 x 1200 HP ( 895.2kw) @ 1800rpm, 12 unit
cyl, Manu date : 23 Dec 03.

Reduction Gear Transmission :
2 units, Rentjes, Model WAF 526L, Ratio 5.05 : 1, Manu date 2004.

Generator Sets :
2 units 60KVA Cummins 6BT5.9 – G6, 143hp (107kw) @ 1500rpm

Propeller :
Fixed propeller blade, 4 blades, Manganese Bronze, pitch 1.422 mtrs,
dia 1.911mtrs

Shafting :
Solid, taper with key, material KSUSF 316, dia.139.7mm, 5.229 mtrs.
Stern tube brg type : Cutless bearing, Rudder brg type: Cutless bearing.

Alternator :
2 units, Stamford UC1274C1, KVA Base rate 97.5, KW Base rate 78,
50Hz, 1500 rpm, 400V, 3 Phase, Current at 0.8 pf 140.7A.

Towing winch :
Hydraulic towing winch HY TW SP-30T, Bollard Pull Cap. 30T, Manu
date 16 May 2004.

Anchor Windlass :
Model 480-HY 6999, max torque cap 2 tons, power pack 10 tonnes

Safety Equipments :
Life Raft with HRU (Hydrostatic Release Units)
2 Units, Type – KHA - 10
Lifebouy
No attachment – 2 units
30M Lifeline – 2 units
Self-Lighting Floating lamp – 2 units
Smoke signal and self-lighting floating lamp – 2 units

Fire Extinghuishers :
9KG Type – 8 units, Type Sri ABC
45KG Type – 1 unit, Type: Sri ABC
Hand Flare Signal – 6 units
Rocket Parachute – 12 units
Life Jacket – 14 units
Marine Fireman’s Outfit Set ( 7 item)

Radio & Navigation Equipment :
AUTO PILOT SYS-Gyro Compass Model MKM022 Maker Yokogawa
Denshikki co.ltd, Heading repeater model NT920AHR2, Maker
Navitron sys ltd havant hants U.K.
SSB RADIO – Antenna JRC, NFC – 196, Radio telephone JRC, JSB
– 196GM, safe dist 1.5 mtrs, DSC/NBDP Modem JRC, NCT – 196N
safe dist 1.5mtrs.

VHF DSC RADIO TELEPHONE SAMYUNG ENC, STR – 580D
GMDSS receiver NAVTEX, NAV5, Compass safe dist 1 mtrs, 10VDC-
30VDC.
ECHO SOUNDER –Furuno, FCV – 667, 11VDC-30VDC, 50kHz-
200kHz.
GPS NAVIGATOR –GP-32, Display unit compass safe dist standard
0.8mtrs, Steer 0.5mtrs, Antenna Unit GPA – 017

MARINA RADAR –Furuno 1721 Mark –2, Display unit RDP – 098,
Compass safe dist- standard 0.5mtrs Steer 0.4mtrs, Antenna unit RSB
– 0067, Compass safe dist- standard 1.8mtrs, Steer 1.4 mtrs.

Navigation Lights :
Anchor light – 1 unit
Masthead light – 3 units
Port light – 1 unit
Starboard light – 1 unit
Towing light – 1 unit
Stern light – 1 unit
All round white light – 2 units
All round Red light – 2 units
All round green light – 1 unit
MakerJ.H Peters & Bey.22525 Hamburg

Fire Fighting Equipment :
Portable; 8 x 9 litrs foam, 5x3kgs CO2, 3 x 6kgs dry powder, 2x8kg dry
powder, 1x 45 litrs foam.

Accommodation :
2 x 2 berth, 1 x 8 berth
2WC pedestal with seat, I shower, 1 wash basin.

Price & terms : Please enquire using the email form below.

If you cannot find the vessel, crane, rig or equipment that you need,
please send us an email to mail@worldoils.com stating your
requirements and we shall find it for you.

We can arrange delivery of equipment and towage of rigs and vessels where needed.

The details mentioned above are believed to be accurate but are not guaranteed.

-------------------------------------------------------------------------------------------------------
Search words :
Towing Tug for sale in Singapore
2400bhp Twin Screw Towing Tug for Sale
Used Towing Tug for sale in Asia
Towing Tug from Malaysia
Towing Tug For USA
Tugboat For South America
Tugboat For caribbean
Towing Tug for sale
2400 bhp Twin Screw Tug
-------------------------------------------------------------------------------------------------------

Twin Screw Tug - 2000 hp - For Sale
2000HP Twin Screw Tug - 2006 Built

Particulars :
Type :  Steel Tug Boat
Year Built : 2006
Class : G.L
GRT/NRT : 262 / 79

Length overall : 30.00 M
Beam (Mld) :  8.60 M
Depth (Mld) : 4.12 M
Draft designed : 3.500 M
Speed : About 11 Knots
Accommodation : Complement for 12 Men

F.O Capacity : Approx 204S Tons
F.W Capacity : Approx 64 Tons
B.W Capacity : Approx 42 Tons

Main Engine :
2 X 758KW Mitsubishi Engine Model : S6R2-MPTK2L rated @ 1400 rpm
Gear Box : Reintjes Type 562L
Generator :
 2 X Cummins Engine Model : 6BT5 9D c/w Alternator 80KW/100KVA

Propeller / Kort Nozzle :
Two (2) units of slid 4 blades Manganese Bronze Propeller complete
with Mild Steel Kort Nozzle

Steering Gear System : One (1) unit 2.0 Tons Palmarine Electro-Hydraulic

Anchor Windlass :
22mm Electric Hydraulic c/w Double Gypsy and Double Drum

Anchor : Two (2) units of 520 kgs Stockless

Anchor Chain : 22mm X 27.5 metre Grade 2

Towing Winch :
One (1) unit 30 Tons drum pull with 100 Tons brake holding c/w
Electric Power Pack 2 x 25HP. Drum capacity for wire length 38mm
Dia x 2500ft

Sewage Treatment Plant :
One (1) unit of IL Seung ISS-15 type with Annex IV Marpol Treaty
73/78

GS & Fire pump / Bilge & Ballast pump :
Two (2) unit Desmi Horizontal self priming c/w teco 7.5 kw x 2900
rpm motor, 415 v, 3 ph, 50 hz

Fuel Transfer Pump :
One (1) unit Itur Horizontal gear pump fitted with relief v/v 415v, 3 ph, 50 hz

FW / SW Pressure Pump :
Two (2) units Myers Ejector pimp c/w 0.5 hp motor, 230 v, 1 ph, 60
hz fitted with pressure switch, pressure guage check valve & mil 2
diaphragm Tank 2.5 m2/hr, 15/30 PSI

Dirty Oil Pump :
One (1) unit Itur Gear pump fitted with relief v/v c/w 0.55 kw x 950
rpm motor, 415 v, 3 ph, 50 hz

Oil Water Seperator : One (1) unit China Made Heavy Oily Seperator

Ship Communications :
1 x Electric Engine Telegraph, 1 x 24 v Electrical Air Horn c/w
compressor, 1 x hand operated Mechanical Fog Horn, 3 x Wall
Mounted Type Intercom, 1 x Mini M Tracphone, 1 x Brother Fax
Machine c/w Printer, 1 x Furuno Weather Fax, 1 x Satellite EPIRB

Radio & Navigational Equipment :
1 x Daiko Magnetic Compass, 1 x Marine Radar, 2 x Marine Radio
VHF, 1 x Marine SSB, 1 x Echo Sounder, 1 x Navtex Receiver,
1 x GPS Navigator, 2 x Two-Way Marine Radio VHF (Walkie-Talkie)

Navigation Lights / Fire Fighting Equipments / Life-Saving Appliances :
All accordance with GL Classification Society’s specification and
requirement of the government authority for the intended trade of the
subject

Air-Conditioning :
5 x Panasonic Ceiling Type fitted at Master Cabin, C/Engr Cabin,
Crew Accommodation, Mess room and Bridge

Price & terms : Please enquire using the email form below.

If you cannot find the vessel, crane, rig or equipment that you need,
please send us an email to mail@worldoils.com stating your
requirements and we shall find it for you.

We can arrange delivery of equipment and towage of rigs and vessels where needed.

The details mentioned above are believed to be accurate but are not guaranteed.

-------------------------------------------------------------------------------------------------------
Search words :
Tug for sale in Singapore
2000 bhp Twin Screw Tugboat
Towing Tug from Malaysia
Used Towing Tug for sale in Asia
Towing Tug for sale
2000bhp Twin Screw Tug for Sale
-------------------------------------------------------------------------------------------------------

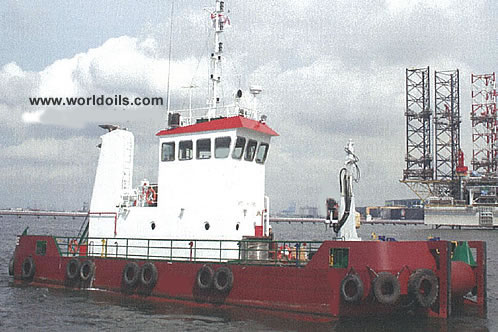

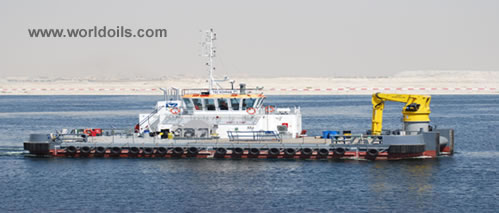

Multicat Vessel For Sale
2008 built - Used Multicat For Sale
1440bhp Multicat Vessel For Sale

General data :
Built : 2008
GRT / NRT : 231 / 70 tons

Specifications
Length : 26.00 m
Breadth : 11.00 m
Depth / draft : 3.25 m / 2.50 m

Main engine / generator :
Main engine : 2 x caterpillar 3412C DITA 720 bhp @ 1800 rpm

Gear box : ratio = 4.5 : 1

Generator : 2 x cummins 6BT5.9 - G3 staford @ 85 kW 50 hz

Propeller / kort nozzle :
2 x 4 blades manganese bronze propeller c/w mild steel kort nozzle

Tank capacity :
Fuel oil tank : 90 cub.mt
Fresh water : 45 cub.mt

Deck machinery :
Anchor windlass :
2 x electrical hydraulic anchor windlass having capacity 2.0 tons @ 10 m / min single
gypsy suitable for 19 mm dia. Stud link chain

Anchor : 2 x 380 kg stockless bower anchor
Chain cable : 10 shackles of dia. 19 mm x 27.5 m. Stud link cable

Towing winch :
1 x single drum winch with 100 tons brake holding with winding load 40 tons

Crane : Sormec knuckle boom swl 9.5 ton @ 6.5 m

Navigation / communication equipment :
Radar : JRC JMA 1800
SSB radio : JRC JSB 196
GPS : JRC NWZ 4570

Compass : daiko magnetic compass
VHF : JRC VHP 200
Epirb : mcmurdo E3

Echo sounder : JRC PLOT - 500
Navtex receiver : JRC NCR 330A
PA system : 1 x horn speaker

Engine room :
Oily water seperator : China type 0.25 / cu.m / hy
Fuel filter : main engine only twin racor type
Blower fan : 2 x 19" for engine room

Shafting / stern tube :
Water lubrication stern tubes with cutlass bearing & bronze stuffing box
2 lengths stainless steel (AISI 316) shaft

Price & terms : Please enquire using the email form below.

If you cannot find the vessel, crane, rig or equipment that you need,
please send us an email to mail@worldoils.com stating your
requirements and we shall find it for you.

We can arrange delivery of equipment and towage of rigs and vessels where needed.

The details mentioned above are believed to be accurate but are not guaranteed.
----------------------------------------------------------------------------------------------------------------
Search words (for official use only) :
Multicat Vessel for Sale
Used multicat vessel for sale - 1440bhp
Multicat for sale in Singapore
Multicat boat for sale in Asia
1440bhp Multicat Vessel for sale
Multicat vessel - 2008 built
Used 2008 built Multicat Vessel
Multicat boat for sale in Singapore
----------------------------------------------------------------------------------------------------------------

Tug for sale - 2400 BHP

Principal Particulars
Length Overall : 30.00M
Length BP : TBA
Breath Moulded : 8.60M
Depth Moulded : 4.115M
Draft Moulded : 3.50M
Class Notation : GL + Tug
GRT/NRT : TBA
Speed : 11.0 knots (approx)
Endurance : 22 days
Built : 2010
Delivery : Prompt

Tankage
Fuel oil : 190 tons (approx)
Fresh water : 65 tons (approx)
Ballast water : 40 tons (approx)

Machinery
Main engine : 2 x 1200BHP @ 1800RPM Cummins KTA38-M2
Reduction gear : Twin disc MG5321, ratio 5.96:1
Propeller : 2 x 4 blade Kaplan type bronze nozzles
Main generator : 2 x 78kw Cummins 6BT5.9DM

Accommodation
For 12 men with 2 cabins for Captain and Chief Engineer
and 5 x two-men cabins

Pumps
GS and ballast pump : 2 x self-priming pump of 28M3/hr @ 30M head, 415/3/50
F.O. transfer pump : 1 x horizontal gear pump of 8M3/hr at 25m head, 415/3/50
FW pressure set : 1 x freshwater pressure set of 3M3/hr at 15m head
SW pressure set : 1 x salt water pressure set of 3M3/hr at 15m head
Oily Bilge Water Separator : 1 x 0.25M3/hr
Sewage Treatment Plant : for 15 men
Dirty oil pump : 1 x horizontal gear pump of 1.1kw x 1450RPM

Navigation Equipment
1 set Radar
1 set echo sounder
1 set GPS receiver
1 set SSB radio
1 set VHF radio
1 set VHF 2-way radiotelephone
1 set Navtex receiver
1 set EPIRB
1 set Magnetic compass

Deck Machinery
Anchor : 2 x stockless bower anchors of 570kg each
Anchor windlass : 1 x 3 tons @ 12M/min hydraulic anchor windlass suitable for 22mm dia
Towing winch : 1 x single drum towing winch
Brake holding : 80t Winch load : 25t
Drum capacity : 500m x 48mm dia (Wire rope to be supplied by buyer)

Life Saving Equipment
2 x 15 men Liferaft
8 sets Life buoy
15 sets lifejackets
1 x portable manual start diesel engine driven emergency fire pump shall be installed on board

Price & terms : Please enquire using the email form below.

If you cannot find the vessel, crane, rig or equipment that you need,
please send us an email to mail@worldoils.com stating your
requirements and we shall find it for you.

We can arrange delivery of equipment and towage of rigs and vessels where needed.

The details mentioned above are believed to be accurate but are not guaranteed.

------------------------------------------------------------------------------------------------------------------------
Search words(for official use only):
2000bhp tug for sale
2400bhp tug in Singapore
Tug for Towing - 2400bhp
Tug for towing - 2000bhp
Tug For Sale in Indonesia
Tug for Sale in Singapore
Tug For Sale in Malaysia
2000bhp Tug for Sale
2400bhp Tug For sale
---------------------------------------------------------------------------------------------------------------------------

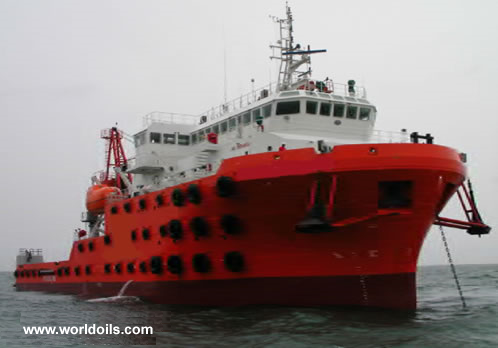

Maintenance Work Vessel for sale
66M Maintenance Work Vessel for sale in USA
New Maintenance Work Vessel for sale

General :
Classification : BV
Length overall : 66.60 metres
Breadth moulded : 20.00 metres
Depth moulded : 6.50 metres
Draft designed : 5.00 metres
Cargo deck area : 600sqm

Main engines : 2 x Cummins KTA50M2, each 1193kw at 1800rpm
Gearboxes : 2 x Reintjes WAF665, Rated 5.05:1
Propulsion : 2 x Mentra Propulsion FPP, each 2,000 dia. c/w kort-nozzle
Steering Gear : 1 shipset Kobelt independent hydraulic gear control system

Generators : 3 x Cummins KTA19-D(M1), each 300kwe
Emergency genset : 1 x Cummins 6CT8.3-D(M), 113kwe
Bow thrusters : 1 x Kammome FPP type,
Norminal thrust : 7.00 tonnes
Bow thruster c/w gear box : 1 x Cummins KTA19-M3

Navigation Area : Unrestricted
GMDSS radio equipment : for area A3

Winches :
ME 4 point mooring winches, 40 tonnes single drum,
local and central  remote control

Capstan :  2 x ME, each 6 tonnes
Anchor windlass : 1 x ME, 8.20 tonnes

Crane :
1 x SCM offshore pedestal type complying to API spec., main
boom 43 metres and aux. boom 3 metres, 25.00 tonnes-20 metres
(5.0 tonnes – 46metres)

Life saving & equipment :
Accordance with the requirement of the government authority
for an ocean going tug with total complement of  sixty (60)

Rescue boat : 1 x rescue boat with single arm davit c/w engine on board (25hp)

Cabins :
12 x 4 men each = 48 person
4 x 1 men each = 4 person
4 x 2 men each = 8 person

Price & terms : Please enquire using the email form below.

If you cannot find the vessel, crane, rig or equipment that you need,
please send us an email to mail@worldoils.com stating your
requirements and we shall find it for you.

We can arrange delivery of equipment and towage of rigs and vessels where needed.

The details mentioned above are believed to be accurate but are not guaranteed.

------------------------------------------------------------------------------------------------------------------------
Search words(for official use only) -
Maintenance Work Vessel for Sale
New Work Boat for sale
Maintenance Work Vesses - 66M
66M Maintenance Work Vessel for Sale in Asia
New Maintenance Vessel for Sale
---------------------------------------------------------------------------------------------------------------------------

Oil Barge for Sale
3277dwt Oil Barge for Sale
Newbuilding Oil Barge for Sale

Description :
This double hull and double bottom oil barge is designed for
carrying  base oil and finished oil, which flashpoint is below 60°C.

Particulars :
Length overall : 230 ft (70.104 m)
Length bp : 67.30 m
Breadth moulded : 60 ft (18.290 m)
Depth moulded : 18 ft (5.490 m)

Draft moulded : 3.63 m
Gross tonnage : 1834 t
Net tonnage : 807 t
Lightship weight : 970.19 mt

Displacement : 4247.55 mt at summer draft
Tank capacity : +/- 3277.50 mt
Hull material : steel

Tank age :
Cargo tank : +/- 3750 cub.mt
Fuel oil : +/- 8 cub.mt
Dirty oil tank : +/- 16 cub.mt
Fresh water : +/- 21 cub.mt
Sewage : +/- 16 cub.mt

Machinery, equipment & piping :
Cargo fuel pump :
2 x 2GC/BL350 Q=350 cub.mt/hr, P=0.8 mpa, 1500 rpm

Diesel engine :
2 x for starting cargo fuel pump, 6135 AZcaf, w=190 kW/220hp, n=1500 rpm

Reduction gear box : 2 x 135 r = 1:1
Generator : 2 x 24 kW daewoo, 415v / 50 hz / 3ph
General pump : 1 x 22 cub.mt/hr x 26 m/h

Fire pump : 1 x 22 cub.mt/hr x 26 m/h
Oily dirty water seperator : 0.5 cub.mt/hr
Hall's anchour : 1 x 900kg, wire cable Ø 28 x 200m

Price & terms : Please enquire using the email form below.

If you cannot find the vessel, crane, rig or equipment that you need,
please send us an email to mail@worldoils.com stating your
requirements and we shall find it for you.

We can arrange delivery of equipment and towage of rigs and vessels where needed.

The details mentioned above are believed to be accurate but are not guaranteed.

 ------------------------------------------------------------------------------------------------------------------------
Search words (for official use only) :
Oil Barge for Sale
Double Hull Barge for Sale - Length 230ft
New 230FT Barge For Sale in Asia
Newbuilding Oil Barge For Sale - 3277DWT
3277 dwt New Oil Barge for Sale in China
18ft depth new barge for Sale
--------------------------------------------------------------------------------------------------------------------------

Deck Barge - 15000T dwt For Sale

 Year Built  :  2007
 Classification : RINA

 DWT : 15,000
 GT / NT : 8,401 / 2,520
 Length Overall : 115.00m
 Breadth Moulded : 38.00m
 Depth Moulded : 7.00m
 Design Draft : 4.50m
 Freeboard (summer)  : 2.50m
 Draft (summer)  : 4.50m

 Deck strange : 15Ton / m²
 Ballast pump : 1500 m³/hr x 2sets
 Main generator : 224kw / AC225v / 3 / 60
 Harbor generator : 24kw / AC225v / 3 / 60
 Windlass / Capstan : 14 ton x 9m/min / 10 ton x 9m/min
 Bower anchor : Stockless 4,050kg x 2
 Anchor chain : 56mm∅ x 495.0m

Price & terms : Please enquire using the email form below.

If you cannot find the vessel, crane, rig or equipment that you need,
please send us an email to mail@worldoils.com stating your
requirements and we shall find it for you.

We can arrange delivery of equipment and towage of rigs and vessels where needed.

The details mentioned above are believed to be accurate but are not guaranteed.

--------------------------------------------------------------------------------------------------------------------
Search words(for official use only) -
Flat Deck Barge - 15000T dwt for sale
15000T Barge for Sale
Large Flat Deck Barge For sale
15000T dwt Flat Deck Barge For Sale
---------------------------------------------------------------------------------------------------------------------

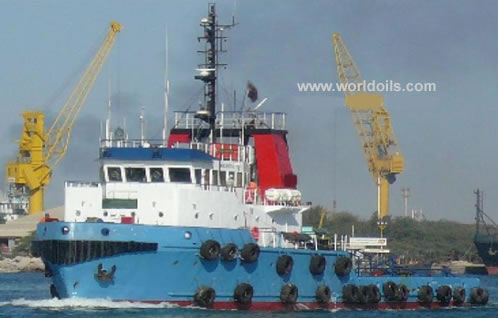

Utility Tug For Sale
1983 Built Used Utility Tug
2000bhp Utility Towing Tug For Sale

General
Built : 1983
Class : GL + 100A4 + MC

Dimensions
Length overall : 132ft
Breadth : 33ft
Depth : 13.78ft
Draft loaded : 12.80ft
Gross tonnage : 494
Net tonnage : 148

Machinery
Main engines : 2 Mireless Blackstone ESL 6 MK2
Bow thrusters : 200bhp
Propellers : 2 CPP in fixed Kort Nozzles
Generators : 3 x GM 6V92 130 Kw/415/220V/50Hz

Speed / Consumption
Maximum : 10.5 knots
Fuel cruising/standby : 1500/150 USG/day
Oil cruising/standby : 8/1 USG/day

Capacities
Fuel oil : 39,320 USG
Water : 37,660 USG
Free deck space : 43 x 26 1/2 ft
Deck cargo capacity : 100 tons
Accomodation : 9 crew, 15 passenger, fully airconditioned

Towing/Anchor Handling
Bollard pull : 24 tons
Static load : 100,000lbs
Tow line : 600 meters x 1 3/4 inch diameter
Spare wire : 600 meters x 1 1/2 inch diameter
Anchor handling : 25 tons
Stem rollers : 13 x 4ft
Tugger winch : 1 x 10 tons

Navigation/Communication
Radar : JRC/Furuno
Echo sounder : Furuno FE 600
Gyro compass : Navigat VIII
Auto pilot : C Plath
Survey echo sounder : Atlas Deso 20
Magnetic compass : Fitted
PA : Fitted
SSB radio : ICOMM 710 x 2
VHF radio : 2 Sailor RT 144C/Sailor RT 2048

Fire Fighting/Safety
Monitors : 2 foam/water 600GPM each
Pump capacity : 240 cbm/hr

Various
Safety equipment : Solas
Water maker : 2 tons per day

No deck crane onboard


Price & terms : Please enquire using the email form below.

If you cannot find the vessel, crane, rig or equipment that you need,
please send us an email to mail@worldoils.com stating your
requirements and we shall find it for you.

We can arrange delivery of equipment and towage of rigs and vessels where needed.

The details mentioned above are believed to be accurate but are not guaranteed.

------------------------------------------------------------------------------------------------------------------------------
Search words(for official use only) -
Utility Tug For Sale
Utility Tug For Sale in Singapore, Malaysia, Indonesia
Old Utility Tug For sale
Used Utility Tug For Sale in Middle East, India
1983 Built used Utility Tug For Sale
Used 1983 Built Utility Tug For Sale
2000BHP Towing Utility Tug For Sale
------------------------------------------------------------------------------------------------------------------------------------

---------------------------------------------------------------------
Search words(for official use only) :

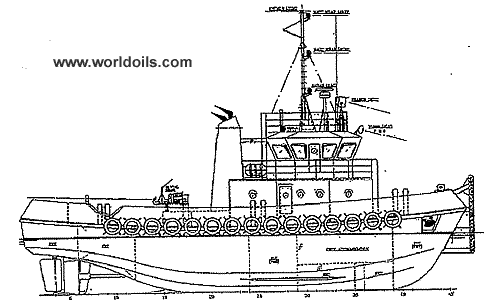

Tugboat for Sale
1000hp Tugboat For Sale
1996 built Tugboat for Sale

General
Year Built : 1996
Class : GL

Length O. A : 21.50 M
Breadth : 7.30 M
Depth : 3.50 M
GRT / NRT : 139 / 42

Main Engine :
2 X 375KW Cummins – KTA 19M @1800 RPM

F.O. : 94.5 M3 (approx)
F.W. : 30 M3 (approx)

Price & terms : Please enquire using the email form below.

If you cannot find the vessel, crane, rig or equipment that you need,
please send us an email to mail@worldoils.com stating your
requirements and we shall find it for you.

We can arrange delivery of equipment and towage of rigs and vessels where needed.

The details mentioned above are believed to be accurate but are not guaranteed.
---------------------------------------------------------------------------------------------------------------------------------
Search words(for official use only) -
Tugboat for sale in Singapore
1000HP - 1996 built Tugboat for sale
Used Tugboat for sale in Asia
Tugboat for sale
1000HP Tugboat for sale
1996 built Tugboat for sale
-------------------------------------------------------------------------------------------------------------------------------------

----------------------------------------------------------------------------------------------------
Search words(for official use only) :
