Description :

Manufacturer : Mack
Model : MR 688S
Year : 2007
GVW : 34,000 kg
Engine Model : E7 454
Horsepower : 454 HP at 1,200 RPM
Transmission : Eaton Fuller 10 speed

Raydan air suspension front and rear
44ft Derrick with 50,000LB pull capacity
Pullmaster HL25 main winch
Pullmaster PL5 Cat Line Winch

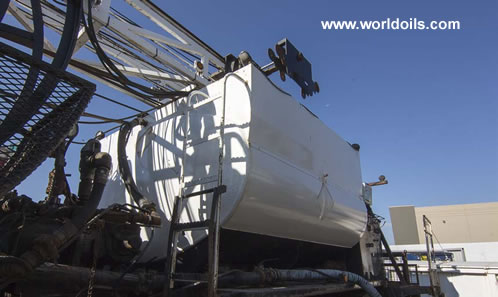

7.1 M³ TC406 tank

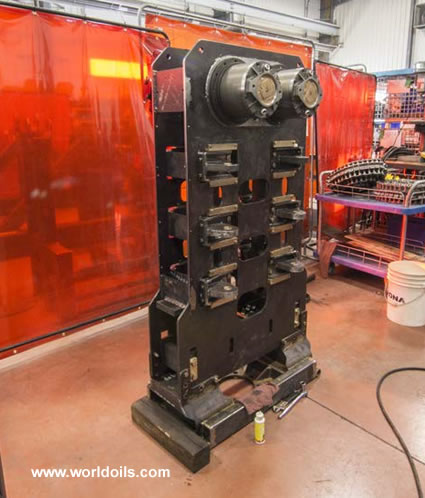

New 40,000 LB CMS injector

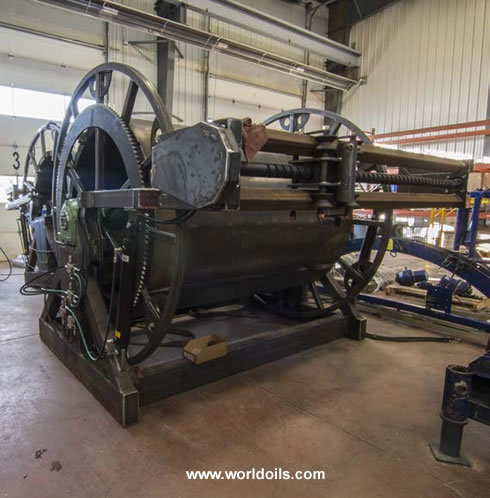

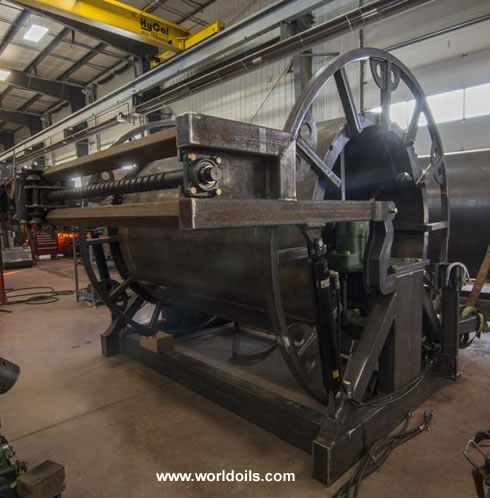

New coiled tubing reel with 3,300m

Capacity of 1-1/2” coiled tubing
Comp air #5450 compressor rated for
212 CFM at 1,500 PSI
323 Oilwell triplex pump rated for
150 Lpm At 2,200 PSI
Linde hydraulic system

Specifications :
Coil Tubing OD Size Range : 1/4 in - 2-3/8 in (6.35 mm - 60.33 mm)
Hydraulic Pressure at Maximum Pull Capacity : 3,662 psi (25.25 MPa)
Continuous Pull Capacity : 40,000 lbs (18,144 kg)
Snubbing Capacity : 20,000 lbs (9,072 kg)
Maximum Speed : 200 ft/min (60.96 m/min)
Injector Width : 32 in (81.3 cm)
Injector Depth (in direction of guide arch) : 36 in (91.4 cm)
Injector Height (from base to top of lifting frame) : 92 in (233.7 cm)
Total Dry Weight - Injector : 2,400 lbs (1,089 kg)

Year Of Manufacture : 2005
Nominal Capacity : 7,100 L (1,876 US Gal)
Max Temperature : 90 °C (194 °F)
Designed Pressure Rating : 22.7 KPa (3.29 psi)
Test Pressure : 34.5 KPa (5.00 psi)
Shell Material : A1011CS-B
Head Material : A1011CS-B
Weld Material : ER70-S6
Min Head Thickness : 3.20 mm (0.126 in)
Manufactured Head Thickness : 3.42 mm (0.135 in)
Min Shell Thickness : 3.20 mm (0.126 in)
Manufactured Top Shell Thickness : 3.42 mm (0.135 in)
Manufactured Bottom Shell Thickness : 6.35 mm (0.250 in)
Max Product Load : 7,100 Kg (15,653 lb)
Product Density : 1.0 Kg/L (8.345 lb/US Gal)
Max Load Rate : 2,800 L/min @ 20.7 KPa (739.7 US Gal/min @ 3.00 psi)
Max Unload Rate : 2,000 L/min @ 2.6 KPa (528.3 US Gal/min @ 0.38 psi)

Price & terms : Please enquire using the email form below.
