Technical Specifications
Design Rules : API-2C Offshore
Classification Society : DNV

Hazardous Area Classification
Boom tip incl. hooks : Zone 2 IIA-T3
Rest of crane : Safe zone

Design temp : +10°C
Operating temp : +14 to 36°C
Roll/pitch : 1.0/1.0 deg

FEM Classification
Appliance group : A4-Q2-U4
Machinery group : M4-L2-T4

Power supply 1 : 480V-60Hz-3Ph
Power consumption 1 : 14.5kW
Power supply 2 : 240V-60Hz-Ph
Power consumption 2 : 1.2kW

Total weight : 120T

Main Hoist
SWL max : 40/25T
No. of falls : 3/2
Outreach max. : 45.7m
Outreach min. : 9.0m
Wave height max. : 2.5m
Load/outreach : See loadchart
Hook travel : 70m
Hoist speed (3 falls, 40T) : 0-22 m/min
Hoist speed (2 falls, 25T) : 0-33 m/min

Aux Hoist
SWL max. : 7.5T
Manriding : 1.0T
No. of falls : 1
Outreach max. : 46.7m
Outreach min. : 10.0m
Wave height max. : 2.5m
Load/outreach : See loadchart
Hook travel : 70m
Hoist speed : 0-60 m/min

Slewing

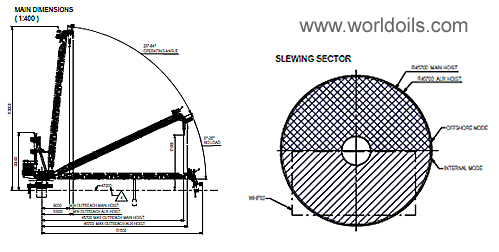

Slewing sector cont. : 360 deg.
Slewing speed : 0-1 rpm

Luffing Time
From max. to min. :
No load; 45.7m to 9m  50 sec

Note : Speeds, weight and power consumption are appr. within +/-5%

Crane Interface Loads ( Crane Foundation)
Including 1.5 Safety Factor Acc. to API 2C Rules
Dynamic Titlting Moment : 32636  kNm
Dynamic Axial Load : 2427  kN
Radial Load : 106  kN
Slewing Torque : 1246  kNm

Crane Pedestal Loads
Including 1.5 Safety Factor Acc. to API 2C Rules
Dynamic Titlting Moment : 32360  kNm
Dynamic Axial Load : 2272  kN
Radial Load : 103  kN
Slewing Torque : 1246  kNm

Boomrest Interface Loads
FY : 575  kN
FX : 375  kN
FZ : 15  kN
