Technical Specifications
Design Rules : API-2C Offshore
Classification Society : DNV

Hazardous Area Classification : Zone 2 IIA-T3

Design temp : +10°C
Operating temp : +14 to 36°C
Roll/pitch : 1.0/1.0 deg

FEM Classification
Appliance group : A4-Q2-U4
Machinery group : M4-L2-T4

Power supply 1 : 480V-60Hz-3Ph
Power consumption 1 : 14.5kW
Power supply 2 : 240V-60Hz-1Ph
Power consumption 2 : 1.2kW

Total weight : 150T

Main Hoist
SWL max : 60/40T
No. of falls : 3/2

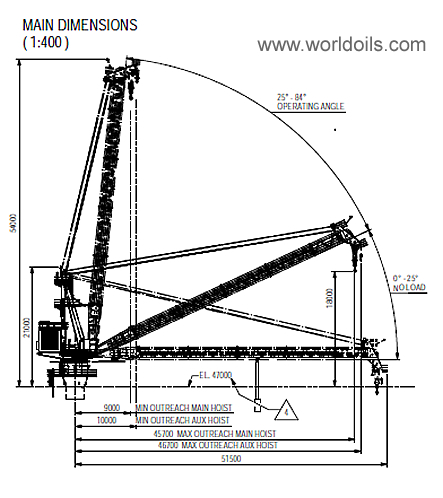

Outreach max. : 45.7m
Outreach min. : 9.0m
Wave height max. : 2.5m
Load/outreach : See loadchart
Hook travel : 70m
Hoist speed (3 falls, 60T) : 0-22 m/min
Hoist speed (2 falls, 40T) : 0-33 m/min

Aux Hoist
SWL max. : 7.5T
Manriding : 1.0T
No. of falls : 1
Outreach max. : 46.7m
Outreach min. : 10.0m
Wave height max. : 2.5m
Load/outreach : See loadchart
Hook travel : 70m
Hoist speed : 0-60 m/min

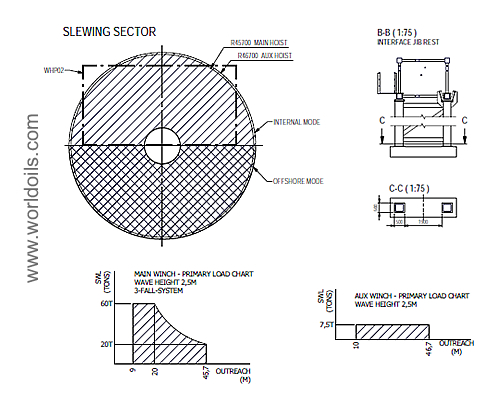

Slewing
Slewing sector cont. : 360 deg.
Slewing speed : 0-1 rpm

Luffing Time
From max. to min. :
No load; 45.7m to 9m  50 sec

Note : Speeds, weight and power consumption are appr. within +/-5%

Crane Interface Loads ( Crane Foundation)
Including 1.5 Safety Factor Acc. to API 2C Rules :-
Dynamic Titlting Moment : 46231 kNm
Dynamic Axial Load : 3180 kN
Radial Load : 150 kN
Slewing Torque : 1980 kNm

Crane Pedestal Loads Including 1.5 Safety
Factor Acc. to API 2C Rules : -
Dynamic Titlting Moment : 45832 kNm
Dynamic Axial Load : 3024 kN
Radial Load : 148 kN
Slewing Torque : 1980 kNm

Boomrest Interface Loads :-
FY : 575 kN
FX : 375 kN
FZ : 15 kN

Price & terms : Please enquire using the email form below.

If you cannot find the vessel, crane, rig or equipment that you need,
please send us an email to mail@worldoils.com stating your
requirements and we shall find it for you.

We can arrange delivery of equipment and towage of rigs and vessels where needed.

The details mentioned above are believed to be accurate but are not guaranteed.

-----------------------------------------------------------------------------------------------------------------------
