Mud Processing Barge for sale

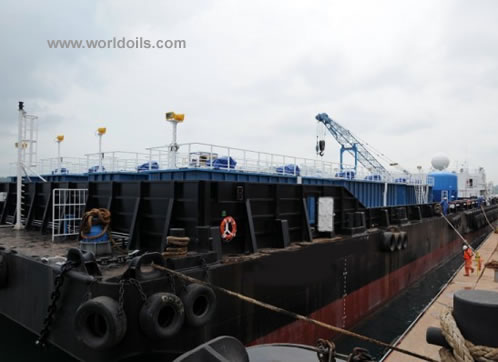

300ft Length Mud Processing Barge for Sale

Specification :
Vessel Type : Mud Processing Barge
Year of Built : 2004
Place of built : China
Class : American Bureau of Shipping

Principal Particulars :
Length Overall : 91.5 m (300ft)
Width : 27.5m (90ft)
Depth : 5.5m (18ft)
Summer Load Draft : 3.4m (above baseline)
Deck Load : 15mt/m²
Gross Tonnage : 4,290mt
Nett Tonnage : 2,960mt
Open Storage on Deck : 500m²

Cargo Capacities :
Drill Water : 4146 bbls
Base Oil : 6242 bbls
Spill Catchment Tanks : 6798 bbls
Sewage Tanks : 2727 bbls
Dirty Lube Oil : 55 bbls
Fuel Oil : 6326 bbls
Potable Water : 2869 bbls
Lube Oil : 79 bbls/11 mt
Mud Tank Storage : 6000 bbls in 12 x 500 bbls tanks, with 2 agitators each
Bulk Storage : 145.7m³ (cement); 145.7m³ (barite) = 291m³ (10,290ft³) in total

Power System :
Auxilary Engines : 3 x Caterpillar engines rated at 400KW each
Generators : 3 x Kato generators rated at 400V/3Ph/50Hz; Allow for 75% redundancy
Alternators : 3 x Newage (Stamford) alternators rated at 380V/400KW/50Hz/1500RPM
Air Compressors : x 12 bar Krisbow 5

Mooring System :
Anchor : Single point mooring system
Fenders :
3 x Yokohama
2.4m (dia.) x 4.0m (L)
Diagonal pipe and truck tires at port and after loading area

Designed Deck Loading & Sizes :
Main Deck : 15 mt/m²
Pipe Rack Deck

Pumps :
Mud Mixing/Transfer :
2 x 6” x 14” Mission Magnum centrifugal pumps; 150HP Diesel Hino engines

Diesel Oil Transfer : 1 x 12m³/hr
Drill Water : 1 x Mission 3“ x 2” x 13” centrifugal pump
Engine Cooling : 2 x 60m³ sea water cooling pumps
AC : 1 x 20m³/hr cooling pump
Fire Pump : 1 x 50m³/hr
Bilge Pump : 1 x 50m³/hr
Sea Water Booster  : 1 x Mission 3” x 2” x 13” Magnum pump
Emergency Fire : 1 x Mission 4” x 3” x 13” centrifugal pump
Others : 6 x submersible transfer pumps
Fuel Oil Purifier : 1
Fresh Water : 1, With pressure tank & electric calorifier

Lifting Equipment :
Deck Crane :
1 x 20mmt @ 10.3m, 160ft boom
Sumitomo with man riding certificate (ABS)
Fork Lift : 1 x diesel Toyota @ 4 tons

Towing Requirements :
Tug Boat Required :
5000 BHP, 50 BP
Towing speed at 4-5 knots

Accomodation :
Berths :
2 x 1 berth cabins = 2
5 x 2 berth cabins = 10

Total : 12
Facility : All cabins fully air-conditioned and come with attached washrooms and lockers

Miscellaneous :
Galley & Mess : 1 x fully equipped galley with separate messing facilities
Others : 1 x recreation room with satellite TV & DVD 1 x prayer room

Price & terms : Please enquire using the email form below.

If you cannot find the vessel, crane, rig or equipment that you need,
please send us an email to mail@worldoils.com stating your
requirements and we shall find it for you.

We can arrange delivery of equipment and towage of rigs and vessels where needed.

The details mentioned above are believed to be accurate but are not guaranteed.

-------------------------------------------------------------------------------------------------------------
