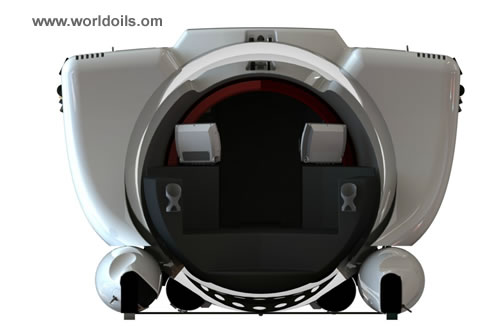

Super Yacht Submarine for Sale

Equipment ID: 1709
Equipment name: Super Yacht Submarine for Sale
Category: Yachts

Specifications: Super Yacht Submarine for Sale

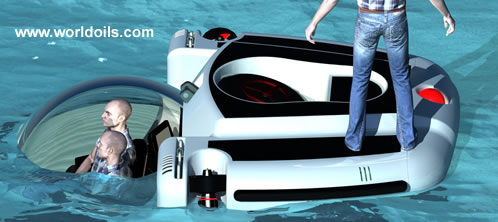

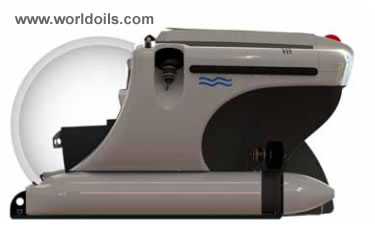

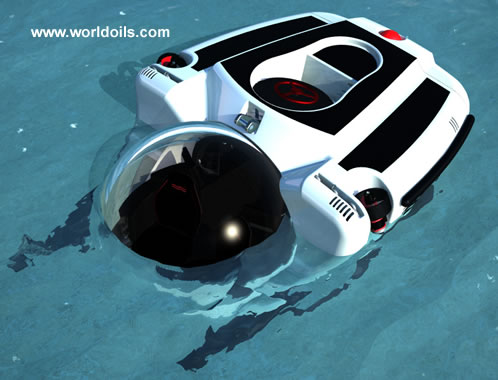

Mini Submarine for Yacht for Sale

General Characteristics :
Occupants : 1 pilot and 2 passengers
Maximum Operating Depth :
SYS3: 100 meters / 330 feet
SYS3: 200 meters / 650 feet
SYS3: 300 meters / 1,000 feet
Operational Autonomy : up to 6 hours
Type : Dry, 1 atmosphere
Classification : DNV-GL
Freeboard : 80 cm with freeboard extender

Dimensions and Weight (Starting From) :
Dimensions LxWxH :
315 cm x 241 cm x 172 cm
Fits in standard shipping container
without side-fenders

Weight (ex. passengers) : 3,750 kg (Salt water)

Pressure Hull :
Maximum Allowable Payload : 300 kg (Salt water)
Pressure Hull Material : Acrylic + Steel
Hatch Typem : Top-Hatch

Propulsion :
Propulsion Type : Electrical, Brushless DC
Propulsion Horizontal : 2 x 5.5 kW Thrusters
Propulsion Vectored Vertical : 2 x 6.4 kW Thrusters
Surface Speed : 2.8 knots
Underwater Speed : 2.8 knots
Oxygen System : Continuous Flow

Life Support Systems :
Mission Oxygen Capacity : 3 Liter (Quick Exchange)
Emergency Oxygen Capacity : 2 x 20 Liter @ 200 bar
Carbon Dioxide Removal : 8 hours with Calcium Hydroxide
Survival Period : 96 hours
Emergency CO, Removal : Lithium Hydroxide Blankets
Autonomous Breathing Devices : 3
Life Support Monitoring : 2 independent life support monitors (O2- CO2)
Number of Ballast Tanks : 4

Ballast and Buoyancy Systems :
Main Ballast Tank Capacity : 1,200 Liter
Compressed Air Capacity : 2 x 50 Liter @ 200 bar
Hydraulically Releasable Weight : 100 kg
Buoyancy Tank : 75 Liter

Power Capacity :
Total Power Capacity : 21.6 kWh
Battery Type : High Capacity Lithium-ion
Propulsion System Capacity : 2 x 130 VDC Battery Packs - 15.6 kWh
House System Capacity : 2 x 24 VDC Battery Packs - 6 kWh
Charging (Optimal Cycle) : 4 hours

Navigation, Communication, Auxiliary :
Emergency Battery : 96 hours for Critical Systems
Air Conditioner System : 7,000 BTU
Underwater Communication : Single sideband acoustic telephone, 25 kHz
Surface Communicatoin : VHF Handheld Unit
Navigation :
Echosounder, Magnetic Compass,
Electronic Compass

Control System : “MANTA“ controller
Information System :
Alarm System, Battery Status,
Thruster Status, Sensor Status,
Internal Pressure, Depth, Electrical
Insulation Monitoring, Water Ingress
Sensors, Freon Sensor, Buoyancy Tank
Level Indicator, Internal and External
Temperature

Safety Equipment :
Pinger Locator Beacon System,
Emergency Releasable Buoy, Maximum Depth
Protection, DeadmanSwitch,Fire Extinguisher,
External Air Connection for diverassisted ascent,
Xenon Flasher

Other :
Protective Cover for Acrylic Viewport,
Checklists and Manuals, Topside
Communication Unit

Price & terms : Please enquire using the email form below

If you cannot find the vessel, crane, rig or equipment that you need,
please send us an email to mail@worldoils.com stating your
requirements and we shall find it for you.

We can arrange delivery of equipment and towage of rigs and vessels where needed.

The details mentioned above are believed to be accurate but are not guaranteed.

-----------------------------------------------------------------------------------------------
