Coiled Tubing Unit for Sale
Used Coiled Tubing Rig
CT Rig for Sale

Description
This high performance CT Unit is built upon a 1999 Volve ACL Tandem Tridem that received
a new engine and new transmission in 2008 and is still in service.

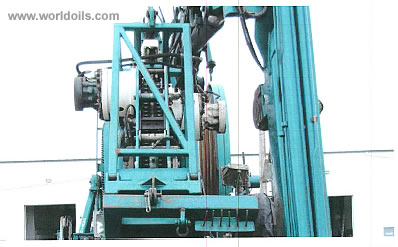

The unit features a 7 ton knuckle crane, a large capacity reel as well as an RT20 coil tubing
injector and standard gooseneck.

Specifications
Injector : RT20
Air compressor : Hurricane Air Compressor rated at 18cbm (660cfm) at 14MPa
Pump : Triplex Pump rated at 50L per minute at 21MPa
Crane : Knuckle Crane rated at 6350kg (7ton) with 6.7m each
Accumulator : Single Accumulator, 11Gal

Coiled Tubing OD size range : 1.000” to 2.000” (25.4mm to 50.8mm)
Hydraulic Pressure at maximum pull capacity : 2370 psi (16.3MPa)
Continuous pull capacity : 20,000 lbs (9,072 kg)
Snubbing capacity : 20,000 lbs (9,072 kg)
Maximum speed : 200ft/min (60.9m/min)
Injector width : 50.5 in (128.3 cm)

Injector depth
(in direction of guide arch) : 44 in (108 cm)

Injector Height
(from base to top of frame, not including lift eyes) : 72 in (182.9 cm)

Drive Ratio : 1:1
Maximum displacement : 76.8 cub.inch (1258.5 cub.cm)
Minimum displacement : 38.4 cub.inch (629.3 cub.cm)
Injector weight : 4,400 lbs (2,000 kg)

Reel Capacity
CT Size : Capacity
1-1/4” : 3460m
1-1/2” : 2390m
1-3/4” : 1770m
2” : 1350m

Features
- Mechanical and Digital Coil Depthometer
- Dual Injector Hose Reels
- Rebuilt Transmission
- New Engine

Price & terms : Please enquire using the email form below.

If you cannot find the vessel, crane, rig or equipment that you need,
please send us an email to mail@worldoils.com stating your
requirements and we shall find it for you.

We can arrange delivery of equipment and towage of rigs and vessels where needed.

The details mentioned above are believed to be accurate but are not guaranteed.

---------------------------------------------------------------------------------------------------------------------------------
