Workover Rig - Flush By Unit - 20T - New Unit

Equipment ID: 204
Equipment name: Workover Rig - Flush By Unit - 20T - New Unit
Category: Miscellaneous Equipment
Specifications:

Workover Rig FBU20 - Flush By Unit
Flush By Workover Rig

Well Services
Workover operations and well stimulations
• controlled working unit
• safer
• faster
• more cost-effective

The Workover Unit „ FBU20 “ is designed to perform well repairs and well
stimulations and is used for the following operations:

• General workover operations

• Well stimulations

• Assembling/ disassembling of piping and pump supports

• Preparation of production wells for special treatment (e.g. Frac)

• Pump and circulation operations

The advantages of the Flush By Unit FBU20

• The Flush By Unit is typically used to perform the same function as a fully outfitted
workover rig, but limited to shallow wells.

• The unit is much easier and faster to move and set up, and are typically manned by
fewer operators then conventional workover rigs.

• Flush By Units are much more adaptable to customer’s unique requirements.

Technical Data

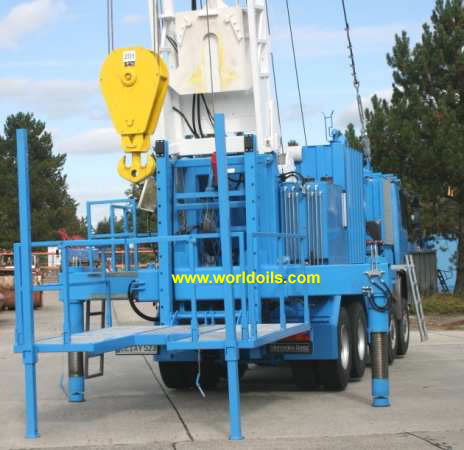

• Mast with crownblock

• Drawworks winch

• Auxiliary winch

• Triplex High Pressure Pump

• Booster pump and circulation pump

• High and Low Pressure Manifold

• 2 Fluid tanks (2 x 3 m³)

• Working platform and operator panel

• Cable braces to the chassis

• Additional 400l diesel tank

Carrier Vehicle

Daimler ACTROS 4141 AK 8x8/4

Engine power (V6) 408 PS

Max. technical axle load: 9/9/13/13 t

Weight variant: 44,0 t

Dimensions

Length 11,5 m

Width 2,65 m

Height 4,0 m

Total Weight 33,8 t

Mast overhang 1,54m

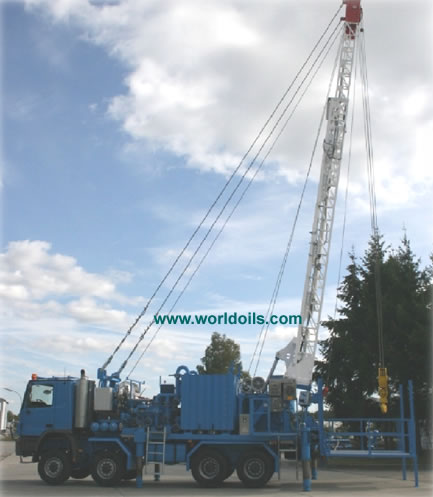

Mast
Telescopic mast
Mast length (extended): 14,0 m
Free height over ground: 16,9 m
Max. working length: 13,5 m

Hook Load
Max. Hook Load 200 KN

Mast

The mast consists of two parts – an exterior bottom

section and an internal top section.

Mast grade: 9°

Drawwork

Slow Forward Speed

Max. rope speed: 1,32 m/s

High Forward or Backup Speed

Max. rope speed: 6,2 m/s

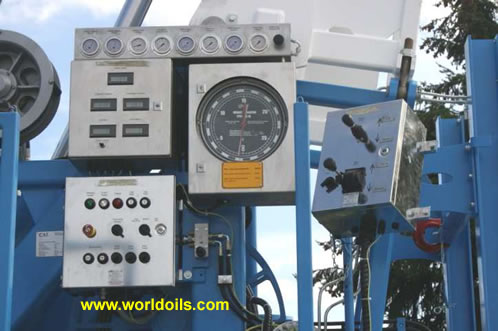

Operator Control Panel

Controls:

Signal: Telescoping mast locked

Signal: Crown saver ON

Signal: Failure plunger lubrication

Operation:

Lighting system On/Off

Tongs (hydraulic) On/Off

Selector: Power SPM Pump and Main Winch

(100% -60%/40%-100%)

Truck RPM (+/-)

Throttle Triplex Pump RPM

Throttle Booster Pump RPM

Throttle Circulation Pump RPM

Emergency stop switch

Drawworks winch

Drawwork winch slow/fast

Auxiliary winch

Indications:

Drillometer

Pump rate „Triplex Pump“

Pressure „Triplex Pump“

Truck RPM

Truck oil pressure

Truck water temperature

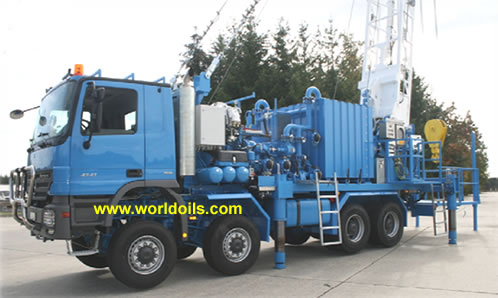

Carrier Vehicle

The whole workover unit with the mast is mounted on a 4-axle chassis of
“Mercedes-Benz ACTROS 4141 AK.

Dimensions and axle loads allow an easy moving on public roads,
as well as in the field.

Power Unit

The diesel engine of the Mercedes truck is used to drive the workover unit.
The diesel engine powers the hydraulic pumps by means of the PTO (via cardan shaft).
The hydraulic pumps drive all hydraulic components.

Triplex Pump

SPM TWS 600

Plunger diameter: 3”

Drive hydraulic

Max. input power: 600 BHP / 447 KW

Stroke: 6” / 152.4 mm

Loading Pump

Gear pump

Q max. 800l/min

p max. 7 bar

Booster Pump

Centrifugal pump

Q max. 1000l/min

p max. 5 bar

Fluid Tanks

Tanks: 2 pcs.

Material: Stainless steel

Capacity: 2850 l

Total capacity: 5700 l

Discharge Piping

Pipe diameter:2”

Pressure resistance: 10000 psi

2” Relief valve 3500 psi

2” Plug valves

2” Safety valve

Lubrication: Fluid and Power End

Suction Piping
4“ Pipes with 4“ butterfly valves

Problem

Several problems can arise at well sites. Rods can break down-hole due to
additional torque caused by sand or corrosion, leaks can develop, or pumps need to
be replaced. Service rigs can be very expense, so you need a cost-effective, yet versatile
solution to provide various down-hole well services.

Advantage

Effective Workover operations and well stimulations

The Flush By Unit FBU20 includes a holding tank and triplex pump; contaminants (sand)
can be circulated out of the well. The unit also used extensively to circulate solvents or

other chemicals, to remove paraffin and asphaltene.

The Flush By Unit can fix rod breaks, replace polish rods, pack leaks, trip rods and pump
out of the well, also the tubings, flush sanded-off or waxed as various well trouble-shooting
that can maximize your well production.

• European Chassis with licence

• CE conformity

• 4 axle 8x8

• compact, strong

• fast

Price & terms : Please enquire using the email form below.

If you cannot find the vessel, crane, rig or equipment that you need,
please send us an email to mail@worldoils.com stating your
requirements and we shall find it for you.

We can arrange delivery of equipment and towage of rigs and vessels where needed.

The details mentioned above are believed to be accurate but are not guaranteed.

----------------------------------------------------------------------------------------------------------------------------
