3200bhp Used Utility Service Vessel for Sale

Equipment ID: 2078
Equipment name: 3200bhp Used Utility Service Vessel for Sale
Category: Ships/Vessels
Sub Category: Supply/Utility Vessel
Specifications: 2008 built Utility Service Vessel for Sale
3200bhp Used Utility Service Vessel for Sale
40M Utility Service Vessel - For sale

General
Year Built : 2008
Class : Bureau Veritas
Notation : x hull x machTug, unrestricted navigation
GRT / NRT 498/ 149

Dimensions
Length Overall : 39.80 m
Breadth Moulded : 10.00 m
Depth Moulded : 4.20 m
Draft (max) : 3.50 m

Performance
Maximum Speed : 11.4 knots at 12.92 MT/24 hrs
Economical Speed : 10.0 knots at 8.92 MT/24 hrs
Type of Fuel : Marine Gas Oil
Endurance : About 35 days

Cargo Capacities
Fuel Oil : 296 m³
DW/SWB : 42 m³
Fresh Water : 126 m³
Freezer/Chiller : 10m³ / 10m³
Clear Deck Area : 107 m²

Navigational and Communication Equipment
GMDSS (For Area 3) : 1 x Furuno
SSB : 1 x Furuno FS-2570
VHF : 2 x Furuno FM 8800S
Radar : 2 x Furuno 1505/ 1932
Echo Sounder : 1 x Furuno FCV-585
Gyro Compass : 1 x Furuno FCV-585
Magnetic Compass : 1 x Daiko Keiki SR150 FKK
Speed Log : 1 x Furuno DS-80
Auto Pilot : 1 x Anschutz NP-60
Navtex Receiver : 1 x Furuno NX-700B
GPS Navigator : 2 x Furuno GP 150/32
AIS : 1 x Furuno FA 1502
SART : 1 x McMurdo S4
EPIRB : 1 x McMurdo Smarfind 406
Portable VHF (GMDSS) : 2 x Samyung Enc STV-160

Deck Equipment
Anchor Windlass c/w bow : 1 x electro-hydraulic

Anchors & Chain :
2 x Stockless Anchor 780 kg each
2 x 330 m x 20 mm Ø U2 Stud Link Chains

Anchor Handling / Tugger Winch :
1 x electro hydraulic double drum waterfall type
Line Pull at 1st Layer :
50T @ 6m/min (1st speed)
10T @ 24m/min (2nd speed)

Brake Holding : 120 MT at 1st layer
Drum Capacity : 1000m (L) x 20 mm (Dia) SWR
Bollard Pull : 41.3T
Tugger Winch : 1 x electro hydraulic 5T @ 15 m/min
Towing Pin : 1 x SWL 100T
Shark Jaw : 1 x SWL 200T
Stern Roller : 1 x 1m Ø x 4 m width – SWL 60T

Life Saving Equipment
Life Rafts : 2 x 25 men, SOLAS compliant
Rescue Boat c/w Davit :
1 x 6 men, 20HP c/w outboard engine, SOLAS compliant
All other life saving appliances as per SOLAS requirements

Propulsion System
Main Engines :
2 x Cummins, KTA50 M2 1600 HP at 1800 Rpm each, Total: 3200 HP
Auxiliary Engines : 3 x 185 KW - 440V, 3PH, 60HZ
Emergency Generator : 1 x 80 KW - 440V, 3PH, 50 HZ
Bow Thruster : 1 x 250 BHP
Propellers : 2 x FPP in Kort Nozzles
Steering Gear System : 2 x Electro Hydraulic

Fire-Fighting Equipment / Anti-Pollution Equipment
External
Equivalent to 1/2 FiFi
Fire pump : 1 x 1200 m³/hr @130m head

Internal
CO² System : Engine Room
Fire Fighting Equipment : Fully compliant with SOLAS requirements
Emergency Fire Pump : 1 x Desmi 35 m³/hr @ 40m head
Water Mist System : Engine Room

Accommodation (All cabins are fully air-conditioned)
Berths :
2 x 1 berth cabins = 2
4 x 2 berth cabins = 8
2 x 4 berth cabins = 8
Total : 18

Miscellaneous
Fresh Water Maker : Nil
Oily Water Separator : Boss 5T/107 Coalescing type 1 m³/hr
Sewage Treatment Plant :
Hamworthy ST2A aerobic biological treatment 3.2m³/hr

Price & terms : Please enquire using the email form below.

If you cannot find the vessel, crane, rig or equipment that you need,
please send us an email to mail@worldoils.com stating your
requirements and we shall find it for you.

We can arrange delivery of equipment and towage of rigs and vessels where
needed.

The details mentioned above are believed to be accurate but are not guaranteed.
----------------------------------------------------------------------
Search words (for official use only) -
3200bhp Used Utility Service Vessel for Sale
40M Utility Service Vessel - For sale
Used Utility Service Vessle for Sale
2008 built Utility Service Vessel for Sale
3200bhp Utility Service Vessel - 2008 built - for Sale
-------------------------------------------------------------------------

Worldoils Oil, Gas and Offshore Marketplace - 3200bhp Used Utility Service Vessel for Sale

Images

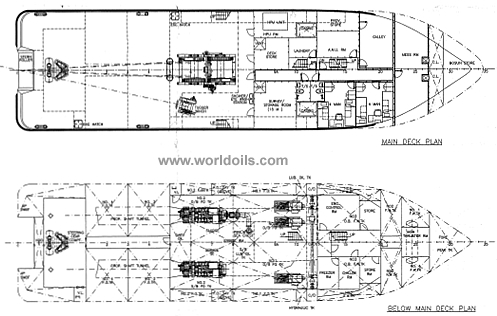

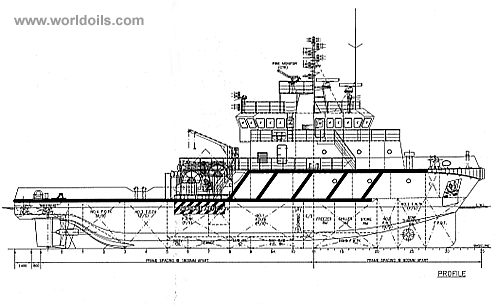

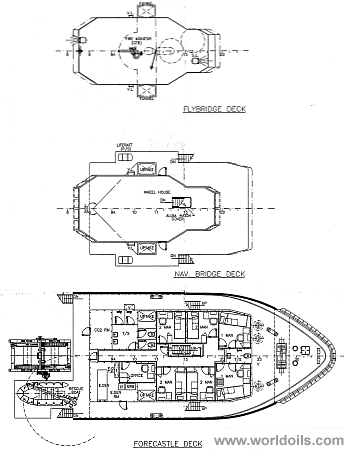

2008 built Utility Service Vessel for Sale
