Drilling Rig - 1500hp - For Sale

Equipment ID: 2515
Equipment name: Drilling Rig - 1500hp - For Sale
Category: Rigs
Sub Category: Drilling Rigs
Specifications: Drilling Rig - 1500hp - For Sale
2009 Built Drilling Rig for Sale

Description :

General Description :
Make : Nov
Year Built/Rebuilt : 2009
Estimated Drilling Depth : 18,000 ft
Estimated Rig Move Loads : 60
Estimated Camp Move Loads : 23
Rated HP : 1500

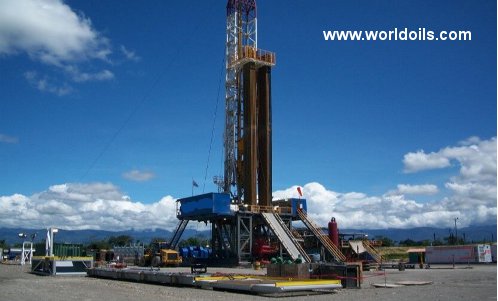

Mast :
Height : 142.00 ft
Static Hook Load Capacity : 750,000 lbs
Mast Racking Capacity : 19,300 ft

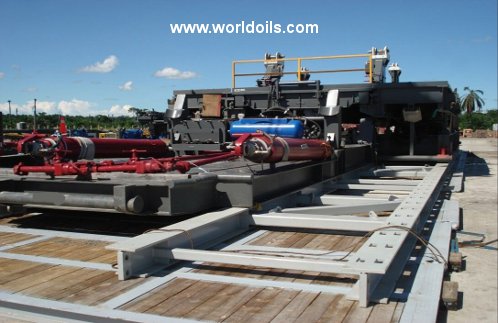

Substructure :
Style : Parallelogram
Height : 25.00 ft
Clear Height : 21.30 ft
Casing Capacity : 750,000 lbs
Maximum Setback Load (lbs) : 500,000

Drawworks :
Make : Nov
Model : JC-50D
Power Rating : 1,500 hp
Input Power : 2 ea Yongji
                       YZ08X3
Brake Type - Band or Disc : Disc
Drilling Line Size : 1 3/8"
Auxillary Brake : Wichita WC66

Top Drive / Power Swivel :
Make : Nov
Model : TDS 11-SA
Capacity : 500 Ton
Torque - Continuous : 37,500 ft-lb @ 125 RPM

Swivel :
No Swivel

Rotary Table :
Make : NOV ZP-375
Table Opening : 37 ½"
Maximum Load Rating : 650 Ton

Power Generation :
Engines : 4 ea Detroit Diesel R1638A36
Generators : 4 ea Baylor Generation Group S437RUJ-597A
SCR / VFD / DC/DC : SCR Rig

Enhancements :
Crane :Terex RT555-1
Forklift : Caterpillar IT 62 H
Iron Roughneck : NOV IR-3080

Mud System :
Mud Pumps : 3 ea NOV 12-P-160
                      1,600 hp @ 120 spm
Reserve Mud Volume : 285 bbls
Pressure Rating : 5,000 psi
Active Mud Volume : 1100 bbls
Power Rating :

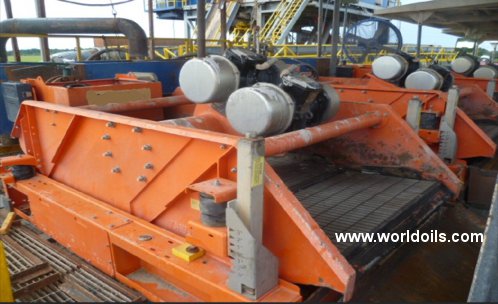

Shale Shakers : 3 ea MI Swaco Mongoose
Mud Cleaner : N/A 1 ea MI Swaco Mongoose
Desander : MI Swaco
Desilter : MI Swaco
Centrifuge : N/A

Well Control :
Annular
13 5/8" 5,000 psi, Shaffer,
Double Ram Preventer
13 5/8" 5,000 psi, Shaffer,
Choke Manifold
4 1/16"" 5,000 psi
BOP Closing Unit
Sara Services
MC220-11BT3
T3 Energy Services B30240615T3P

Price & terms : Please enquire using the email form below

If you cannot find the vessel, crane, rig or equipment that you need,
please send us an email to mail@worldoils.com stating your
requirements and we shall find it for you.

We can arrange delivery of equipment and towage of rigs and vessels where needed.

The details mentioned above are believed to be accurate but are not guaranteed.
-------------------------------------------------------------------------
Search words (for official use only) :
Drilling Rig - 2009 Built for Sale
1500hp Drilling Rig for Sale
2009 Built - JC-50D - Drilling Rig for Sale
Used Drilling Rig for Sale

Land Drilling Rig for Sale

--------------------------------------------------------------------------

Worldoils Oil, Gas and Offshore Marketplace - Drilling Rig - 1500hp - For Sale

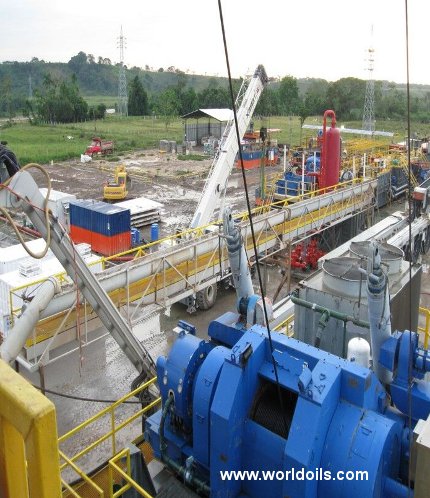

Images
