OSV - 1996 Built - For Sale

Equipment ID: 2637
Equipment name: OSV - 1996 Built - For Sale
Category: Ships/Vessels
Sub Category: Crew/Utility Vessel
Specifications:

OSV - 1996 Built - For Sale
Used OSV for Sale

Description :

General

Year Built : 1996
Vessel Type : Offshore Supply Vessel
Classification : ABS, USCG, SOLAS

Dimensions
Dimensions : 260 ft. X 56 ft. X 18 ft. 9 in. (79.25 m X 17.07m X 5.72 m)
Draft (Lightship) : 6 ft. 6 in. (1.98 m)
Draft (Loadline) : 15.24 ft. (4.65 m)
Clear Deck : 185.5 ft. x 46.5 ft. (56.54 m x 14.17 m)
Cargo Deck Area : 8,625 sq. ft. (801.17 sq. m)
Deck Cargo Capacity : 1,900 LT (1,930.40 MT)
Deadweight Tonnage : 2,964 LT (3,011.53 MT)

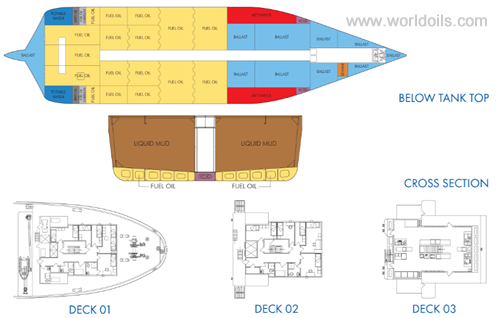

Capacities
Fuel Oil : 204,034 gals. (772.34 cu. m)
Ballast : 384,961 gals. (1,267.97 cu. m)
Potable Water : 36,678 gals. (138.84 cu. m)
Dry Bulk : 9,625 cu. ft. @ 80 psi (272.55 cu. m @ 5.5 bars)
Liquid Mud (Dual Tank System) : 8,132 barrels (1,292.88 cu. m)
Methanol : 2,110 barrels (335 cu. m)

Machinery
Main Engines : Two (2) CAT 3516 Diesels, 3,420 bhp
Propulsion : Two (2) Ulstein 1350 HRV Azimuthing
Bow Thrusters : One (1) 1,000 hp CP Tunne
Bow Thrusters : One (1) 1,200 hp Drop-Down
Speed : 12 knots
Generators : Three (3) x 300 kW
Generators : One (1) x 105 kW

Special Features
Tuggers : Two (2) x 10 Tons
Ship Motion : Two (2) Passive Type Anti-Roll Tanks
Ship Motion : Bilge Keels
Positioning : DP 2
Deck Crane : One (1) x 3,100 lbs. capacity

Life Saving Equipment
Life Rafts : Four (4) x 20-Man Inflatable Life Rafts
Other gear as required by authorities

Electronics
Electronics Package :
Two (2) SEA 7156 VHF Radiotelephones,
Two (2) SEA 7100 VHF DCS Controllers,
SEA330 SSB Radiotelephone,
Furuno Inmarsat-C,
Seawatch 7001 MF/HF GMDSS Receiver,
Necode DSC 1000,
R4 Navigation System,
Helm Area Furuno GP32,
JRC-300A Navtex Receiver,
Furuno Color Video Sounder FE700,
ACR Satellite 406 EPIRB,
Marine Technologies DP 2 System,
Qualcomm Globalstar GPS-2800/2900 Satellite Phone,
Three (3) Meridian SG Brown Gyro Compasses,
VSAT System, AISs, Three (3) DGPS,
Three (3) MRUs, Fanbeam,
Three (3) Wind birds,
Furuno FR8122 12 kW Radar,
Furuno FAR-2107 Radar

Accommodations
Accommodations : 31

Price & terms : Please enquire using the email form below

If you cannot find the vessel, crane, rig or equipment that you need,
please send us an email to mail@worldoils.com stating your
requirements and we shall find it for you.

We can arrange delivery of equipment and towage of rigs and vessels where needed.

The details mentioned above are believed to be accurate but are not guaranteed.
-----------------------------------------------------------------------------------------
