2000HP Electric SCR Rig for sale

Equipment ID: 2658
Equipment name: 2000HP Electric SCR Rig for sale
Category: Land Rigs
Specifications: 2000HP Electric SCR Rig for sale
Refurbished Electric SCR Rig for Sale

Rated Drilling Depth
23,500 ft, w/(5" D/P#19.5 Lb/ft)

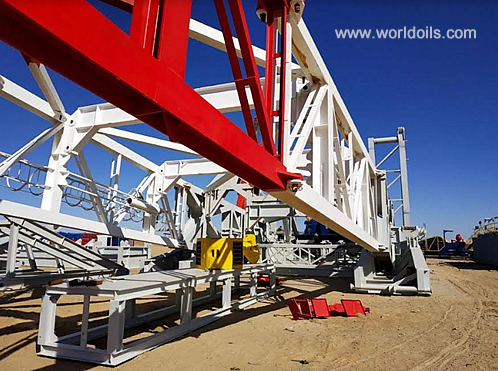

Derrick
Type : Superior
Gross Capacity : 1,470,000 Lbs
Max. Hook Load : 1,100,000 Lbs
Height : 141 ft

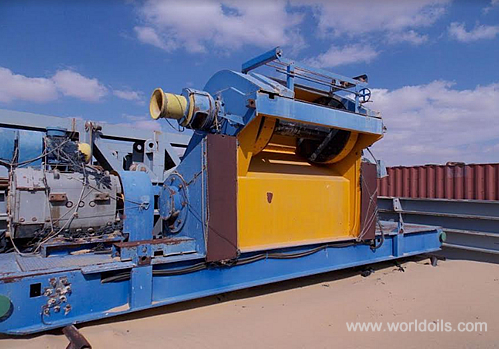

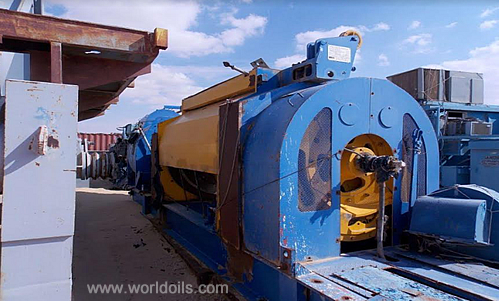

Draw Works
Type : JC70D
Input Power : 2,000 HP
Max. Fast Line Pull : 100,000 Lbs
Drilling Line : 1 1/2" L.H. (12 Lines)

Rotary
Type : ZP-275
Max. Opening : 27 1/2"
Rotary Speed : 300 RPM
Height : 32 ft

Mud Pumps
No. : 2 EA
Type : F-1600
Input Power : 1,600 HP/EA
Max. Pressure : 5,000 Psi

TOP drive
Make/Type : Varco TDS-11S
Rated Load Capacity : 1,100,000 Lbs
Rotating Speed : 228 RPM

Power Supply
SCR System
- 4 EA CAT3512 Gensets (SCR)
- 2 EA Volvo TAD1631GE Generator (Main Camp)
- 1 Volvo TWD740GE Generator (Emergency)
- 1 EA Cat3406 Generator (Fly Camp)

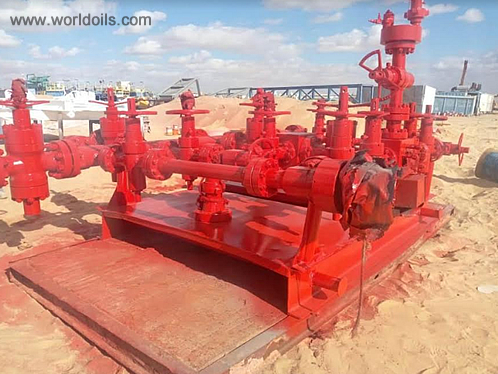

Well Control Equipment
Diverter System:
- (21 1/4" x 2,000 Psi) Bag Type Preventer
- Drilling Spool
- 10” Vent Line w/ Hydraulic Ball Valve

BOP Stack:
- (13 5/8" x 5,000 Psi) Annular
- (13 5/8” x 10,000 Psi) Double Ram + Single Ram

Mud System
Total Mud Tanks Capacity : 2220 BBL
Shale Shaker Tank : 427 BBL
Suction & Slug Tank : 503 BBL
Mixing Tank : 377 BBL
Reserve Tanks (2) : 913 BBL
Trip Tank : 86 BBL
Slug Tank : 116 BBL
Water Tanks : 400 BBL

Camp
To accommodate 86 Persons
- 1 EA Kitchen
- 2 EA Mess Hall 1 EA Dry Food Storage
- 1 EA Cold Food Storage
- 1 EA Clinic
- 1 EA Recreation Room
- 2 EA AC Generators for Lighting

HSE
The Rig is fully equipped w/ fire fighting system
Diesel Motor Driven Fire Pump, Fire Blankets & Suits
