Nuovo Pignone 4HG/2-1 Reciprocating Compressor - For Sale

Equipment ID: 2926
Equipment name: Nuovo Pignone 4HG/2-1 Reciprocating Compressor - For Sale
Category: Compressors
Specifications: Nuovo Pignone 4HG/2-1 Reciprocating Compressor for Sale
Nuovo Pignon Compressor for Sale

Description :

Compressor	Reciprocating
Model	4HG/2-1
Type	Make UP/Make-Up+recycle Gas
Manufacturer	NUOVO PIGNONE
Fluid Type	H2+CH4+HC+H2O/H2+CH4+HC+H2O+H2S
Power	19500 KW
Torque
Pressure
Speed	375 RPM
Max/Min Allowable speed	400/271 RPM
Max. Acceptable AVG Piston Speed	4,2 m/s

The compression elements KR-CO-101A and KR-CO-101B
are of the type 4HG/2-1, 4 cylinders, 3 stages reciprocating
compressor, driven by main electric motors; Each cylinder
is provided with distance pieces.

KR-CO-101A is equipped with discharge valves and KR-CO-101B
is provided with Hydrocom System. The Customers DCS will
manage all indications, alarm functions and compressor loading.

Share while the Customers SIS will manage the compressor
start/stop sequence, permissive, capacity control functions
(discharge valve), interlocking and firing.

The local control panel (LCP), located in the field near the
compressor without logic, is equipped with signal lamps,
pushbuttons, selectors and Emergency Stop button.

The KR-CO-101A and KR-CO-101B compressors operate in
parallel mode; the second stage discharge of both compressors
is combined into a common head where a 1st and 2nd stage
spill occurs. Valves (KR-PV-1134A and KR-PV-1134B) recycle
gas to compressor suction, the third stage.

The discharge of both compressors is combined into a common
head where the exhaust valves of the third stage are located.

(KR-PV-1141B and KR-PV-1141C) recycle gas to the suction
of the 3rd stage compressors.

The KR-CO-101A/B 1st. and 2nd. compressor stage loads are
controlled by KR-PX-1134E

Pressure control signal between stages, the KR-CO-101A/B 3rd.
compressor stage loads are controlled by KR-PX-1141 discharge
pressure control signal.

The suction pressure of the second stage of the KR-CO-101B is
controlled by adjusting the Hydrocom of the second stage;
capacity control to maintain a fixed pressure in the 2nd stage
KR-CO-101B.

Price & terms : Please enquire using the email form below.

If you cannot find the vessel, crane, rig or equipment that you need,
please send us an email to mail@worldoils.com stating your
requirements and we shall find it for you.

We can arrange delivery of equipment and towage of rigs and vessels where needed.

The details mentioned above are believed to be accurate but are not guaranteed.

--------------------------------------------------------------------------------------------------------------
Search words (for official use only) :
Nuovo Pignone 4HG/2-1 Compressor for Sale
New Nuovo Pignone 4HG/2-1 Reciprocating Compressor for Sale
2019 Built Nuovo Pignone 4HG/2-1 Compressor for Sale
19500 KW Nuovo Pignone 4HG/2-1 Compressor for Sale
375 RPM Nuovo Pignon Compressor for Sale
---------------------------------------------------------------------------------------------------------------

Worldoils Oil, Gas and Offshore Marketplace - Nuovo Pignone 4HG/2-1 Reciprocating Compressor - For Sale

Images

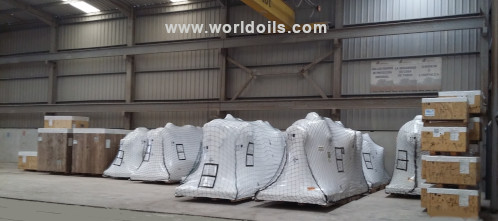

Nuovo Pignone 4HG/2-1 Compressor for Sale
