Accommodation / Work Barge for sale

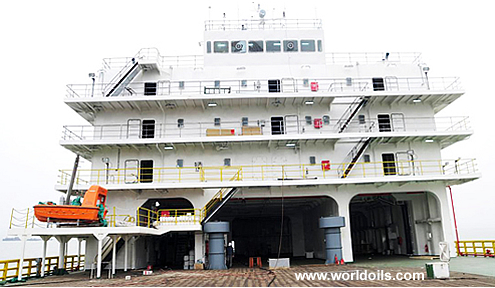

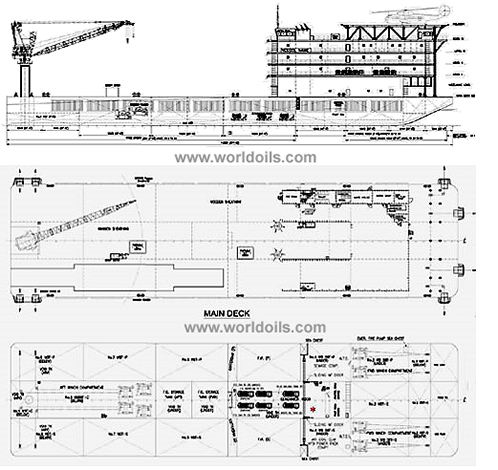

400 Pax Accommodation BargeConvertible to Pipelayer Accommodation Barge for Sale

General
Built : 2010
Classification : American Bureau of Shipping
Notation : ABS + A1 Accommodation Barge

Principal Particulars
Length : 113.08 m
Breadth : 28.50 m
Depth : 7.30m
Draft : 4.5 m

Tonnage
Gross / Net / Dwt : 10392 T / 3117 T / 8034.61 T

Cargo Capacity
Deck Space / Strength
Deck Area : 1850 m2
Deck Strength : 15 T / m2

Bulk Cargo    Storage Capacity  Discharge Capacity
Fuel Oil          1000 m3             80 m3 / hr @ 60 m head 2 x 10 M3/HR @ 30
Fresh Water    2186 m3            120 m3 / hr @ 60 m head
Ballast Water  8727 m3            2 x 350 m3 / hr @ 60 m head
Blige                                       2 x 150 m3 / hr @ 40 m head
Domestic Fresh Water             4 x 30 m3 / hr @ 70 m head
and Sea Water

Mooring System
Mooring Points : 8 nos.
Winch Drum : 8 nos. Singe drum ; Electro-Hydraulic
Winch Drive : Motor Driven
Line Pull : 90 T ; 12 m / min @ 1st Layer (1st Speed)
Brake Capacity :  150 T ; Static @ 1st Layer
Anchors :  9 nos. ; 10 T (Flipper Delta)
Anchor Wire :  8 Coils, 52 mm SWR ; 1500 m (L)
Pennant Wire :  9 nos., 52 mm SWR ; 130 m (L) Each
Anchor Marker Buoys : 9 nos. Foam Filled ; 2.45 m (L) x 1.83 m (Dia)
Tugger Winch :  2 nos. ; 10 T (Engine Driven), 5 T (Motor Driven)
c/w tension sensors, wire length counter, 16 vertical sheaves, 8 Universal
fairleaders

Helideck
Suitable for Sikorsk S92
Length : 25.62 m
Breadth : 25.62 m

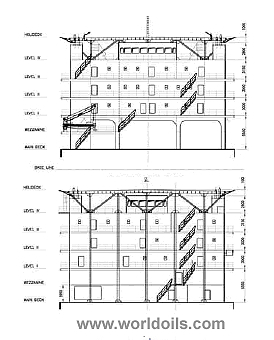

Facilities (Living, Working & Other)
Accommodation : 400 Persons
Client Office : 4 nos.
Barge Master Office : 1 no.
Conference Room :  1 no. , 20 Persons Capacity
Radio Room :  1 no.
Control Room : 1 no.
Hospital :  1 no. ,3 Beds
Dinning Room (Officers) : 1 no. ,36 Persons Capacity
Mess Room (Crew) :  1 no. ,  150 Persons Capacity
Laundry Room : 1 no.
Change Room :  1 no.
Recreation Room : 2 nos. , Each 48 Persons Capacity
Gymnasium : 1 no.
Prayer Room :  1 no.
Dry Provision Room :  2 nos.
Air Conditioning Unit : Centralized Comply to ILO 92, IMO
Meat / Fish Chiller : 50m3
Vegetable Freezer : 50 m3

Machineries & Equipment
Generators
Main Genset :
Engine - 3 nos., Each 1000 KVA
Cummins KTA -38-DM  440 V, 3 Ph, 60 Hz
Alternator - Stamford

Emergency Genset :
Engine - 1 no., Cummins 250 KVA
NTA 855-DM  440 V, 3 Ph, 60 Hz
Alternator - Stamford

Air Screw Compressor :
1 no. (Motor Driven)
294 m3 / hr (1 Cyl /1 Stage) @ 13 bar

Fresh Water Maker :
2 nos. x 50 m3 / day
Reverse Osmosis (Hansun)

Sewage Treatment Plant :
2 nos. x 200 men, 200
WCB - Jiangsu Nanjing Mechinary,

Oil Water Separator
1 no. (3 m3 / hr @ 15 ppm alarm)
IOPP :  Comply
Workshop :  1 no.

Deck Crane
Pedestal Mounted Techcrane 500-160
Capacity : 250 T
Boom Length :  160 Ft (49 m)

Communication & Navigation System
GMDSS Set : Area Comprising A1, A2 & A3
SSB Radio :  1 no. ,  Furuno FS 2571C
Navtex Receiver : 1 no., Furuno NX-700
Inmarsat F :  1 no.,  Furuno Felcom 15

VHF Air Band T'receiver :
1 no. ,  Icom IC A110
1 no. ,  Icom IC - A24 (HLO)

VHF Radio : 2 nos., Furuno FM 8800S with built-in DSC
Portable VHF Radio (GMDSS) : 3 nos. , ACR
Portable Marine VHF :  8 nos,  Motorola GP-328
Radios :  16 nos. , Motorola GP-328
Intercom & PA System : Entire barge
Satelite Phone, Fax & Email : One - Mini M One FBB , Sailor Thrane & Thrane
GPS :  1 no., Furuno GP150
Radar :  1 no. , Model: FR7062, Type: RDP-122, Furuno
Satelite Compass (GYRO) : 1 no., STD 22, Raytheon Anschutz
Magnetic Compass :  1 no,  Portable
Echo Sounder :  1 no.,  Furuno FE700
VHF for Crane : 1 no., Motorola GP-328
Radio Beacon Transmitter : 1 no.,  Nautel ND500II
Weather Fax :  1 no.,  Furuno FAX 207
Anemometer & Clinometers : 1 no. & 4 nos.
Barges also fitted with PA Talkbalk System and Sound Powered Telephones & CC TV Systems

Safety (FFA & LSA)
FFA (As per Solas) :
Fire Pump : 1 no. (Electric Driven), 300 m3 / hr @ 90 m head
Emergency Fire Pump : 1 no. (Engine Driven), 300 m3 / hr @ 80 m head
Fixed Foam Fire Fighting : Foam Tank Capacity : 400 Liters For Helideck
Fire Monitors : 2 nos., 140 m3 / hr @ 7 bar
Fire Hydrants : 41 nos., As per FFA plan
Intl. Shore Connection : 2 nos.,  As per FFA plan

CO2 System :
Area Protected = Generator room, paint
store & galley duct
Sinoking

Automatice Water Sprinkler System :
Area Protected = Entire accomodation area,
including paint store galley and workshop
1 x 150 m3/hr @ 80m head

General Alarm, Fire Detection System :
Area Protected = Entire barge

LSA (As per Solas) :
Rescue Boat :  1 no., 8 Persons Cap. c/w davit
Life Raft : 36 nos. (25 men capacity) , Total Cap. 900 persons (both sides)
Life Jackets :  550 nos., 150 % of the maximum
POB carrying capacity
Life Buoys with MOB : 4 nos., Mounted as per Barge Safety Plan
Life Buoys with SI Light :  10 nos., Mounted as per Barge Safety Plan
Life Buoys with Line : 2 nos, Mounted as per Barge Safety Plan
Life Buoys : 8 nos. , Mounted as per Barge Safety Plan
EPIRB :  2 nos., ACR Electronics, RLB 32
SART : 2 nos., ACR Electronics, Pathfinder 3
Line Throwing App. :
2 Sets Comprising of 4 Cartridges Each
1 no. Comet and 1 no.
Pains Wessex

Price & terms : Please enquire using the email form below.

If you cannot find the vessel, crane, rig or equipment that you need,
please send us an email to mail@worldoils.com stating your
requirements and we shall find it for you.

We can arrange delivery of equipment and towage of rigs and vessels where needed.

The details mentioned above are believed to be accurate but are not guaranteed.

-------------------------------------------------------------------------------------------------------------------------
