Hydraulic Land Drilling Rig - New 2000HP for Sale

Equipment ID: 559
Equipment name: Hydraulic Land Drilling Rig - New 2000HP for Sale
Category: Land Rigs
Specifications: Hydraulic Land Drilling Rig for Sale
New 2000hp Hydraulic Land Drilling Rig
Hydraulic Land Drilling Rig - 2000hp - For Sale
New Land Drilling Rigs for Sale
New Hydraulic Land Drilling Rigs - 2000hp
2000hp Hydraulic Land Drilling Rig for sale

Specifications

Mast
Max. hook load : 440 tn (880,000 lbs)
Height : 36.0 m (118.1 ft)
Stroke length : 22.0 m (72.2 ft)

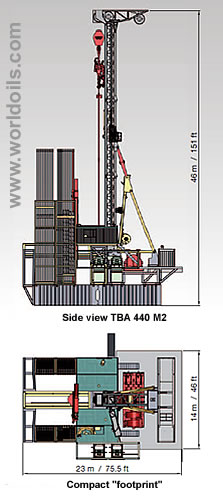

Total height incl. substructure : 46 m (151 ft)

Substructure
Drill floor height : 9.0 m (29.5 ft)
Clear height below RT : 7.5 m (24.6 ft)
Rotary opening : 952.5 mm (37 ½”)
BOP hoisting system : 2 x 27.5 tn (2 x 55,000 lbs)

Drawworks (AC – geardriven drawworks)
Rated power : 2,000 hp
Hoist capacity : 440 tn (880,000 lbs)
Drill in size : 38 mm (½”)
AC drilling motors : 2 x 850 kW (2 x 1,120 hp)
Max. tubular length (2 x range II) : 19 m (62.3 ft)

Top drive (TDK 65-500 electrically driven)
Load capacity : 500 tn (1,000,000 lbs)
Drilling torque* : 63,000 Nm (46,500 ft-lbs)
Make up / break out torque* : 100,000 Nm (73,760 ft-lbs)
Static break torque* : 105,000 Nm (77,440 ft-lbs)
Speed range : 0-115/230 rpm
Rated power : 758 kW (1,030 hp)
* nominal values

Hydraulic power unit (HE2100 electro-hydraulic)
Rated power (main system). : 1 x 400 kW. (1 x 536 HP)
Rated power (rig-up & emergency system) : 1 x 160 kW. (1 x 215 HP)

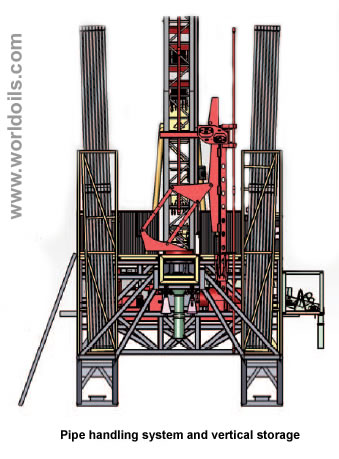

Pipe handling system - Vertical handling and storage system
Max. tubular length : 19 m (62.3 ft)
Drill pipe capacity : 2 3/8" – 6 5/8".(2 3/8" – 6 5/8")
Drill collar capacity : up to 9 ½” (up to 9 ½”)
Casing capacity (standard) : Up to 20”
Number of pipe racks : 4
Total storage capacity (5“ DP). : 6,000 m (19,684 ft)

Price & terms : Please enquire using the email form below.

If you cannot find the vessel, crane, rig or equipment that you need,
please send us an email to mail@worldoils.com stating your
requirements and we shall find it for you.

We can arrange delivery of equipment and towage of rigs and vessels where needed.

The details mentioned above are believed to be accurate but are not guaranteed.

--------------------------------------------------------------------------------------------
