Year Built : 2015

Main Engines :
2 x MITSUBISHI S6R2-T2MTK31
2 X 759kw @ 1406 rpm

Anchor Windlass : 1 x Jebsen&Jessen,2.5 t Pull@10m/min
Anchors : 2 x 780kg,JIS Stockless Anchors
Anchor Chain : 2 x 330m x 24mm dia
Tugger Winch : 1 x Jebsen&Jessen,5t@14m/min
Capstan : 2 x Jebsen&Jessen,5t@14m/min
Deck Crane : 1 x SWL 1 T @ 8 meter radius
Service Air :1 x 250 CFM @ 7 bar
Towing Hook : 1 X 35 Ton SWL Jebsen & Jessen Make

Deck Area : 140.0 m2
Deck Strength : 5.0t/m2
Dangerous Goods : CERTIFIED

Freshwater : 77 tonnes
Fuel Oil : 120 tonnes
Lub. Oil : 2 tonnes
Sludge : 5.0 m3
Sewage : 14 m3
Dirty Oil/Slop : 2.5 m3
Oil Dispersant : 6.5 m3

F.O. Transfer Pump : 8m3/hr @ 20m head
F.W. Cargo Pump : 10m3/hr @30m head

Primary Radar : JRC,96NM,X Band
Secondary Radar : JRC,48NM
Echo Sounder : JRC,JFE-380,IMO Approve
AIS : JRC,JHS-183
GPS : JRC JLR-7500
Auto Pilot : Navitron
Magnetic Compass Daiko SR-150PK,Reflector Type
Gyrocompass : JRC,IMO Compliance
MF/HF-DSC Radio Tel : Phontech,DC12 V
VHF-DSC Radio Tel : Phontech,DC 12V
INMARSAT C : JRC,Area 2 Operation

Speed : 12 knots @100% MCR
Endurance : 30 days
Designed deck loading : 5.0 tonnes/m2
Bollard Pull : 30 T ( approx)

External Fire fighting : Horizontal,Centrifugal,Self
Pump : Priming,100m3 @ 60m head
Monitor : 1 x Dual Purpose Monitor,100m3 @ 5 bar inlet pressure
Oil Dispersant System : 2 x 6 m Spray Boom

Life Raft : 4 x 30 men with hydrostatic release
Rescue Boat : 1 x 6 persons, Narwhal 39.IRB
Davit : NDM SCM 12-3R,SWL:1.0 T
H2S : Fixed H2S Detection System

Oily Water Separator : 1 X Gravity 2 stage,0.5m3/hr
Sewage Treatment : 1 x Biological Unit,MARPOL compliance
Water Maker : 2 x 5t/day, Reverse Osmosis Type with UV Filtration

4 x 1Men Berth Cabins : 4 Men
5 x 2 Men Berth Cabins : 10 Men
5X 4 Men Berth Cabins : 20 Men
TOTAL 34 Men

Passenger Seating :
26 Seating in passenger lounge
equipped with TV/DVD for Passenger
Transfer Safety Induction

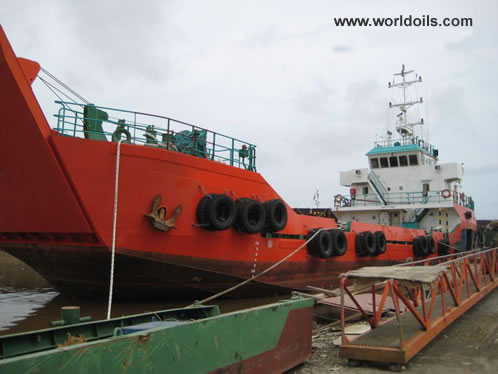

Landing Craft For Sale
LCT for sale - 46mts

Principal Particulars

Length overall : 46.00M
Length W.L. : 43.50M
Beam moulded : 10.90M
Depth moulded : 3. 20M
Draft designed : 2.20M
Draft max : 2.50M

Tween Deck Heights (Mean)

Deckhouse : 2.45M
Wheelhouse : 2.60M

Accommodation

2 x 1 berth cabin : 2
3 x 2 berth cabins : 6
3 x 4 berth cabins : 12
Total : 20 men

Tankage (approx)

Freshwater : 178m3 tonnes approx.
Fuel oil : 121m3 tonnes approx.
Cargo Fuel Oil : 265m³ tonnes approx.
Engines : 2 x 640 BHP at MCR 1800 rpm

Performance

Speed : 11.0 knots at light loaded condition and at 100% MCR.
Classification : BV
Registry : Malaysia

Life Saving Equipment

Life rafts : Two (2) inflatable life rafts to SOLAS requirements, certified min. twenty (20) men are
to be provided. The life rafts are to be stowed on the forecastle deck in hinged type
cradles for quick sideway launching manually and automatic hydrostatic release.

Lifebuoys : Ten (10) lifebuoys of PVC construction:
Six (6) lifebuoys with 90ft buoyancy line
Four (4) lifebuoys with 90ft buoyancy line and self-igniting electric lights, two (2)
smoke signal of the latter.

Lifejackets : Twenty-five (25) approved type lifejackets to be supplied and stowed adjacent to each
berth. Spare jackets: 6 in no. are to be provided. Maker: Solas Approved Type.

Pyrotechnics : Four (4) set self-contained units of line throwing apparatus.
Twelve (12) parachute distress rockets.
Six (6) hand flare
Two (2) orange smoke signals each to have 120 seconds discharge time and be
waterproof. Maker: Comet or equal.

Medical Kit : Two (2) medical kits

Fire fighting Equipment

Fire fighting equipment is to be provided to meet classification and government regulations and
generally in accordance with the following:

Firemain : A firemain and five (5) 1 1/2" bronze hydrants installed, three (3) on various
deck levels and two (2) in engine room. 15M canvas fire hose c/w brass coupling and
nozzle is to be supplied and stowed alongside each hydrant in a protective box.
All hose, hose fittings, nozzles & hydrants to be international standard. International
shore connection is to be fitted.

Fireman's Outfit : Two (2) complete set of fireman's outfit
One (1) aluminium protective clothing
One (1) breathing apparatus oxygen tank & mask
One (1) fireman's axe
One (1) safety lamp of portable battery type
One (1) set of gloves & boots
One (1) electric drill

Portable Fire Pump : One (1) portable Fire Pump

Fire Bucket : Four (4) buckets painted in red and marked 'Fire' to be supplied in stands.

Auto Fire Alarm and fire Detection System
a) Alarm System
b) Detection System
c) Indication Units
Maker : Fitech or equal

Navigation & Communication Equipment

.1) GMDSS Equipment to be provided to satisfy the requirements of the 1988 amendments made to
the 1974 SOLAS Convention covering sea areas A1, A3.

(a) VHF Radiotelephone with DSC watch receiver
Two (2) VHF radiotelephones capable of general radio communication and transmitting
and receiving DSC distress alerts on Ch. 70 and radio telephony on Ch. 6, 13 and 16.
Equipment shall be suitable for DC 24 volt operation.

(b) Radar Transponder (SART)
One (1) search and rescue radar transponders capable of operating in the 9 GHZ band.

(c) Navtex Receiver
One (1) Navtex Receiver capable of receiving co-ordinated broadcast and automatic
reception on 518 kHz of maritime safety information. Equipment shall be suitable for DC
24 Volt operation.

(d) Satellite EPIRB
One (1) Satellite Emergency Position Indicating Radio Beacon (EPIRB) capable of
transmitting a distress alert through the polar orbiting satellite service operating in the
406MHz / 1.6GHZ bands.

(e) MF/HF Radiotelephone with DSC watch receiver
One (1) MF/HF Radiotelephone capable of general radio communication and
transmitting and receiving distress and safety communications on all distress and safety
frequencies in the bands between 1.6 to 27.5 kHz using DSC, radiotelephony and narrow
band direct printing telegraphy (MBDP). Equipment shall be suitable for 230/1/50 and
DC 24 volts operation.

(f) VHF Handheld Radiotelephones
Two (2) two-way VHF handheld radiotelephones c/w charger, Lithium batteries and
chargeable batteries shall be provided I.S. Type.

2) Echo Sounder
One (1) echo sounder, Furuno or equal with paper recorder and digital readout for 24V
DC supply or equal type.

3) Radar
One (1) radar, Furuno or equal bright displace, DC24 Volt supply c/w reflection plotter facility.

4) Speed Log

5) PA System
A public addressing (PA) system to be provided and installed as follows:
(a) Wheelhouse - Master Control Station
(b) Officers Mess Room - Bulkhead mounted PA
(c) Engine Room - Bulkhead mounted PA (with external audible & visual
calling signal)
(d) Passageway Main Deck - 2 Way PA
(e) Wheelhouse top - PA only

If you cannot find the vessel, crane, rig or equipment that you need,
please send us an email to mail@worldoils.com stating your
requirements and we shall find it for you.

We can arrange delivery of equipment and towage of rigs and vessels where needed.

The details mentioned above are believed to be accurate but are not guaranteed.

---------------------------------------------------------------------------------------------------------

-------------------------------------------------------------------------------------------------------

-----------------------------------------------------------------------------------------

----------------------------------------------------------------------------------------------------

---------------------------------------------------------------------------------------------------------

-----------------------------------------------------------------------------------------------------

---------------------------------------------------------------------------------------------------



----------------------------------------------------------------------------------------------------------



------------------------------------------------------------------------------------------------



---------------------------------------------------------------------------------------------------------



-----------------------------------------------------------------------------------------------------------

-----------------------------------------------------------------------------------------------------------

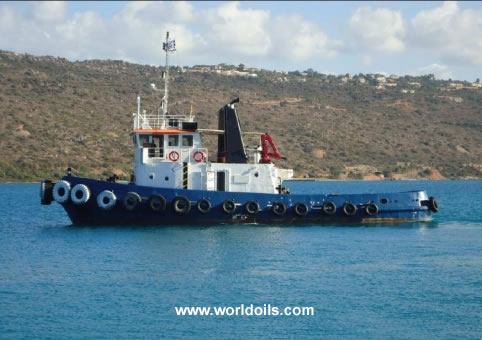

2006 Built Tugboat for Sale

Anchor Handling Tug - 41m - for Sale
41m AHT for Sale
1982 Built Anchor Handling Tug
20 Passenger Accomodation Capacity Vessel for Sale
------------------------------------------------------------------------------------------------------

---------------------------------------------------------------------------------------------------



---------------------------------------------------------------------------------------------------

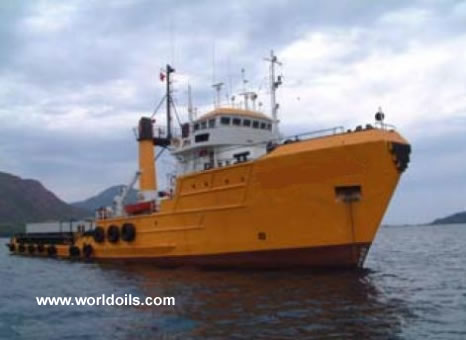

AHTS - 2005 Built for sale
2005 Built Anchor Handling Tug
38m AHTS for Sale
18 Passenger Accomodation Capacity Vessel for Sale
Anchor Handling Tug Vessel for sale in Asia
---------------------------------------------------------------------------------------------------------------








M/E : 2 x 12VMTU2000 M72
total : 2895 bhp
Speed : 28 knots
Deck : Deck Cargo : 20 tons
Location : N.Europe / New Building Order
Others : Telescobic Crane


----------------------------------------------------------------------------------------

Search words (for official use only) -

Length Overall : 47.00m
Length Waterline : 43.50m
Breadth Moulded : 10.90m
Depth Moulded : 3.20m
Designed Draft/Max : 2.20m
Working Deck Area : 290 sqm (approx.)
DWT : (included Cargo Fuel and Fresh Water) 450T

Windlass w/
Ramp Door Winch : 2 x5t@10m/min
Davit Crane : 1 x for 6 men Rescue Boat

Complement : 10 Crews
Fuel Oil : 122cbm
Cargo Fuel Oil : 162cbm
Fresh Water : 46cbm
Cargo Fresh Water : 178cbm

Main Engine :
Yanmar 6AYM-WST
2 x 650hp @1900rpm

SSB Radio : 1 x Samyung SRG-3150DN
VHF Radio : 1 x Samyung STR-6000A
Radar : 1 x Koden MDC-2910P
Gyro Compass : 1 x Yokogawa CMZ-900B
AIS : 1 x Samyung SI-30
Autopilot : 1 x Simrad AP-70
Echo Sounder : 1 x Samyung SES-2000
Speed Log : 1 x Furuno DS-80
GPS : 1 x Furuno GP-150
Navtex Receiver : 1 x Samyung SNX-300
EPIRB : 1 x Kannad Marine
SART : 1 x Kannad Rescue 2

Bilge/Ballast Pump : 30cbm/hr@40m
GS /Fire Pump : 30cbm/hr@40m
Emerg. Fire Pump : 25cbm/hr@30m
F.O. Trans Pump : 10cbm/hr@20m
F.O. Cargo Pump : 50cbm/hr@50m
F.W. Cargo Pump : 50cbm/hr@50m
A/C S.W. Pump : 35cbm/hr@28m
F.W/S.W. Press. Set : 2cbm/hr@28m
Dirty Oil Pump : 4cbm/hr@20m

Sewage Treatment : 15 Persons
Oily Water Separator : 0.5cbm/hr

---------------------------------------------------------------------------------------------------------------
Search words (for official use only) :

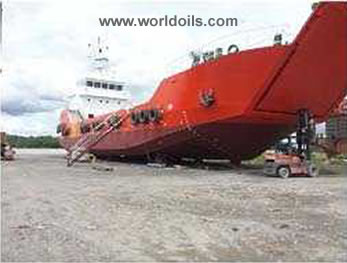

2015 Built Landing Craft For sale
New 47m Landing Craft
450T DWT Landing Craft for Sale


Length overall : 46.50 m
Length B.P. : 42.41 m
Breadth : 10.9 m
Depth : 3.2 m
Draft : 2.5 m

Year Built : 2013
Classification : Bureau Veritas
Notation :
+Hull.Mach Deck Ship
Unrestricted Navigation

Fuel Oil : 406 t
Fresh Water : 254 t

Total Complement :
14 Men
2 x 1 berth cabin
6 x 2 berth cabin

Maximum Speed : 12 Knots
Economical Speed : 10 Knots
Type of Fuel : MGO
Deck Space : 285m2 with 3" selangan wood
Deck Strength : 5 Ton / SQ Meter

Main Engine : Cummins [ 2 x KTA-19M3 640bhp @1800rpm]
Gear Boxes : 2 X Reintjes GmbH , Model: WAF364L
Generator : Cummins [ 2 x 6BT5.9D 80kW each]
Propellers : 1 x 4 bladed Manganese Bronze
Bow thrusters : 1 x 430BHP/2600RPM Cummins USA

Radar :
1 x Furuno FAR 2117 &
1 x Furuno Model 1995

Anchor Windlass

Certification : As Per SOLAS
Rescue Boat : Approved 6-Men rescue Boat.

Sewage Treatment : 1 x Biologic Treatment Plant

Model: MS-05
Type: 15ppm Bilge Separator, IMO
Type Approved

Description

:

The helideck is octagonal in shape with maximum dimensions at 24.02 metres at the
extremities, with a minimum deck diameter of 22.2 metres from the fore edge of the
deck to the 210 deg chevron.

This dimension results in a ‘D’ rating of ‘22’ for the deck. The deck has a rated maximum
gross tonnage of 13000 Kg (13 tonne) giving a ‘T’ value of 13.

The deck is constructed of extruded aluminium plate with a raise friction profile surface.

The deck is surrounded by a PVC coated safety net that protrudes outward 1.5 metre at deck
level for most of the perimeter of the deck. A fence consisting of metallic tubing frame borders
passenger walkways. These fences are collapsed to deck level during takeoff and landing
and erected for passenger safety for embarkation and disembarkation.

The aiming circle is situated at centre of the deck. All markings on the deck meet the
guidelines provided in CAP437.

:
Sikorsky S-92 - 12.83 MT, D= 20.88 m
Sikorsky S-61 N - 9.3 MT, D= 22.2 m
210 deg Obstacle Free Sector (OFS)

The only obstacles that penetrate the 210 deg OFS on the ship are the passenger handrails.

These must be collapsed to deck level during helicopter landings and takeoffs.

Lighting

:
The deck has 26 green perimeter lights set at an average of 2.8 metres apart around the
perimeter of the deck.
There are 4 deck level Xenon floodlights set at deck at forward port, aft and starboard edges
of the deck.
These lights meet the specification of the Lancelot Stage 1 floodlighting trial as described
in Annex D of CAA CAP 437 (August 2010).

For Sale

2006 Built DSV / ROV Vessel

for Sale
76 m Offshore Support Vessel

Built : 2006
Class : ABS
Notation : + A1E OffshoreSopport Vessel, AMS + DPS2

Main Engines : 2 x 2040kW; 6L26A

Main Generators :
3 x 534kW @ 1500rpm Caterpillar 3412 DITA
c/w Stamford HCM 634G1 alternators rated at
500kW / 415Vac / 3ph / 50Hz

1 x 52kW @ 1500 rpm Olympian GEP 65-3 c/w
Leroy Somer LL2014H alternators rated at
52kW / 415Vac / 3ph / 50Hz

2 x 1600kW @ 1000 rpm rated at 415Vac / 3ph / 60Hz

2 x 600kW electric-driven IPS Tunnel type (CPP);
10mT thrust

:

Deadweight : 2000mT @4.6m draft
Deck Cargo : 1000mT
Deck Strength : 7.5mT/square meters
Clear Deck Area : 700 square meters
Fuel Oil : 1050 cubic meters
Fresh Water : 1450 cubic meters
Ballast / Drill Water : 780 cubic meters
Liquid Mud : 210 cubic meters in dual purpose tanks with FO
Cement Tank : Nil
Freezer / Chiller : 35 cubic meters  / 35 cubic meters

Maximum Speed : 11 knots
Economical Speed : 10 knots
Type of fuel : Marine Gas Oil

External :
Fire Pump : 2 x 1,500 cubic meters /hr @ 14 bar, Unitor
Fire Monitor : 2 x 1,200 cubic meters /hr @ 12 bar, Unitor
Emergency Fire Pump : 1 x 35 cubic meters /hr @ 45m head; Azcue
Oil Dispersant System : 2 x 6m Alum spray boom c/w 6 nozzles ea

Internal :
Full flooding CO2 system in engine room
Search Lights : 2 x 2,000W Zhejiang Hai Xin
Floodlights : 5 x 1,000W aqua signal
Liferafts : 16 x 25 men SOLAS approved type
Lifeboat : 1 x 75 men (Portside)
Rescue Boat : 1 x 8 men inflatable c/w outboard motor
Water Maker : 2 x 30 cubic meters /day reverse osmosis, Seanly Tech
Oily Water Separator : 1 x 1 cubic meters /hr Jiang Shu Nanji
Sewage Treatment Plant : 1 x 200 men/day JCB 50

Berths : 6 x 1, 6 x 2, 27 x 4
Total Berths : 126
Hospital : 2 x 4 berth cabins

76 m Offshore Subsea Vessel
Subsea Vessel with ROV Operations for Sale
2006 Built SOV for Sale

76 meter 2006 built DSV / ROV Vessel

Class Notation :
ABS class Maltese cross +A1Barge Unrestricted
service Derrick/PipeLay Barge

12 x One-man cabins : 12 men
51 x Two-man cabins : 102 men
49 x Four-man cabins : 196 men
Total Complement : 310 men

Main hook :
3000MT x 30m(stern)
2000MT x 35m(revolving)

Diesel engine :
Hyundai 8H25/33, 4 x 2400Kw, 450V/3pH/60Hz

Life raft : 22 x 25 men
Life buoy : 16 sets
First Aid Kit : 1 set
Rescue boat : 1 Unit with single arm davit
Life jacket : 17 pcs

Mooring Winch : 12 sets of mooring winch with 200t drake brake
Mooring Anchor : 12 tones Delta Flipper type
Wire ropes : 12 sets x 76mm wire rope and 2500m long each

DCPS 2 sets
Navtex receiver : 1 set
VHF : 1 set
Two way VHF for life boat : 3 sets
Echo sounder : 2 sets
GPS : 1 set
Magnetic Compass : 1 set
Radar system : 2 sets
Gyro Compass : 1 set

Sewage treatment units
Fresh Water maker
F.O. transfer pump
Ballast system
F.W. pump
Fresh Water transfer pump
Dirty Oil pump
Bilge & ballast pump
Oily water separator
Sewage treatment plant
Intended Area of working : Worldwide

---------------------------------------------------------------------------------------------------------------
Search words (for official use only) -

Derrick/Pipelay barge for a long term charter
310 pax Newbuilding Pipelay barge for a long term charter
New Derrick/Pipelay Barge for Charter
310 pax Pipelay barge for Charter
New 3000 ton crane Derrick/Pipelay Barge for charter

----------------------------------------------------------------------------------------------------------------

--------------------------------------------------------------------------------------------------------
Search words (for official use only) -
29.95m Tug  for Sale
Tugboat for Sale in Singapore
2000 Built Lloyds Class

Used Tugboat for Sale in Asia

--------------------------------------------------------------------------------------------------------
Search words (for official use only) -

--------------------------------------------------------------------------------------------------------
Search words (for official use only) -
1999 Built Used

Tugboat

Used Tugboat for Sale in Singapore

--------------------------------------------------------------------------------------------------------
Search words (for official use only) -

Year Built : 1991
Year Converted : 2006

Station keeping : Single-point mooring, DP1 station keeping/mooring assist

More details available to named buyers.

--------------------------------------------------------------
Search words(for official use only) :

FPSO For Long Time Charter
FPSO for Charter

FPSO available for Charter
FPSO For Time Charter

-----------------------------------------------------------

-----------------------------------------------------------------------------------------------------



---------------------------------------------------------------------------------------------

------------------------------------------------------------------------------------------------------


-------------------------------------------------------------------------------------------------


-----------------------------------------------------------------------------------------------------
