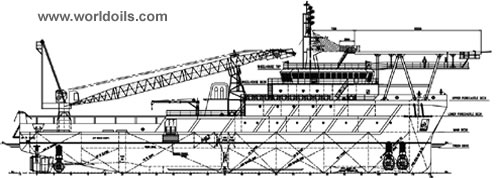

New Offshore Support Vessel for sale - MPV Multi-purpose Offshore Support Vessel for sale
75M brief outline technical specifications
Classification : ABS class, +A1, +AMS circle E, with descriptive notation multipurpose offshore support vessel for unrestricted service, +DPS-2
Others : With provision (only) for moon pool for ROV support function
Other compliance : IMO Intact and damage stability A469, COLREG 72 & Amendment, GMDSS A3, MARPOL Annex I, IV, V & VI Note: Owner is required to seek approval for dispensation for IMO A534 requirement from the Flag state
Principle dimensions Length O.A : 75.00 m Length W. L. : 71.20 m Beam MLD. : 20.00 m Depth MLD. : 7.20 m Draft (Designed) : 5.20 m approx Draft (Max) : 5.80 m approx Deck area : 520 m2 approx. Speed : Abt. 11 knots @ 100% MCR @ ballast condition about Main Engines : 2 x 1600 KW (100% MCR) @ 1000 rpm coupled to Berg CPP type BCP690 c/w with gear box Endurance : 22 days approx. Complement : 200 men Fuel Type : Marine diesel oil Main deck strength : 5 tonnes / m2 covered with wood sheathing GT : 3605 NT : 1082
Tank capacity (approximate) F.W. : 1,000 m3 F.O. : 567 m3 S.W.B : 651 m3 Grey water tank : 20 m3 Bilge holding tank : 16 m3 Sewage holding tank : 20 m3 Lub oil storage tank : 34 m3 Dirty oil tank : 16 m3 Hydraulic oil tank (4 tanks) : 25 m3
Main machineries Main engine & propulsion system : 2 x 1600 KW main engine @ 1000 rpm approx. c/w. gear box Berg CPP type BCP 690 propeller in nozzle. The main engines cooling system will be by fresh water through box coolers
Thrusters : Bow Tunnel Thruster CPP x 2, 12 MT thrust each approx., Electric Motor driven c/w with remote control in wheelhouse with interface for DPS-2 and VDR system Stern Tunnel Thruster CPP x 1, 10 MT thruster approx., Electric Motor Driven c/w remote control in wheelhouse with interface for DPS-2 and VDR system
Steering gear & rudder Steering gear : Independent steering gear for each Rudder in compliance to DPS-2 requirements Rudder type : High lift rudder of Becker design with flap or equivalent
Power plant Main Generator : 4 x 850 EkW, 440/3/60, 3 wire system The alternators are fitted with Power Factor Regulator Harbour Generator : Approximate 320 EkW, 440/3/60. Emergency Generator : 1 x 95 EkW, 440/3/60 (approximate subjected to maker’s confirmation) Shore supply Panel : 300 amps capacity
Deck machinery Anchor windlass : Hydraulic Driven suitable for 48 mm stud link Grade 2 chain c/w wharping drums 4 points mooring system : 4 x 4000 kg Delta flipper anchor or equivalent + 1 spare 4 x hydraulic driven single drum c/w auto spooling gear, with pull of 40 mt at low speed and 10 mt at high speed. Drum capacity of 1300 meter x 44 mm diameter wire Brake holding of 90 mt static Clutch : Hydraulic cylinder operated jaw clutch Free wheel : De-clutch drum from drive with brake off (Dragging Brake apply on drum shaft to control speed) Brake : Spring acting, hydraulic cylinder release band and brake on drum Dragging Brake : On drum shaft to control payout speed during freewheeling Control : Local control and central remote control in Wheelhouse Emergency system : Emergency quick release system Monitoring System : Remote monitoring of the winches at Wheelhouse by flat screen monitor. Hydraulic Vertical Capstan : 2 units on main deck with pull of 5 mt and local control only.
Fire fighting equipment External Fire Fighting system : 1 unit of diesel engine driven sea water pump with capacity of 300 m3/hr @ 100-120 metre head with local and remote control in the wheelhouse. 2 units of fire monitor (manual operated type located at the aft of the accommodation having capacity of 150 m3 /hr (inlet pressure of about 10 bar). Fire Detection and Protection : Accommodation spaces are protected by fresh water sprinkler system. Engine room, bow thruster room, paint store and emergency generator room are protected by fixed CO2 fire protection system. Flexi-fog water mist extinguishing system as per SOLAS / class requirements.
Communication/Navigational equipment Communication System : GMDSS - area A1 to A3, PA/Talkback system and Sound Powered telephone system Navigational Aids : Echo Sounder, Radars x 2, GPS Navigator, SART, 406MHz EPIRB, Gyro Compass (2 units), Auto Pilot, DGPS, AIS, Speed log, SSAS, Anemometer
DPS-2 System (Comply to ABS Classification Rules) Equipment System & Configuration : Converteam (Designer and Supplier of the system except for the Gyro-compass and the propulsion and steering gear system) Equipment and system provided to be in compliance with the classification rules and regulations. The system main features comprises of the following : Redundancy requirement : Yes DP control computer : 2 units Position Reference system : 2 x DGPS & 1 x Laser reference system Wind speed & Direction Equipment : 2 units Vertical Reference Unit : 2 in nos. Printer for alarm data Log : 2 in nos.
Other features Stabilization system : Flume passive stabilization system Voyage data recorder system : Yes, as per SOLAS requirement Fresh water maker : Reverse osmosis type of fresh water maker, Capacity - 50 mt /day x 2 units Service air compressor : Capacity of air compressor - 150 m3 / hr @ 7 bar x 1 unit Air receiver : Capacity – About 1 M3 Hydro-Acoustic compartment : Only compartment provided without Equipment
Accomodation space Fully Air-Conditioned for all accommodation spaces Tween Deck (below main deck) : 96 men Main Deck : 1 man Lower forecastle deck : 84 men Upper forecastle deck: 19 men Total : 200 men
Spare parts : Class Standard requirements applied
Vessel Designed for the provision for the following deck equipment
Deck Crane : Amclyde 10000 from American Equipment Provision Crane : 3 tonnes SWL @ about 18 metre radius located aft of forecastle deck
Optional Items (Owner’s responsibility) Safety Equipments LSA equipment such as Immersion suit and thermal protective aids (where applicable owner to apply for exemptions)
Any exemptions required from the flag state will be the responsibility of the buyer.
Price & terms : Please enquire using the email form below.
If you cannot find the vessel, crane, rig or equipment that you need, please send us an email to mail@worldoils.com stating your requirements and we shall find it for you.
We can arrange delivery of equipment and towage of rigs and vessels where needed.
The details mentioned above are believed to be accurate but are not guaranteed. ------------------------------------------------------------------------------------------------------------------------------------ Search words(for official use only) : Multi-purpose Offshore Support Vessel for sale Newbuild Offshore Support Vessel Offshore Maintenance Vessel for Sale Newbuild MPV for Sale New Offshore Support Vessel for sale - MPV -----------------------------------------------------------------------------------------------------------------------------------
Deck Barge For Sale Used Deck Barge For Sale Deck Barge For Sale in Asia 85M Deck Barge For Sale in Singapore
Specifications : Built : 2011 BV Class
Principal Dimensions : Lenght overall : 85.60m Designed waterline length : 82.30 Length within perpendiculars : 79.30m Breadth : 28.50m Breadth at design waterline : 24.00m
Depth moulded : 6.00m Design draft : 4.20m Deadweight : ~4500t Displacement : ~6280t
Complement : 14P Service : Unrestricted Continous power : 956kw/850rpm Design speed : ~10kn Deck cargo carrier, Deck load : 15t
The details mentioned above are believed to be accurate but are not guaranteed.
--------------------------------------------------------------------------------------------------------------------------- Search words(for official use only) - Deck Barge For Sale Deck Barge for Sale - 85M 2011 built 85M Used Deck Barge for Sale in Singapore 2011 built Barge for Sale in Asia Deck Barge for Sale - 85M - 2011 Built Deck Barge for Sale in Malaysia ------------------------------------------------------------------------------------------------------------------------------
Towing Tug for Sale 2007 Built Towing Tug For Sale 3200 BHP Towing Tug - For Sale
General : Year build : 2007 Dimensions : 32 (LOA) x 9.20(B) x 4.60(D) m Draft : maximum 3.80m GRT/NRT : 296/88
Tankage : Fuel oil : 250 cub.mt Potable water : 40 cub.mt
Accomodation : 1 man cabin : 2 nos 2 men cabin : 1 nos 4 men cabin : 2 nos Total complement : 12
Navigation & communication : All round view wheelhouse Forward and aft control Radars, echo sounder, autopilot, GPS, Weather fax, navtex receiver, satellite mini-M, MF/AF radio, VHF radio, satellite tracking system, Intercom/PA system
Towing equipment : Winch : 1 x ME40THTW electro-hydraulic Line pull : 40MT Brake : 100MT Drum cap : 700m x 44mm dia. wire Tow hook : 1 x 50MT swl pneumatic spring tow hook
Trial speed : 12 knots
Main machinery : Main engine : 2 x CAT3512B, 1597B hp each, total 3194 bhp Auxiliary engine : 2 x cummins Diesel alternator : 2 x 124 KVA each, 400V/3P/50Hz
Anchors and cables : Anchor : 2 x stockless bower anchor, each 480kg Chain : 302.5m total length, 22m dia., grade 2 steel stud link chain
Cargo pump & misc equipment : Fuel oil : 1 x 8m3/hr at 60m head Portable water : 1 x 36m3/hr at 25m head Sewage treatment : 1 x SBT-15 type, capacity 1000L Fresh water maker : 1 x 2MT/day Oily water weparator : 1 x IMO type, 0.5m3/hr x 2kg/cm2
Bollard pull : 40MT
Price & terms : Please enquire using the email form below. If you cannot find the vessel, crane, rig or equipment that you need, please send us an email to mail@worldoils.com stating your requirements and we shall find it for you. We can arrange delivery of equipment and towage of rigs and vessels where needed. The details mentioned above are believed to be accurate but are not guaranteed. ---------------------------------------------------------------------------------------------------------------------------------- Search words(for official use only) - Towing Tug For Sale 3200 BHP TowingTug - For Sale Tugs For Sale in Middle East, India 2007 Built Towing Tug For Sale Used 3200 BHP Towing Tug for Sale Towing Tug For Sale in Singapore, Malaysia, Indonesia --------------------------------------------------------------------------------------------------------------------------------------

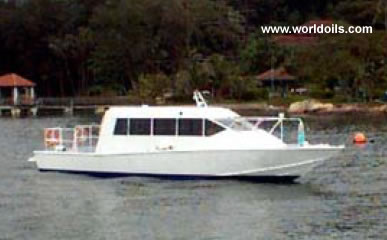

Fast Patrol Boats for sale Newbuilding Fast Patrol Boats For Sale Patrols Boats for Sale - 10.40 mtrs - 35knots Delivery in 4 months
Length moulded : 9.30 m Length overall : 10.40 m Beam moulded : 3.25m Beam overall : 3.40 m
Speed : 35knots Max cap : 4 Engine : Twin Steyr 164K (163hp) Propulsion : Stern drive Fuel tank : 500l Price & terms : Please enquire using the email form below.
The details mentioned above are believed to be accurate but are not guaranteed. --------------------------------------------------------------------------------------------------------------------------- Search words(for official use only) - Fast Patrol Boats for sale Patrol boats for India, Middle East, Europe Fast patrol boats for Africa 10.4mtrs Patrol boats Patrol Boats in Asia, Singapore, Malaysia, Indonesia New Fast Patrol Boats For Sale Newbuilding Fast Patrol Boats 35 knots Patrol Boats 10.4mtrs Patrol Boats for sale ------------------------------------------------------------------------------------------------------------------------------------
Utility Supply Vessel - 3500bhp - 2005 built 3500bhp Utility Vessel Used Supply Vessel - 3500bhp
Principal Particulars : Length Overall : 45.00m Length Waterline : 43.43m Breadth Moulded : 11.80m Depth Moulded : 4.60m Draft Max : 3.80m Year Built : 2005 GRT/NRT : 621/186 Class : ABS Notation : Class 1 + Hull + MACH, Supply Vsl Unrestricted Navigation Performance Maximum Speed : 12.00 Knots est. Economical Speed : Abt 11.0 MT/24 Hrs @100% MCR Type of Fuel : Marine Gas Oil
Cargo Capacities Deck Strength : 5.0t/sqm uniform loading Windlass : 3.4t @ 12m/min for 28mm dia. stud link 42 Bow Anchors : 2 x 1O40kg high-holding type anchor Clear Deck Area : 24m x 9m = 216sqm Fuel Oil : 549.22 cbm Fresh Water : 160.50 cbm Water Ballast/ Drill Water : 63.82 cbm Foam : 8.75 cbm Detergent : 8.75 cbm
Propulsion System Main Engines: 2 x 1750 BHP, Caterpillar 3512B c/w Reinjtjes GB WAF 763L, Ratio: 5.750:1 Main Generator : 3 x 245kw/415v/3ph/50Hz Emergency Genset : 1x40kw/415v/3ph/50Hz Bow Thruster : 1x350kw tunnel unit producing 5T thrust Steering Gear : 2 x 35 degree - 5TM Propulsion : 2 x FPP Type with Kort Nozzle Rudders : Conventional Life Saving Appliances Search Lights : 3 x 2000W Floodlights : 5x1000W Liferafts : 6x25 men Lifebuoys : 8 pcs with buoy lights Life jackets : 75 pcs Immersion suits : 03 pcs Rescue boat : 1set for 6 men Emergency Escape Breathing Devices : 08pcs
Towing/Deck Machinery Stem Roller : 1.6 dia and 3.5m long with swl 150t Chains : 358m x 28mm dia, Grade U2 stud link chain Capstan : 2 x 5 t @ 15m/min Tugger Winch : 2 x 5t @ 15m/min
Accomodation Berths : 2 x 1 berth cabin = 2 & 4 x 4 berth cabins = 16 Total : 18 men Hospital : 1 x 1 berth cabin (2 beds) = 2 All cabins are fully air-conditioned 20 individual seating available Radio & Navigational Equipment GMDSS : Area 1 + 2 + 3 Rack Console System : a) SSBModel FS-1562 400w -1 set Furuno Model RC-500 b) DSC-Model DSC-6 MF/MF - 1 set
c) Watch Keeping Receiver – Model AA-50 - 1 set d) NBDP-Mode1 DP60 - 1 set e) Immarset C-Model Felcom 12 - 1 set f) Printer- PP51 0 - 2 sets Semi-Duplex GMDSS VHF : 2 x Furuno VHF Transceiver with built in DSC-8V for 24VDC operation
Satellite EPRlB : 1 x Mcmurdo Model E3 2 way Portable VHF Radio : 3 x Furuno SART : 2 x search and rescue radar transponder (SART) Navtex Receiver : 1 x Furuno
X-Band Radar : 2 x Furuno 64 NM Encho Sounder : 1 x Furuno GPS Plotte : 1 x Furuno Gyrocompass : 1 x Simrad
Magnetic Compass : 1 x Saura Autopilot : 1 x ComNav2001 Weather Fax : 1 x Furuno Speed Log : 1 x Furuno Automatic Identification System : 1 unit Fire-Fighting Equipment & Anti-Pollution External FIFI : ½ FiFi Fire Pump : 2 x 600cbm/hr @ 12bar Monitors : 2 x 600cbm/hr @ 12bar with remote control.
Internal Emergency Fire Pump CO2 system in engine room Fire Detection & Alarm System in Accommodation
Others Sewerage : 1 x 23 men per day Oily Water separator : 1 x 0.5cbm/hr (MARPOL Standard)
----------------------------------------------------------------------------------------------------------------------------- Search words(for official use only) Utility Supply Vessel - 3500bhp - 2005 built Supply Vessel for sale in Singapore 3500 bhp Supply Vessel Supply Vessel for sale in Asia Supply Vessel for sale in Malaysia Supply Vessel for sale in Indonesia 3500bhp Utility Vessel ------------------------------------------------------------------------------------------------------------------------------
Trailing Suction Dredger for sale 5500cbm Trailing Suction Dredger - For Sale 2010 Trailing Suction Hopper Dredger for sale Trailer Suction Dredger for sale
Specifications
Capacity : 5500cbm Built : 2010 Dims : 105.75m x 18.80m x 8.60m Draft : 6.75m
Mud gate amount : 12 Dredging depth : Maximum 32m Drag head : 2 (16T) Length of boom : 58.00m
Dredging pump : DLM800-23 800KW/360rpm x 2 sets Dredge pump driver : XCW12Y200ZD-1 1440KW/1000rpm x 2 sets Jet pump : 20LSH-6 960KW/1000rpm x 2 sets Jet pump driver : XCW8200ZD-1 960KW/1000rpm x 2 sets Steering gear : YCYD-250 18.5KW x 2 sets
Suction pump dimension : 700mm Discharge pipe dimension : 700mm Rainbow dist distance : 1500m
M/E : G8300ZC22B 2426KW/630rpm x 1set G8300ZC23B 2426KW/630rpm x 1set
A/E : 8170ZC 463KW/1000rpm x 3 sets Gen : CCFJ400-WD 400KW/1000rpm x 3 sets
Emergency Generators : TFXW250M4-H 90KW/1500rpm x 1set CCFJ90Y-WF 120KW/1500rpm x 1 set
Bow thruster fitted
F.O.T : 530 cbm F.W.T : 395 cbm
Speed : > 12.2 knots
Navigation equipment fitted : Radar (Yoshino) FR-2117/FR8062 DGPS GPS VHF
Price & terms : Please enquire using the email form below. If you cannot find the vessel, crane, rig or equipment that you need, please send us an email to mail@worldoils.com stating your requirements and we shall find it for you. We can arrange delivery of equipment and towage of rigs and vessels where needed. The details mentioned above are believed to be accurate but are not guaranteed.
-------------------------------------------------------------------------------------------------------------------------------- Search words (for official use only) - Trailing Suction Hopper Dredger for sale Used 5500cbm Suction Hopper Dredger For Sale 5500cbm Trailing Dredger for sale Used Trailing Suction Dredger for sale 2010 Suction Dredger for sale Suction Hopper used Dredger for Sale -------------------------------------------------------------------------------------------------------------------------------------

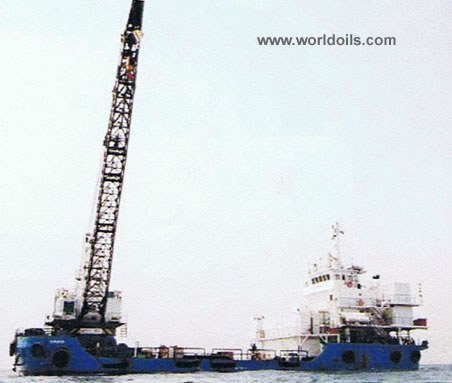

Crane Vessel For sale - 120T
General Specification Date Built : 1985 LOA : 47.6M LPP : 45.0M Beam : 17.0M Draft - Operational : 2.8M Draft (Max) : 3.0M Light Ship Draft : 0.75M Gross Tonnage : 658Mt Net Tonnage : 197 Mt Deadweight : 1060 Mt Service Speed : 6 Knots Deck Cargo Space : 400 sq. meters Deck Loading : 10 MT/sqm Accommodation : 50
Note : Specifications subject to change without prior notice
Classification Class RINA RINA class number 81025 PONTOON-CRANE- Assisted Propulsion, Unrestricted Navigation. ISB Class number 03-06-029 **ISE; CRANE VESSEL; *IM Certified I.S.P.S.
Safety Equipment The vessel is outfitted with safety equipment to comply with the safety requirements as set out in the vessel safety plan in accordance with SOLAS.
Fixed CO2 fire fighting systems complete with T100 Marine Controller Fire Monitoring Systems. Fire hydrants and extinguishers according to specifications.
A comprehensive H2S and LEL detection is installed, comprising 4 deck mounted sensors, with remote monitors on the bridge. Tank Capacities Marine Gas Oil : 65 tonnes Potable Water : 120 tonnes Water Ballast : 374 tonnes Lube Oil : 1000 Ltrs
Accomodation Bridge Deck : - Control Console Area - Radio Station - Chart Area - Survey Area - ThurayaDSL broadband unlimited Internet access - Ethernet networked computer systems & WLAN land based satellite system - Video Monitoring of Dive Control and ROV Control - Video Monitoring of Anchor Mooring Winches - Remote Monitoring Systems of Anchor Winch Payout and Loading
Captains Deck : 1 x 2 Person, Owners suite c/w Shower & Toilet 2 x 1 Person Cleints Cabins 1 x 1 Master Cabin 2 x Shower & Toilet Bathroom
'A' Deck 4 x 2 Person Cabins Officer's Restroom Communal Toilet & Shower
'B' Deck 4 x Four Person Cabins Communal Toilet & Showers 2 Containerised Chiller/Freezer Units
3 x Containerised Units 3 x 4 Person Cabins Toilets & Showers
Main Deck Office Unit 40 ft unit comprising : Project Office : Fitted with two work stations. Linked to the whole vessel with networked with whole vessel by 100MB Ethernet LAN computer systems, Camford
------------------------------------------------------------------------------------------------------------------------- Search words (for official use only) : 120T Crane Vessel for Sale 120T Crane Vessel Crane Vessel For Sale Crane Barge For Sale Crane Ship For Sale --------------------------------------------------------------------------------------------------------------------------

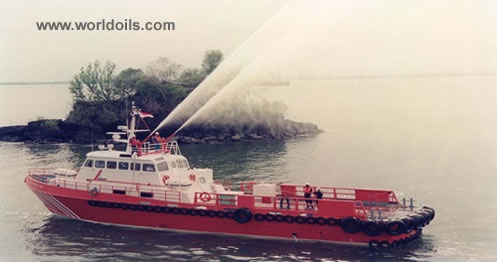

Crew Boat For Sale 1991 built Crew Boat For Sale - 26.5m 50pax
Built Year : 1991 Class : Bureau Veritas (BV)
Dimensions Length overall : 86.50 FT Breadth : 19.40 FT Depth : 08.80 FT Draft loaded : 06.00 FT Gross tonnage : 84.00 Ton Net tonnage : 28.00 Ton
Machinery Main engines : 2 x Detroit Diesel 12 V 71 T1 x 510bhp Propellers : 2 fixed pitch Generators : 2 x KATO 120/208 V, 60 Hz, 40 kW each
Speed Maximum/Cruising : 18/16 knots Fuel/Stby : 12 ltr/hour
Capacities Fuel oil : 18,000 Ltrs Water : 9,000 Ltrs Free deck space : 50 M2 Deck cargo capacity : 18.00 LT Accomodation : 6 crew, 50 pax (reclining seats) fully air conditioned
Navigation / Communication Radar : 1 x Furuno, FR 8050D, Range 48 NM 1 x Furuno 1830 Echo sounder : 1 x Raytheon 420 Magnetic compass : 1 x Ritchie Mode C 453 Satellite navigation (GPS) : 1 x Koden - KGP 910 SSB radio : 1 x ICOM IC-M700 VHF radio : 2 x Sailor RT 2048 Gyro Compass : 1 x Sperry-SR-50-Mod-1 Depth Sounder : Datamarine 3000
Fire Fighting/ Safety Monitors : 2 x fire monitor Safety Equipment as per SOLAS, Flag and Class Soceity requirement
Fuel Consumption Max speed : 190 ltrs/hrs Cruising speed : 180 ltrs/hrs Price & terms : Please enquire using the email form below.
----------------------------------------------------------------------------------------------------------------------------- Search Words (for official use only) : Crew boats for Sale 50 pax Crew Boat 50 passenger Crew boat for Sale Crew Boat 1991 Built for sale ----------------------------------------------------------------------------------------------------------------------------------

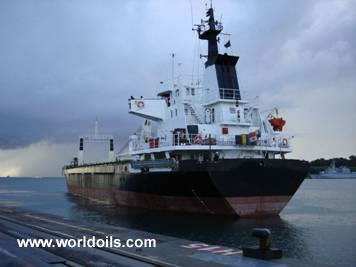

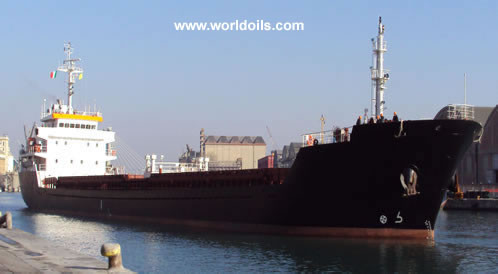

Bulk Carriers for sale with Time Charter Options New Mini Bulkers Double Skinned for sale with Charter options 8000MT Bulk Carriers for sale with Time Charter Options - 3 ships
Bulk Carrier, Double Skinned Built : 2009 and 2010 Classification Society : R.I.N.A. Class notation : I + Hull + Mach Bulk Carrier ESP unrestricted Navigation
Accommodation : 13 cabins European style (all cabins are fitted with own toilets and showers)
DWAT : About 8,100 MT Draft : Abt 6.7m LOA : Abt 119.95 m LBP : Abt 112.80 m Breadth : 16.8 m Dept : Abt 8.20 m GT : Abt 5164 mt NT : Abt 2950 mt
2 Hold / Hatches Hatch dims : 29.92 x 12.60m Holds capacity : Hold 1/2 abt 4900 cbm / abt 5,002 cbm Hold dims : About 40 x 12m (Hold No.1 narrowed on fore part - Hold No.2 aft part)
1 provision crane 3mt
Fuel capacity : Abt 255.00 cubic meters abt Gasoil capacity : Abt 77.10 cubic meter abt Lubeoil capacity : 16.23 cubic meters abt Ballast capacity : Abt 2.900 ts Air draft about : 30.45m Tank top strength : 15mt x m2
Speed : Abt 13.0 knots ballast / 12.5 knots laden Consumption : Abt 9.0 / 10.0 mt of hfo 180cst at 85% and 0.5 abt gasoil
Grain fitted
Main engine : Daihatsu - 8DKM-28 - 2500KW at 750 rpm (made in Japan) Aux. engines ; 2 x Caterpillar - C 18 marine 372 bkw at 1,500 rpm Generator 275 kw 400V 50hz Emergency generator engine type 6135D-3 77Kw at 1,500 rpm Generator 64 kw 400v 50Hz Bowthruster : Shottel 280kw (with frequensimeter panel in order to run in several different speed)
2 Fuel oil purify Westfalia (Germany) 1 Lubeoil purify Westfalia (Germany) 2 Air compressor 20cbm/h aircooled Ningbo Tianli Oil water separtor Jowa Sludge pump Capac. 4cbm/h Ningbo Ninghai Seawage Treatment NanJing Luzhou type WFCB 20 Exhaust thermal oil boiler Aalborg Oil fired termal boiler Aalborg Combined fresh water Hydrophore Jingsu Taixing UV sterilizer Jowa (for galley only) Combined sea water hydrophore Jiangsu Taixing Heating water hydrophore Jangsu Taixing Air conditioning system Jangsu Zhaosheng (Bitzer compressor) cap.80000Kcal/hr 404A Refrigerating plant Jangsu Zhaosheng (two Bitzer compressor)
Co2 system for engine and cargo holds Wuhan Y permist system Tanktec (Korea) Fire detection consilium Seawater ingress alarm and dewatering system Rongde Main and emergency switchboard Zhoushan Xinya Navigation light aquasignal Radar Jrc Jma 5530-12 Radar Jrc Jma 5310-6 Echosounder Jrc Jfe 380 GPS Jrc J-Nav 500 Dgps Jrc Jlr 7700MKII Inmarsat C Furuno Felcom 15 SSAS Furuno Felcom 16 Mf/Hf with DSC/NBDP jrc Jsb 196GM 2 VHF/DSC Furuno FM 8800S Navtex JRC NCR - 333 3 GMDSS Vhf Icom gm 1600e 2 Radar Transponder ACR Pathfinder (USA) EPIRB : ACR RLB 32 (USA) Magnetic compass : Tokimec Gyrocompass with autopilot : Tokimec TG8000 AIS : Furuno FA 150 Doppler speed log JRC Jln 205 VDR Furuno Weather facsimile Furuno Fax 408
Paint Hempel
1 lifeboat freefall type for 20 pers each 1 rescueboat for 6 pers 2 liferafts 20 pers each 1 liferaft 6 pers. on forepart 10 lifebuoys 27 lifejackets 26 immersion suits 9 eebd 2 sets of fireman outfits 34 foam extinguishers 9lt (include 15 spare) 6 co2 extinguishers 5kg (include 2 spare)
The details mentioned above are believed to be accurate but are not guaranteed. ---------------------------------------------------------------------------------------------------------------------------------- Search words(for official use only) - New Small Bulk Carriers For sale 8000MT new bulkers for sale New bulk Carriers for Sale with time charters Bulk Ship Brokers New Building Mini Bulkers for sale with charter option 8000MT dwt new bulkers for sale with charter options Bulk Ship Builders Newbuilding Small Bulk Carriers For sale -------------------------------------------------------------------------------------------------------------------------
Towing/Supply Vessel 2,800 BHP Supply Vessel for Sale General Particulars : Year Built : 1973, rebuilt 1994 Class : ABS
Principal Particulars : Length Overall : 50.90m Breadth Overall : 12.00m Depth Moulded : 5.00m Draft Moulded : 4.40m GRT/NRT : 836/250 Tons
Machinery: Main Engine : 2 x INDUSTRIE 8DZ-HDN 2 X 1045 kw @ 2800 BHP Main Generators : 2 x 135kw SMIT Slikkerveer DC Auxiliary Generator : 1 x 32 kw AC Propellers : 2 x CP in fixed nozzels Bow Thruster : 300 bhp TORNADO, 3.4 Tons Performance & Consumption : Bollard Pull : 39.85 Tons Maximum Speed : 12 knots Fuel Consumption : 10m3/day Economical Speed : 10 knots Fuel Consumption : 6m3/day Deck Cargo : 400 tons Clear Deck Space : 273 m2
Deck Machinery : Capstans : 2 x 7 tons GISSEN Anchor : 2 x AC14 Chain : 2 x 400m x 40mm Tow Drum Capacity : 915m x 52mm
Tank Capacity Portable Water : 13.58 m3 Fresh Water : 132.64m3 Drill Water : 510 m3 Ballast Water : 415 m3
Discharge Pump : Fuel Oil : 120 m3/h @ 60m head Fesh Water : 146 m3/h @ 60m head Drill Water : 100 m3/h @ 60m head Bulk : Barite 40 tons/hr, cement 80 tons/hr
Accommodation Crew : 10 Passengers : 8 (2 x 4-men cabins)
Navigation Equipment : Auto Pilot : NAVITRON NT 92IG Radar : KODEN MD3810, KODEN MD3604 Gyro Compass : RAYTHEON STANDARD 20 Magnetic Compass : JOHN LILLEY LTD x 1 Echo Sounder : FURUNO FE-700 GPS : FURUNO GP 32 & AP NAVIGATOR-LEICA MK9 GMDSS System GMDSS System : A1 + A2 + A3 EPIRB : 1 x GME VHF : 1 x SAMYUNG STR-6000A 2 x STANDARD HORIZON PORTABLE SAILOR RT 2048 (FIXED) x 2 MF/HF ICOM-M710 SAT-C : 1 x TOSHIBA TECRA – 41343 1 x GALAXY SENTINEL TNL 8001 SAT Mini-M : 1 x Trimble
Fire Fighting / Extinguishing System Azcue Horizontal Self-Primping Pump 25m3/h x 30m head
Emergency Fire Pump ETQ 170F with max flow rate 159 gal/min x 4.5HP Price & terms : Please enquire using the email form below. If you cannot find the vessel, crane, rig or equipment that you need, please send us an email to mail@worldoils.com stating your requirements and we shall find it for you.
----------------------------------------------------------------------------- Search Words (for official use only) : Supply vessel for sale in Singapore Towing/supply Vessel Singapore OSV Singapore for sale 2880bhp OSV for Sale Offshore Towing Supply Vessel for Sale OSV for Indonesia OSV for Malaysia 2800BHP Supply Vessel for India -------------------------------------------------------------------------------

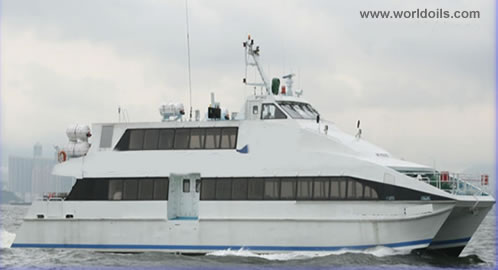

Passenger Ferry for sale 2008 Passenger Ferry for sale General Year Built : 2008 Classification : Bureau Veritas Dimensions Length oa/reg : 26.00 / 27.75m Length waterline : 23.70m Breadth : 8.50m Beam Moulded : 2.30m (1hull) Depth : 3.00m (at midship) Draft (max) : 1.80m GRT/NRT/DWT : 270 / 93 / 17.44 Disp tonnage : 90 tonnes Machinery Main engines : 2 x Cummins KTA38-M2 2.014 Bkw @ 1,900rpm MCR Propulsion : 2 x Diesel Driven Propeller Generator engine : 46 Kw Electric Perkin 1004TGM, 3 Phase, 415 Volts Alternator : Stamford Marine UCM224F Steering System : Electric motor driven power pack Gear box : 2 x ZF 4540 reduction gear box Harbour generator : 8 Kw/220 VAC/1Ph / 50 Hz Speed Design Displ : 27.3 knots @ 17.44 tonnes DWT Nav & Communications Equipment Marine radar : 1 x Furuno FAR – 2117 SSAS : 1 x Sailor Mini – C Gyro compass : 1 x Raytheon Anshuetz STD 22 EPRIB : 1 x McMurdo E5 SART : 2 x McMurdo S4 ECDIS : 1 x Simrad Autopilot : 1 x Raytheon Anshuetz NP60 Navtex receiver : 1 x Furuno NX-700B DGPS navigator : 1 x Furuno GP-37 AIS : 1 x Furuno FA-1570 SSB : 1 x Furuno FS-1570 VHF : 2 x Furuno FM-8800S Intercomm System : 1 x Phonetic CIS-3130 PA system : 1 x Phonotech SPA-1500 Echo sounder : 1 x Furuno FE – 700 Speedlog : 1 x Furuno DS-80 Telephone : Phonetic BTS Sound Power VDR : 1 x Headway S 100 Life Saving Equipment Life raft : Per SOLAS Life buoys : Per SOLAS Life jackets : Class Society approved type Fire Fighting Equipment Extinguisher : Chubb / Kidde / Unitor Fire detection system : Chubb or Thorn CO2 system : Chubb custom built Pax & Crew Capacity – Air Con Passenger : 200 Crew : 5 including master Cabin/ Toilets : 1 crew cabin with 4 bunks / Two (2) Tank Capacities Fuel tank : 2 x 3,000 ltrs Freshwater tank : 2 x 500 ltrs Sludge tank : 2 x 150 ltrs Pumps GS / Bilge Pump : 25 cbm/hr @ 30m head FW Pump : 3 cbm/hr @ 14m head Price & terms : Please enquire using the email form below. If you cannot find the vessel, crane, rig or equipment that you need, please send us an email to mail@worldoils.com stating your requirements and we shall find it for you. We can arrange delivery of equipment and towage of rigs and vessels where needed. The details mentioned above are believed to be accurate but are not guaranteed. --------------------------------------------------------------------------------------------------------------------- Search words(for official use only) : Passenger Ferry For sale 200pax Passenger Ferry For sale Crewboats for sale in South America 200 person Crewboat for sale Crewboat for sale in Singapore, Malaysia, Indonesia Crewboats for sale for West Africa, Nigeria, Libya 200 pax Crewboat - 2008 built - for sale -----------------------------------------------------------------------------------------------------------------------
Research Vessel for Sale 194FT Research Vessel in Gulf Of Mexico For sale Research Vessel in America for sale General Year Built : 1974 / 2006 Class : ABS Specifications Length : 194 ft. LOA Breadth : 40 ft. Depth : 17 ft. Draft Loaded : 13 ft. Main engines (2) CAT 3606 TA Total Horsepower 4,800 Gears WAV 2600 Reintjes Rev./Red5:1 Generators (3) 3406 TA CAT 260KW; 290KW Bow Thruster Bird Johnson 020, 8v-71 Speed Cruise 11 / 14 Knots Consumption 83-166 GPR Fuel Oil 138,100 USG Lube Oil 2,440 USG Potable water 34,400 USG Hydraulic Oil 1,240 USG Gear Oil 1,850 USG Ballast Water 73,300 USG Certified to Carry 37 Staterooms/Berths 14 / 37 Radars FR-2110 and FR-7110 Radios (1) SSB (2) VHF Fathometer Furuno FE-881 II Auto Pilot Robertson AP9 MKII
-------------------------------------------------------------------------------------------------------------------- Search words(for official use only)- Research Vessel in Gulf Of Mexico 194ft Research Vessel in USA for Sale Used Research Vessel for sale -------------------------------------------------------------------------------------------------------------------
Pipelaying Barge Pipelayer Barge for sale
Specifications : General Classification : ABS A1 CRC Derrick / Pipelay Barge Principal Dimensions and capacity Length overall (LOA) : 169m Length between perpendiculars (LPP) : 165m Breadth (molded) : 46m Depth molded : 13.5m Operating Draft : 7-9m Scantling Draft : 9m Full Load Displacement : 62,000mt GRT : 41,000 Ballast Capacity : 34,673mt Fuel Oil Capacity : 4,038mt Fresh Water : 2,632mt Structure Load in Main Dk Loading Area : 10mt/sqm Other area : 5mt/sqm On Pipe Laying Line Top Deck : 5mt/sqm Generators 4 x Generators STX Korea MAN B&W 8L 27/38 Switchboard: SaierNico Electric Co.,Ltd made in China Transformer: Haitian Electric Co.,Ltd
Mooring System 12 positional anchor winches driven by frequency conversion. The positional anchor winches will be operated either locally or remotely at a centralized control station installed in the CCR.
The main performance parameters of the positional anchor winches as follows : Diameter of galvanized wire rope : Φ76mm Duty pull : 1100kN （at mid layer） Mooring speed : abt. 24m/min （at 1100kN） Holding load : 3800kN （at 3RD layer） Drum capacity : 3000m
Crane Barge is installed a 3000t (when at fixed) or 2000t (when at rotary) marine engineering hoister. Hoist is driven by electric power supplied by generators.
Main claw completely rotary Safty working load x working radius : 2000 mt @ 35m Main deck jacking height when least working radius : > 80m Most working load hoisting speed : 0 - 1.5 m/min Part load hoisting speed : 0 - 3 m/min
Main claw (no back line) fixed aft hoister : Safty working load x working radius : 3000 mt @ 30m When 35 m working radius, deck hoisting hight : > 80m Most working load hoisting speed : 1.5 - 3 m/min Part load hoisting speed : 0 - 3 m/min Hook most entrance depth/ safty working load : 5m/3000 mt Auxiliary claw ： Safty working load x working radius : 600 mt @ 60m When least working radius , main deck hoisting height : > 80m Most load hoisting speed : 0 - 10 m/min Hook most entrance depth/safty working load : 150m/600 mt
Deck Crane Hydraulic and electric control : 50T*28M/20T*40m
Pipelaying System Pipe Laying System : Starboard mounted single joint S-lay system Depth laying : 300m Capacity : 4" – 48" diameter pipe Maximum external diameter : 60 inch Tensioner : 2 tensioners, 100 T each Davits : Five (5) mounted with load cells at starboard stored on board, capacity 30t each Price & terms : Please enquire using the email form below.
The details mentioned above are believed to be accurate but are not guaranteed. ----------------------------------------------------------------------------------------------------------------------------- Search & help words : Pipelaying Barge for sale Pipelayer Barge Pipelaying Barge for charter Pipelaying Vessel for sale Pipelaying vessel for charter Newbuilding Pipe Laying Barge -------------------------------------------------------------------------------------------------------------------------------
Aluminium Fast Support Intervention Vessel for Sale 46m/150' Fast Support Intervention Vessel (FSIV) For Sale
Vessel Built : 1999 Classification ABS - *A1 HSC*AMS Built By Penguin Boat International, Singapore Regulations, Safety and Codes IMO - (MARPOL/STCW/SOLAS) ISM and OSV
Main particulars Length Overall : 150 ft 45.75m Beam : 30 ft 9.1m Depth : 12 ft 3.86m Summer Draft : 7.654 ft 2.333m Summer Freeboard : 5.036 ft 1.535m
Cargo deck Loading Capacity 200 Tons Cargo Railing Height 3.2 ft2 1.2m Clear Deck Space 73.8' x 25' 22.5 x 7.6m Clear Deck Area 1,845 ft2 171m2 Safe Deck Loading 1.50 T/m2 Remark : Adequate cargo retainers and lashing lugs on both sides for securing deck cargo
Tonnage GRT 364 Tons NRT 109 Tons Deadweight 209 Tons
Machinery Number of Main Engines 4 Propulsion Quad screw Make / Type MTU / MDECC - 70 8V 4000 Series Total BHP / KW 4 x 1571 BHP - 6284 BHP Bow Thruster 1 unit 140 BHP Propellers Fixed Pitch, 4 blades
Performance Maximum Speed 27 knots Maximum Fuel Consumption 0.85 m3/Hr Economical Speed 22 knots Economical Fuel Consumption 0.69 m3/Hr
Generating sets (Auxiliaries) Prime Movers 2 x 209 BHP at 1500 RPM Make / Type Caterpillar 3306 DITA Generators 2 x 156 KVA Hz (cycles) Hz 50/60 Phase 3 Voltage 220 / 440 Type Magnetek
Electrical : (Deck outlet) Type 4 Weatherproof Electrical Sockets Power Supply Hz : 50/60, Phase 3, 220 / 440 volts Shore Power Connection Yes
Accomodation Cabins / Berths 5/11 Seating 80 Business Class Airline Seats VIP Room 1 with bed, TV and seating area for 5 Toilets (Passenger Room) 2 for passengers use only Entertainment 4 Movie Screen
Electronics and control GMDSS (in compliance with IMO) 1 Furuno GMDSS RC 1500-IT VHF 2 Furuno + 3 hand held SSB Radio 1 Furuno Satellite Telephone / Fax KVH Tracphone 25 Inmarsat Mini-M Email Email Mini-M Email GPS 1 Furuno GB-30 Depth / Echo Sounder 3 Furuno FCV 668 / FE 6300 Gyro Compass 1 Anschutz Standard 20 Magnetic Compass 1 Riviera model: B6W3, 6” card size Autopilot 1 Anschutz Pilotstar D Navtex Wind Speed Indicator 1 Davis Joystick Steering Control Yes Public Address / Intercom System Vingtor AS - Throughout Vessel Search Lights 3 each 1000 watts: 2 Bridge, 1 Aft Steering Station Radar 2 Each Furuno 1942 MKII
Storage Dry Stores 18 m
Tank capacities and pumps Fresh Water 151 tons Fresh Water Pump 50 m3/hour at 40m head Fuel Oil 74 tons Fuel Oil Pump 50 m3/hour at 40m head
Oil pollution tank capacity and control Sludge for Bilge and Waste Oil 1.7 tons Dispersant 4.5 m3
Life saving (Solas) equipment Life Rafts per number of persons 8 x 25 Life Jackets 200 pcs Life Buoys with Light 8 Pcs Man Over Board (MOB) 2 Pcs with Life Buoys Scrambling Nets 2 units, 1 port and 1 starboard Other Equipment SART, EPIRB, Pyrotechnics, Line Throwing Apparatus
General features Electrical : (Deck outlet) (Bridge / Maneuvering Stations) Forward and aft Bridge Control, plus full set maneuvering controls in separate steering station facing aft. Bow thruster control set at both steering stations.
--------------------------------------------------------------------------------------------------------------------------------- Search words(for official use only) - Aluminium Fast Support Intervention Vessel for Sale Fast Support Intervention Vessel (FSIV) in Asia, Singapore, Malaysia 46M Fast Support Intervention Vessel (FSIV) in Middle East Fast Support Intervention Vessel (FSIV) in South America FSIV For Sale - 1999 Built Fast Support Intervention Vessel (FSIV) For Sale - 2010 built 1999 built Fast Support Intervention Vessel (FSIV) -----------------------------------------------------------------------------------------------------------------------------------
Ice Class Self Unloading Bulk Vessel For Sale 1975 built Self Unloading Bulker with Ice Class for sale Self Unloader Bulk Carrier with Ice Class For Sale
Self Unloading Bulk Vessel 6150 tdw on 6,75 m Built 1975 - converted/rebuilt 1985 Lloyds Ice 1 A 3963/2035 gt/nt Dims 101,95 x 15,3 m Hold 1 : 3519 cbm Hold 2 : 3391 cbm Total : 6910 cbm / 244.027 cuft Hold dims hold 1 : 32 x 12,80 -hold 2 : 33 x 12,80 m Hatch dimensions : Hold 1 : 14,50 x 12,80 & 15,50 x 12,80 Mtrs Hold 2 : 14,40 x 12,80 & 14,09 x 12,80 Mtrs
Self discharging gear : Kvaerner Cargo scooper Disch 300-500 mton hr depend quality of cargo Outreach boom conveyor : SB side (only) : 22,10 Mtrs m/e Bofors NOHAB 2356 kW /3520 bhp Consumption Sea : abt 8 mts MGO/24h In port : 0,8 mts / 24 h Bowthruster 225 kW / 300 hp
------------------------------------------------------------------------------------------------------------------------------- Search words(for official use only) - Ice Class Self Unloading Bulk Vessel For Sale Self Unloading Bulker with Ice Class for sale 1975 built Small self Unloading Bulker For Sale Used Self Unloader Bulk Carrier with Ice Class For Sale --------------------------------------------------------------------------------------------------------------------------------------
3200 BHP Tug For Sale in Malaysia Tug For Sale in Malaysia, Singapore Principal Particulars Length Overall : 33.20M Length BP : TBA Breadth Moulded : 9.76M Depth Moulded : 4.30M Draft Moulded : 3.50M Class Notation : BV + Unrestricted services Gross Tonnage : TBA Speed : 12.0 knots (approx)
Tankage Fuel oil : 297cbm (approx) Fresh Water : 44m (approx) Ballast Water : 42cbm (approx)
Machinery Main engine : 2 x Cummins KTA 50M2, 1600 BHP / 1800 RPM Reduction gear : Twindisc MG5506, 6.00 : 1 Propeller : 2 x 4 bladed manganese bronze FPP Main generator : 2 x 80KW Cummins
Accommodation For 15 men with 2 cabins for Captain and Chief Engineer, 1 x four-men cabin, 4 x two-men cabin and 1 x one-man cabin
Navigation Equipment (GMDSS Area 3) 1 set magnetic compass 1 spare table magnetic compass 1 set Radar 96NM 1 set GPS navigator 1 set Echo sounder 1 EPIRB 1 set Navtex receiver 1 set SART 1 set AIS 3 sets walkie-talkie
ECK Machinery Anchor windlass : 1 x 22mm electric hydraulic steel anchor windlass c/w double gypsy and drum Anchor : 2 x 480kg stockless bower anchors Capstan : 1 x 3 tonnes Towing winch : 1 x 40 tonnes single drum. Drum capacity 800m x 42mm diameter (wire rope to be supplied by buyer) Towing hook : 1 x 40 tonnes
Life Saving Equipment 2 x 15 men liferafts 8 sets Life buoy 12 sets lifejackets
Pumps Bilge & Ballast pump : Davey or ITUR pump or equal GS & fire pump : Davey or ITUR pump or equal F.O. Transfer pump : ITUR RC-1 Horizontal Gear Pump fitted with relief Valve c/w 1.5kW x 1430rpm Motor, 415V/3Ph/50Hz FW / SW pressure set : Davey or MYER pump or equal Dirty oil pump : Davey or ITUR pump or equal Sewage treatment system : for 15 persons
Fire Fighting Equipment A fireman and four (4) 1 "A" bronze hydrants are to be installed, two (2) in the engine room A complete fireman's outfit is to be provided Portable Fire Extinguisher are provided Price & terms : Please enquire using the email form below.
The details mentioned above are believed to be accurate but are not guaranteed. --------------------------------------------------------------------------------------------------- Search words(for official use only) - Tug For Sale in Malaysia, Singapore 3200bhp Tug For Sale Newbuilding 3200BHP Tug For Sale New Tug For Sale in Singapore, Malaysia, Indonesia 3000hp Tug For Sale 3200 hp Tug For Sale In Malaysia, Singapore New 3200bhp Tug For Sale in Malaysia, Singapore ----------------------------------------------------------------------------------------------------
ASD Tug 3600hp For Sale Tow-engine and Two shaft type propeller with z-peller Outline Purpose : Tugboat Vessel type : Tow-engine and Two shaft type propeller with z-peller Navigation area : Coastal area Vessel class : KR (Korean Register of Shipping)
Principal Dimensions Length overall : 33.80m Registered length : 28.50m Moulded breadth : 9.40m Moulded depth : 4.15m Gross tonnage : 213 ton Tank capacity : Fuel tank - 72 cbm (Bunker -A) 14cbm (D.O) Fresh water tank - 20cbm
Speed and power Sea trial speed : 13 knot (Maximum) Service speed : 9.75 knot (75% output power) Towing power : 43 ton
The maximum number of persons on board Crew members : 8 persons Passenger : 0 persons Other : 0 persons Total : 8 persons
Main Rooms Pilot house, captain's cabin, chief engineer's cabin, chief officer's cabin, 6 cabins for other crew members, 8 beds, salon, mess room, laundry, bath room, toilet, waterproof garment room, boatswain's store, deck store, 2 stores for ship articles, paint room, engine room, propeller unit room.
Deck Machinery Anchor-rope windlass : 2 - chain drum (3.0 ton x 12m/min) Rope windlass : 3 ton x 45m/min Drum capacity : Rope diam 120Ø x 120mtr Anchor and Anchor chain : Anchor : 660kg x 20 pcs / 22Ø x 150 mtr Braking force : 60 ton Brake : HYD band brake Control : Remote control in the pilot house and manual control Other characteristics : The inner side of drum is cover with steel plate Rope reel : Of the stern 1pc Power : 30/10 ton x 7.5/22mtr Drum capacity : rope diam 110Ø x 120mtr Brake : HYD band brake Control : Remote control in the pilot house & manual control Other characteristics : The inner side of the drum is cover with steel plate
Hydraulic power unit for hydraulic machinery Electric hydraulic pump unit Towing hook
Main Engine Type : 4-Cycle, Single-acting, Solid injection, Water cooled, Turbo charged, Trunk piston type diesel engine Maker, model : Niigata power system co., ltd. 6L25HX Quantity and Diameter of cylinders, stroke : 6 Cylinder, diam 250Ø stroke 350Ø Maximum Number of continuous Revolution : 750 rpm Maximum continuous Revolution : 1,800 PS * 2set = 3,600 PS (1,323kw ×2 sets)
Propulsion Unit Type : 360° degrees steerable, z drive propeller equipment Model : Niigata power system co., ltd. / Niigata ZP-21 Propeller : Skewed kaplan type 4-blade fixed pitch propeller Diameter of propeller : 2000Ø Average Pitch : 1900Ø
Electric Power Plant Engine Maximum continuous Output power : DOOSAN AD086TIS × 2SET/ DOOSAN AD034TIS × 1SET 168KW×1800RPM×2SET / 55KW×1800RPM×1SET Generator : DOOSAN INFROCORE CO.,LTD. Rated Output : 210KVA(168KW)/ 1800RPM
Forced Draft : Axial fan of Engine Room 220V×60HZ 3.7KW. 4P With Screw down damper
Air conditioning Equipment : Stand air conditioner x 3 set
Nautical Instruments Satellite Compass Autopilot : Nil Remote-controlled Maneuvering Mechanism of Main Engine : Remote Control In Pilot House First Navigation Radar : JMA-3254, 10.0W Aerovane : SAMYOUNG ENC CO.,LTD. NIVIS3100 Electric window Wiper Echo Sounder (with GPS-Plotter) : Nil
Lightning Equipment Projector : High efficient, Remote-Controlled Projector Electric portable lamp Flood light
Communication Device Maritime Telephone International VHF Radiotelephone Equipment : STR-6000A SAMYOUNG ENC CO.,LTD EPIRB : SEP-406 SAMYOUNG ENC CO.,LTD SART : Nil Public Addresser Inboard Wire Broadcasting System : Common battery system. Two-way conversation NAVTEX receiver : Nil TV Antenna : 1pc BS television Antenna : 1pc
Chemical Extinguisher and Sea Surface Cleaner Stand-alone Engine Water Jet Cannon on the Top of Mast : Nil Fire Extinguishing Stock Solution Tank : Nil Equipment For Spillage oil treatment : HANYOUNG ENG. CO.,LTD. OS-05cbm/h
Electrical Appliances Refrigerator-freezer : 400L 2 set Laundry Electric Water Heater : Gas heater type Toilet : With a bidet
Machine Tool Electric Welder Double ended Grinder Price & terms : Please enquire using the email form below.
The details mentioned above are believed to be accurate but are not guaranteed. ------------------------------------------------------------------------------------------------------- Search words(for official use only) - ASD Tug For 3600HP sale in Singapore ASD Tug For Sale Used ASD Tug For Sale 3600hp ASD Tug For sale in Asia ----------------------------------------------------------------------------------------------
VLCC Tanker For Sale VLCC for Sale
Description 2 VLCCs for sale 320,000MT Dwt LOA abt 332mts Breadt : Abt 59mtsDepth : Abt 30mts IACS class M/E : MAN B&W 7S80ME-C(Mark 8) Pumps : 2 x steam type 1 x electric type Each at 5,500m3/h x 159mth IGS, Bow thruster fitted Non-PSPC We have more VLCC, Aframax Tankers for sale.
Please use the email form below to ask about the vessel you need to buy or send us an email to mail@worldoils.com. Price & terms : Please enquire using the email form below.
----------------------------------------------------------------------------------------------------------- Search words (for official use only)- VLCC Tanker for sale New VLCC for sale VLCC For Ready Sale Used VLCC Tanker For Sale --------------------------------------------------------------------------------------------------------------

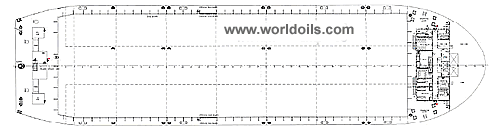

Self Propelled barge for charter 8000dwt Self Propelled barge for charter Self Propelled coal carrier barge for sale 2005 built Self Propelled barge for sale
General Class : ABS Built : 2005 SS Due : 1-10-2011 DD Due : 17-11-2013
Gross tonnage : 4,181 ton Net tonnage : 1,255 ton Dead weight (summer) : 8,047 ton Coal Capacity : 7,700 ton
LOA : 91.44 M Lenth between perpendiculars (LBP) : 89.31m Breadth : 24.00m Depth : 7.00m Summer draft : 5.00m Light weight draft : 1.09m
Light vessel weight : 1,886.7t Deck space : 71.25 X 20.43m Side board : 5.25m Full draft : (TPC) 21.38 t/cm (summer)
Service speed : Laden without GTEE : 6.50 knot/ abt 6.8 ton of MDO Ballast without GTEE : 6.50 knot/ abt 6.5 ton of MDO
Main engine : 2 unit CAT 3512B DI-TA MAR diesel : 2 X 1,280 HP (RPM 1,600) Aux. engine : (2 unit cummins 6 CTA-8.3D9M) : 2 X 954 KW
Auxiliary fuel consumption : 0.55 ton/day Tanktop strength : 7 mt/sq.mtr Thruster : 2 units of HRP Ballast water tank : 3,099 cbm Fresh water tank : 146 cbm Fuel oil tank (MDO) : 210 cbm Keel to mast : 22 mtr
MMSI Inmarsat sailor thrane and thrane :1 unit Inmarsat mini-C (GMDSS/SSAS) VHF (DSC) Furuno Type FM 8500 : 1 Unit Radar (ARPA) Koden MDP 1820P : 1 unit marine radar GPS Furuno Type GP-32 : 1 unit Navtex ICS NAV 5 GMDSS Type NR -50 : 1 unit W.Fascimile JRC JAX-9A : 1 unit EPIRB Furuno : 1 unit Echo Sounder Furuno Type FE-606 : 1 unit AIS Samyung SI-30 : 1 unit
Vessel fitted with side walls abt 4.8 metres high allowing loaders/truck access.
Trading Arabian Gulf area
The details mentioned above are believed to be accurate but are not guaranteed. ------------------------------------------------------------------------------------------------------------------------------ Search words(for official use only) : Self Propelled barge for charter Self propelled 2005 built Coal Carrier barge for Sale Self Propelled Barge for coal carrier or for multipurpose Self Propelled barge for charter - for Coal Carrier or Multi-purpose 8000dwt Coal Carrier Barge for Sale - Self propelled 2005 built Self Propelled Coal carrier barge for charter -------------------------------------------------------------------------------------------------------------------------------

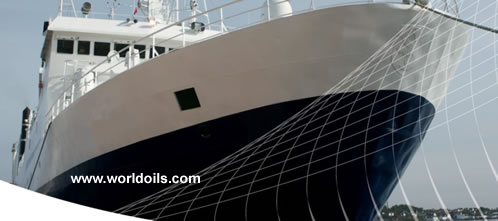

Seismic Vessel for sale 2D Seismic Vessel for sale
Marine Details : Class : DNV 1A1 ICE 1A Length : 67.8 m Breadth : 14.5 m Draft : 6,62 m -8,14 m Gross Tonnage : 3276 tons Speed : 12 knots Fuel capacity : 708 cu.m Water capacity : 10 cu./day
Propulsion : Main engine : Wickman 3000 kW/600rpm Bow thrusters : 1 x Brunvoll 350kW Azimuth thrusters : PLEUGER 750 kW AZIMUTH DV10001 PLEUGER WVS 170-1000
Power : Auxiliary power : 1 x Leroy Somer/Wartsila 1940kW 2 x Cumings , 2 x CAT Total Power : 4300 kW Electric Power : 450 V, 60 Hz
Accommodation : Accommodation : 41 People
Life Saving : Life rafts : 6 x 25 man MOB Boat : Mare Safety 700 FRC
Energy Source : Air guns : Sercel Sodera Array : 2 x 4330 cu.in / 2 x 100 barM (p-p) Marine Compressor : 4 x Greenfield Compressor capacity : 3 x 832 SCFM Operating pressure : 2000 PSI Source control system : SeaMap Gun Link 2000
Other : Helideck : N/A Main Crane : SWL 6T – 12m Incinerator : Team Tec
Vessel Navigation & Communication : Radars : S-band JRC X-BAND Furuno Arpa Communications : GMDSS Sailor Echo Sounder : Skipper Electronic Gyro Compass : Sperry MK 37 Digital Auto Pilot : Robertson with Robtrak interface Navigation : 1 x Furuno GPS 1 x Sperry Mx Marine Navtex receiver : JRC 333 Navtex Sat Com : NorSat C Sat Com : NorSat C
Seismic Recording Instruments : Recording : ION DigiSTREAMER Integrated Acquisition System (IAS) Max Channels : 960 at 12000 m streamer length Sample rate : 0.25, 0.5, 1, 2, 4 ms Recording Media : IBM 3592 Plotter : ISYS 24”
Streamer : Type : DigiSTREAMER Solid Active Streamer Section Group interval : 12.5 Length per section : 150 m Max streamer length : 1 X 9000m - 720 Channels Manufacturer : ION
Navigation : Real-time navigation : ORCA 2D Post-processing : Orca Sprint Depth Controller : Digicourse 5011 Streamer compass system : Digicourse 5011 Tail-buoy positioning : RGPS Seamap Buoylink Tail-buoy positioning : Seamap Buoylink
Seismic QC/OBP : Software : Paradigm Focus v 5.4 Hardware : 4 CPU IBM Z-Pro, 2 x IBM System x3650, quad core (8 CPUs) Xeon x5450 3.00 GHz CPU 48 GB Ram, 14 Tbytes disks Tape drives : 3592 IBM Plotter : 24” OYO
The details mentioned above are believed to be accurate but are not guaranteed. ----------------------------------------------------------------------------------------------------------------------------------- Search words(for official use only) - Seismic Vessel for sale 2D Seismic Vessel for sale Seismic 2D Vessel for sale 2D Seismic Vessel for sale with contract ---------------------------------------------------------------------------------------------------------------------------------------
Work Maintenance/Construction Vessel for charter Main Particulars DP0 Maintenance Construction V/L – 90 PAX / 45 SWL 120 Foot Boom Crane Year built keel laid 2008 / Delivered April 2009 Type Steel Hull Twin Screw Call Sign: T2EW3 Length Overall 61.20m LBP 58.70m Breadth Moulded 16.00m Depth Moulded 6.00m Design Draft 4.50m Scantling Draft 5.10m Deadweight 1300 tonne Gross Tonnage 2150 Net Tonnage 645 Deck Loading 7.5 tonne / m² Clear deck area 340 m2 Speed 12.5 knots Endurance About 30days (4500 nautical miles) Classification ABS +A1 (E) Offshore Support+AMS,DP0 Work Maintenance Main Machineries Main Engines Two Niigata 6MG26HLX marine diesels each 2000Ps Total Power 2 X 2000 Ps Propulsion System Nigata Z-peller ZP 31 Azimuth thrusters Bow Thruster CPP with 8t thrust diesel engine drive Generator 2 X 370 kW, 415/3ph/50Hz Emergency Generator 1 X 82ekW, 415V/3ph/50Hz Water making plant Two reverse osmosis type fresh water maker c/w sand filter each capacity of about 30 tonnes / day Two electrically driven feed pumps, one for each FW generator Food waste disposers One disposer of capacity 500kg, One garbage waste disposer of capacity 700 litres Tank Capacity Fuel Oil Tank 640 m3 Fresh Water Tank 540 m3 Water Ballast/Drill 720 m3 Lo Storage Tank 7 m3 Cargo Discharge Rates FO Cargo Pump 1 X 100 m3/hr @ 60m Head FW Cargo Pump 1 X 100 m3/hr @ 60m Head DW Cargo Pump 1 X 100 m3/hr @ 60m Head Deck Machineries Anchors Two AC14 anchors each 1575g high holding power w/o weight reduction Chain cables 2 x 412.5m x 38m dia, grade 2 high strength steel stud link chains Mooring lines 8 x 160m long polypropylene mooring ropes of minimum 100 tonnes breaking strength Anchor windlass 10 tonnes @ 15m/min Capstan 2 x 5 tonnes @ 15m/min Crane Favella Favco crane model 7.5/10k, boom length 36.6m, main hoist – four falls 45 tonnes @ 0-17.2m/min, 30 tonnes @ 0-25.5m/min. This crane is designed and built in accordance with API-2C 6th edition. Four point mooring system Four electro-hydraulic drive self spooling mooring winches, each 50t pull @ 10m/min at 1st layer with brake load of 120t at 1st layer Wire drum capacity to accommodate 1000m x 42mm dia. SWR 4 x 4000 kg high holding power anchor flipper delta anchor c/w anchor rack, Mooring winches are fitted with in line tension meters and line our meters Tugger winches Two electro-hydraulic tugger winches, each 10 tonnes @ 10m/min. Each winch is complete with one wire drum and one warping head (speed at light loads 30m/min) Accommodation Single berth 10 X 1 Berth Double berth 4 X 2 Berth Four men berth 18 X 4 Berth Total complement 90 pax Navigation & Communication Equipment 1 Main Radar, ARPA 96 NM 1 Secondary Radar, 48 NM 2 units-GPS and DGPS 1 Echo Sounder 1 Speed Log 1 Weather Fax Receiver 1 Auto Pilot 1 unit GMDSS extended packaged 1 Navtex Receiver Integrated Internal Communication System 3 sets Portable VHF Transceiver Ship Security Alert System Inmarsat C Satellite Fire Fighting Equipments Spray Boom 6 m length with 1X2" inlet and 7X1/2" outlet spray Fire Fighting Connection 1 X 4-way delivery head Fire Hose 8 X 15 m hose c/w coupling and nozzle Fire Hydrant 8 X 65 mm Fireman's Outfit 2 sets Dry Chemical Powder 2 X 5 kg Dry Chemical Powder 6 X 10 kg Fire Extinguisher 1 X 45 ltr Fire Extinguisher 4 X 9 ltr CO2 Extinguisher 2 X 9 ltr External FiFi 1 x 1500 m3/hr @ 14bar, 2 x 600 m3/hr F/W monitor Life Saving Equipment Rescue Boat 1 X 6 persons Liferaft 8 X 25 persons Lifebuoy 8 sets c/w throwing apparatus Lifejacket 200 sets Breathing apparatus 2 sets c/w recharging compressor Immerson suit 3 sets Pyrotechnic as per Class requirement First Aid Kit 1 unit Gangways One Aluminium gangway 4m Two Aluminium platform access gangways, 15m x 0.9m (less than 2 tonnes in weight) Other Facilities Hot water calorifier 1 X 500 ltr Sewage Plant 1 unit for 90 persons Galley 1 unit c/w equipment and utensile Mess & Conference Room 1 Room c/w entertainment equipment Laundry Room 1 Room c/w 10 kgs of washer and dryer Price & terms : Please enquire using the email form below. If you cannot find the vessel, crane, rig or equipment that you need, please send us an email to mail@worldoils.com stating your requirements and we shall find it for you. We can arrange delivery of equipment and towage of rigs and vessels where needed. The details mentioned above are believed to be accurate but are not guaranteed. ---------------------------------------------------------------------------------------------------------------- Search words(for official use only) : Maintenance vessel for charter Work vessel for charter Accomodation vessel for charter Construction vessel for Charter Workboat for charter Accomodation Crane Vessel For Charter --------------------------------------------------------------------------------------------------------------

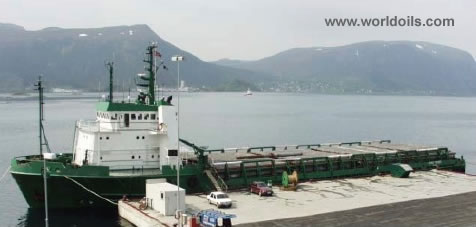

Platform Supply Vessel for sale PSV For sale
Classification : ABS Tonnage : Gross tonnage : 700 tons Net tonnage : 210 tons
Dimensions : Length OA : 54.27 meters Breadth moulded : 12.19 meters Depth, moulded : 4.27 meters Draft, summer : 3.63 meters
Deck Capacity : Deck cargo : 600.0 tonnes Deck area : 312.6 sqm (35.13 meters x 8.9 meters)
Tank Capacities : Dry bulk : 113.20 cbm (4 tanks x 28.3 cbm) Fresh/drill water : 524.80 cbm Fuel oil : 252.10 cbm Liquid mud : 181.60 cbm ( 4 tanks x 45.4 cbm)
Propulsion/Positioning : Main engines : 2 x Cat D399 HP - 2,679 kW-1,998 Fuel type : Marine Diesel Bow thruster : 1 x 300hp, Cat 3406
Generators : Diesel generators : 2 x 210 kW, Cat 3406 Voltage : 440V, 60Hz
Accommodation : Total berths : 18 3 x 1 person cabins 4 x 2 person cabins 1 x 3 person cabins 1 x 4 person cabins
Communication Equipment : Radio station : (1) MF/HF Radiotelephone SEA 330 (1) MF/HF Radio Telex SEA 330 Telex : (1) SEA SAT 3 VHF : (2) VHF SEA 7156 (2) VHF DSC SEA 7157 Portable VHF : (2) VHF Survival Craft sr-103 SART : (1) SimraD SA 50 EPIRB : (1) ACR 406
Navigation Equipment : Radars : One Furuno 1930 One Furuno 1941 Satellite navigator : (1) Furuno Navgator Navtex receiver : (1) JRC NCR - 300A AIS : (1) JHS 182
The details mentioned above are believed to be accurate but are not guaranteed. --------------------------------------------------------------------------------------------------------------------------------- Search words(for official use only) - Platform Supply Vessel for sale PSV for Sale in Dubai, Bahrain, Qatar, Kuwait, Middle East PSV for sale in Asia, Singapore, Malaysia, Indonesia -----------------------------------------------------------------------------------------------------------------------------
Crewboats for Sale Fast Crewboats For Sale
For Sale : 2 X Newbuilding Crew Boats Subject to continued availability General 2 X 36m Aluminium Hull Crew Boat Ex Yard Thailand Length OA : 36.00m Length BP : 33.20m Breadth MLD : 7.60m Depth MLD : 3.65m Design Draft : 1.88m Complement : 8 Crew - 70 offshoreworkers
Deliveries : Nov + Dec 2011 respectively
Deck load max. 30 mt. Max speed is 25.5-26 knots with 100 pct engine power Max cruising speed is 24 knots Recommended normal full ahead speed 22-23 knots.
Price & terms : Please enquire using the email form below. If you cannot find the vessel, crane, rig or equipment that you need, please send us an email to mail@worldoils.com stating your requirements and we shall find it for you. We can arrange delivery of equipment and towage of rigs and vessels where needed. The details mentioned above are believed to be accurate but are not guaranteed. -------------------------------------------------------------------------------------------------------------------------- Search words(for official use only) - Crewboats for Sale 70pax Crew Boats For Sale New Fast Crewboats New Crewboats for Sale in Asia ----------------------------------------------------------------------------------------------------------------------------
Showing 289 to 336 of 630 results
.png)
.png)
.png)
.png)
.jpg)
.png)
.png)
.png)
.png)
.png)
.png)
.png)
Search Here
1630931084673.jpg "Seismic Vessel - For Sale")
1630931084673.jpg "Seismic Vessel - For Sale")
