Landing Craft for sale 69M LCT for sale LCT type Cargo/RORO Ship 1981 built LCT type Cargo/RORO Ship for sale
Built : 1981 Class : KST GRT : 576t DWT : 1,071t LOA / LBP : 68.57m / 54.43m Beam/Depth/Draft : 13.5m / 3.5m / 2.8m Pax / Crew : 13 persons / 6 persons Engine : 3 X Mitsubishi DS6R2-MTK2 950PS/1400rpm Speed : Max. 14kts / Ser. 10~11kts Fuel Cons. : Bunker A/65L pr hour each engine (total 195L per hour) A/E : 2 X Daewoo AD136t F.O.T : 30,000ltrs F.W.T : 30 tons Car Capa : 45 cars or 5 ton X 22 trucks Crane: 1 X 10 ton Cargo hold : 4( 2 in port side / 2 in stb'd side ) Capa : 670cbm Vertical clearance : 4.5m Price & terms : Please enquire using the email form below.
If you cannot find the vessel, crane, rig or equipment that you need, please send us an email to mail@worldoils.com stating your requirements and we shall find it for you.
We can arrange delivery of equipment and towage of rigs and vessels where needed.
The details mentioned above are believed to be accurate but are not guaranteed.
--------------------------------------------------------------------------------------------------------------------------- Search words(for offcial use only) - Landing Craft for sale 69M LCT for sale LCT type Cargo/RORO Ship for sale 1981 built Landing Craft for Sale -----------------------------------------------------------------------------------------------------------------------------
Heavy lift Semi Submersible Deck Barge for Sale Semi-Submersible Heavy Lift Barge for sale - 122mts - 2009 built Semi Sub Heavy lift Barge/Vessel for sale
General : Year built : 2009 Class : Lloyd Class + 100A1 Pontoon Type : Spoon Head
Nos. of Trans bhd : 8 nos. Nos. of Longl bhd : 2 nos. Nos. of Swash bhd : 1 no. Nos. of compartment : 24 nos. Submersible depth : 7m above the main deck
Principal Dimensions : Length O.A : 122m Beam : 36.58 Depth : 7.62m Deadweight : 19300 dwt GRT : 9741 tons NRT : 2922 tons
Equipment & Accessories : 3060kg Bower Stockless Anchor 46mm dia x 250m SWR 76mm dia towing chain with 3 x 25m & 1 x 10m 1 nos. of retrieving winch with 32mm dia SWR Towing brackets : 3 x 160t Zinc anode : 76 pcs. Solar navigation light : 6 pcs
Manholes/Bollard/Panama Chock ASCUE SWB pump : 2 x 1000 cbm/hr @ 25m head ASCUE central priming pump : 2 units Remote control butterfly valve : 45 pcs ASCUE bilge/ fire pump : 90 cbm/hr x 60m head F.O. transfer pump : 2.5 cbm/hr @ 3 bar Bilge/Sludge pump : 2.5 cbm/hr @ 3.5 bar Remote tank guaging for 26 tanks Draft gauging : 4 pcs Electric motor anchor winch
Electrical switch gear : 1 shipset Electric heater : 3 units CAT 3412 DITA diesel generator 480 kw 415/3/50 : 2 units SPERRE air compressor motor driven 39.8 cbm/hr @ 30 bar SPERRE air compressor diesel driven 12.1 cbm/hr @ 30 bar
Scantlings : Deck : 20mm Grade B Side : 20mm Grade B Bottom : 20mm Grade B Trans bhd : 12t/14t/16t grade A Longl bhd : 12t/14t/16t grade A Deck loading : 20t/sqm Clear width on deck 28.5m between caisson inner wall Price & terms : Please enquire using the email form below If you cannot find the vessel, crane, rig or equipment that you need, please send us an email to mail@worldoils.com stating your requirements and we shall find it for you. We can arrange delivery of equipment and towage of rigs and vessels where needed. The details mentioned above are believed to be accurate but are not guaranteed. ---------------------------------------------------------------------------------------------------------------------------------- Search words(for official use only) - Heavy Lift Semi Submersible Barge For Sale in South America Semi Submersible Heavy Lift Vessel For Sale Worldwide Heavy Lift Semi Submersible Barge For Sale in Nigeria, West Africa Semi Submersible Heavy Lift Barge For Sale Heavy Lift Deck Barge For Sale in Asia, Singapore, Malaysia Heavy Lift Semi Submersible Barge For Sale in Middle East ------------------------------------------------------------------------------------------------------------------------------------------
Price & terms : Please enquire using the email form below.
Small General Cargo Ship For Sale 1979 built Mini Container Ship For Sale
Specifications Year of delivery : 1979 Type : General Cargo Ship Classification : DNV + 1A1, E0 Gear/gearless : Gearless
Vessels Particulars Length o.a. : 88,00 m Length p.p : 82,00 m Beam : 12,73 / 12,96 m Draft max summer : 5,08 m ; 4,97m Airdraft : 24,30 m; ballast 21,50 m; loaded 19,3 m Gross tonnage : 2062 mt Net tonnage : 1030 mt Deadweight : 2922,6 mt DWCC Summer : abt. 2800 mt DWCC Winter : abt 2700 mt
Hatch and Hold No. of holds/hatches : 1 hold / 2 hatch Hatch cover type : Poontoon Hold dimensions : Aft 39,20 m x 10,0 m x 6,8 m and forward 12,90 m x 10,0 m x 6,8 m Hatch dimensions : Aft 38,50 m x 10,0 m and forward 12,90 m x 10,0 m Grain/ Bale Space : Abt. 123.850 cbft / 123.034 cbft Strength : on tanktop: 6 mt / sqm ; on deck : abt. 1.40 mt/sqm Tweendeck : No Bulkhead : No, 1 beam
Technical details Main Engine : MWM TBD500B, 2200 BHP Aux Engines : Scania DC 1101 MO INV – 2 pcs Shaft generator : No Emergency / Harbour generator : Scania D1101 AOGNV Bowthruster : Bow 300 HP Speed : abt. 10 kn always subject good weather conditions / bf 2 / no swell
Consumption per day at sea abt. 4,7-5,3 mt MGO DMA at port abt. 0.3 mt MGO DMA
Tank capacities MGO abt. 101 cbm ballast abt. 965,52 m3 freshwater abt. 32 m3
Container Capacity (20') Hold : 60 Deck : 36 Total : 96 (20') Reeferplugs : No
Accommodation : 8 persons, 8 cabins
Class : + 1A1 R1 general cargo carrier container HC EO
The details mentioned above are believed to be accurate but are not guaranteed. --------------------------------------------------------------------------------------------------------------------- Search words (for official use only) - Small General Cargo Ship For Sale Mini Container Ship for sale Small Container Ship For sale Mini Cargo ship for sale Coastal Cargo Ship for sale -----------------------------------------------------------------------------------------------------------------------

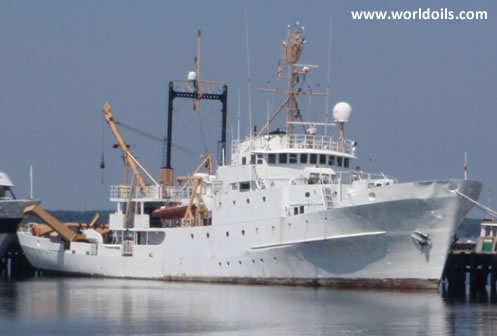

Survey/Cable/Accom/Research Vessel Survey and Research Vessel for Sale
General Information Class: DNV 1A1, ICE C Year Built: 1972 Converted: 1987,1990,1996,2006 DIMENSIONS LOA: 59.5 m LBP: 54 m Beam: 10.2 m Draught: (w/ MBE blister) 4.1 m 5.2 m Gross tonnage: 1,035 t Net tonnage: 311 t
Main Engines Make: B&W Alpha Diesel 10 V 23 LU Output: 1,250 HP / 920 kW AUX. ENGINES Make: 1xCummins KTA50 Output: 1,900 HP / 1,250 kW Make: 2 x Cummins NT855-G6 Output: 2 x 435 HP / 295 kW Thrusters / Propulsion Stern thruster: (1) 450 HP CP Ulstein Bow thruster: (1) 600 HP CP Ulstein
Tank Capacities Fuel oil: 141.6 t Ballast water: N/A Fresh water: 102.5 t Speed Maximum: 11 knots Service: 10 knots
Accommodation • Max 36 persons • 10 single cabins / 13 doubles
Dynamic Positioning System (DP) • 1 Robertson SDP 600 • 1 Robertson navigation computer • 1 HPR 310 • 1 HiPAP
Navigation and Instrumentation • 1 Furuno ARPA Radar, FR 2130S • 1 Racal Decca color BT 501 Radar • 1 Simrad C-Map Electronic chart system • 1 Sperry Mk 27 Gyrocompass • 1 Anschutz Gyrostar Gyrocompass • 1 Robertson AP 9 Mk II Auto pilot, incl. SDP 600 Joystick • 1 Navtex NCR-300A • 1 ELAC LA2 50 Echo sounder • 1 Raytheon 398 GPS • 1 Trimble DSM 132 DGPS
Communications • System in accordance with SOLAS requirements for GMDSS-A3 • 1 Inmarsat B • 2 GSM, including voice and data • 1 VSAT
Life-Saving Equipment • 1 Norsafe Merlin 580 MOB w/ 90 HP engine • 1 Westdavit PL 2000 • 3 life rafts: 16 persons each • 1 life raft: 25 persons • 3 life raft: 20 persons
Deck Equipment • 1 Stromme crane: NK 30 LE2, 2t / 10m (SWL winch 2.5 t) • 1 Heila crane: HML, 18-2S 18 t / m (with 2.2 t winch) • 1 A-frame (8t SWL @ 6 m height) (5 t SWL @ 8.3 m height) • 1 A-frame midship (15 t SWL @ 9 m height) • 1 Karmoy winch for A-frame midship, 1,950 m / 26 mm wire, SWL 15 t • 1 capstan • 1 anchor winch • Hull-mounted EM 1002 and EM 300 MBE • SB Profiler: 4 x 4 array • SDP 600 - HiPAP - HPR • A-frame: 15 t midship, A-frame: 8 t aft • Offices, online/offline rooms • Accommodations for 36 persons • Dayrooms, mess and gym • 227 m² deck area • Optional equipment: Sub-Atlantic Comanche, Triton T-12 WROV, Seaeye Tiger 845 OBS ROV or Hugin
Equipment will depend on contract details. Specifications subject to change without prior notice Price & terms : Please enquire using the email form below.
------------------------------------------------------------------------------------------------------------------------- Search words(for official use only) : Survey Research Accommodation Pipe Vessel for sale Survey Vessel for sale in Asia Research Vessel for sale in Asia DP Survey Vessel For dubai DP Survey Vessel for sale DP Research Vessel for sale DP Survey Vessel for Middle east DP Survey Vessel for America DP Survey vessel in Europe -------------------------------------------------------------------------------------------------------------------------------

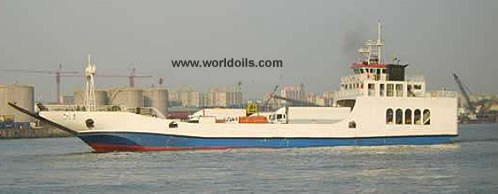

Landing Craft Cargo Ship for Sale LCT Type RoRo Ship for Sale Rebuilt RoRo LCT Ship for Sale Built : 1981 Completely rebuilt : July 2004
GRT : 576T DWT : 1,071T Class : KST LOA / LBP : 68.57m / 54.43m Beam/Depth/Draft : 13.5m / 3.5m / 2.8m
Pax/crew : 13 persons/ 6 persons Engine : 3 X Mitsubishi DS6R2-MTK2 950ps/1400rpm Speed : Max. 14kts / Ser. 10~11kts Fuel cons. : Bunker A / 65L per hour each engine (total 195L per hour)
A/E : 2 X Daewoo AD136T F.O.T : 30,000 ltrs F.W.T : 30 tons Car capa : 54 cars or 5 ton X 22 trucks Crane : 1 X 10 ton Cargo hold : 4( 2 in port side / 2 in stb'd side )/ 670cbm capa
Verticle clearance : 4.5M Last SS : Mar. 2009 LAST DD : June 2010 Navigation equipment : Radar / Gyro compass / GPS / AIS Subject to prior sale
---------------------------------------------------------------------------------------------------------------------- Search words (for official use only) - Landing Craft Cargo Ship for Sale LCT Type RoRo Ship for Sale Landing Craft for Sale Rebuilt 2004 RoRo Ship for Sale LCT RoRo For sale LCT Type Cargo Ship for Sale -------------------------------------------------------------------------------------------------------------------
Accommodation Work Barge 1971 Built for SaleUsed Accommodation Barge General Year built : 1971 Converted : 1982 ( Sweden , accommodation work barge) Refurbished : 2007 Class : +100A5 Accommodation Work Barge Special Annotation : Helicopter Platform and Mobile Crane GRT / NRT : 3387 / 1017 Dimensions Length overall : 82 m Breadth : 24 m Depth moulded : 4.7 m Draft : 2.5 m Clear deck area : 60 m x 24 m Crane Type : Crawler crane Make : Manitowoc Model : M888 Series 2 (200T) Year built : 1997 Boom length : 39.6 m Mooring system Mooring arrangement : 8 point mooring, remotely operated from control room with video monitoring Winch arrangement : 4 winches, double drum waterfall Winch model : Skagit RB90 Winch prime mover : Detroit Diesel 6V71 Diesel engine Drum capacity : 761 m x 38 mm wire rope (10 layers) Helideck Dimensions : 24 m x 18 m Capacity : 5 T ( Bell 212, Dauphin AS365NZ, …) Accommodation Capacity (normal) : 114 beds, fully air conditioned Single cabin : 2 Four men cabin : 25 Six men cabin : 2 En suite bathroom : In all cabins, except 3 (1 x 4 men + 2 x 6 men who share common facilities) Capacity (extended) : The size of common areas allows an extension to 170 beds through additional cabin modules (not supplied) Tanks Fresh water tanks : 1,130 m3 Fuel oil tanks : 180 m3 Machinery Generators : 3 x 200 kVA, Volvo Diesel engine with Leroy Somer alternator Sewage treatment plant : DVZ SKA 100 Biomaster, capacity 200 persons Oily water separator : Hamworthy KSE HS1 AC compressor : 2 units Carrier 5H46 Fire detection : SICLI monitoring system Fire pumps : 2 pumps 30 m3@50 m Additional fire pump : 1 pump 180 m3@70 m with connection to main deck for possible supply to platform fire network Miscellaneous Surfer landing : 1 unit on portside, compliant with Total standard Rescue boat : Zodiac Mark 5 with outboard engine
---------------------------------------------------------------------------------------------------------------------- Search words : Used Accommodation Barge for sale Accommodation Work Barge Accommodation Barge for Sale Accommodation Work Barge For Sale -----------------------------------------------------------------------------------------------------------------------
Dumb Barge for Sale 300 feet Dumb Barge for Sale
This unmanned steel dumb barge is suitably equipped for carrying deck cargo for unrestricted services.
Principal Particulars Length Overall : 300ft (87.78M) Breadth Moulded : 80ft (24.40M) Depth Moulded : 18ft (5.50M) Draft Moulded : TBA Class : BV Notation : I * HULL Pontoon Unrestricted Navigation Deadweight : ±7,500M/T Gross Tonnage : 3155 tonnes Nett Tonnage : 947 tonnes Deck strength : 5 tonnes / M²
Plating Deck Plate : 12.0mm Bottom Plate : 12.0mm Side Plate : 12.0mm Deck Longitudinal Angle Bar : 125mm x 75mm x 7mm Bottom Longitudinal Angle Bar : 125mm x 75mm x 10mm Side Shell Longitudinal Angle Bar : 125mm x 75mm x 7mm Longitudinal. Bulkhead Angle Bar : 125mm x 75mm x 7mm Web : 450mm x 100mm x 9.5mm Bulkhead : 8.0mm Bulkhead Stiffener : 125mm x 75mm x 7mm Stanchion : 250mm x 250mm x 9.5mm Diagonal : 150mm x 150mm x 9.5mm Chine Bar : 38mm dia Girder : 450mm x 100mm x 9.5mm
------------------------------------------------------------------------------------------------------------------------- Search words(for official use only) : Dumb Barge 300 feet for Sale 7500T Dumb Barge for Sale Unused 300feet Dumb Barge for Sale 300feet Dumb Barge for Sale --------------------------------------------------------------------------------------------------------------------
Utility Boat - 26m /46 Pax / 1991 blt for sale Aluminium Crewboat for Sale Year : 1990 Class : Bureau Veritas (BV) Dimensions Length overall : 85.00 FT Breadth : 19.40 FT Depth : 09.38 FT Draft loaded : 06.00 FT Gross tonnage : 95.00 Ton Net tonnage : 28.00 Ton Machinery Main engines : 2 x Detroit Diesel 12V 92TA x 720bhp Propellers : 2 fixed pitch Generators : 2 x KATO 120/208 V, 60 Hz, 40 kW each Speed Maximum / Cruising : 18/16 knots Fuel / Stby : 12 ltr/hour Fuel Consumption Max speed : 276 ltrs/hrs Cruising speed : 249 ltrs/hrs Capacities Fuel oil : 14,700 Ltrs Water : 9,000 Ltrs Free deck space : 50 M2 Deck cargo capacity : 7.50 LT Accommodation fully air conditioned : 6 crew, 46 pax (reclining seats) Navigation/Communication Radar : 1 x Furuno, FR 8050D, Range 48 NM 1 x Furuno 1830 Echo sounder : 1 x Raytheon 420 Magnetic compass : 1 Satellite navigation (GPS) : 1 x Furuno GP 31 SSB radio : 1 x ICOM IC-M700 VHF radio : 2 x Sailor RT 2048 Gyro Compass : 1 x Ritchie C453 Depth Sounder : Datamarine 3000 Fire Fighting/Safety Monitors : N/A Pump capacity : N/A Safety Equipment : as per SOLAS, Flag and Class Society requirement
----------------------------------------------------------------------------------------------------------------- Search words(for official use only) : Offshore crewboat for sale Offshore Utility Vessel 26m /46 Pax / 1991 blt / Aluminium Crew/ Utility Boat Aluminium Crewboat for Sale Utility vessel for sale -----------------------------------------------------------------------------------------------------------------
Multi Purpose Supply/Utility/Dive Vessel for Sale Multi Purpose Supply Vessel for Sale - New building New Multi Purpose Utility Vessel for Sale New building Supply Vessel
Vessel : Build : 2009 Classification : RINA C+HULL + MACH, SUPPLY VESSEL,COASTAL GRT / NRT : 222/67
Auto Pilot : 1 x NAVITRON Autopilot - NT 921 MK II - Autopilot set
GPS Navigator : 1 x JRC GPS - JNAV 500 - GPS Navigator set
VHF : 2 x ICOM V.H.F - IC-M31 -Marine hand held V.H.F.
EPRIB : 1 x Jotron EPIRB - 95475 - Tron 40S EPIRB
Portable VHF (GMDSS) : 1 x ICOM VHF - IC-M411- Marine VHF set ( with DSC funtuanility)
SART : 1 x Jotron SART- SART 20 - Radar Transponder
Navtex Receiver : 1 x JRC Navtex - NCR 333 - Navtex receiver set
AIS : 1 x JRC A.I.S. - JHS 182 -AIS-Automatic identification system

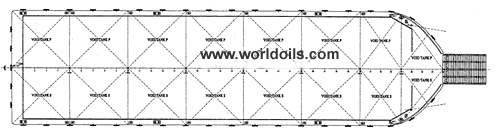

Barge for sale 220ft Barge for Sale 2007 Built used barge for Sale General : Built : 2007 Class : NKK GRT/NRT : 1308/393
Specifications : Deck Plating : 12.5mm Bottom Plating : 12.0mm Side Plating : 12.0mm Deck Longl : 9mm x 150 x 90 O.A. Bottom Longl : 7mm x 125 x 75 O.A. Pillars : 8" x 8" x 31# 'I' Beam Diagonals : 12mm x 150 x 150 O.A. Sideboards : 8ft high Deck Load : 8.5tons/M2 UDL
------------------------------------------------------------------------------------------------------------------------ Search words(for official use only) - Barge for Sale Used 220FT Barge For Sale 2007 built Barge For Sale - Deck Load 8.5Tons Barge for Sale - Length 220ft 2007 Built used Barge for Sale Barge for Sale - 2007 Built - 220ft ----------------------------------------------------------------------------------------------------------------------------
Accom / Pax : 3 Double cabins, shower, 2 x WC, AC Machinery : 2 x Caterpillar C18, Total 1200 bhp Speed : Economical Speed 8 knots

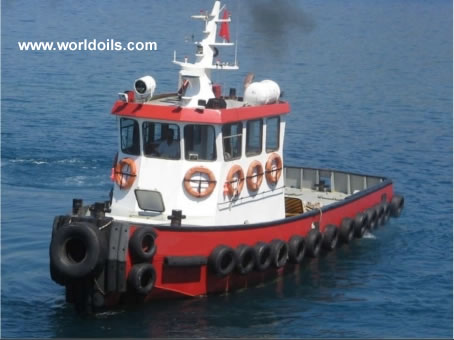

Tugs for Charter 2009 Built Tugs for Sale General Year Of Built : 2009 Basic Functions : Towing, mooring and survey Operations Classification : Bureau Veritas 1 * Hull MACH Tug Coastal Area Incl. tonnage certificate Painting : Epoxy paint system Dimensions Length O.A. : 16.56 m Beam O.A : 5.54 m Depth At Sides : 2.54 m Draught Aft : 2.35 m Scantlings : hull 10 mm, sheerstrake 20 mm
Tank Capacities Fuel Oil : 14.0 cbm Fresh Water : 1.1 cbm Sewage : 0.7 cbm Bilge Water : 0.5 cbm
Performance Main Engines : 2 x Caterpillar C18 TA / B Total Power : 896 bKW (1200 bhp) @ 1800 rpm Gearboxes : 2 x Reintjes WAF 264 L 4.5:1 Propellers : 2 x Kaplan II fixed pitch propellers Nozzles: 2 x 1350 mm Van de Giessen “Optima” with st.st. innerrings Rudders : 2 x streamlined, double plates Auxiliary Equipment Generator Set : Caterpillar C2.2 NA , 230V, 18 kVA , 50 Hz Alternator 24 V : 2 x main engine driven Battery Sets : 2 x 24 V 200 Ah + change over facility Alarm System : Engines , gearboxes + bilge alarm Bilge/GS Pump : Elec. Driven , Sterling SIHI VW SI 5013 20 m3/hr Fuel Oil System : Duplex filters , water separators + SOS valve Cooling System : Closed cooling system / Keel cooled Water System : Electrically driven freshwater hydrophore and Sewage pump Fresh Water Heater : 230 V , 30 liter . Ventilation: Mechanical Ventilation in E.R. Deck layout Anchors : 2 x 80 kg Pool (HHP) Chain (TOT) : 100 m shortlink chain 13 mm diameter Anchor Winch : manual for one anchor Towing Hook : Disc type , 25 ton Liferafts : One (or 2 optional) on top deck Accommodation The accommodation is completely insulated and finished with durable modern livings, acoustical Dampa ceiling in the wheelhouse and a floating floor . The air –conditioned wheelhouse is fitted with a corner settee with table and a control position . Below deck a galley , sanitary Facilities and a store are provided . Crew cabin with four bunks.
Nautical and communication equipment Search light : Pesch 250 W + flood ight 150 W Horn : Electric Radar : Furuno 1932 Compass : Magnetic Kotter type GPS : Furuno GP-32 Echosounder : Furuno LS-6100 VHF Radio : Sailor RT2048 Price & terms : Please enquire using the email form below.
---------------------------------------------------------------------------------------------------------------- Search words(for official use only) : Tugs for Charter Towing + Survey vessel for Charter TSC vessel For Charter Tugs 2009 Built for sale Towing Survey Vessel For Charter ------------------------------------------------------------------------------------------------------------------

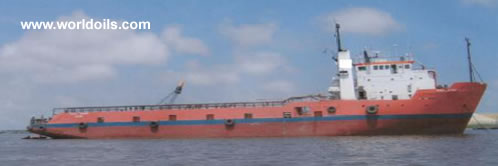

Offshore Supply Vessel for Sale Offshore Tug For sale 1983 Built Offshore Tug For sale
Specification Built : 1983 Classification : Lloyd's : +100A1, +LMC UMS "Offshore Tug/Supply Vessel" Ice Class 1*, Special Purpose Ship, 56 Crew Members can be boarded Deck Load Capabilities Deck cargo capacity : 550 ts Deck measurement : 13.00 x 10.9m + 5.9 x 24.5m Cargo rail height : 2.0m / 1.5m Deck Strength : 5 ts/sqm
Mud/Bulk Tank Capacities Cement : 4 tanks, totalling 290 cbm (10,240 cu.ft) Liquid mud : max. 1200 barrels in 2 tanks Discharge rate cement : 2 x 19.2 cbm/h compressors, 80 psi Discharge rate mud : 2 x 60 cbm/h at 60 m head
Liquid Tank Capacities Potable water : 330 cu.m Drillwater/ballast : 681 cu.m Total Fuel : 937 cu.m Domestic fuel : 520 cu.m Rig fuel oil (diesel) : 417 cu.m Discharge rate potable water : 150cu.m/h at 60 m head Discharge rate drill water : 100 cu.m/h at 60 m head Discharge rate oil : 150 cu.m/h at 60 m head Discharge stations : aft under cargo rails Discharge lines : All 4" with WECO couplings
Propulsion Main engines : 4 x Bergen diesel/type KVMB-12 each 3,060 BHP, total 12,240 BHP. Speed/Consumption Max. speed/consumption : consumption according to Yard trail 16 kts on 30ts gas oil/24 hrs. Economical speed : 12 kts on abt. 18.0 ts 10 kts on abt. 12.5 ts 8 kts on abt. 9.0 ts Consumption in port : 0.5 ts/24 hrs. Consumption stand-by, at sea : abt. 5.0 ts/24 hrs. Bollard Pull : 120 tons continuous Propellers : 2 x Ulstein controllable pitch in nozzles.
Thrusters Stern : 1 x 800 BHP Bow : 2 x 800 BHP Ulstein make all electrical driven
Generators : 2 x 1570 kva shaft generators 2 Caterpillar diesel each driving a 250 KW generator 1 Caterpillar diesel driving a 94 kva generator.
Bridge Equipment/Manoeuvring Joystick control : Ulstein Joystick control Autopilot : Robertson Gyro compass : RGC - 11 Radars : 1 x Decca Bridgemaster 250 (10cm) 1 x Decca Bridgemaster 180 (3cm) + Slave monitor Decca navigator : MX 400 Professional Echo sounder : Scipper 60s - 101 Facsimile receiver : Furuno fax 208A DGPS : trimble 4000DS DGPS Positioning eqm incl. Hydro Nav. Package software
Communication Equipment Complete GMDSS package consisting of : 1 x TT3606A Sat-c comm. Units 1 x TT 3020C Sat-c comm. Unit Sailor compact VHF RT 2048 Furuno MF DSC terminal/receiver Furuno VHF radiotel FM 8500 Furuno VHF radiotel FM 8500 Furuno FS 1562 15 tranciver 4 VHF portable radios Standart Horizont
Other comm. equipment : 1 x Command Intercom PSA 204 Iridium ID telephone 1 x Saturn M telephone Nera 1 x HP PC with e-mail connection
Towing and Anchor handling Equipment Winch : Brattvaag hydraulic triple drum, Waterfall type with 250 ts pull and 400 ts static holding force. 2 anchorhandling drums each for 1,000m 64mm diameter deadman wire. 1 towing drum for 1,000 m 64 mm diameter towing wire. Pennant reels : pennant reel for 900m 76 mm wire + 2 x 500m 76 mm wire. Wildcats : For 3"/76 mm rig chain Chain lockeers : 2 rig chain lockers - 104 cu.m for 1150 m of 3" chain each.
Deck Equipment Capstans : 1 pc. 8.5 ts pull capstan on focsle head hydraulic driven. 2 pcs 5ts pull capstans on aft deck hydraulic driven. 2 pcs 5ts pull tugger winches hydraulic driven. Crane : 1 crane, 5ts, 9m outreach
Cargo Deck aft Shark jaws : 1 set hydraulically operated Triplex shark jaw. Towing pins : 2 hydraulically operated towing pins, permit side pressure 50t. Stern roller : 1 x 350 ts SWL stern roller with dia. of 1.8 m and length of 3.66m. Furthermore, the vessel is well equipped with stoppers, chaser, grapnel, shackles, fuse wires, etc. Anchoring System Hydraulic winch with 24 shackles of 36 mm chain. 1 x deep water anchor winch with declutchable drum cap. of 1,500 m x 38mm diameter wire, remote controlled from wheelhouse. Anchoring depth 400m.
Accomodation Crew cabins : 13 persons in single cabins Passengers : 44 persons in 11 x 4 - berth cabins. All accommodation, bridge and engine control rooms are fully airconditioned. Seperate air condition units installed for bridge and engine control room. Extra insulation for work in cold areas.
Rescue/Safety/Pollution Spray Booms : Yes Lifeboats : 2, each for 28 persons Liferafts : 2 x 16 persons VIKING
Details believed to be correct but not guranteed.
----------------------------------------------------------------------------------------- Search Words : OSV For sale Offshore Supply Vessel for Sale Offshore Tug/Supply Vessel for sale Offshore Tug for Sale -----------------------------------------------------------------------------------------

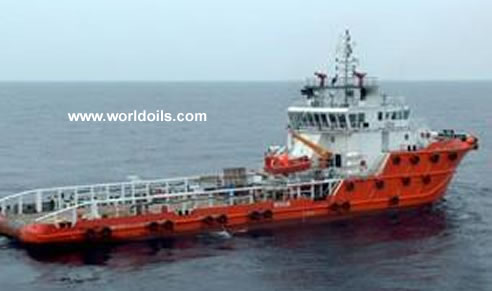

Anchor Handling Vessel For Sale 4000bhp Anchor Handling Vessel For Sale 50M AHT For Sale
Principle Particulars Length O.A. overall (Mld hull) : 49.95 m Length W.L. : 48.60 m Breadth moulded : 12.60 m Depth moulded : 5.75 m Draft moulded (design) : 4.50 m
Capacities Clear Cargo Deck aft : 220 m2 (22 x 10) Deadweight approx. : 700 t (at max. draft of 4.8m) Tank Capacities With tanks 100% full, the approx. capacities will be as follows: Portable, total : 242 M3 (approx) Fuel Oil, total : 500 M3 (approx) L.O. Storage (M.E) : 2 x 6 M3 (approx) L.O Storage (Gensets) : 2 M3 (approx) Hyd. Oil : 2 x 5 M3 (approx) Steering Gear Oil : 1 M3 (approx) Freezer/Chiller (Ship's use) : 2 x 5 M3 (approx) Bilge Holding Tank : 5 M3 (approx) Sewage Holding Tank : 5 M3 (approx) Dirty Oil Tank : 5 M3 (approx) Foam : 16 M3 (approx) Dispersant : 19 M3 (approx)
Complement and Accommodation 3 x 4-berth cabin : 12 men 6 x 2-berth cabins : 12 men 3 x 1-berth cabins : 3 men Total Complement : 27 men
Main Engines Main engines to be two (2) Cummins QSK 60, each developing an MCR of 2200 BHP at 1800 RPM, giving a total of about 4400 BHP Continuous power.
Geberators - Main Two (2) marine diesel generating sets, heat exchanger cooled, each rated approx 250 KW, 415V, 3 Phase, 50 Hz, 0.8 P.F.. The two units are to be able to operate in parallel. Basic Design Characteristics:- - Heat exchanger cooled - 4 strokes - Engine mounted L.O, fresh water, fuel oil and raw water pumps - Engine mounted L.O. and fresh water coolers - Local and remote start - Resilient mounting - Auto synchronizing
Life Saving Equipment Life saving equipment is to be in accordance with Classification and Solas requirements for an Ocean Going Vessel with a total complement of thirty (30) men. The Life saving equipment shall include at least the following:- Liferafts : Four (4) inflatable liferafts to SOLAS requirement, each certified for twenty (20) men are to be stowed in hinged type cradles for quick sideway launching. All to be SOLAS Approved. Lifebuoys : Eight (8) lifebuoys of PVC or equal approved construction. Four (4) lifebuoys with 90-Ft buoyancy line Four (4) lifebuoys with 90-Ft buoyancy line and selfigniting electric lights Two (2) smoke signals of the latter). All to be SOLAS approved. One (1) lifebuoy to be positioned close to stern. Lifejackets : Thirty-eight (38) approved type lifejackets to be supplied and stowed adjacent to each berth. Including 2 Spare jackets. All to be SOLAS approved. Pyrotechnics : Twelve- (12) parachute distress rockets. Two (2) orange smoke signals each to have 120 seconds discharge time and be waterproof. Rescue Boat : One (1) Solas approved type rigid 6-men rescue Boat c/w 25BHP outboard engine and approved gravity type davit is to be provided Line Throwing : One (1) set Line Throwing Apparatus to meet with SOLAS requirement. Retro Reflective : Life Saving appliances are to be fitted with reflective tapes . Boat Hooks : Two (2) boat hooks c/w approx. 8mm handle. First Aid Kit : As per rules.
Firefighting Equipment Internal firefighting Firefighting equipment is to meet Classification and relevant Flag state Regulations. Generally all in accordance with the following: Firemain:- A firemain and hydrants are to be installed, six (6) on various deck levels and two in engine room. 10M canvas fire hose c/w brass coupling and nozzle is to be supplied and stowed alongside each hydrant in a protective box. All nozzles to be dual jet/spay type. International shore connection is to be fitted. Fireman's Outfit:- Two (2) complete sets (each contained in its own separate storage unit) of fireman's outfit are to be provided, comprising the following:- -one (1) protective clothing -one( 1) breathing apparatus - oxygen tank and mask -one( 1) fireman's axe -one( 1) safety lamp of portable battery type -one( 1) set of gloves and boots
External Firefighting The following equipment are to be fitted for the vessel to comply with half Fi Fi standards with water spray curtain. a) Fire Pump Two (2) unit seawater pump, one 1700 M3/Hr drive by main engine , other one 1200 M3/H drive by independent engine at 14 kg/cm2 to supply the fire monitor. b) Fire Monitor Two (2) units monitor at 1200 m3/hr each (Foam/ Water) Remote controlled.
Navigation and Communications Equipment One (1) unit of DSC watch keeping receiver. Two (2) units of search and rescue radar transponder (SART) One (1) Inmarsat “C” station with voice, fax, email facility. One (1) unit of NAVTEX Receiver One (1) EPIRB One (1) MF/HF SSB Two (2) Radars, both X-band, meeting SOLAS & GMDSS, both Furuno 1510 with ARPA function One (1) speed log system comprising transducer receiver, inter-phasing facility and interconnecting cable shall be provided and installed. One (1) master gyro-compass fitted with five (5) gyro repeaters positioned as follows :- One (1) centrally located in wheelhouse forward steering station as steering compass One (1) centrally located in wheelhouse aft steering station Two (2) outside of wheelhouse positioned clear of obstructions so as to allow bearings to be taken, fitted with azimuthing ring capable of obtaining compass errors. One (1) auto pilot compatible and interfaced with gyro and steering compass. One (1) magnetic compass, 7 inch reflector type c/w correction magnet, quadrant balls and reflector tube and compass binnacle, Azimuth device. One (1) DGPS (Global Positioning System) navigator. One (1) echo-sounder, 0-036 ft deep range c/w repeater at aft manoeuvring station. Three (3) sets walkie talkie, intrinsically safe, complete with spare battery and chargers. SSB set (See separate clause). Item not specified above but required by the relevant Authority are to be supplied by owner
Anchor Handling Fork, Shark Jaw One (1) set electro-hydraulically operated anchor handling fork (hydraulic retractable shark jaws) of approved make to be installed in centreline on main deck aft. The stopper to be able to take 2” to 3” dia. Wire and 1-1/4” to 3” dia. Chain. SWL to be 200 tonnes. Stopper to have separate hydraulic power unit and to be remotely controlled from the cargo rail on main deck aft and from wheelhouse aft.
Towing Pins (200t SWL) Two (2) vertical hydraulic towing pins of approved make, retractable type, closed top to be installed in the centreline of the main deck. The anchor handling pins to extend about 600mm above main decklevel in the fully extended position. The pins are to be operable from wheelhouse aft and locally.
Capstans Two (2) electro- hydraulic/hydraulic capstans each of 5 tonnes at 15m/min capacity to be installed aft as shown on the General arrangement drawing light load speed to be 30m/min. Local controls.
The details mentioned above are believed to be accurate but are not guaranteed. -------------------------------------------------------------------------------------------------------------------------------------------------- Search words(for official use only) - Anchor Handling Vessel For Sale 4400bhp AHT For Sale AHT For Sale in Middle East, Dubai 4000bhp Anchor Handling Vessel For Sale 4000bhp Anchor Handling Tug in Singapore, Malaysia, Indonesia 4000 bhp AHT For Sale AHT For Sale AHT For Sale in Singapore, Malaysia, Indonesia --------------------------------------------------------------------------------------------------------------------------------------------------------

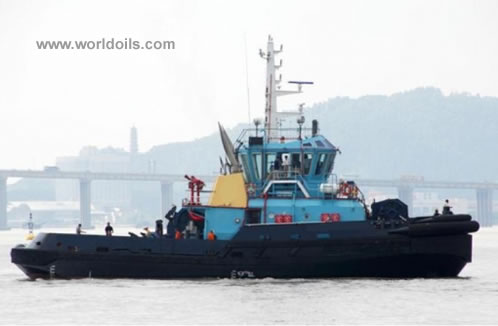

ASD Tug For Sale 4400BHP MULTI-PURPOSE ASD TUG
Main Particulars : Length O.A. : 30m Length B.P. : 25.2m Beam MLD. : 10.8m Depth MLD. : 5.4m Crew : 12 Design Draft : 3.6m Max Draft : 4.7m GRT : 469 NRT : 140
Classification Notation : BVâ… Hull Mach, Salvage Tug / Utility Boat / Fire Fighting Ship 1 unrestricted navigation
Year Built : 2010
Main Capacity : FO : ~267m3 FW : ~80m3 Fi-Fi Foam : 18.16m3 Spilled Oil Dispersant : 4.5m3 Lube Oil : 1.0m3
Anchoring and Towing Equipment : -Single Reel Hydraulic Towing Winch Set : Maker : Plimsoll - Singapore Capacity(Steel Wire) : φ46mm×770M Brake Holding : 150 MT Rated pull : 20MT@0~10M/min and 5MT@0~30M/min Hydraulic emergency release
-Hydraulic Anchor/Escort (Towing) Winch Set : Maker : Plimsoll - Singapore Anchor weight : 2 × 570 kg Diameter of anchor chain : Φ20.5 mm Rated hauling speed : 1.83MT@0~15M/min Capacity(P.P. Wire) : φ100mm×110M Brake Holding : 120 MT Rated pull : 18MT @ 0~10 M/min
- Electro-hydraulic collapsible mast : 1set
Main Machinery & Propulsion Unit : Main Engine Sets : CUMMINS – USA-UK - Power 2,200 BHP @1,800rpm/min - Model CUMMINS QSK60-M - Quantity Two Sets
Marine Gen. Sets CATERPILLAR – USA - Model CATERPILLAR 3406MGS - Power 245eKW /400V/50HZ/ 3Φ - Quantity Two Sets
Harbour Genset 1×DuFong-CUMMINS CCFJ-60J– US-China - Power 60KW /400V/50HZ/ 3Φ
Marine Crane SQ8ZB3 - Max. Lifting SWL0.98MT@12M/ 8MT@2M - Quantity One Set
ASD Propellers - Model AQUAMASTER US205MK2 FP - Maker ROLLS ROYCE – Finland - Quantity : One set
Bow Thruster 1×STT110L-FP Power 90KW
Oily Water Separator 0.25M3 x One Set
Sewage Treatment 20-22 persons Plant One Set External FIFI System (SOLAS – FIFI 1 Class) - Firefighting Monitor 2×1200/300M3/hr(water/foam), range120/70M(water/foam) height water throwing 50M(water) - Firefighting Pump 1×2400M3@1.17MPa - Maker FFS – Norwegian F.O. Separator 1 x 1500L/h
Lifesavng and FiFi Equipment : - In compliance with the SOLAS requirements, Hong Kong merchant shipping ordinance and class notation requirements as regards Lifesaving & FiFi equipment. - CO2 System as per BV Rules - 8 x Life buoy; 16 x Life jacket; 2 x 15persons Liferaft; Portable Fire Extinguisher : 11 x 9kg foam; 6 x 5 kg CO2; 9 x 6kg Dry Powder; 1x 45 L Foam Fire Extinguisher (cart-pushing); 4 sets fireman outfit with breathing apparatus; 2 sets breathing apparatus of artificer diver; 2 sets gas mask with filter; 4 sets flood protection unit of1M x 2M; 12 x parachute distress rocket; 2 x Orange Smoke signal; 6 x Floating Light - Salvage and support Pump ability : 100M3/h & 90M3/h - Electric Fifi General Pump ability : 25M3/hr - Spare Electric Fifi Pump ability : 25M3/hr - Spilled Oil Dispersant System
Main Radio & Navigation Equipment : Radar 1×FR-1510MK3 Echo Sounder 1×Furuno FE-700 Speed Log 1×Furuno DS-80 Anemometer 1×Furuno FI-50 GPS 1×Furuno GP-150 Electrical Horn 1×Yahagi E3M-24 Autopilot 1×Alphaseapilot MFC Vertical Standard Magnetic Compass 1×CPL-165 Steering Magnetic Compass 1×CPT-130 Sound Power Tele. 1×12KSL Public address system 1×KSGB-JQ AIS 1×Furuno FA-150
A3 sea GMDSS MF/HF SSB 1×Furuno FS-2570 Inmarsat-C(SSAS) 1×FELCOM-15(IC-307) Inmarsat-C 1×FELCOM-15 VHF telephone 2×Furuno FM-8800S NAVTEX 1×Furuno NX-700B SART 1×Pathfinder 3 SART EPIRB 1×ACR RLB-32 Portable VHF 2×ACR SR-102
Air Conditioning System : -Equipped centralized air- conditioning for Wheelhouse, Mess Room, Captain’s and Chief Eng. Room and other crew room. -Equipped split-type air handling unit for engine room centralized control room and split-type air- conditioner for wheelhouse.
Accommondation & main living facility 2×Senior Officer Cabin for single 1×Senior Officer Cabin for two men 2×Crew Cabin for four men 1×Assemble-type Provisions Freezer 2×Twin Head-type Induction Hob 1×Berlin centralized electric water heater 1×Cleemann Captain Chair – Germany - Model : Nautic D GZ - Material : Synthesized leather - Width : 610mm - Height : Min558mm / Max718mm - Length of rail : 2200mm Price & terms : Please enquire using the email form below.
-------------------------------------------------------------------------------------------------------------------- Search words(for official use only) - ASD Tug For Sale 4000bhp ASD Tug For Sale 4400hp ASD Tug For sale ASD Tug For Sale in Singapore, Malaysia, Indonesia ASD Tug For Sale in Middle East, India --------------------------------------------------------------------------------------------------------------------
Landing Craft For Sale LCT for sale - 46mts
Principal Particulars Length overall : 46.00M Length W.L. : 43.50M Beam moulded : 10.90M Depth moulded : 3. 20M Draft designed : 2.20M Draft max : 2.50M Tween Deck Heights (Mean) Deckhouse : 2.45M Wheelhouse : 2.60M Accommodation 2 x 1 berth cabin : 2 3 x 2 berth cabins : 6 3 x 4 berth cabins : 12 Total : 20 men Tankage (approx) Freshwater : 178m3 tonnes approx. Fuel oil : 121m3 tonnes approx. Cargo Fuel Oil : 265m³ tonnes approx. Engines : 2 x 640 BHP at MCR 1800 rpm Performance Speed : 11.0 knots at light loaded condition and at 100% MCR. Classification : BV Registry : Malaysia Life Saving Equipment Life rafts : Two (2) inflatable life rafts to SOLAS requirements, certified min. twenty (20) men are to be provided. The life rafts are to be stowed on the forecastle deck in hinged type cradles for quick sideway launching manually and automatic hydrostatic release. Lifebuoys : Ten (10) lifebuoys of PVC construction: Six (6) lifebuoys with 90ft buoyancy line Four (4) lifebuoys with 90ft buoyancy line and self-igniting electric lights, two (2) smoke signal of the latter. Lifejackets : Twenty-five (25) approved type lifejackets to be supplied and stowed adjacent to each berth. Spare jackets: 6 in no. are to be provided. Maker: Solas Approved Type. Pyrotechnics : Four (4) set self-contained units of line throwing apparatus. Twelve (12) parachute distress rockets. Six (6) hand flare Two (2) orange smoke signals each to have 120 seconds discharge time and be waterproof. Maker: Comet or equal. Medical Kit : Two (2) medical kits Fire fighting Equipment Fire fighting equipment is to be provided to meet classification and government regulations and generally in accordance with the following: Firemain : A firemain and five (5) 1 1/2" bronze hydrants installed, three (3) on various deck levels and two (2) in engine room. 15M canvas fire hose c/w brass coupling and nozzle is to be supplied and stowed alongside each hydrant in a protective box. All hose, hose fittings, nozzles & hydrants to be international standard. International shore connection is to be fitted. Fireman's Outfit : Two (2) complete set of fireman's outfit One (1) aluminium protective clothing One (1) breathing apparatus oxygen tank & mask One (1) fireman's axe One (1) safety lamp of portable battery type One (1) set of gloves & boots One (1) electric drill Portable Fire Pump : One (1) portable Fire Pump Fire Bucket : Four (4) buckets painted in red and marked 'Fire' to be supplied in stands. Auto Fire Alarm and fire Detection System a) Alarm System b) Detection System c) Indication Units Maker : Fitech or equal Navigation & Communication Equipment .1) GMDSS Equipment to be provided to satisfy the requirements of the 1988 amendments made to the 1974 SOLAS Convention covering sea areas A1, A3. (a) VHF Radiotelephone with DSC watch receiver Two (2) VHF radiotelephones capable of general radio communication and transmitting and receiving DSC distress alerts on Ch. 70 and radio telephony on Ch. 6, 13 and 16. Equipment shall be suitable for DC 24 volt operation. (b) Radar Transponder (SART) One (1) search and rescue radar transponders capable of operating in the 9 GHZ band. (c) Navtex Receiver One (1) Navtex Receiver capable of receiving co-ordinated broadcast and automatic reception on 518 kHz of maritime safety information. Equipment shall be suitable for DC 24 Volt operation. (d) Satellite EPIRB One (1) Satellite Emergency Position Indicating Radio Beacon (EPIRB) capable of transmitting a distress alert through the polar orbiting satellite service operating in the 406MHz / 1.6GHZ bands. (e) MF/HF Radiotelephone with DSC watch receiver One (1) MF/HF Radiotelephone capable of general radio communication and transmitting and receiving distress and safety communications on all distress and safety frequencies in the bands between 1.6 to 27.5 kHz using DSC, radiotelephony and narrow band direct printing telegraphy (MBDP). Equipment shall be suitable for 230/1/50 and DC 24 volts operation. (f) VHF Handheld Radiotelephones Two (2) two-way VHF handheld radiotelephones c/w charger, Lithium batteries and chargeable batteries shall be provided I.S. Type. 2) Echo Sounder One (1) echo sounder, Furuno or equal with paper recorder and digital readout for 24V DC supply or equal type. 3) Radar One (1) radar, Furuno or equal bright displace, DC24 Volt supply c/w reflection plotter facility. 4) Speed Log 5) PA System A public addressing (PA) system to be provided and installed as follows: (a) Wheelhouse - Master Control Station (b) Officers Mess Room - Bulkhead mounted PA (c) Engine Room - Bulkhead mounted PA (with external audible & visual calling signal) (d) Passageway Main Deck - 2 Way PA (e) Wheelhouse top - PA only
