Worldrigs ID: 2918

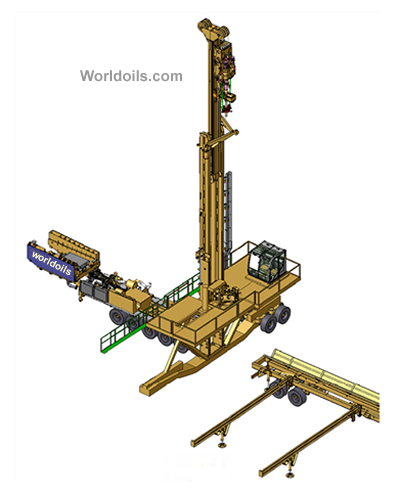

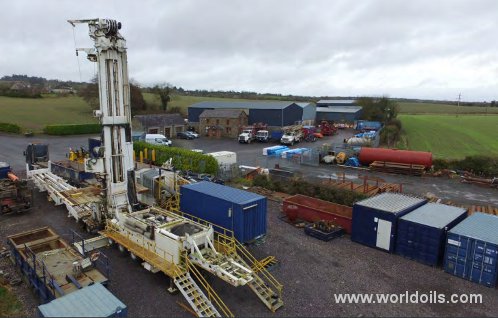

Hydraulic Super Single TXD 200 Rig - For Sale

Hydraulic Super Single TXD 200 Rig for Sale
Hydraulic Super Single TXD 200 Rig - 2006 Built - For Sale

Description :

General

Type : Hydraulic Super Single TXD 200
Year of Manufacturer : 2006

A. General Characteristics

Operating Capabilities

Depth rating with 5 inch Drill Pipe : 2,500m (8,200ft)
Maximum rated static hook load : 200,000 lb (90,909 kg)
Gross Nominal Capacity (lb) : 200,000 lb (90,909 kg)
Maximum top drive load (lb) : 200,000 lb (90,909 kg)
Maximum operating wind speed (kt) : 93

Rig Power System

Main Drilling Unit Engine
Make / Model : Detroit Engine DDC/MTU
Quantity : 1
Prime Power (HP) : 760
Engine Speed (rpm) : 1800
Auxiliary air supply : Kaeser ASD 37
Maximum Pressure : 11 bar
Maximum output : 110 cfm or 3.1 m³/min
Additional equipment : 110 cfm or 3.1 m³/min
Additional equipment : Kaeser TC36 air dryer and airline lubricators
Power supply unit : 1 x Genset 550kVA, 400 volts at 50Hz. Containerised and silenced
Power Distribution : Containerized distribution unit.

Fuel Supply

Rig fuel tank : 2 x 110 gal (415 lt) fuel tanks.

Rig site Diesel fuel tank :
1 No. 30,000 litre bunded tank, transfer pump and supply
manifold. Automated Monitoring with GSM Sim card alerts to fuel
companies and management.

Automated feed system : Rig, Pumps and Rig generator feed from auto fuelling system.
Average fuel consumption : 130-210Lt per hour

Hydraulic System

Quantity hydraulic fixed pumps : 3
Quantity hydraulic variable pumps : 7
All hydraulic circuits are filtered to : 7 microns
System capacity : 798lt (210gl)

Remote Hydraulic Supply
Separate hydraulic pump and controls plumbed to outlet ports with twin quick connect
fittings are mounted to provide hydraulic oil supply for customer’s auxiliary equipment

Maximum Oil Flow : 58 gpm
Maximum Pressure : 5000 psi
Horsepower Requirement : 175 hp approx.

B. Drilling Equipment

Telescopic Mast

Mast height (Max ): 23.7m (78’)
Top drive travel : 50ft
Gross nominal capacity : 200,000 lb (90,909 kg)
Pull-down capacity : 32,000 lb (14,545 kg)

Substructure

Trailer Mounted, Highly mobile configuration complete with automated pipe handler
Full length Sub Base : 16.5m long x 600mm high x 3m wide, Weight: 25 Tonne
Clear height below rotary beams : 3.96m (13ft) Adjustable

Feed Line System

Line size : 2 x 27” PD Nylatron, 1½” OD 8 x 26 Wire Rope
King strength : 128.2 tons per strand

Top Head Drive System

Pipe Handling : Automated
Hoist Capacity : 200,000 lb (90,909kg)

Hoist Speed :
0 - 130,000 lbs. @ 100 fpm
131,000 lbs. - 180,000 lbs. @ 75 fpm
181,000 lbs. - 200,000 lbs. 25 fpm

Pulldown Capacity : 32,000lb (14,545kg) @ 200fpm

Rotary Table

Mast Base : 30” (762mm)
Spider Bowl : Full Circle (FCR)
Slip type : Adapts Cavins Model F Power Slip, 2-” OD to 8” OD
Range : Pneumatic
Power : 400,000lbs

C. Rig Floor Handling Equipment

Automated Pipe & Casing Handling System

Tubular Length : 13.11m (43ft)
Max Tubular Dia : 30”
Slide Travel (ft) : 8
Load Height (inch) : 42”
Size range of Drill Pipe : Up to 10 ¾”

Pipe Racking

Rig racks : Approximately 38 pcs of 4 1/2” OD upset range 2 or 3 drill pipes in one layer.
Separate Racks : 4 No. 8.5m long x 1.07m high

Power Breakout With slips

Range : 4½” - 8” diameter
Maximum clamp force : Adjustable to 47,000 lb
Maximum make-up torque (ft lb) : 53,000
Maximum break-up torque (ft lb) : 53,000
Mobile Breakout system (Scorpion) : 1 unit

Bit Subs

Quantity : 1
Size (inch) : 4½” to 12 ¼”

Bit Subs

Load capacity (lb) : 2,400 kg (5,300 lb)
Drum Speed : 151 – 165 fpm
Located at : Top right hand side of the outer mast
Type of brakes : Automatic spring applied, hydraulic release
Capacity : 150ft (46m) of ½” HSLR cable

Survey Winch

Capacity : 3,300m(10,826ft) x .092” survey line
Max load rating : 3,000lbs

Drill Collar Safety Clamp

Quantity : 2
Size range (inch) : Up to 9 5/8”

D. Mud System

Mud Pumps

Mud pump make / model : White Star /WS 1,000 Quadraplex
Quantity : 2
Output (Combined) GPM/LPM : 6” liners - 1,410 GPM (5,336 LPM)
Liner sizes available (inch) : 4” - 6½”
Pump Motor : Detriot Diesel corporation
Motor rated capacity (HP) : 1,050 HP
Pulsation dampener make / type : White Star 7.5 gallon (Hydril type)
Pressure rating (psi) : 5000 psi

Stand Pipe

Stand pipe type / size (inch) : 4”
Pressure rating (psi) : 5,000 psi
Gauge make / type : Perma-CAL 3 ½” ID x 5,000 psi

Solids Control Equipment

Shale Shaker

Make / Model : Mud Data 803 SD Linear Motion Shale Shaker
Quantity : 2
Vibrating Strength : Up to 8.0G(Adjustable)
Treating capacity (each) : 444 GPM (2,000 LPM)
Screen Area : 2.8m²

Centrifugal Pumps : 4” x 18
Model : Mission magnum
Quantity : 2 x Mix pumps
Flow :
2 x Charge Pumps
1 x Trip tank pump
1 x Drill water pump

Degasser : Poor boy

Mud Mixing

Mud Agitator

Mode l: Siemens
Quantity : 7
Motor Power : 5KW
Speed : 95 RPM
Impeller diameter : 40”

Mud Tanks

Total system volume active, reserve : 640bbl
Mud tank: Shaker : 160 bbl
Mud tank: Settling : 155 bbl
Mud tank: Slug/Pill : 77 bbl
Mud tank: Active : 155 bbl
Mud tank: Pre-mix : 77 bbl
Trip tank : 15 bbl

Water Tanks

Drilling water Storage tank : 22,000lt (160bbl)
Fire Water tank : 44,000lt (280bbl)

E. Blowout Preventer, Control Equipment and Associated Equipment

Annular Preventer

Annular Preventer make / type : White Star /WS 1,000 Quadraplex
Size : 11”
Working pressure (psi) : 5,000 psi

Ram Type Preventer

Double ram BOP make / type : Hydril double 11” x 5000 psi
Size : 11”
Working pressure (psi) : 5,000 psi

Rams for Ram Type Preventer

Variable Rams
Blind Shear Rams : 11” 1 No. set
Fixed-Bore Pipe Rams : 1 No set of each 3 ½”

Accumulator Unit and Controls

Accumulator Unit make / type : 210 Gallon, 5 station, By-Pass Valve,
Air Actuation with Remote Panel

Number / total capacity of bottle (gal) : 12 x 11gl bottles = 132gallon

Test Pump : 1 No 10,000 psi Single Pump Hydrostatic Portable Test Unit with
ITT Barton Chart Recorder

Choke Manifold

Choke manifold make / type :
1 No 3 1/8” DMS 5,000 psi with two manual adjustable chokes
Pressure rating (psi) : 5,000 psi
Drilling chokes quantity : 2 No.

Coflexip Hose for BOP / Choke Manifold

Fire proof, acid resistant, steelbanded flexible hose for connecting
the BOP stack to the choke manifold :
3” x 5,000 psi with 2 No 3″ 5,000 psi, Mc Evoy valves and choke hose

Top Hole Diverter Equipment

Drilling Spool with 8” outlet, 60ft of 8” steel flanged pipe work.
Steel containment tank

G. Drill String

Drill Pipe

3½” S135 Range II Premium NC38 : 220 Joints - 2,000m (6,500ft)

Heavy Weight Drill Pipe

5” x 4½” IF Hard Banded – Range II : 6 No. (180ft)
3½” x 3½ IF Hard Banded – Range II : 6 No. (258ft)

Drill collars

6¾” x 4½”IF – Range 2 : 8 No. (248ft)
4¾ x 3½” IF – Range 2 : 12 No. (372ft)

H. Drilling Instrumentation and Control Equipment

Drillers Console

Schramm iControl

• Weight on bit(WOB)in pounds (lbs).
• Rotation speed in revolutions per minute (rpm).
• Rotation torque in foot pounds (ft-lbs).
• Bit depth in feet(ft).
• Line pressure.
• Air compressor sump pressure.
• Air compressor temperature.
• Hydraulic oil temperature
• All engine information & diagnostic codes.
• All drill rig diagnostic codes in easy to read text

I. Other Equipment

Air Drilling Package(Not inlcuded in day rate)
Schramm iControl

Price & terms : Please enquire using the email form below

If you cannot find the vessel, crane, rig or equipment that you need,
please send us an email to mail@worldoils.com stating your
requirements and we shall find it for you.

We can arrange delivery of equipment and towage of rigs and vessels where needed.

The details mentioned above are believed to be accurate but are not guaranteed.

-----------------------------------------------------------------------------------------
Search words (for official use only) :
Mechanical Drilling Rig - 2006 Built - For Sale
2006 Built Hydraulic Super Single TXD 200 Rig for Sale
Hydraulic TXD 200 Rig for Sale
Used 2006 Built Super Single Rig for Sale
Used Hydraulic Super Single TXD 200 Rig for Sale

-------------------------------------------------------------------------------------------

Worldrigs ID: 2915

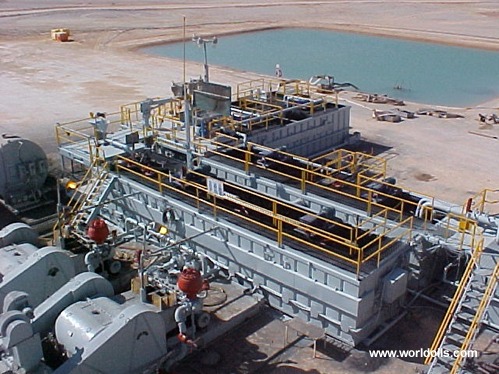

Ideco 2100E Rig - For Sale

Ideco 2100E Rig for Sale
Ideco Drilling Rig for Sale

Description :

Technical Specifications :

Drawworks

IDECO model 2100-E (s/n E-78) with 1-1/2” LEBUS grooving, FOSTER type 37-AH / 24-AH
air catheads, KOOMEY model CBS-RT2 crown block saver and (2) (GE 752 1000-HP series
wound DC motors JANUARY -2012) with 10-HP blower motors fitted with HUNT vertical air
cure filters. Last Overhaul: ID/TEC 03/2007 (New brake bands, kicker plates: 01/2008)

Auxiliary Brake

Baylor Elmagco model 7040W (s/n 10961W) rated @ 78,000 LB-FT torque @ 50 RPM with
PWM-20 control system, Drillers control, transformer with EXP rig floor emergency stop unit
& emergency stop indicator lamp. Note: Torrington bearing p/n 23040-W-BRC3 (34).
New coupling: 12/2005.

Battery Back-Up System

GBC model 18384–205 (s/n 1086): Input 230 VAC for charging – 240 VDC for Baylor brake
with Siemens 100 AMP, 250 VDC isolating switch and 12 VDC battery 20 N battery bank.

Anti-Collision System

MAN4 Hitec (s/n 038371) AE-1005 power supply unit Kinetic Energy Monitoring System: With
control unit (230V input / 28V output), direct-mount encoder (p/n CHHGTX-0004A), Drillers
display unit, emergency stop, audible alarm and height & weight sensors. New optical sensor :
01/2008. New drum tracking assy (A000565) and sensor (A000382) 09/2008).

Brake Water Cooling System

O&M model ESH-180-2F8 (unit s/n 151494): Designed for 300 GPM @ 55 DEG C ambient
c/w (2) Caterpillar 399 radiator coolers (Dolphin 08/2007) with 96” diameter fans each driven
by Baldor 10-HP (575 VAC, 60 Hz, 1760 RPM, EXP), 40-BBL water tank, Halco Supreme
model 2500 (3” x 2” x 12.5”) centrifugal pumps (2) each driven by Baldor 25-HP (600 VAC,
60 Hz, 1775 RPM, EXP) motor, 3” suction & discharge with check valves & butterfly valves
for 100% redundancy. Control panel with starters, switches, run lights. Sensors for: high
temperature - low fluid level - low flow.

Top Drive

(VARCO Upgrade: 5/2011) Not available

DS 11SA VFD Drive Unit Consists of : VFD is available

1 Incomer/ Rectifier Cubicle

1250 Af, Lsi, Blit – In Cb W / Uv Trip
6 Pulse Air Cooled Diode Bridge Rectifier
Surge Suppression Net Work With Status Indicaters
Ground Fault Monitor
Ac Line Reactor
40 Amps Cb For 30 Kava Transformers
80 Amps Chopper Uni

Air Cooled Inverter Cubicle.

Direct Torque Control W/Profibus Communication Card and Speed Feedback Encorder Card
DC Pre Charge Circuit
Inverter Fault Indication Display

420 Kw 600/690 Volt Air Cooled Vfd Modules inculding Mode Filters and Out

Put Reactors

DC Input Isolation Switsh 175 Amps

Enclsure for Plc
Resistor Bank,- Edge Wound Air Cooled Resistor
Control Cubicle
60A Fused Switch For Aux Motor Starter
600 Vac Aux Motor Starter
2 Mavaier Ac Unit

Model 11SA with power distribution center (600 VAC, 60 Hz, 3-PH, 1200 AMPS), drive system
interconnecting multi-conductors providing interface between Drillers panel, top drive and
control electronics and fitted with emergency shutdown :

ABB Inverter Invo 1 and 2 Model
ABB Rectifier
Siemens Plc Panel Model CPU- 315-2dp (S7-300)
Abb Main Circuit Breaker (600 Vac, 1200 Amp)

Drillers Control Panel Varco System-3D-55701-60-1
Bartec Profix TYPE-073136-4025/0010 EX 11 -2 (1) EEX edm LIAL 11B T4, FNR 5068/09,
16X Digital Input Prof ADDR 08, Part No- 140698-2
PTB-02 ATEK 1159.
Quill RPM gauge, torque gauge, pipe handler controls, control, mode selection, torque limit
controls (forward/reverse), emergency stop. System protection shutdowns.

Mast

Dreco Beam Leg model M-14230-1600 (s/n DHW-253-L153-09/81) NOI inspection: 08/2010 :
142ft H x 30ft W x 1,660,000 LBS (GNC) rated @ 1,200,000 LBS API SHL (12 lines).
Racking board capacity: 25,000ft (270 stands 5” DP) with 14 stands DCs & Ingersoll Rand
model BU7A-PTAB air winch (s/n BU8690397). Wind rating: 100 MPH full setback, 115 MPH
no setback. Raising Line: 2-1/4”D, 6 x 41, EIPS, RRL, IWRC, 145’ 6”L w/ open-closed spelter
sockets & 132ft 6”L w/ open-open spelter (01/2012)
Mast Load off Headache Rack : 140 MT

Crown

Dreco model 860C-742 rated @ 650-T SHL (740-T gross) w/ (7+1) 60"OD x 10”D
shaft x 1-1/2" sheaves (Replaced 02/2011).

Casing Stabbing Board

Dreco counter-balanced-adjustable type to API Spec 4E (s/n NDSC-5003): with

positive-engaging brake and Ingersoll Rand model ML500K 0.5-T air winch (s/n 14024)

with remote pendant control.Recert: AOTC # 452 (08/2005).

Deadline Anchor

Superior model E-120 (s/n R-2164) equivalent to Dreco model LOF-100-T: 50-T capacity, 29”
diameter, leg mount for 1-1/2” line and Martin Decker type E-80 tension type load cell sensator.

Drilling Line

Powered reel with 5-7/8” diameter shaft and 7,500ft of 1-1/2” drilling line to API 9A.

Substructure

Dreco Slingshot (s/n E7-475-579): 33ft H x 40ft W x 40ft L (27ft 3” clear height)

rated @ 1,200,000 LBS with 800,000 LBS setback load. Drip-pan enclosure for

rotary and setback, telescopic/adjustable bell nipple. (1) set 45ft L steps, (1) set

25ft L steps, handrails, Allen Get-Away evacuation slide, 6ft W x 44ft L V-door,

2-piece catwalk (5ft W x 60ft L x 21”H). Raising Lines (01/2012):

2 x 1-1/2”D x 750ft L ungalvanized, 6 x 36 IWRC, 1960 BT, RHO, MBL c/w open

spelter socket fitted by resin one end & other end open.

Slingshot Raising System

Lantec model 4135 (2) hydraulic raising winches (NOV Service: 6/2010):

with Baldor model M4316 (s/n 11/81) (Intersel 04/2003) 75-HP motor

(575V, 69.6 amp, 60-HZ, 3-PH, 1760-rpm, EXP), 200-gal hydraulic tank,

local & remote controls.Raising Lines (01/2012): 2 x 2-1/4”D x 132.6ft L &

145ft L, SWL 47.2 ton, 6 x 36, IWRC, RRL wire rope slings .

BOP Handling System

Dreco 50-Ton SWL (s/n 0156101330-1, 0156101330-2): 25-ton SWL hoists

(2) (NOV Service: 12/2011), hydraulic rack & pinion with remote control console

(powered by Abcor unit). Raising Lines (09/2011): 2 x 1-1/4”D x 43.5ft L, EWL,

6 x 36, IWRC, RHRL wire rope slings w/ 1-1/4" G416 Crosby open spelter

socket both ends.

Doghouse

7ft 10"W x 7ft H x 20ft L with lighting panel, Drillers remote BOP station and Petron remote.

Install BOPC closing unit Remote control panel EEGRB08AP- HMI/PLC Siemens

Simatic Mult Touch Panel

Power Control System

Ross Hill model 1400, 4-bay SCR (s/n 5546/81): (4) AC generator controls

(600V, 1445 AMP, 1550 KVA), (4) GE 1600 AMP circuit breakers

(CAT # TPR-5616-Noarhc), (4) DC SCR bridges (input: 600V, 1470 AMP

AC; output: 750 DC, 1800 AMP DC) with (4) GE 1600 AMP circuit breakers

(CAT # TPY-5616), (1) GE 1600 AMP circuit breaker for MCC

(CAT # TPRR-561-NRHC), (11) GE 7700 line control center panels

(230VAC, 3-PH, 4W, 60-HZ, CAT # 474X0443001), (1) GE 600/220VAC circuit breaker

(CAT # TB-43F) for (3) 220VAC transformers, (1) GE 600 VAC circuit

breaker (CAT # TJK-436F000) for (1) 460VAC transformer. Main in-coming

plug panel with lockouts for DW, MP-1, MP-2 and RT functions.

PCR upgrade by M&I Electric Industries (w/o W834-700-97):

- RHCC upgrade: AC control modules (4),
- 600VAC (primary), 460VAC (secondary) 300KVA xformer for all auxiliary DC drives
- Install 0-200 milli-Amp meters from actuators to read kW load sharing: Run mode 1200-RPM,
35-45 mA. Full load 160 Ma.
- Install DC Amp meters from generator exciters to read load sharing.

- PLC alarm system installed for: (a) engines; low coolant level, high coolant temp,

low oil pressure, metal particle detector, generator overspeed, (b) brake-water

cooling; low fluid level, high coolant temp, (c) mud pit purge panels (2) for H2S

& CH4 (PLC activates alarms via Gaitronics PA system).

Shunt To Series Motor Modfication- Nov – January-2012.

Installed Dynamic Brake Model 1461, Dc Power Cable And Control Cable Inter Connection,

Sproket Slip Pc Card, Hed, Voltage Feed Back Pc Card , Dc Module, And Power Recptacle

For Dc Power Out Lets.

Transformers

- Ross Hill Controls type HSUL (3): 600V-127/200Y, 100-KVA, 60-HZ, 1-PH, Cat #100S9XH6C,
4.9% imp, 150 C Temp Rises (s/n 70101-881, 70102-881, 70103-881).
- Sunbelt: 600V/480Y/277, 300-KVA, 60-HZ, 3-PH 5.64% imp, 150 C Temp Rise (s/n 22459).
- ITC type HTUL: 600V/240Y, 25-KVA, 50/60-HZ, 3-PH, Cat #2832H3DC, 3.6% imp, 150 C Temp
Rise, (s/n 726856-10/81).
- Victor (UAE) model GPTS/100K: 100-KVA, 50/60-HZ, 3-PH, Class H, 115 C temp rise, 600V
delta primary, 480V star secondary, 96A primary, 120A secondary, standard IEC726 (s/n 18216/06).
- Marcus type IW: 600V/416/240, 112-KVA, 112-HZ, 3-PH, 3.4% imp, 150 C Temp Rise
(s/n 8803-797).

Aux. Brake Controller

Baylor model PWM-20 for model 425L Drillers console.

A/C Units (2)

Trane model TTA120-A300BC, 10-TON single compressor split units

Cable Grasshopper

8ft W x 30ft L electric cable tray skid with oscillating cable arm to rig floor and (1 lot) cable trays
with covers.

Generators

KATO synchronous, brushless, 2-bearing AC (1500 KW, 347/600V, 1875 KVA, 3-PH, 60 HZ,
0.8 PF, 1200 RPM, 1806 AMP, 90 DEG C temp rise, field volt 100, field AMP 4.3) :

1. Model 1500-685361111 - type 21676 - Cat. #6P7-2050 - s/n 36739-85926-1
2. Model 1500-685361111 - type 21676 - Cat. #6P7-2050 - s/n 36741-85926-2
3. Model 1500-680361111 - type 21676 - Cat. #6P7-2050 - s/n 36738-84485-3
4. Model 1500-680361111 - type 21676 - Cat. #6P7-2050 - s/n 36740-84485-2

DC Motors

GE-752 and Juliot series -wound rated at 1000-HP continuous (750 VDC, 1150 AMP, 965 RPM)
with Class H insulation, pressurized connection box, auxiliary lockout switch and 10-HP
(460 VAC, 60-HZ, 3275 RPM, EXP) blower motors mounted on HUNT model 752V-RHB/LHB
vertical air cure filters. Note: Power cable connections are pin type and 20-pin receptacle is
Pyle National male (p/n ZREP 20332 PN). Refurbished January 2012

Main Engines (4)

Caterpillar series D3512 DITA (4), 1435-HP/1000-KW @ 1200-RPM fitted with
Woodward EG-10P actuators, injector group 4P 9075, turbo group 12 8187, marine duty
air cleaners, Spinner II oil centrifuges with AMOT metal particle detectors & oil level switch
gauges, Racor primary fuel filters, Bicera crankcase explosion relief valves, 12” exhaust outlets,
HMSO protection system for low oil pressure, high water temperature and over speed air
inlet shutoff.

- CAT #1 - 3512 Arrangement # 2W 8869 (s/n 67Z 01953)
- CAT #2 - 3512 Arrangement # 2W 8869 (s/n 67Z 02173)
- CAT #3 - 3512 Arrangement # 2W 8869 (s/n 67Z 02213)
- CAT #4 - 3512 Arrangement # 2W 8869 (s/n 67Z 02212)

Engine Cooling

O&M (drawing # 10569-402) (s/n 1-151426/7/8/9) desert-duty jacket water heat exchangers with
updraft design rated @ 150 PSI MAWP (O&M #128156) & converted to standard over-sized
water tanks with independent water pump to after-cooler.

Fuel Tank #1

Crude Settling Tank: 8.5ft D x 30ft L x 300-BBL (48m3) horizontal, cylindrical on

10ft W x 40ft L x 3-runner skid with 27” manhole, 2” vent, 4” fill connection, 2” drain,

sight-level gauge and 3” x 2” centrifugal transfer pump with 3-HP, 60-HZ, 460VAC motor.

Fuel Tank #2

Clean Crude Tank: 9.8ft D x 26ft L x 346-BBL (55m3) horizontal, cylindrical on

8ft W x 33ft L x 2-runner skid with 24” manhole, 2” vent, 4” fill connection, 2” drain

and sight-level gauge.

Fuel Day Tank

HEMT 50-BBL (7.5m3) skidded crude day-tank: With Roper type 1 gear transfer pump driven by
3-HP 460V 60-HZ motor.

Diesel Tank

HEMT 60-BBL (10m3) rectanguler (s/n A318-2333) on 19.7ft L x 8.2ft W x 5.9ft H skid with

fuel filtration unit and Roper type 1 gear transfer pump driven by 3-HP 460V 60-HZ motor.

Air Compressors (2)

Gardner-Denver model EDFQLC (s/n R-00329, R028331), oil-injected, rotary screw type rated
@ 309 SCFM (each) @ 125 PSI driven by model 24CA-3240 AC motor 75-HP, 575VAC, 60-HZ

(s/n 97600010, 97600011) inside high ambient NEMA 4 enclosure (spare air-end common

for Rigs -10/31/32).

Cold-Start Compressor #1 Not Available

Air Dryer (2008)

Great Lakes model GPS-1000-N4-116 (s/n 31303) heatless, regenerative dessicant (p/n 692001)

type, 1000 SCFM flow @ 100 psig with ASME coded twin towers rated @ 150 psig, solid state

timer, pilot air filter, 110V Nema 4 control, model GC-1000-SA coalescing pre-filter and model

GP-1660 particulate after-filter.

Vertical Air Receivers (3)

Horizontal Air Receivers (2)
Not Available

Air Hoist :

Ingersoll-Rand type FA2.5-16M rated @ 2.5-T SWL (s/n 73185)new installed 02/2012.

Air Hoist :

Ingersoll-Rand type FA5-MR24MK1G rated @ 4.5-T SWL (s/n A017075) new

installed 02/2012.

Man Rider :

Not Available

Mud Pumps (2)

1.Emsco Model T-1600 triplex, 7-1/2" bore x 12" stroke (s/n 74, 102) with Southwest

style 2-piece forged fluid ends (p/n KOP Femt1316SUCSW, Femt1316DISSW), Ideco

unitized V-belt pump drive, HYDRIL type K-20 5M WP pulsation dampener (RX-39),

suction/discharge strainers, 0-10M PSI pressure gauge, Falcon type C flanged RRV

(1,500-5,000 PSI operating range), Demco 2” 5M WP bleed-off valve, Halco type S

(1-1/2" x 2"R x 8-1/2”) centrifugal liner wash pump (s/n 04181) with Marathon 3-HP

EXP motor. Each pump powered by (2) GE-752, 1000-HP seres-wound DC motors

with 10-HP blower motor (January -2012) mounted over Hunt vertical air cure filter.

Power ends fitted with dual electric & mechanical lube system.

S/N 74: New bull gear & pinion (02/2004). New bearings main/pinion (08/2007)
S/N 102: New bull gear, pinion, eccentric & crosshead bearings (03/2005)

Mud Pump (1)

Loadmaster model LMF-1600 triplex, 7" bore x 12" stroke (s/n LMF-101) with single piece forged
fluid ends, metal to metal liner lock system, self-aligning rids with dual tube rod clamps, unitized
V-belt drive (8/8VP3000 Kevlar V-belts), model KB-75 5M WP pulsation dampener (RX-39),
suction/discharge strainers, 0-40,000 kPa pressure gauge, Retsco 3” type C flanged RRV
(1,500-5,000 PSI operating range), 2” 5M WP bleed-off valve, liner wash pump (1” x 1-1/2")
with 3-HP EXP motor (230/460V, 3-PH, 60-HZ), powered by (1) GE 752 1000-HP series -wound
DC motor(A) Jouliot 1000 HP Series Wound DC Motor (B) (January 2012)each with 10-HP
blower motor mounted over Hunt Air Cure filter. Power end fitted with triple redundant lube
system : Internal splash/gravity feed, internal gear-driven pump, external gear pump driven
by 480V, 3-PH, 60-HZ EXP electric motor and pressurized lubrication to lower crosshead slides.

Mud Lines & Manifold:

Gate Valves (6) : Demco 5” 5M WP
Gate Valves (4) : Demco 3” 5M WP
Gate Valves (4) : Demco 2” 5M WP
Gate Valves (1) : Demco 4” 5M WP
Plug Valves (4) : 2” 10M WP with Fig.1502 unions (cement manifold)
Mud Gauges (2) : Oteco 0-6000 PSI
Bleed-off Choke : CIW 2-1/16” 5M WP manual choke
Transmitter Flange : Petron instrument flange with Fig.1502 misaligning unions
Dual Standpipes : 4”ID 5M WP x 160 DEG goosenecks with Fig.1002 top unions
Cement Standpipe : 2” x 12m x 10M WP with flexible hose
Dual Sub Lines : 5” 5M WP with Fig.1002 unions
Dual Kill Lines : 2” XXHVY 10M WP

HP Hoses - Standpipes to TDS Swivel (2) : Not Available

HP Hoses - Sub Base to Standpipe Manifold (3) : Not Available

HP Hoses - Mud Pumps to Sub Base to Standpipe Manifold (5) : Not Available.

Rotary Table

Ideco model 375-E (s/n 176): Rated bearing deadload capacity 700-T. Rated
rotating load 434-T. Ideco model T-2 2-speed gearbox (s/n 5305900), GE-752
1000-HP series -wound DC moto (January 2012) with 10-HP (460VAC, 60-HZ,
3275 RPM, EXP) high-output blower motor mounted over HUNT vertical air
cure filter. Last Service: ID/TEC 09/2005.

Master Bushing (2)

CAM-Tech model MPCH (s/n NDSC-5236) & (spare) Varco model MPCH
(s/n R-2157): 37-1/2” pin drive c/w API bowls (#1-2-3), 4-leg & 2-leg slings,
bit breaker adapter plate.
In Service: 01/2007.

Hook-Block

Ideco Shorty model UTB-525-6-60 (s/n 618): 525-T API rating with unitized hook
and (6) 60” OD x 1-1/2”D grooved sheaves. Hang-off sling: 1-1/4” D x 114ft L.
NOV Service: 02/2010.

Swivel

National Oilwell model P-500 (s/n T-5268): API 500-T rating with 5M PSI WP - 15
DEG API angle gooseneck, 4” Fig.1002 union, 7-5/8” LH REG connection and
spare washpipe assy (p/n 703429-G1U).

Kelly Spinner

Varco type 6600 pneumatic (s/n 6D15X545): With (1) motor for RH/LH rotation,
control lines, foot valve and 6-5/8” REG LH box-up/pin-down.

Kelly

Inter Drill 5-1/4” hexagonal, 6-5/8 REG LH box x 4-1/2 IF pin (6-3/8” OD x 2-13/16” ID)
x 40ft L x 37ft working length (s/n K5BA004).

Choke Manifold

CIW (s/n 00-1293) 10M WP (11) valve, H2S trim: EEC Ultraflow type E-C 3-1/16” 10M
WP (BX-154) hydraulic drilling choke with control panel (see below), J-2 transmitter
flange and EEC style H-2 3-1/16” 10M WP manual choke. Wesco Recert: 10/2007.

- MGV (1) : CIW model FC 2-1/16” 10M WP, BX-152
- MGV (6) : CIW model FC 3-1/16” 10M WP, BX-154
- MGV (2) : CIW model FC 4-1/16” 10M WP, BX-155
- MGV (1) : CIW model FC 4-1/16” 5M WP, RX-39
- MGV (1) : CIW model FC 3-1/8” 5M WP, RX-35

Choke Control Console (2008)

MCM (CIW style) with digital pump stroke counter, 0 - 40,000 kPa drill pipe pressure gauge,
0 - 70,000 kPa casing pressure gauge, choke position indicator, choke speed adjustment
switch, hydraulic fluid supply with back-up hand pump, hydraulic pressure gauge and limit
switches-brackets-clamps for two pumps.

(Spare Choke Control Console) Valvcon (CIW style) with EEC digital pump stroke counter,
0 - 40,000 kPa drill pipe pressure gauge, 0 - 70,000 kPa casing pressure gauge, choke
position indicator, choke speed adjustment switch, hydraulic fluid supply with back-up
hand pump, hydraulic pressure gauge and limit switches-brackets-clamps for two pumps.

BOP Closing Unit

BOPC DCS TM 9 Station Control System Cordyne Industrial Motor And Drives
330-2K50-E40GD-U23M-6-1 (s/n 6131): 330-GAL 6-station with 400-GAL reservoir, (22)
Nippon 15-GAL accumulator bottles, (2) Graco model 208-003 type K-50 air pumps
(45:1 ratio, 3.3 GPM each, s/n A5535), Gardner-Denver model PS-172 triplex
(type UET40-HTHT-600) with WEG40-HP explosion proof motor (460 VAC, 1770 RPM).
GPES Recert: 12/2005.

- Accumulator : Model TB3305B.
- Manifold : Model UMGT2R06P10 hydraulic w/ 1”, motor-driven, failsafe regulator
- TR Regulator (auto) : Model PTR-5-1500-0-10 (s/n 9018)
- TR Regulator (manual) : Model MTR-5-1500-0-10 (s/n 04020)
- Driller’s Remote : Model AOGPR006-FC, 6-station air-operated w/ open/close display
- Toolpushers Remote : Model EE GRB08AP-HMI/PLC Siemens Touch Panel
- Air Inter-connect Cable Assy : Model 100-JG37JG
- Air Shuttle Valve Assy : Model SV12SV19 (operates 4-way c/valve - both remotes)
- Low Pressure Alarm : Model LHP - Low Fluid Level Alarm: Model LFL
- Pipe Rack Assy : Model PRMG40-13 32’L with 15 x 1” x 6M WP steel control lines
- Control Hoses : Spec. 070-5000 5M WP S/S armored (10 x 34ft L, 2 x 38ft L, 12 x 8ft L)

Drillers Console

Petron model IDS-2000 RIG SITE MONITOR with Pentium-based computer,
1.4 KVA UPS (2), remote printer and display with graphics printout and DrilGraph
remote. Sensors for active pits (5) including: PVT, trip tank, flow-out, pump SPM,
TD, ROP, bit tracking, pipe velocity, hook load, WOB, pump pressure, rotary RPM,
rotary torque. IDS indicator model HKL-A000063. IDS indicator sensor
model P000010 (2).

Weight Indicator :

- Petron type EB (16”) model AWE9-1 (s/n 0325).
- MD-Totco type EB (16”) series AWE (s/n 1024).
- Petron type E80 (s/n M2073) tension type sensator.
- MD-Totco type E80 (s/n 0202309) tension type sensator.

Hydraulic Analog Gauges/Sensors:

for tong torque, pump PSI, flow indicator, trip tank

Auto Driller

Mattco Bearcat (s/n 8036): with pneumatic controller and feedback.

Drift Recorder

Martin Decker-Totco 8 DEG & 16 DEG: double recorders c/w accessories.

PA system

Atkinson Dynamics Intercoms Model AD 26-8 Gaitronics Page-Party with 12-stations
(rig floor/choke manifold/shaker tank/suction tank, workshop, offices [3],
SCR/substructure/guard cabin/elect store) and tied in with the PLC via a tone
generator for CH4, H2S and enginge control audible alarms.

Monkey Board PA

Atkinson Dynamics Intercoms Model AD26-8: For Driller-Derrickman with type
hands-free remote at monkey board.

Rig Workshop

Toes design 3-section Mechanic/Welder workshop, store & cool-store on 3-runner skid.
Each section: 10mL x 3.2mW x 3.2mH with roof and 2-TON SWL lifting beams over
Welders workshop. Includes small air receiver

Diesel Genset (Unit s/n NDSC-5232)

Engine :

CAT D3306 DITA (s/n 85Z10817, a/n 7C 9312), 1500-RPM, 296-HP with

Woodward type PRG governor
Alternator : CAT SR4 (s/n F5A07024), 400V, 1500-RPM, 244-KVA, 195-KW, 50-HZ
Fuel Tank : NSF 2m3 x 1.9mL x 1.4mW x 1.6mH x 0.9-T (JN 8017-04/08)

Motor Genset (Unit s/n NDSC-5234)

Motor : Marathon 4J444T: 100-HP/600VAC/60HZ/1185RPM (s/n AE580153)
Alternator : Newage model 350-28700, 415VAC, 50-HZ, 65 KW (Intersel 10/2006)

Rig Offices

Air-conditioned, 4-office, laboratory, mess, storeroom with (6) cabins, each on
3-runner skid, mounted on two (2) 3-runner master skids with (2) independent
50-KW genset power supply sources:

Skid #1 :

- Toolpusher cabin with TP office (front) and Materialman (rear) with WC
- PE cabin with office, WC
- Client cabin with office, shower, bedroom. Installed: 10/2005

Skid #2 :

- Service Company cabin with (4) rooms (4 beds) e/w ablution (s/n NDSC-5270)
- Senior mess and CM/CE office
- 55m3 potable water tank with (2) pumps, filtration and chlorine injection

Skid #3 :

- Mud lab cabin with 1-man accommodation
- 2-room cabin with 2 beds for TP & PE
- Safety training cabin. Installed: 12/2005

Skid #4 :

CH Mech/ CH ELECT: Single skid 10.5mL x 3.5mW with furnished,
WC/shower & bedroom. Installed: 2011

DP Bins (10 : 37ft L x 8ft W on 3-runner skid (35-T SWL)
DC Bins (04) : 37ft L x 8ft W on 3-runner skid (35-T SWL)
Junk Bins (3) : 30ftL x 7ft W on 3-runner skid (35-T SWL)
Pipe Racks : 42”H x 27ft L (8), 20”H x 27ft L (8), 42”x13”L (2)
Seatainers (5) : 20ft L x 8ft W x 8ft H (10-T SWL)
Tool House : 27ft L x 7ft 10"W x 8"H on 3-runner skid.

Mobile Camp

(24) air-conditioned cabins, each on 3-runner skid, mounted
on nine (9) 3-runner master skids.

Accomodation Rig & Camp

Rig Senior Staff : 9 Beds
Camp Senior Staff : 30 Beds
Camp Junior Staff : 68 Beds
Total Beds : 107

M/Skid 1 : (3) cabins: (6) senior rooms (24 beds)
M/Skid 2 : (3) cabins: (4) senior rooms (8 beds) with center ablution
& (2) junior (8 beds)
M/Skid 3 : (3) cabins: (3) junior rooms (12 beds), (1) senior room (1 bed).
Clinic-Medic room (2 beds including sick bay bed) with center ablution (2)
M/Skid 4 : (3) cabins : (6) senior rooms (9 beds)
M/Skid 5 : (3) cabins : (6) senior rooms (11 beds) with center ablution (1)
M/Skid 6 : (3) cabins, 2) junior rooms (8 beds), dry store, cold store
M/Skid 7 : (3) cabins : senior mess, galley, junior mess ( up graded)
M/Skid 8 :
(3) cabins : ablution block, laundry, GRP water tank (55m3)
(2) cabins : 2 x 4-man JS sleeper

Mosque :

30ft L x 10ft W skidded with AC.

RO Unit :

Ecowater Systems model ESM-18CE (2.8m3/hour max output)
with booster pump and model LBR8 UV sterilizer. Installed : 08/2004.

Skid 9 – Camp Generators :

Engines (2) :

Caterpillar model 3406 TA (S/N 2WBO2668/2WBO2667,
A/N 4W3805), 1500 RPM, 362-HP, 270 kW with Woodward type PRG
governor and fitted with crude oil heaters.

Generators (2) :

Caterpillar model SR-4 (S/N 6BA02075/6ba02080,
A/N 5N8662), 1500-RPM, 300-KVA, 240-KW, 400VAC, 50-HZ, 433-AMP.

Electrical DB :

Indent # DC61/4/30916 PDO-A1, Holec # 242.402-1985,
System 3-PH, 4 wire, 414V – 50C/S rated operating voltage, 1200-AMP
rated current main bussbars, 50KA – 1 SEC rated short-time withstand
current, 110 KA rated peak withstand current, IP54 degree of protection.

Fuel Storage :

12,000L settling tank with 4,000L day-tank and transfer pump

Skid 10 – Camp Workshop
20ft L x 8ft W x 9ft H sea container with shelves, workbench, vice, lights, AC
and ABAC model B3800-200CT3-V400CE portable air compressor
(lot #387066-0010) with model 3700060 air end (lot #016781-0299) and
KEW 3-PH type Y90L-2 230/240V 2.2-KW 50-HZ induction motor
(unit s/n NDSC-5287)

Guard Cabin :

18ft L x 10ft W X 8ft H skid with 1.5-T air-conditioner.

Rig Mosque

: 13ft L x 10ft W x 8ft H skid with 1.5-T air-conditioner.

Training Room

Fire Alaram System :

Model No CFP 2/4/8/ Zone Conventional Fire Alarm
System Connected to all the cabins in the camp site And Installed Control
Panel in the Sr Mess Room. Installed May 2012.

Price & terms : Please enquire using the email form below.

If you cannot find the vessel, crane, rig or equipment that you need,
please send us an email to mail@worldoils.com stating your
requirements and we shall find it for you.

We can arrange delivery of equipment and towage of rigs and vessels where needed.

The details mentioned above are believed to be accurate but are not guaranteed.

---------------------------------------------------------------------------------------------------
Search words (for official use only) :
Ideco 2100E Rig for Sale

Land Drilling Rig for Sale

Ideco Drilling Rig for Sale
Ideco Mechanical Land Drilling Rig for Sale

Ideco 2100E - Land Drilling Rig for Sale

---------------------------------------------------------------------------------------------------
