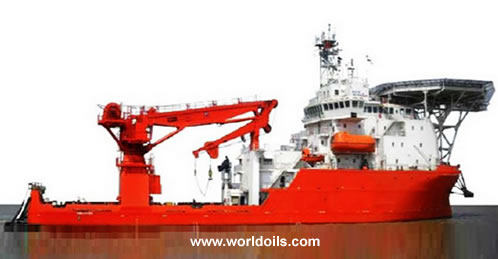

82M DP-II DSV for Sale

Diving Support Vessel for Sale
82m Offshore Support Vessel for Sale

Built : 2010 - Operational February 2011
Class :
ABS A 1 (E),Offshore Support Vessel, AMS, DPS-2, SPS Code
Type : ABS Class Saturation DSV
Gross Tonnage : 4938
Nett Tonnage : 1481
Deadweight : 2700 (Approx) @ 5.50 m Draft

Length OA (Hull) : 82.20 m (approx)
Breath Moulded : 20.40 m
Depth Moulded : 7.00 m
Draft Designed : 5.50 m

Full Speed : 12.0 knots
Economical Speed : 10.0 knots
Type of Fuel : MGO

Clear Deck Area : 800 m2 (Approx)
Deck Load : 5.0 t/m2

Fuel Oil : 900 cbm (Approx)
Potable Water : 800 cbm (Approx)

Two anti-roll tanks of passive type provided.

Wheelhouse, accomodation and office spaces fully
air-conditioned with LAN and Sat TV sockets.
10 x 1 berth cabins : 10
7 x 2 berth cabins : 14
27 x 4 berth cabins : 124
Total Complement : 132
Hospital : 1 x 2 berth cabins

Project Office, Dive Office, Conference Room,
Client Office, Workshop, Survey Areas.

Constructed partly on the top of accomodation block and
suitable for operation with Sikorsky 92 & Super Puma type
of helicopter (12.8 tons)

Gyrocompass : 3 x C. Plath Navigat x Mark 1, Model 10
AIS : 1 x unit of Furuno Model FA-150
VDR : 1 x unit of Furuno Model VR-3000
Radar : 2 x units Furuno Models FAR-2117, FAR-2137S
Echo Sounder : 1 x unit Furuno Model FE-700
Auto Pilot : 1 x unit Anschuetz Model NauloPilot 2015
GMDSS : 1 x unit Furuno Model RC-1800T (Area A-1-2-3)
Magnetic Compass : 1 x unit Cassens & Plath Model Reflecta 1
Satellite EPIRB : 1 x unit McMurdo Model E5 SMARTFIND
Navtex Receiver : 1 x unit Furuno Model NX-700 (Type B)
GMDSS : 1 x unit Furuno Model RC-1800T (Area A-1-2-3)
GPS : 1 x unit Furuno Model GP-150
SART : 2 x units McMurdo S4 9GHz

Inmarsat C Equipment :
2 x units each of Furuno Models Felcom-15, Felcom-15 SSAS,
FS-2570 (DSClWatch Receiver), 3 units x FM-8800S VHF
V-Sat : Networked C-band System with back up Fleet Broadband

2 X CAT 3516B DITA, 2575 BHP@1600rpm, Total 5150 BHP
6 x 1200 kW Generator, 1 x 500 kW Harbour Generator,
1 x 800 kW Shaft Generator
1 x 180 kW Emergency Generator (Shipboard),
1 x 700 kW Emergency Generator (Dive)
2 x 30 tonslday Reverse Osmosis Type (RO)
Total main engine and generator power available >14700 BHP

Main Propulsion :
2 x Berg CPP in Nozzle clw Becker High Lift Rudder
Bow Thruster :
3 x Kawasaki Tunnel Thruster CPP Type, 12 tons EA
Stern Thruster :
1 x Kawasaki Tunnel Thruster CPP Type, 12 tons

Capacity : 12 Man Saturation System -ABS Class
Depth Rating : 300 m
Dive Bell : 1 x 3 Man Moonpool Launch
Chambers : 1 x 6 Man, 2 x 3 Man
Hyperbaric Lifeboat : 1 x 12 man SPHL clw LSP package
Surface Air Diving:
Built-in Surtace Air Diving System with Twin LARS - ABS Class

Kongsberg K-Pos DPS2
(IMO DP Class 2) - Sensors
DGPS 116 : 2 x independent units
HiPAP 500 : 1 x unit
TautWireMk 151300 : 2 x unit (1 x Port, 1 x Starboard)
Radius 1000 : 1 x unit
MRU : 3 x units
Gill Wind Sensor : 3 x units

Subsea Offshore Crane :
"SMST" 100 mlt @ 12.5 m -1000 metre depth capabilty
Single Fall, Knuckle Boom type clw Active Heave

Auxiliary Crane :
Compensation System with Mannding cert on both winches
PalfingerTelescopic Boom Type 1.8 mlt @ 14 m /5.3 mlt @ 6m

Mooring System :
4 Points Mooring, Drum Capacity 1500 m 138 mmdia SWR,
Duty Pull 40 mix 0-10mlmin 110 mix 0-30 mlmin
Drum Brake Holding 100 mt (Static)

Anchors :
4 x 5,000 kgs Delta Flipper or equivalent

-----------------------------------------------------------------------------------
Search words (for official use only) -

82m Long Diving Support Vessel for Sale

2010 Built DSV for Sale
Diving Support Vessel 2010 Built for Sale
DSV for Sale

------------------------------------------------------------------------------------

for Sale
78m DP-II DSV for Sale
DSV for Sale

Length O.A : 78.00 m
Length W. L. : 70.55 m
Beam MLD. : 20.00 m
Depth MLD. : 6.50 m
Draft (Designed) : 4.80 m approx
DeadWeight : 2000 MT approx
Deck Area : 700 sq.m approx
MoonPool : 23 m2
Speed : Abt. 12 knots approx
Complement : 146 men
Fuel Type : Marine Diesel Oil
Main deck strength :
7.5 tones / sq.m covered with wood sheathing

F.W. : 700 m3 (150m3/hr @ 75M head)
F.O. : 825 m3 (150m3/hr @ 75M head)
D.W.B : 1,250 m3 (150m3/hr @ 75M head)
Mud : 325 m3 (2 x 70m3/hr @ 85M head)
Healing : 200 m3

F.W Hydrophhore plant : 1 x 10m3/hr @ 35M head
S.W Hydrophhore plant : 1 x 10m3/hr @ 35M head
Hydrophhore plant Standby pump : 1 unit
F.W maker : 2 x reverse osmosis type, 30 t/day
Sewage holding & treatment system : for 146 pax

Oily bilge water separator :
1 x 1.0m3/hr with oil content less than 15 ppm

Hot Water Calorifier :
2 x 80 kw of 1000 L c/w two circulating pumps

Main Engines : 2 x 2475 BHP @ 1000 rpm Wartsila 9L20
Propeller : 2 x Controllable Pitch (CPP) type wt kort nozzle
Bow Thruster : 2 x Transverse CPP type of 10 MT thrust
Stern Thruster : 1 x Transverse CPP type of 10 MT thrust

Main Generator : 3 x 500 kw Caterpillar 415V/50Hz/3ph
Shaft Alternator : 2 x 1300 kw Wartsila 415V/50Hz/3ph
Emergency Generator : 1 x 99 kw Cummins 415V/50Hz/3ph

WINDLASS for 48mm dia. chain :
1 x Hydraulic Driven type of 12 MT @ 12m/min

Capstan & Tugger Winch :
2 x electro hydraulic type of 10MT @ 15m/min

Anchor :
2 x high-hold type, stowed in anchor pockets, 2140kg each

Crash/cargo rail :
300mm N.B heavy pipes shall be provided on main deck (P&S).
Height to be approx 2500mm to top of pipes.

Healing Tanks : Located at (P&S)

Articulated gangway :
50ft long x 3 ft wide with main articulated extent of 25ft x 3 ft
Monitoring System : 4 point mooring

External Fire pum 35 m3 /hr @ 3.5 bar

Fire Detection and Protection :
Accommodation spaces are protected by fresh water
sprinkler system.
Engine Room, Bow Thruster Room, paint store and
emergency generator room are protected by fixed CO2
fire protection system.
Flexi-fog water mist extinguishing system as per
SOLAS / Class requirements.

Communication System :
GMDSS - area A1 to A3, PA/Talkback system and Sound
Powered telephone system.

Navigational Aids :
Echo Sounder, Radars x 2, GPS Navigator, SART,
406MHz EPIRB, Gyro Compass (2 units), Auto Pilot,
DGPS, AIS, Speed Log, SSAS, Anemometer.

Equipment System :
Kongsberg DP2

Equipment and system provided to be in compliance with the
Classification Rules and regulations.
The system main features comprises of the following :
ERedundancy requirement : Yes

DP control computer :
1 x control station with 2 computer system

Position Reference system :
3 x DGPS & 1 x Laser Reference System

Wind speed & Direction Equipment : 2 units
Vertical Reference Unit : 2 in nos.
Printer for alarm data Log : 2 in nos.

Fully Air-Conditioned for all accommodation spaces
6 x1 man cabin : 6 men
4 x 2 man cabin : 8 men
33 x 4 men cabin : 132 men
Total : 146 men
1 x hospital : 9 men
Chiller : 25 cbm
Freezer : 25 cbm
Provision store : 15 days

Vessel Designed for the provision for the following deck equipment.
Deck Crane : To be Supply by buyer
Provision Crane : 2 tonnes SWL @ about 12 metre radius

Optional Items (Owner’s responsibility)
Safety Equipments LSA equipment such as Immersion suit and
thermal protective aids
(where applicable Owner to apply for exemptions)


Diving Support Vessel for Sale

DP-II Diving Support Vessel for Sale
78m long DSV for Sale
Diving Support Vessel 78m long

for Sale

--------------------------------------------------------------------------------------------------------

Length Overall : 40.59 m
Length B.P : 34.90 m
Beam Moulded : 11.80 m
Depth Moulded : 4.60 m
Draft (design) : 3.80 m

Class Notation :
4BV Class, HULL, MACH, Tug Unrestricted Navigation.
Condition : Complete on 2009

GRT/NRT : 499/149
Speed : 12.0 knots
Sustained bollard pull : 32.23 t
Maximum bollard pull : 32.67 t

Main Engine :
2 x 1200 bhp @ 1800RPM Cummins KTA38M2

Propeller :
2 x Reintjes WAF562L, 5.95:1

Bow Thruster :
1 x 150 kW tunnel fixed pitch type of 3 t thrust

Main generator :
2 x 240 kw Cummins, 415V/3pH/50Hz

2 x 1-man cabin : 2 men
2 x 2-men cabin : 4 men
4 x 4-men cabin : 16 men
Total : 22 men
Chiller : (approx.) 6 M³
Freezer : (approx.) 6 M³
Dry Provision Store : (approx.) M³

Fresh Water : 65 cbm/hr @ 70M head.
Fuel Oil : 65 cbm/hr @ 70M head.
Ballast Water : 36 cbm/hr @ 30M head.
GS & fire : 36 cbm/hr @ 30M head.
Fuel Oil Transfer : 20 cbm/hr @ 30M head.

Clear Deck Area : 170 sq.m (approx.)
Fuel Oil : 305 cbm (approx.)
Freshwater : 170 cbm (approx.)

Sewage Holding & Treatment System : For 22 men
Oily Bilge Water Separator :
1 x 500L/hr @ 2kg/sq.cm head with oil content < 15 ppm.
Electric Water Heater : 1 x 200L for freshwater.

Windlass :
1 x electro hydraulic double gypsies type of
3 t @ 10 M/min for 24mm dia. Stud link chain.

Capstan : 1 x electro hydraulic type of 3 t.

Tugger winch : 1 x electro hydraulic type of 3 t.

Anchor :
2 x stockless bower type, each of 780kg.
1 x electro hydraulic single drum,
single warping ends type of 40 t S.W.L.

Towing winch :
Drum capacity – 250 M x 30 mm dia. Steel rope (wire rope excluded)
Brake holding – 50 t @ 1st layer static.
Speed – 10 t @ 5M/min

Stern roller : 1 x 3.5 M x 1.5M @ S.W.L. 150 t.

Fire Monitor : 2 x 600 cbm/hr @ 10 bar.
Fire pump : 1 x 1200 cbm/hr @ 10 bar.
Foam Tank Capacity : 5 cbm
Dispersant Tank Capacity : 5 cbm
CO² flooding system in engine room.
CO² flooding system in engine room.
Emergency fire pump.

Life Rafts : 2 x 15 men
Life buoy : 8 sets
Lifejackets : 32 sets
First aid kid : 1 set

1 set Magnetic compass
1 set Echo sounder
1 set Radar 64NM
1 set GMDSS A-2-3
1 set GPS
1 set SSB transceiver
1 set EPIRB
1 set Navtex receiver
2 set Two-way VHF/FM handheld radio
2 set VHF radio telephone with DSC
1 set Inmarsat-C
1 set Radar transponder

-----------------------------------------------------------------------------------
Search words (for official use only) -

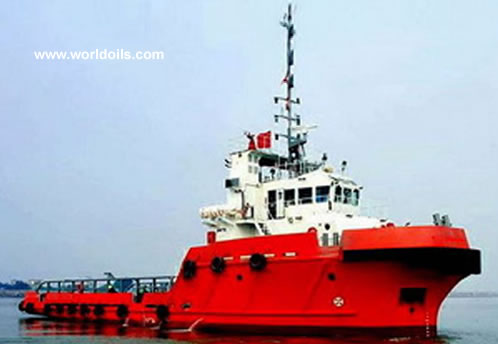

40m 2400HP Utility Support Vessel for Sale

-----------------------------------------------------------------------------------

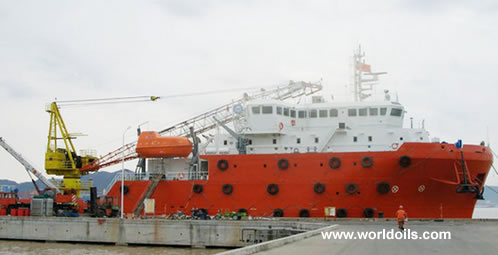

Length Overall : 75.00 m
Length Waterline : 71.40 m
Breadth Moulded : 20.40 m
Depth Moulded : 7.00 m
Design Draft : 5.30 m
GRT / NRT : 3906/1171
Class : American Bureau of Shipping
DPS·2 For Unrestricted Service

Anchor Windlass :
1 x electro-hydrau lic Macgregor / PC-HAW/GG-50
Gypsies :
suit for 50 mm chains rated pull 10.6 mt @ 10 m/min
Warping drum : 400 mm (dia) x 660 mm (L)
Bow Anchors : 2 x 3,060 kg StockJess Bower anchors
Chains :
495 Total Length x 38 mm (dia) Grade 2
Capstan :
2 x 5 mI@ l 5m/minelectro-hydraulic;
MacGregor / PC·HVC-05/400
Mooring Winch :
4 x 50 mt @ 10m/min eleclro-llydraulic;
Macgregor / PC-HMW/SD-4O/090D
Drum Capacity : 1500 m (L) x 38 mm
(0)SWR
Deck Crane Capacity : 45T@ 8m
Personel Lift : 1.5 T@ all radi
Provision Crane :
1 x electro-hydraulic Amco Veba /807/3S - 3 Ton @ 1.7m

Beths : 8 x 1 berth cabins = 8
6 x 2 berth cabins = 12
30 x 4 berth cabins = 120
Total : 140
Hospital : 1 x 2 berth cabin = 2
All cabins fully air-conditioned & c/w attached washroom.

Internal
Emergency Fire Pump :
1 x 40 cbm/hr @ 45m head; Bombas Azcue
BA Recharging Comp :
1 x 100 hr/min @ 200 bar Brand/ModeITBA
CO2 system in engine room
Fire Detection & Alarm System in living spaces & engine room.

GMDSS : Furuno RC-1800T 250W (Area 3) comprising :
SSB : 1 x Furuno FS·2570 with buiH in DSC
Inmarsat C : Felcom-15 SSAS & LRIT
VHF Radio : 2 x Furuno FM-8800S with built in DSC
Navtex Receiver : 1 x Furuno NX-700 (518 KHz)
SART : 2 x McMurdo S4
EPIRB : 1 x McMurdo E5
Portable VHF Radios : 3 x McMurdo R2 (25KHz)
Radar (S-Band) : 1 x Furuno FAR-2137S ARPA 96 NM
Radar (X-Band) : 1 x Furuno FAR-2117 RP-ARPA 96 NM
Echo Sounder : 1 x Furuno FE·700
GPS : 3 x Veripos LD3 System
GPS : 1 x Furuno GP-150
Gyrocompass : 3 x Anschuetz Standard 22
Autopilot : 1 x Anschuetz Pilotstar D
Magnetic Compass : 1 x Cassens & Plath REFLECTA 1
Weather Fax : 1 x Furuno FAX408
Speed Log : 1 x Furuno DS-80
Wind Indicator :
3 x Gill lnstruments WindObserver II 1390-PK-006
AIS : 1 x FurunoFA·15O
VDR : 1 x Furuno VR-3000
DP : Converteam Duplex C-Series
Joystick : Converteam Independent Joystick
Vessel also fitted with Vingtor PA Talkbalk System &
Self-Powered Telephones

Liferafts : 4 x 25 men SOLAS approved type
Life Boat : 2 x 60 men totally enclosed Vanguard
Rescue Boat : 1 x 8 men Rescue Boat
Inboard Diesel Engine Driven Vanguard
Oily Water Separator : l x 1 cbm/hrc/w15ppm
Water Maker : 2 x 20 cbm/day Reverse Osmosis, Coffin
Sewage Treatment Plant : 1 x 140 men; Hamworthy / ST13

Maximum Speed : 12 knots at MCR
Type of Fuel : Marine Diesel Oil
Fuel Consumption :
Approx 17 cbm/24hr @85%MCR(MainEngine)
Approx 20 cbm/24hr (5 X CAT 3412 gen sets)
Approx 4.5 cbm/24hr (CAT C32 Thruster Engine)

Deadweight : 2660 m/t
Deck Cargo : 800 m/t
Deck Strength : 5.0 mt/m21 uniform loading
Clear Deck Area : 650 sq.m
Fuel Oil : 1,180 cbm
Fresh Water : 830 cbm
Ballast Water : 1,644 cbm
Freezer / Chiller : TBC
Foam / Detergent : TBC

Fuel Oil :
1 x 30 cbm/hr @ 20m head; Bombas Azcue
Fresh Water :
1 x 60 cbm/hr @ 40m head; Bombas Azcue
Bilge / Fire Pump :
3 x 60 cbm/hr @ 45m head;BombasAzcue
Bilge / Ballast Pump :
1 x 150 cbm/hr @ 25m head; Bombas Azcue

Main Engines  :
2 x 1,600 kWm @ 1,000 rpmWartsila 8L20
Main Generators :
5 x S90 ekW @ 1,800 rpm Caterpillar / 3412C cJw alternator SR4
Emergency Generator :
1 x 99 ekw @ 1,800 rpmCaterpiliar / C4.4 rate at 99 ekW/440
V/3 Ph/60Hz
Shaft Generator : NIL
Bow Thruster :
1 x Caterpillar C32 1,000 bhp diesel engine driven HRP 5007 TT
tunnel type (CPP); 11.5 T thrust
Stern Thruster :
HRP 5007 IT tunnel type (CPP); 8T thrust
Steering Gear :
2 x Wagner LA2 7. 1-45-CB2 7.1 TM; 45 deg
Propulsion : 2 x CPP in Kort Nozzles; Ups 40650
Rudders : 2 x Becker Rudder / SA 20S0 203 F.2

-----------------------------------------------------------------------------------
Search words (for official use only) -

----------------------------------------------------------------------------------

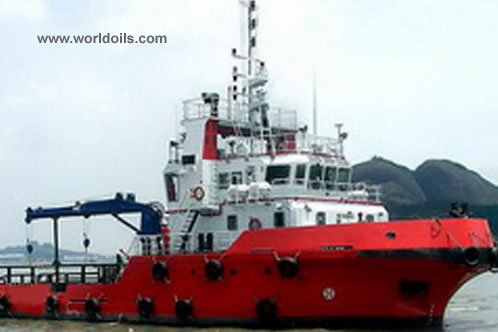

45M Utility Support Vessel for Sale

Length Overall : 45.00 m
Length Waterline : 40.00 m
Beam (Mld) : 11.00 m
Depth (Mld) : 6.00 m
Draft (Mld) / Max : 3.20 m
Main Deck Clear Area : 190 sq.m
Deck Loading : 5 mt / sq.m
Speed : 12 knots @ 100% MCR at Ballast Draft
Endurance : 30 days
Complement : 28 men
Fuel Type : Marine Diesel Oil

Fresh Water : 150 cbm
Fuel Oil : 275 cbm

Main Engines :
2 x 1600 bhp @ 1800 RPM Cummins KTA50M2
Propulsion System : 2 x FPP with nozzles
Bow Thruster :
1 x CPP Bow Tunnel Thruster with thrust of 5 mt,
electric motor driven by shaft generator
Reduction Gear : 2 x Reintjes WAF665L, 5.95:1

Main Generator :
2 x 280 (KW), 415/3/50, 3 wire system, Cummins
KTA 19 diesel engine driven
Shaft Generator : 2 x 280 (KW)

Towing Winch:
Brake Holding – 100 mt (1st layer) / spring
loaded hydraulic release.
Dynamic Lowering @ 40 mt at 0 – 5 m/min (1st layer).
Remote control in wheelhouse and Local Control at Site.

1.5 m dia. X 3.5 m length with SWL of 150 mt
Other Deck Equipment :
Capstan (1), Tugger Winch (1) & Storage Rope Reel
(1) Hydraulic operated with local controls only.

External Fire Fighting system :
2 x 600 cbm/hr @ 10 bar monitor with
1 x 1200 cbm/hr @ 10 bar Pump
Fixed Fire Protection System :
Fixed CO2 System for Engine Room & Bow Thruster
Room & Local Water mist as per Class rules.
Fire alarm & Detection: Designed in accordance to
SOLAS, BV Class Rules and other System statutory
regulations as applicable.

Communication Systems :
GMDSS A1 to A3, PA/Talk back and Sound Powered
Telephone system.
Navigational Aids Equipment :
Echo Sounder, Radars x 2, GPS Navigator (IMO),
SART(2), 406MHz EPIRB, Gyro Compass, Auto
Pilot, AIS, SSAS, Speed Log, Navtex Receiver,
Magnetic Compass, Anemometer.

All accommodation spaces and engine control room are full air-condition
Accommodation Layout:
1 –Berth Cabin x 2 : 2 men
2 –Berth Cabin x 2 : 4 men
3 – Berth Cabin x 3 : 18 men
4 –Berth Cabin x 1 : 4 men
Total : 28 men

Class Standard requirements shall apply.

-----------------------------------------------------------------------------------
Search words (for official use only) -
Support Vessels for Sale

45M Utility Support Vessel for Sale

45M long Utility Support Vessel for Sale

Principal Particulars

Length Overall : 30.00 m
Length WL : 29.203 m
Length BP : 27.706 m
Beam Moulded : 8.600 m
Depth Moulded : 4.115 m
Draft Design : 3.500 m
Speed : 11 knots
Class Notation : GL / NKK

Fuel Oil : 192 Tons (Approx.)
Fresh Water : 66 Tons (Approx.)
Ballast Water : 67 Tons (Approx.)

Main Engines : 2 x 1000 HP @ 1800 rpm
Cummins K38
Gearbox : R/R TBA
Reintjes / Equal
Propellers : 2 x Fix pitch c/w Nozzle
Main Generators : 2 x 80 kW
Cummins/Yanmar/Equal

F.O. Pump : ITUR RC-1 ½"
Bilge & Ballast Pump : 30 cbm/Hr @ 25m Head
Pressure Set : 2.4 cbm/hr @ 40PSI
Oily Water Separator : CYF-0.25Y
Air-Cond : Split Unit

2 x 1 man Cabin : 2 men
1 x 10 men Cabin : 8 men
Total : 12 men

Anchors : 2 x 480kg
Anchor Chain : 275m x 19mm
Anchor Windlass : 22m Electro Hydraulic
Towing Winch : 30 Tons, Single Drum
Hydraulic – Siong Ping

Radar : 1715 MKII [24NM]
GPS : GP-32
Echo Sounder : FURUNO FCV-620
Compass : DAIKO T-150B
VHF : ICOM IC-M304
SSB RADIO : IC-M710
EPIRB : SEP-406

Life Rafts : 2 x 15 people
Lifebuoy : 12
Lifejacket : 14
Fire Extinguishers : 14

-----------------------------------------------------------------------------------
Search words (for official use only) -

Tugboat for Sale
30m Tug for Sale
30 m 2,000hp Tugboat for Sale

Tugs for Sale

----------------------------------------------------------------------------------------

Length Overall : 30.20 m
Breadth Mld : 9.00 m
Depth Moulded : 4.60 m
Draft : 3.80 m

Main Engines :
2 units x Cummins KTA38M2 1200 hp @ 1800 rpm
Main Generator : 2 units x Cummins 6BT5.9DM 80 kw
Main Gearbox : 2 units x Reintjes WAF562L 5.947:1

Fuel Oil : 228 cbm
Fresh Water : 96 cbm
Ballast : 84 cbm

Anchor/Windlass : 19mm @ 2 tons nominal pull
Towing Winch : 30 tons/brake holding 100 tons
Towing Hook : 40 tons (wire rope 42mm dia.)
Capstan : 1.5 tons
Transpacific : Rudder Torque : 2.50 TM

Bilge & Ballast Pump : 15 cbm/hr @ 28m head
GS & Fire Pump : 15 cbm/hr @ 28m head
Fuel Oil Transfer Pump : 5 cbm/hr @50M head
FW Pressure Set : Pedrollo
SW Pressure Set : Pedrollo (20 cbm/hr x 20 m head)
Emergency Fire Pump : 2" portable diesel engine
Rotary Pump : Hand Rotary Pump

Speed : Approx. 11 knots
Bollard Pull : Approx. 30 tonnes
Accommodation : 12 men

Germanischer Lloyd

SSB Radio Telephone Icom IC-710
VHF-FM Transceiver Icom
EPIRB Samyung
PA System
2 units Walkie Talkie
GPS Garmin 128
Echo Sounder FCV-620
Radar – Model 1715 24 nm type

Propeller Shaft : 177.80mm (7" diameter)
Propeller : 2000mm Dia , Fixed Pitch (Kaplan Type)
Fenders :
Front & Aft : Pipe Fenders
Port/Stb : Tyre Fenders
Air-Condition : Split unit type
Oily Water Separator : CYF-0.25Y
Sewage Treatment Plant : For 15 men

-----------------------------------------------------------------------------------
Search words (for official use only) -

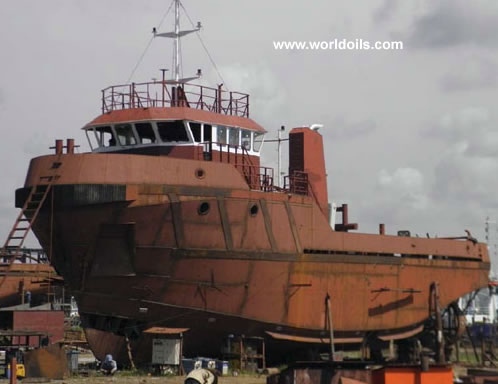

30.20 M Tugboat for Sale

Tugboat for Sale - 30.20m
30.20m Long Tugboat for Sale
Tugs for Sale

-----------------------------------------------------------------------------------

Length Overall : 27.01 m
BeamMoulded : 9.00 m
Depth Moulded : 4.25 m
Max Draft : 3.90 m
Designed Draft : 3.50 m
GRT/NRT : 257/77

Dirty Oil : 2.2 cbm
Potable Water : 17.8 cbm
Fuel Tank Capacity : 185 cbm
DWT : 177.83 T

Speed : 11 knots
Endurance : 23 days
Bollard Pull : 30 Tons

Marine Engine : 2 x CAT 3512 TA
Power : 2 x 1200 HP @ 1200 rpm
Gear Box : REINTJES : WAF 762
Generator Sets : 2 x Cummins 6CTA8.3-D(M)
rated at 135KW 415/3/50
Harbour genset : 1 x Cummins 40 kW
Bowthruster : 2 Tons
Control : fwd and aft

PA system, (2) VHF Radios, (1) SSB Radios, (1), Radar, (1)
Echo Sounder, (1) GPS, (1) Magnetic compass & Autopilot,
Steering gear is Electrohydraulic,(2) walkie talkie.

Bow Anchor : 2 x 480 kg Halls type & 10
length of 17.5 mm x 27.5m
Grade U2 stud link chain,
joining shackle, swivel piece
and chain stopper + Hydraulic
anchor windlass
Towing winch : 1 x 30 Tons capacity c/w
wrapping drum for 40mm dia
towing line
Capstan 1 x 5 tons
Davit 1mt appx.

In compliance with CLASS and requirement of Flag government

Fully air-condtioned, 10 men.

-----------------------------------------------------------------------------------
Search words (for official use only) -

-----------------------------------------------------------------------------------





5000dwt Platform Supply Vessel DP2

PSV for Sale

Length overall : 87,03 m
Length between p.p. : 83,00 m
Breadth moulded : 18,80 m
Depth Main Deck : 7,40 m
Max. summer draft : 6,05 m
Cargo Deck Area : 1000 sq.m
Deck Cargo : approx. 3000 MT
Deadweight at 6,05 m : 5145 MT
Gross Tonnage : 3671 [-]

Class (ABS) :
+A1, (E) Offshore Support Vessel, +AMS, +ACCU,
+DPS-2, +FFV Class 1

Speed at 5,0 m : 14,5 knots
Fuel consumption : Max. Transit speed 14,5 knots
Draft 5.0 m :  24.0 MT/24 h
Service speed 12,0 knots : draft 5.0 m 15.7 MT/24 h
DP-2 offloading (3 cargos) : 16.5 MT/24 h

Main engines :
4 x Cummins QSK60-D(M)
4 x 1 900 kW; 4 x 2 547 HP
1 x Cummins : 1 x 470 kW; 1 x 630 HP

Bow thruster : 1 x Rolls Royce
TT1850 DPN CP : 1 x 910 kW ; 1 x 1 220 HP

Retractable thruster : 1 x Rolls Royce
UL1201 CP : 1 x 800 kW; 1 x 1 072 HP

Stern Thruster : 2 x Rolls Royce
255P30 FP : 2 x 2 000 kW; 2 x 2 680 HP

Main Generators :
Water cooled 4 x ABB
4 x 2 282 kVA

Emergency Generator :
Air cooled 1 x ABB
1 x 437 kVA

Fuel Oil :
1 x DESMI pump off 150/20 cbm/h 9 bar, electric driven

Ballast Water / Drill Water :
1 x DESMI pump off 150 cbm/h 9 bar, electric driven
1 x DESMI pump off 80 cbm/h 2 bar, electric driven

Fresh Water :
1 x DESMI pump off 150 cbm/h 9 bar, electric driven

Liquid Mud :
4 x P.G.pumps off 150 cbm/h 14 bar, electric driven

Liquid Mud :
4 x P.G.pumps off 150 cbm/h 14 bar, electric driven

Mud cleaning System :
BUTTERWORTH for 8 off liquid mud tanks

Dry Bulk :
2 x INGERSOLL-RAND compressors off 1100 cbm/h
5,6 bar, electric driven

Bilge :
1 x DESMI pump off 65 cbm/h 2,5 bar, electric driven
Fifi Pumps (FFV Class 1) : 2 x SEAPLUS pumps 1200 cbm/h

Dry Bulk : 5 x “p” tanks; 5 x 84,4 cbm

Maker (Van Aalst) :
2 x INGERSOLL-RAND air compressors, 1 100 cbm/h
5,6 bar, electric driven
2 x air dryers

Provision crane SB side :
1 x provision, straight arm deck crane - 2 MT @ 10 m
Maker : Zhenijang West ; China

Tugger Winches :
2 x 10 MT; electric driven
Maker : MacGregor Plimsoll

Number of persons :
52 persons
16 x One man cabins
10 x Two men cabins
4 x Four men cabins
1 x Dispensary
1 x Office

MOB :
1 x SOLAS type MOB for 6 persons made from GRP
Speed : 6 knots
Davit : Single arm rescue boat crane
SWL : 13,5 kN

DP – 2 (Kongsberg) :
3 x Wind Sensor
3 x MRU
3 x Gyrocompass
3 x DGPS
2 x Radius System
Independent Joystic
Interface for future HiPAP installation
Auto Track Mode (R.O.V. mode)

Radar :
1 x Furuno ARPA S-band
1 x Furuno ARPA X-band

Satellite : 1 x INMARSAT C

Gyro :
3 x Gyrocompasses (combined use with DP-system)

Other Equipment :
1 x GPS for Navigation
1 x Complete GMDSS A3 Radio Installation
1 x AIS (Automatic Identification System)
1 x VDR (Voyage Data Recorder)
1x SSAS Distress Alarm
Maker Furuno

-----------------------------------------------------------------------------------
Search words (for official use only) -
Platform Supply Vessel -

5000dwt

for Sale

PSV for Sale

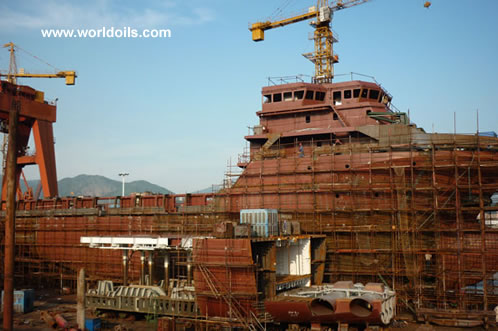

5000dwt Platform Supply Vessel DP2 for Sale

-----------------------------------------------------------------------------------

PSV 75 m 6000HP for Sale

Length Overall : 75.00 m
L.B.P : 66.98 m
Length Waterline : 71.91 m
Beam Moulded : 17.25 m
Depth Moulded : 8.00 m

Complement : 50 pax
Deadweight : 3,000 Tonnes (approx. at max draft)
Gross Tonnage : 2,950 Tonnes (approx.)
Net Tonnage : 855 Tonnes (approx.)
Speed : 13 knot (min) @ Ballast Condition
Endurance : 28 days (approx.)

Deck Area : 700 sq.m
Deck Cargo : 1,200 Tonnes
Deck Strength : 5.5 Tonnes/sq.m @ uniform loading
Fuel Type : Marine Gas Oil
Condition : To be completed in 4Q 2012

ABS Class, +A1, (E), Offshore Support, Fire Fighting
Vessel Class-1, +AMS, +ACCU, +DPS-2.

International Load Line Convention – Type ‘B’ Freeboard.
IMO Resolution MSC 266 (84)-Code of Safety for Special Purpose
Ships 2008 (For less than 60 personnel)
SOLAS 1974 including Amendments of 1981, 1983, 1991.
MARPOL 1973/78 Annex I,IV,V & VI.
COLREG 1972 including Amendments of 1981.
Carriage of NLS in accordance to IMO A673
IMO Resolution MSC 235 (82) – Guidelines for the Design and
Construction of Offshore Supply Vessel 2006.

F.W. : 500 cbm
F.O. : 1,000 cbm
Drill Water/S.W Ballast : 1,500 cbm
Liquid Mud : 600 cbm
Dry Bulk (Cement/Barite) : 226 cbm (4 tanks)
Foam : 14 cbm
Detergent : 14 cbm

Total Capacity : 226 cbm
Number of Tanks : 4
Working Pressure : 80 psi/5.6 bar

Main Thrusters :
2 x 3,000 PS (8L28H), Azimuth Thrusters (Fixed Pitch Propeller)

Brand : Niigata

Bow Thrusters :
2 x Tunnel Thrusters c.w CPP Electric Motor
Driven 600 kw, about 10 Tonnes.

Brand : Kawasaki

Main Generators :
3 x Diesel Driven, 450 kw each, 415VAC/3/50 Hz

Brand : Cummins/Cat/Volvo penda

Shaft Generator :
2 x Units; PTO from front of Main Engine through a step up gear
box having power output of 1000kw, 415 VAC/3/50Hz

Brand : Leroy Somer/Siemens

Capstan :
2 x 10 MT, Electro-hydraulic driven
Brand : Plimsoll/Mentrade

Tugger Which :
2 x 10 MT, Electro-hydraulic driven
Brand : Plimsoll/Mentrade

Deck Crane :
1 x SWL 3 MT at 10 Mtr Outreach

Brand: Plimsoll/Mentrade

One (1) unit marine crane with S.W.L of 3.0 Tonnes at
10 meter outreach located on main deck aft of accommodation.

Fixed Fire Protection System :
CO² (For Engine Room)

Brand : Consilium/Tyco

FiFi Fire Pumps :
2 x 1500 cbm/hr c/w with water spray system

Fire Monitors :
2 x 1200 cbm/hr, Electric Joystick Control from Wheelhouse
(1 x with double barrel for foam & water discharge and 1 for water only)

Dispersant System :
2 x 6 m in length Spray Boom c/w the standard proportional
and metering devices (1 to 6%)

Brand : Unitor

Communication System :
GMDSS for Area A3, PA/Talkback system and Sound Powered
Telephone System, Auto Telephone System.

Navigational Aids : Radar, Echo sounder, GPS Plotter, Gyro and
Magnetic compasses, Auto-pilot, AIS, Weather Facsimile.

Fully Air-Conditioned with heating.
Accommodation ad equipment is designed for 50 crews.

Vessel’s safety equipment to be in accordance to
SOLAS & Flag state.
One (1) SOLAS approved diesel powered Rescue Boat
for 6 men c/w SOLAS approved rescue boat davit.
Fireman’s outfit according to FiFi 1

ABS Classed DPS-2


Class Standard requirements applied

-----------------------------------------------------------------------------------------------------------
Search words (for official use only) -

75m Platform Supply Vessel for Sale

-------------------------------------------------------------------------------------------------------------

Length Overall : 31.10 m
L.B.P : 28.72 m
Length Waterline : 30.16 m
Breadth Moulded : 9.50 m
Depth Moulded : 4.20 m
Classification : Bureau Veritas
F.O Capacity : 268 Tons Approx.
F.W Capacity : 46 Tons Approx.
Designed Draft : 3.50 m

Sea Water Pressure Pump
(3.8 cbm/hr Ejector Pump)
Dirty Oil Pump
(5 cbm/hr Horizontal Gear Pump)

IC-m710 SSB
Furuno FCV-620 Echo Sounder
IC-m320 VHF
Felcom 15 Inmarsat-C
1932 Mark-2 48NM Marine Radar
Mcmurdo ICS Nav5plus Navtex
Furuno SC-50 Saterlite Compass
Furuno GP-32 GPS
SR-150PK Reflector Compass
ACR Pathfinder 3 SART

-----------------------------------------------------------------------------------
Search words (for official use only) -
Tugs for Sale
Tugs for Sale

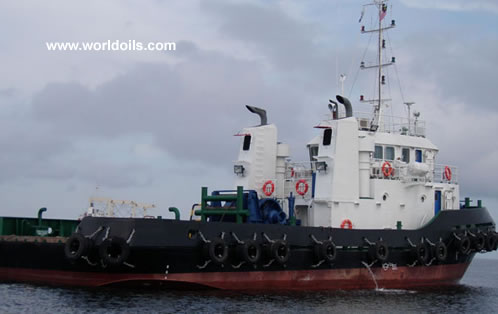

31m 2700hp Tug Boat for Sale
2700hp Tug Boat for Sale

-----------------------------------------------------------------------------------

Type : 35M Habour Tug
Classification : BV Class
Year Built : New

Length Overall : 35.00 m
L.B.P : 30.625 m
Breath Moulded : 1.500 m
Depth Moulded : 5.615 m at FR.17
Draft Designed : 4.500 m
Max. Draft : 4.800m

Main Engine :
2 - Caterpillar Model 3516BHD rated 2575 @ 1600 RPM

Bilge pump :
Desmi pump
Model : S80-70-220 N/A09 (50 cbm/hr)

Total Capacity : 226 cbm
Number of Tanks : 4
Working Pressure : 80 psi/5.6 bar

Life saving equipment is to be in accordance with the requirement
of the Government Authority for an Ocean Going Tug with a total
complement of ten(10)

Fire Main :
A fireman to be installed to comply with government requirement

All accommodation is fully air-conditioned centre unit.
Brand Carrier.
Cabins : 4 x 2 men each = 8 person
2 x 1 men each = 2 person



-----------------------------------------------------------------------------------
Search words (for official use only) -

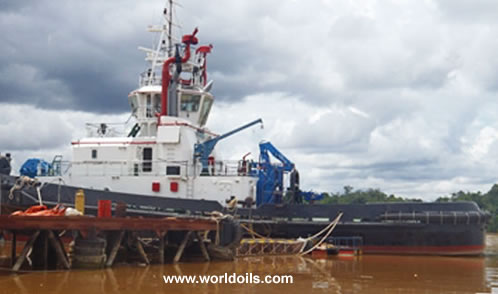

New 35m Harbour Tug for Sale
Harbour Tug for Sale
35m Long Tugs for Sale
New Harbour Tug -

5514hp -

for Sale
-----------------------------------------------------------------------------------

DP2 ROV Support and Platform Supply Vessel for sale
PSV-DPII FiFi 1 for Sale
2007 built DP2 ROV Support and Platform Supply Vessel for Sale
7500bhp

DP2 ROV Support and Platform Supply Vessel

Built : 2007
Classification :
DNV +1A1 Supply Vessel, FiFi 1, OILREC, EO, TMON,
DYNPOS AUTR NV

LOA : 72m
Breadth (moulded) : 16m
Draft (max) : 5.85m
GRT : 2,305T
NRT : 848T
Deadweight : 3,184T

Main Engines : 2 x 3,741 BHP
Thrusters Bow : 2 x 885 BHP
Thrusters Stern : 2 x 800 BHP
Shaft Altenators : 2 x 1800 kW
Aux Generators : 2 x 375 kVA + 1 x 150 kVA
Rudders : 2 Rolls Royce High Lift
Propellers : 2 x CPP
Deck Crane : 1 x 3T @ 16m
Tugger Winch : 2 x 10T
Capstans : 2 x 8T

Deck Area : 640sqm (47m x 13.6m)
Deck Load : 1,550T
Fuel Oil : 819 cbm @ 100%
Potable Water : 785 cbm @ 100%
Drill Water : 656 cbm @ 100%
Oil Based Mud* : 6,290 bbls @ 100%
Base Oil : 690 bbls @ 100%
Brine* : 6,290 bbls @ 100%
Oil Recovery : 800cbm (8 tanks)
Dry Bulk : 11,265 cuft @ 100% (80psi)
*Mud/Brine tanks (S.G. 2.5)
10 dual purpose mud / brine tanks.
Can be split 6/4; mud /brine with total
segregation.

Electric agitators in all mud/brine tanks.

Toftejorg fixed tank cleaning system in mud/brine tanks.
Hot water and chemical dosing applications.

Fuel : 250cbm/hr @ 90m hd
Pot Water : 200cbm/hr @ 90m hd
Oil Based Mud : 2 x 70cbm/hr @ 90m hd
Base Oil : 90cbm/hr @ 90m hd
Brine : 75cbm/hr @ 90m hd
Cement : 80T/hr @ 90m hd
Barytes : 60T/hr @ 90m hd
Bentonite : 100T/hr @ 90m hd
Drill Water : 150cbm/hr @ 90m hd

c. 14.5kn @ c. 25t / 24hrs
c. 13kn @ c. 15.9t / 24hrs
c. 11kn @ c. 12.3t / 24hrs
c. 9kn @ c. 9.8t / 24hrs

1 x Sperry Bridgemaster 10cm
ARPA Radar
1 x Sperry Bridgemaster 3cm Radar
1 x Leica GPS Satellite Navigator
3 x Sperry Navigat Gyro Compass
1 x Sperry Navipilot Autopilot
1 x Sailor AIS
1 x Sperry Echosounder
1 x Sperry Naviknot Speed Log
1 x JRC Weather Fax

1 x Inmarsat F / 2 x Inmarsat C
1 x Internal Intercom System
Radio plant according to GMDSS
requirements
4 x Motorola GP 340 Atex
3 x VHF’s (Bridge)
2 x Sailor VHF RT 4722
1 x Sailor VHF C 4900
External communication according
to GMDSS – 3 x Sailor SP 3300
1 x Sailor 406 MHz EPIRB

FiFi 1 with self drenching system
2 x 1800cbm/hr pumps
2 x 1200cbm/hr monitors
(water/foam)

5 x 1 Man
22 x 2 Man
Max. 26 berths available for Charterers
personnel during DP operations

Konsberg – Simrad SDP-21 Green DPS (DP II)
References :
1 x HiPAP 500 Acoustic Positioning System
1 x Radius radar positioning system
1 x DGPS DPS-200 with IALA receiver
1 x DGPS DPS-100

1 x Poscon Joystick (portable)

Removable Wheelhouse for transiting low air draft areas
Minimum air draft : 14.4m
Deck Power Outlets : 2 x 500Amp Outlets (440v)
Reefer sockets : 12 x 110v / 32Amp
Mob Boat : Norsafe Midget 5.0
Dispersant Spraying : 2 x 10m stainless steel booms
Dispersant Storage : 9.8cbm
Oil Recovery : 800cbm @ 450cbm/hr discharge
Power pack for oil rec. equipment

Fuel Oil (11) in Cubic Metres -
118.6
103.5
66.96 x 2
49.14
47.09
135.73 x 2
37.1
41.68
16.21


Potable Water in Cubic Metres -
113.7
104.3
58.7
33.4 (x 2)
79.2
173.1
189.9

Drill Water in Cubic Metres -
173.1
189.9


Drill Water in Cubic Metres -
69.5
50.7
97.7 (x 2)
100.7 (x 2)
112.4
166.5
96.2


634
634
634
634
634
634
614.5
614.5
635.3
635.3


Mud -
634
634
634
634
634
634


614.5
614.5
635.3
635.3


344.7
344.7

Fuel Oil (Cubic Metres) : 819
Portable Water (Cubic Metres) : 786
Drill Water (Cubic Metres) : 1,255
DP Mud/Brine (in barrels) : 6,304
Mud (in barrels) : 3,804
Brine (in barrels) : 2,499.6
Base Oil (in barrels) : 1,270
Base Oil : 1,270

--------------------------------------------------------------------------------------------------
Search words (for official use only) :

DP2 ROV Support and Platform Supply Vessel for sale

PSV-DPII FiFi 1 for Sale
PSV for Sale - 7500bhp - 2007 built

DP2 PSV FiFi 1 for Sale

7500bhp Platform Supply Vessel for Sale

2007 built Platform Supply Vessel

-----------------------------------------------------------------------------------------------------

DP2 PSV FiFi 1 for sale

7500bhp DP2 ROV Support and Platform Supply Vessel for

DP2 ROV Support and Platform Supply Vessel for Sale - 7500bhp

2007 built DP2 ROV Support and Platform Supply Vessel for Sale

Built : 2007
Classification :
DNV +1A1 Supply Vessel, FiFi 1,
OILREC, EO, TMON, DYNPOS AUTR
NV

LOA : 72m
Breadth (moulded) : 16m
Draft (max) : 5.85m
GRT : 2305T
NRT : 848T
Deadweight : c.3,184T

Main Engines : 2 x 3,741BHP
Thrusters Bow : 2 x 885BHP
Thrusters Stern : 2 x 800BHP
Shaft Altenators : 2 x 1800kW
Aux Generators : 2 x 375kVA + 1 x 150kVA
Rudders : 2 Rolls Royce High Lift
Propellers : 2 x CPP
Deck Crane : 1 x 5T @ 16m
Tugger Winch : 2 x 10T
Capstans : 2 x 8T

Deck Area : 640sqm (47m x 13.6m)
Deck Load : 1,550T
Fuel Oil : 931cbm @ 100%
Potable Water : 800cbm @ 100%
Drill Water : 1,255cbm @ 100%
Oil Based Mud* : 6,304bbls @ 100%
Base Oil : 689bbls @ 100%
Brine* : 6,304bbls @ 100%
Oil Recovery : 800cbm (8 tanks)
Dry Bulk : 11,300cuft @ 100% (80psi)

Electric agitators in all mud/brine tanks.

Toftejorg fixed tank cleaning system in
mud/brine tanks. Hot water and chemical
dosing applications.

Fuel : 250cbm/hr @ 90m hd
Pot Water : 200cbm/hr @ 90m hd
Oil Based Mud : 2 x 70cbm/hr @ 90m hd
Base Oil : 90cbm/hr @ 90m hd
Brine : 75cbm/hr @ 90m hd
Cement : 80T/hr @ 90m hd
Barytes : 60T/hr @ 90m hd
Bentonite : 100T/hr @ 90m hd
Drill Water : 150cbm/hr @ 90m hd

c. 14.5kn @ c. 25t / 24hrs
c. 13kn @ c. 15.9t / 24hrs
c. 11kn @ c. 12.3t / 24hrs
c. 9kn @ c. 9.8t / 24hrs

1 x Sperry Bridgemaster 10cm
ARPA Radar
1 x Sperry Bridgemaster 3cm Radar
1 x Leica GPS Satellite Navigator
3 x Sperry Navigat Gyro Compass
1 x Sperry Navipilot Autopilot
1 x Sailor AIS
1 x Sperry Echosounder
1 x Sperry Naviknot Speed Log
1 x JRC Weather Fax

1 x Inmarsat F / 2 x Inmarsat C
1 x Internal Intercom System
Radio plant according to GMDSS
requirements
4 x Motorola GP 340 Atex
3 x VHF’s (Bridge)
2 x Sailor VHF RT 4722
1 x Sailor VHF C 4900
External communication according
to GMDSS – 3 x Sailor SP 3300
1 x Sailor 406 MHz EPIRB

FiFi 1 with self drenching system
2 x 1800cbm/hr pumps
2 x 1200cbm/hr monitors
(water/foam)

5 x 1 Man
22 x 2 Man
Max. 26 berths available for charterers
personnel during DP operations

Konsberg – Simrad SDP-21 Green DPS (DP II)
References :
1 x HiPAP 500 Acoustic Positioning System
1 x Fanbeam MK4 laser system
1 x DGPS DPS-200 with IALA receiver
1 x DGPS DPS-100

1 x Poscon Joystick (portable)

Removable Wheelhouse for transiting low air draft areas
Minimum air draft : 14.4m
Deck Power Outlets : 2 x 500Amp Outlets (440v)
Reefer sockets : 12 x 110v / 32Amp
Mob Boat : Norsafe Midget 5.0
Dispersant Spraying : 2 x 10m stainless steel booms
Dispersant Storage : 9.8cbm
Oil Recovery :
800cbm @ 450cbm/hr discharge
Power pack for oil rec. equipment
Removable bulwarks : 1 x 5m (Port side) 1 x 11m (Stern)

Fuel Oil in Cubic Metres -
105.3
119.9
65.9
(x 2)
47.1
54.8
(x 2)
49.1
134.2
(x 2)
41.7
(x 2)
16.2


Potable Water in Cubic Metres -
113.7
104.3
58.7
33.4 (x 2)
79.2
173.1
189.9

Drill Water in Cubic Metres -
173.1
189.9


Drill Water in Cubic Metres -
69.5
50.7
97.7
(x 2)
100.7 (x 2)
112.4
166.5
96.2

634
634
634
634
634
634
614.5
614.5
635.3
635.3

Mud -
634
634
634
634
634
634


614.5
614.5
635.3
635.3

344.7
344.7


Fuel Oil (Cubic Metres) : 931
Portable Water (Cubic Metres) : 786
Drill Water (Cubic Metres) : 1,255
DP Mud/Brine (in barrels) : 6,304
Mud (in barrels) : 3,804
Brine (in barrels) : 2,500
Base Oil (in barrels) : 689

Price & terms : Please enquire using the email form below.

------------------------------------------------------------------------------
Search words (for official use only) :

DP2 PSV FiFi 1 for sale

7500bhp Platform Supply Vessel for Sale

PSV for sale - 7500bhp
2007 built Platform Supply Vessel
PSV-DPII FiFi 1 for Sale

PSV for Sale - 7500bhp - 2007 built
Platform Supply Vessel for Sale

------------------------------------------------------------------------------

Year Built : 2005
Class : ABS
Notation : A1 (E), AMS
GRT / NRT : 2943 / 883


Length Overall : 67.80m
Breadth Moulded : 16.00m
Depth Moulded : 5.50m
Draft (max) : 4.20m


Maximum Speed : 12.5 knots @ 12MT/24 hours
Economical Speed : 10 knots @ 8MT/24 hours


Deadweight : 1,300 MT
Deck Loading : 7.5 MT/m²
Clear Deck Area : 360m²
Fuel Oil : 545m³
Fresh water : 285m³
Drill water/water ballast : 750m³
Chiller / Freezer : 13m³ / 10m³


Fuel Oil Cargo Pump : 1 x 100m³/hr @ 60M head
Drill Water Cargo Pump : 1 x 100m³/hr @ 60M head


Windlass : Electro-hydraulic– c/w Warping drums
Anchors & Chains :
2 x AC14 Anchors each 1575kg 2 x 330m x
34mm Ø Grade 2 steel stud link chains

Tugger Winch :
2 x 10 MT electro-hydraulic @ 10m/min c/w with one wire
drum and one warping head – speed light load – 30m/min

Capstan : 2 x electro-hydraulic 5MT at 15m/min


Berths :
1 x 2 men cabin = 2 (Main deck)
4 x 2 men cabin = 8 (Crane deck)
6 x 1 man cabin = 6 (Crane deck)
2 x 4 men cabin = 8 (Forecastle deck)
2 x 1 man cabin = 2 (Forecastle deck)
12 x 2 men cabin = 24 (Forecastle deck)
Total : 50 men


GMDSS (3)
MF/HF Transceiver :
2 x VHF Radio Telephone 25W with DCS
1 x DCS Watch Keeping Receiver
1 set fully synthesized SSB Transceiver 250W

EPIRB : 1 set
Portable : VHF Radios 5 x walkie talkie set
SART : 2 units
Navtex Receiver : 1 unit NAVTEX Receiver
Intercom : 1 system for 15 positions
PA System : 1 with talk back facility with 2 loudspeakers
Radar : 2 units – one with daylight display (colour)
Echo Sounder : 1 unit with repeater at aft
Gyro Compass : 1 Master fitted with three repeaters
Magnetic Compass : 1 unit standard 7” reflector
Speed Log : 1 Speed Log System
Auto Pilot : 1 unit compatible with gyro & steering compass
GPS : 1 unit Global Positioning System


Main Engine : 2 x 2,200 BHP CAT3518B; 1566kW each
Auxillary Engine : 2 x Cummins 350 kW each 415/3/50
Propeller : 2 x 4 bladed CPP in fixed nozzles
Bow Thruster : 1 x Kawasaki 8 tons CPP – Prop:1450mm Ø driven
by Cummins : 815 BHP @ 1800 rpm.
Emergency Generator : 1 x Cummins 78 kW 415/3/50
Rudders : 2 x electro-hydraulic 7MT torque


: -

:
CO2 system Engine Room
Emergency Fire Pump : 1 x electric-driven 35mᵌ/hr @ 4.5 bars
Firemain : A firemain with 12 hydrants
Fireman's Outfit : 4 complete sets with breathing apparatus
Dispersant System : 2 spray nozzles with dispersant pump 36 m³/hr at 30m head


Life Rafts : 4 x 25 men (inflatable type)
Life Buoys : 8 pieces
Rescue Craft : 1 x 6 men c/w davit
All other life saving appliances as per SOLAS requirements


-
Type : LMF 51 / 138-207 - D
Number of stages : 4
Compressed medium : air
Inlet pressure : 1,013 bara = 14,65 psia
Inlet temperature max. : 45°C = 113°F
FAD 1 (at inlet conditions) : 51 m3/min = 1800 cfm
Discharge pressure 1 : 138 bar = 2000 psig
Discharge pressure 2 : 207 bar = 3000 psig
Nominal speed of main drive (screw) : 1116 rpm
Nominal speed of piston compressor : max. 1200 rpm
Power consumption : 842 kW

-
Operating voltage : 3 x 415 V
Control voltage : 220 V AC / 24
Frequency : 50 Hz (cps)”

Price & terms : Please enquire using the email form below.

If you cannot find the vessel, crane, rig or equipment that you need,
please send us an email to mail@worldoils.com stating your
requirements and we shall find it for you.

We can arrange delivery of equipment and towage of rigs and vessels where needed.

The details mentioned above are believed to be accurate but are not guaranteed.

---------------------------------------------------------------------------------------------------------
Search words (for official use only) -

---------------------------------------------------------------------------------------------------------

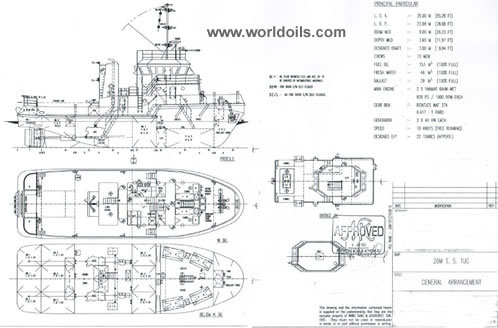

Length Overall : 29.20 m
Length B.P : 27.53 m
BeamMoulded : 9.00 m
Depth Moulded : 4.85 m
Designed Draft : 3.84 m
GRT/NRT : 274 tons
Class Notation :
BV + 1* HULL. MACH Tug Unrestricted Navigation
Nett Tonnage : 82 tons
Speed : 11.0 knots (approx)

2 cabins for Captain and Chief Engineer : 2 men
2 x two-men cabin : 4 men
3 x two-men cabin : 6 men

Anchor :
2 x stockless bower anchors of 570kg each.

Anchor Windlass :
1 x 3 tons hydraulic anchor windlass for 24mm dia chain

Towing Winch : 1 x hygraulic towing winch of 25 tons.
Drum capacity Ø 48mm x 500m (wire rope to be supplied by buyer)

Bilge pump :
1 x horizontal self-priming centrifugal pump
of 28 cbm/hr @ 30M head

GS pump :
1 x horizontal self-priming centrifugal pump
of 28 cbm/hr @ 30M head

F.O. Transfer pump :
1 x gear pump of 8 cbm/hr at 25m head

FW pressure set :
1 x freshwater pressure set of 3 cbm/hr at 20m head

SW pressure set :
1 x saltwater pressure set of 2 cbm/hr at 34m head

Dirty oil pump :
1 x gear pump of 3.2 cbm/hr @ 50m head

Sewage treatment system : for 15 persons

Oily Bilge Water Separator : 1 x 0.25 cbm/hr.

2 x 15 men life rafts
8 sets Life buoy
16 sets lifejackets

1 set SSB radio.
1 set VHF FM transceiver.
1 set Radar.
1 set GPS navigator.
1 set Echo sounder.
1 set Magnetic compass.



:

Length Overall : 36.00m
Length WL : 31.70m
Beam Moulded : 10.97m
Depth Moulded : 5.00m
Draft Design : 4.10m

Freshwater : 100 cubic meter
Fuel oil : 393 cubic meter
Lub.oil : 1.0 cubic meter

2 x Cummins KTA50-M2, 1600BHP/1800rpm
To be joined to gear box WAF 663(Reintjies), ratio 5.95:1

Free speed : 12knots at sail condition
Bollard Pull : more than 40T at 100% MCR and continuity pulling

The vessel is to be constructed, machinery and electrical equipments fitted and installed
in accordance with the latest Rules for Shipbuilding of BV Class.
Class notation is : 1 +HULL +MACH, Un-restricted navigation (to be confirmed).

One Raster-scan X and one X wave band Radar, Power supply AC220V, 6’’ scanners,
10KW emitter, color display units (180mm PPI),range: 0.125~48nm, including :
1 x Scanner
1 x Display
1 x Antenna and radeator
1 x Compass repeater
1 x Handle
1 x 30m
Standard installation material including 30m combination cable
1 x Standard spares
1 x Operation manual
1 x Alternating current rectifier
1 x Radar performance monitor NJU-64J c/w 30m cables & bracket

1 x 6” 3~800m, 200KHz/220VAC
1 x 6” color echo sounder, depth 35~800m, 200KHz/220VAC,including:

One (1) reflector compass, dia. 165mm, stand type, corrector and reflector
are to be fitted in wheelhouse. Lamps are to be fitted on compass for using in night.
Analog signal conversion device and one (1) compass repeated (Signal can be output to radar,
GPS and automatic rudder) are to be supplied for magnetic compass.

GMDSS console should meet requirements of international rules
for A1 A2 A3 area. For guidance, they are as followings :

1 x handheld receiver with fixed antenna
1 x lithium battery seating
1 x Operation manual

1 x lithium battery
1 x seating and standard accessories
1 x operation manual

Which design suitable for easy operate, install and maintain.
Operation panel using for MF/HF radio device and C-station terminal should be fitted on the same console.
Emergency lamp & emergency light

1 x recorder
1 x Pre-AMP fax - 5 with 2.6m plait
1 x DC AC rectifier
1 x standard accessories
1 x 15m coaxial cable
1 x AC converter

1 x JRC navtex receiver, type NCR-330, AC 12/24V
1 x transmitting antenna
1 x 40m 7ZPJD0044  thermographic paper
2 x 6ZXAF00021 standby fuse
1 x standard material include 20m cable
1 x standard accessories
1 x operation manual

1 x Display
1 x GPS antenna
1 x Shakespeare type antenna
1 x junction box
1 x standard accessories
1 x Standard installation material include 15m antenna cable
1 x standard spares
1 x operation manual


2×Single Cabin : 2men
2×2-Men Cabin : 4men
2×4-Men Cabin : 8men
Total : 14men

-------------------------------------------------------------------------------

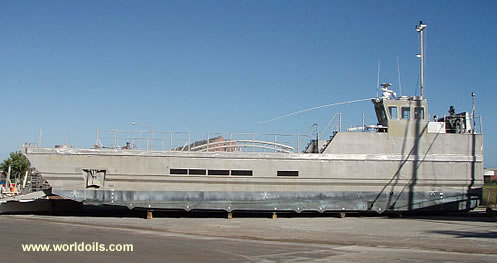

LCM 2000 Watercraft for Charter
Unused LCT For Charter in Australia
Unused LCM 2000 Watercraft
Almost new Watercraft for Hire
Unused Military Landing Craft For Charter

General

:
:
Length overall : 25.40 metres
Length DWL : 23.14 metres
Beam : 7.60 metres
Draft (loaded) : 1.00 metres
Displacement light : 62 Tonnes

Displacement heavy : 135 Tonnes max
Payload : 65 Tonnes max
Stern ramp clear width : 4.55 metres
Bow ramp clear width : 5.50 metres
(Approx deck area) (Including ramp) : 137 square metres

:
Propulsion engine : Detroit 6062(HK10;HK11)
Propulsion Shaft : Gewes cardan shaft 4546-80/03x1350-1.5
Gearbox : ZF marine 2000 series 3100-001-023
Waterjet propulsors : Doen DJ260

Bulkhead seal : Wartsila H73827C-04
Propulsion control system : Twin disc power commander EC200 WJ
Power generation Jacobs radio : JPS14 2400W
Ship Service Power Generator EPSA Pty Ltd : Caterpillar 3054DINA

The water crafts are designed to provide a transfer facility from the LPA (Landing Platform Amphibious), they have two roles as such which are

The primary role of the LPA Watercraft System is to provide the LPAs with the ability to transfer vehicles, equipment, stores and personnel from ship to shore and return.

The secondary role of the LPA Watercraft System is to support tactical mobility of land forces and sustainment of forces ashore independent of the LPA.

:

Full Load - No Cargo : 11 Knots
Full Load - Maximum Cargo : 9.5 Knots
Range : 720 nm
Endurance : 6 days
Sea State Limits
Coastal Passage : Sea State 4
Secured to LPA : Sea State 8
Marriage with LPA bow and stern ramp : Sea State 2
Beaching Operations up to : 1.5 metres surf


Echo sounder : Furuno FCV581L
Auto pilot coursemaster : CM 650AC
Radar : Furuno 1942 Mk2
GPS : Rockwell Australia VPLGR II
Electronic chart : Endeavour 5 navigator
Satellite compass : Furuno SC-50
Magnetic compass : Suunto Suunto 135

:
HF Radio : Furuno FS 1570
VHF Radio/DSC : Furuno FM8500
Whistle : Marco 05723
Signalling lamp : Francis FSP127
EPIRB : Jotron Tron 40S
SART : Jotron X-96960

:
Fixed Inter comm. : Phontech 3100
Wireless Inter comm. : Motorola GP328

:
Machinery space fans : Fantech APC R0404 AP10/37
Waterjet room fan : Woods 7.5J
Fuel tank space fan : Woods 6J

Given the moderate range and endurance of the vessel the facilities
provided for the crew are basic, but adequate for the needs.
It should be noted that all the craft exhibit an extremely high
standard of crew accommodation.
Cabin accommodation for the four crew consists of two double tier
bunks with a locker facility dividing. Combination fridge /freezer provide
food storage for the limited duration voyages. All vessels were found to
be inn exceptionally clean condition.

:
The engine rooms are very well fitted out.

Generally the running hours are very low in the service operation of these
engines, they do however vary between the craft in that some have
had very little time at sea- less than 300 hours.

:
Auxiliary engines :
Auxiliary engines 2 x Caterpillar 3054 : Rated @ 35kW
Similarly the auxiliary engines have very low running hours and would be
considered to be in good condition.
The engine rooms were all found to be in very good condition.
The electrical lay out and reticulation of wiring was of a very high order, the
switchboard below illustrating the compactness of the fully EO Class designation.

Self Propelled Oil Tanker - 6000 Ton Dwt
6000 Ton DWT / DP1 Oil Tanker

2011 built Oil Tanker for Sale

The tanker is designed as a 6,000 tonnes total DWT carrying
capacity self propelled oil tanker built to good commercial marine practice
and suitable for transporting and handling of two grades of cargo.
The vessel is intended and built for unrestricted service to carry oil and
also for bunkering operations.

Length : 92.7 m
Breadth : 18.6 m
Deadweight : 6,000 T
Propulsion : 4,076 BHP
Cargo oil : 6,400.0 cubic meter
Grades of cargo : DMA/ RME 180/ RMG 380
Accomodation : 25 men

Year built : 2011

Length overall : 92.7 m
Length BP : 87.0 m
Breadth moulded : 18.6 m
Depth moulded : 9.6 m
Max draft : 7.0 m

Deadweight : 6,000 T
GRT : 4,366 T
NRT : 1,821 T

Main engine : 2 × MAK 8M20C, 2,038 BHP each
Total BHP : 4,076 BHP
Propeller : 2 × CPP, Kamewa 60A/41B
Bow thruster : 1 × 360 kW, 6 T thurst
Stern thruster : 1 × 360 kW, 6 T thurst

DP-1 system : DP 1

Main generator c/w alternator :
3 × CAT C18 rated 425 kW/ 440 V/ 60 Hz/ 3 Ph
Emergency generator :
1 × CAT C4.4 rated 95 kW/ 440 V/ 60 Hz/ 3 Ph

Cargo oil : 6,400.0 cubic meter
Cago + Slop : 6,650.0 cubic meter
Fuel oil : 275.0 cubic meter
MDO : 40.0 cubic meter
Potable water : 120.0 cubic meter

Type : Marine distillate fuels
Category : DMA
Density @ 15° C (kg/cubic meter) : 890
Kinematic Viscosity at 40° C : 1.50 ( min); 6.00 (max)
Type : Residual fuel
Category : RME 180
Density : 991
Kinematic Viscosity at 50° C : 180 (max)
Type : Residual fuel
Category : RMG 380
Density : 991
Kinematic Viscosity at 50° C : 380 (max)

Fuel oil : 2 × 750 cubic meter/ hr @ 12 bar

Berth / Cabin : 5 × 1 man
4 × 2 men
3 × 4 men
Total : 25 men

Anchor windlass : 2 × 5 T, Ph hydraulics & engineering
Anchor chain : 2 × 495 m × 50 mm (Ø), Stud link type
Anchor (bow) : 2 × 3,300 kg, stockless bower type
Mooring winch :
2 × 5T @ 15 m/ min, Ph hydraulics & engineering

GMDSS (area 3) : 1 × Furuno RC- 1800 T
VHF DSC : 2 × Furuno FM-8800S
EPIRB : 1 × McMurdo E5
SART : 2 × McMurdo S4
Navtex receiver : 1 × Furuno NX-700

Portable GMDSS VHF : 3 × McMurdo R2
Inmarsat : 1 × Furuno Felcom 15
Radar : 2 × Furuno MU-201CR
Gyrocompass : 2 × Raytheon Anschutz STD22
Magnetic compass : 1 × Cassens & Plath Reflecta

Auto Pilot : 1 × Raytheon Anschutz Pilotstar D
GPS : 1 × Furuno GP-150
Joystick : Fitted
Echo sounder : 1 × Furuno FE-700
Speed log : 1 × Furuno DS-80

Anemometer : 1 × RM Young 85106
Weather fax : 1 × Furuno Fax-408
AIS : 1 × Furuno FA-150
VDR : 1 × Furuno VR-3010

G. S. fire pump : 1 × 100 cubic meter/ hr @ 40 m head
Emergency fire pump : 1 × 50 cubic meter/ hr @ 45 m head
Foam Pump : 1 × 200 cubic meter/ hr @ 30 m head
Foam applicators : 4 ×  400 I/ min
Monitor (foam) : 4

Life raft : 2 × 25 persons, RFD
Life boat : 1 × 25 persons, NPT59FF, Jiangyin Neptune
Rescue boat : 1 ×  6 persons, Gemini Marine DSB 3.9 SR/RB
Davit (life boat) : Jiangyin neptune, NPT55DF, SWL : 5.6 T

Oily water seperator :
1 × Electric two stage 15 ppm OWS, 1.0 cubic meter /hr
Sewage treatment : 1 × 25 persons, JOWA STP 2010 series
Water maker :
1 × 10/15 T/day, Tecnicomar STDC-SY 4500, Reverse Osmosis Type

---------------------------------------------------------------------------------------------------------------
Search words(for official use only) -
2011 built Oil Tanker - 6000 Ton Dwt / DP1
6000 Ton DWT / DP1 Oil Tanker for Sale

Self Propelled Oil Tanker - 2011 built - 6000 T dwt
Oil Tanker for Sale - 6000 Ton
Used Self Propelled Oil Tanker - over 92m long

Year Built  :2012
Classification  :IRS


Length OA :19.96 Mtrs
Breadth : 06.30 Mtrs
Depth : 02.85 Mtrs
Draft : 01.50 Mtrs
GRT/NRT : 77 T / 23 T

Deck cargo :
Clear deck space : 50 sq metres
Deck strength : 1t/sq.mtr
Dwt : 38
Fue oil : 20 kl
Potable water : 20mt


Tugger Winch : 5t
Stern rollers : 10" roller of 3mtr


2 x 325 BHP, Cummins NTA 855
Total 650 BHP
2 x ZF 325 Gear Boxes
2 x Propellers


2 x 62.5 KVA - Kirloskar


12 Kts @ 1800Rpm; 08Kts @ 1600rpm

1 x VHF : 1 X SART
1 X VHF DSC : 1 X GPS
1 X SSB : 1 X AIS - CLASS 'A'
1 X Radar : 2 X GMDSS Walkie Talkies
1 X Echo Sounder : 2 x Walkie Talkies
1 X EPIRB : 1 x P A System
1 X Marine Compass : 1 X Anemometer
1 X Navtex : 1 x Barometer


Central AC
Crew  10
1 x 8 Cabin ; 1 x 1 Cabin
Charterers : 08
2 x 4 Cabin
Seating Capacity : 11 (Individual reclining Seats)
Galley : 01
Toilets : 02



-------------------------------------------------------------------------------
Search words (for official use only) -

20M Support Vessel for Sale

Used Survey Vessel for Sale
650bhp Survey/Support Vessel for Sale

-------------------------------------------------------------------------------

New 16m Pilot Boat built in Australia

16M Pilot Boat for sale - Newbuilt

Length overall : 16.8m
Length hull : 16.0m
Length waterline : 14.7
Beam overall : 5.7m
Beam (hull) : 4.9m
Draught, approx. : 1.5m

---------------------------------------------------------------------------------------------------------------
Search words (for official use only) :

16M Pilot Boat for sale - Built in Australia
Pilot Boat built in Australia for Sale - New
Newbuilt Pilot Boat for sale
New 16m Pilot Boat

Capacity Self-Propelled Split Hopper Barge - 415 cbm

Split Hopper Barge for sale

49.56m self-propelled split hopper barge

Length : 49.96m
Beam : 9.29m
Depth (moulded) : 4.00m
Draft (loaded): 3.00 m
Draft (light) : 1.30 m
Hopper capacity : 415 m³

Gross tonnage:  499GRT
Speed (light) : 7 knots
Speed (loaded) : 6 knots
Generator : 2 x 45 KVA
Propulsion : 360° rudder propeller
Type : 2 xAquamaster
Main engine : 2 x Deutz 272BHP

415cbm capacity self-propelled, split hopper barge. It is a fast, reliable and highly
manoeuvrable vessel, capable of accessing more restricted sites, and ideal for capital
and maintenance dredging, beach replenishment and coast protection projects. She is
Bureau Veritas Class I 3/3 approved for operation in Coastal waters.

--------------------------------------------------------------------------------------------------------

Used Split Hopper Barge for sale
Self-Propelled Split Hopper Barge - 49.56m - For Sale

49.56m self-propelled split hopper barge
Split Hopper Barge for sale
415cbm capacity self-propelled barge for sale

-------------------------------------------------------------------------------------------------------

Self-Propelled Split Hopper Barge for sale

2001 built Self-Propelled Split Hopper Barge for sale

68.43m Self-Propelled Split Hopper Barge
1000cbm Capacity Self-Propelled Split Hopper Barges

Year built : 2001
LOA : 68.43 m
Beam : 13.70 m
Depth : 4.30 m
Design draft : 3.20 m
GRT/NRT : 949/375
Number of hoppers : 8 each (4 on each side)
Hopper capacity : 1,000 cubic meters

Fuel oil : 14,000 liters
Fresh water : 35,000 liters
Hydraulic oil : 750 liters

Number of crew : 12

Make/Model : Caterpillar/ D343 TA
Power : 259 kW x 2

Make/Model : DAF/DA475
Power : 52 kW

Make/Model : Nissan/SD-22 (4 cylinder)

Make/Model : Schottel/NV365/SRP265
Propellers : x 2 each
Diameter : 1,350 mm

M. Foam : 3 x 9 liters
Water CO2 : 3 x 9 liters
DCP : 2 x 5 Kgs.
Fire buckets : 6 each

Life raft : 1 x 20 persons
Life buoys : 4 (2 with line and ignition light)
Life jackets : 20 nos.

--------------------------------------------------------------------------------------------------------
1000cbm Capacity Self-Propelled Split Hopper Barges
Self-Propelled Split Hopper Barges - 1000cbm capacity for sale
225 feet Self-Propelled Split Hopper Barges

2001 built Self-Propelled Split Hopper Barge for sale
68.43m Self-Propelled Split Hopper Barge
Used Self-Propelled Split Hopper Barges for sale

-------------------------------------------------------------------------------------------------------

Landing Craft For sale
Pax/Car Ferry for sale
Landing Craft - 1988 built

Specification

---------------------------------------------------------------------------------------------------------

Landing Craft For sale
Landing Craft For sale in Europe
Landing Craft for Sale - Built in 1988
1988 built Landing Craft
140 pax Landing Craft For Sale

-------------------------------------------------------------------------------------------------------

Specifications

Built/Rebuilt : 1982
Dwt : 300
Dims : 50.0m x 10.0m x 1.8m draft
M/E : 2 x 600 (Total 1200 bhp)
Props : 2 x fixed
Pax cap. :250
Car cap. : 46

---------------------------------------------------------------------------------------------------------

Landing Craft  300 Ton For Sale
300Ton Landing Craft For sale - Built and rebuilt in 1982
250 Pax Landing Craft For Sale

Landing Craft For sale in Europe
Car/Pax Landing Craft for Sale
Landing Craft For Sale - 300 Ton
-------------------------------------------------------------------------------------------------------

Landing Craft for sale
600Ton Pax/ferry/landing craft
Landing Craft - 600Tons -  For sale

Last dry dock 07/2011

---------------------------------------------

Landing Craft for sale
Ferry/landing Craft
Pax/Ferry/LCT For Sale
600Ton Pax/ferry/landing craft
600Ton landing Craft For Sale
600Ton pax ferry for sale

---------------------------------------------

Landing Craft for sale
Landing Craft 500Ton For sale
Pax/Car Ferry for sale

----------------------------------------------------------

-----------------------------------------------------------

Specifications

Built : 2008
Length : 31.00m
Breadth : 9.50m
Depth/Draft : 3.80m / 3.00m
GRT / NRT : 299 / 90
Classification : Germanishcher Lloyd

:
2 x Caterpillar 3412C DITA 720 bhp @ 1800 rpm
Gear Box : Ratio = 4.5 : 1
Generator :
2 x Cummins 6CTA 8.3-D(M) Stamford @ 160kw 50Hz

:
Fuel Oil : 162 cbm
Fresh water : 79 cbm

:
Oil water separator - China type 0.25/cu.m/hr
Fuel filter - Main engine only twin racor type
Blower fan : 2 x 19" for engine room
Co2 Flooding sytem

:
Anchor Windlass :
1 x Electrical Hydraulic Anchor windlass having capacity 3 tonnes at
10m/min single gypsy suitable for 22mm dia. stud link chain

:
Radar : JRC JMA 2343 (48Nm)
SSB radio : JRC JSB 196
GPS : JRC NWZ 4570
Compass : Daiko Magnetic Compass

VHF : JRC VHP 200
EPIRB : McMurdo E3
Echo sounder : JRC Plot - 500
Navtex receiver : JRC NCR 330A
Auto Pilot : TMQ AP 9
PA System : 1 x Horn speaker

-------------------------------------------------------------------------------------
Search words(for official use only) :

Utility Tug for sale
1440bhp Utility Tug For Sale
2008 built UtilityTug ForSale
1440bhp tug in Asia
Utility Tug - Built in 2008 for Sale
Over 1400bhp Utility Tug for Sale in Singapore
Utility Tug for sale - 31M in Length
Over 31M in length Utility Tug For Sale
Tug for sale in Singapore

-------------------------------------------------------------------------------------

Day/Pax Efpatoria type boat for Sale
1994 built Day/Pax Boat for sale
Day/Pax Vessel For sale
Used Efpatoria type vessel for sale - 1994 built
Day Passenger Efpatoria type Vessel

Built : 1994

-----------------------------------------------------------------------------------------------------------
Search words(for official use only) :

Efpatoria Type Vessel for Sale - 1994 built

1994 Built Da/Pax Boat For sale
220 Pax Capacity Vessel for Sale

Used Day Passenger Efpatoria type Vessel

Day/Pax Boat for Sale

------------------------------------------------------------------------------------------------------------

Type : Steel Motor Tug Boat
Classification : Indian Register of Shipping
Built in 2000

Length overall : 26m
Length Registered : 24.34m
Breadth Moulded : 7.92
Moulded Draft : 3m
Moulded Depth : 3.65m
GRT : 184t
NRT : 56t
Bollard Pull : 15.1 tons (Test conducted on 14 Nov 2011)

Main Engines :
2 x 720 BHP Caterpiller 3412C DITA @1800rpm Total 1440 bhp
Generators :
2 X 24 KW  3 Phase/50 Hz/ Make Yanmar, Model 4TNA98-G1A
Propellers : FPP Kort Nozzles
Last DD : August – 2010
Last SS : August – 2010
Last  all annual surveys completed : 11th Nov 2011

Speed : 10 knots
Fuel Oil Tanks : 150 cbm
Fresh Water Tanks : 22.3 cbm

Main Engine : 50 Liters /Hours/Engine at 100% MCR
A/E : 100 ltrs per day

Fwd windlass connected to 2 anchors
Towing Hook fitted SWL (20 T).

Life Raft : 2 X 15 person
International Shore Coupling X 1
LSA- FFA : As per statutory requirement.

Individually Air Conditioned : 2 cabins x single berth,
4 cabins x double tier berths, Total 10 persons

Magnetic Compass/VHF with DSC/Radar/AIS/Navatex/Gps
and others as per class

-------------------------------------------------------------------------------------------------------

Tug for Sale in India
Bollard Pull Tugboat - 15 ton - 2000 built
Bollard Pull Tugboat for sale in India
Small Tugboat for Sale - 15ton Bollard Pull-------------------------------------------------------------------------------------------------------

General

Built : 2008
Class BV (I + HULL, Pontoon, unrestricted navigation)
Quantity : 17 Deck Barges are available

Length O.A. : 91.50 m
Length B. P : 87.84 m
Breadth : 24.40 m
Depth : 5.50 m
Draft (Design) : 4.285 m

Gross Tonnage : 3138
Net Tonnage : 941
Displacement : 8,779 t @ 4.285 m
Light Ship Weight : 1,281 t (Approx)
Deadweight : 7,498 t @ 4.285 m

Clear Deck Area : 1750 sqm
Deck Strength : 10 m ton/sqm
Sideboard : 3.6m height all round

Anchor : 1x 1500 kg
Winch : 1x 100kN Hand winch
Towing Brackets : 2 unit
Mooring Bollard : 8x 350mm Dia

:
Total length : 14.180m 46ft. 13in
Total width : 3.466m 11ft. 8in
Mould depth : 1.865m 6ft 3in
Draft : 0.707m 2ft 8in
Passenger : 6-10 p
Boat type : monohull deep-v stepped glider
Material : GRP
Max speed / cruising radius : 55.1 knot/250nmi*

:
Main engine : cummins QSM11-M/2×715hp
Gear case
Universal axis of rotation
Propeller
Transom
Steering wheel
Main engine hands-remote control unit
Sillometer 0--60knots
Operating flexible shaft
Gearbox control flexible shaft
Generator controlling flexible shaft
Oil-water separator
Engine heat alarm
Fuel filter
Electronic fluid-level indicator
Oil-level indicator
Dry-chemical fire extinguisher
Bilge hand pump
Removable motor-driven sewage-pump DC12V

:
Generator : kohler 3.2kW 220v 50hz
Generator set brine pump
Generator set temperature transmitter
Generator set heat alarm
OC-7Z air condition set
Sea-water pump
Seawater filter
Storage battery
Charger

Distribution panel
Adjusting hydraulic pump motor
Ampere meter
Watertight top light
Reading light
Portable light
Fluorescent top light
Warning lamp
Port light
Starboard light
Mast light

:
Life-vest
Lifebuoy
Fire axe
Fire extinguisher
Dry-chemical fire extinguisher
Fire bucket
Lifeboat

---------------------------------------------------------------------------------------------------------------
Search words (for official use only) -

Patrol Boats for sale - 14M

New Patrol Boats in Asia
14M High Speed Patrol Boats for Sale
New Super High Speed Patrol Boats

M/E : 2 X Yanmar 6AYM-WET, 610kW @ 1900RPM
GBox : 2 X Reintjes WAF 374, Ratio : 6,417 : 1
Genset : 2 x Perkins 2506/1500, 40kW
B/B Pump : 1 X Capacity : 1000.2 LPM
GS & Fire Pump : 1 X Capacity: 1000.2 LPM
F.O.T Pump : 1 X Capacity: 95 LPM
FW/SW Pump : 2 X Capacity: 40 LPM
O.W.S : 1 X Capacity: 0.25m3/hr
Steering Gear : 1 X 2T Electro-Hydrualic S/G sys
Propeller : 4-bladed fixed pitch, manganese bronze
Prop. Shaft : 2 X 61/2" Shaft
Anchor : 2 X 420kg, stockless bower anchor
Anchor Wind. : 1 X 1.3T Hydrualic (17.5mm) anchor windlass c/w Two (2) warping drums
Towing Hook : 1 X 25T

Marine Radar : 1 X Furuno RDP-142
GPS Navigator : 1 X Furuno GP-32
Echo Sounder : 1 X Furuno FCV-627
VHF Radio Telephone : 1 X Samyung STR-6000A
SSB Transceiver : 1 X ICOM IC-M710
A.I.S. : 1 X Samyung AIS SI-30
Navtex Reciever : 1 X Samyung SNX-300
EPIRB : 1 X GME MT-403FF
SART : 1 X ACR Start Pathfinder 3
Walkie-Talkie : 2 X ICOM GMDSS IC-GM1600
Table Compass : 1 X Daiko Keiki T-150B

Life Raft : 2 X KHA-10 C/W JSQ-III HRU
Life Buoy :
8 pcs C/W 2 X 30m Lifeline, 2 X SI Light & 2 X MOB
Rocket Parachute : 6 pcs
Life Jacket : 14 pcs c/w light & whistle
First Aid Kit : 1 set
Line Throwing App. : 1 set
Embarkation Ladder : 1pc of 4m
Fire Extinguisher : 16 X 9kg ABC Dry Powder, 1 X 45L Foam
Fireman's Outfit : 1 set c/w Breathng Apparatus
Fire Hydrant & Hose : 4 sets c/w spray & jet nozzels
Axe, Scoop, Sand Box : 1 set
Fire Bucket : 3 pcs

Aircond :
1 X 19,200 BTU @ W/Hse
1 X 12,600 BTU each @ Mess Room & Crew Cabin
1 X 10,000 BTU each @ Capt. Rom & C/E Room

---------------------------------------------------------------------------------------------------------------
Search words (for official use only) :











Price & terms : Please enquire using the email form below.



-------------------------------------------------------------------------------------
Search words :

---------------------------------------------------------------------------------------

Year Built : 1986
Call sign : 9LY2059
Classification : RINA,Italia
Type : Ocean Going Tug Boat

Length Overall : 43.1m
Beam : 10.00m
Depth : 4.5m
Summer Draft Displ. : 4.04m
Maximum Draft : 4.12m
Free Board : 0.457m
Maximum Air Draft : 30.0m
Deadweight : 531.3 MT
GRT / NRT : 481 ton / 144 ton

Fuel Oil(MFO) : 291.937 m3
Fuel Oil(MGO) : 54.59 m3
Fresh Water : 63.396 m3

Winch : Single drum hydraulic Brattvarg
Tow Drum : One
Capacity (each drum) : 56mm wire x 1,000m
Emergency Tow Drum : One
Capacity (each drum) : 54mm wire x 700m
Delta Plate
Shackles
Chaffin Chain
Solar Light

Windlass : Azuma / Hydraulic
Anchor : Stock x 600KG
Anchor Chain Length : 7 Shackles x 27.43KG
Anchor Chain Dia. : 32mm
Tugger Winch : 1 x Hydraulic / 1.5 tons

Main Engine : HANSHIN 6LUS38
BHP / RPM @ 100% : 2,300BHP x 2 / 310rpm (4,600BHP)
Bollard Pull : 52.5 Ton
Propeller : FPP Type x 2 sets
Rudder : Spade with Kore Nozzle
Generator : 2 Generator
Portable Generator : 1 Portable Generator
Walk-in Cooler : 5 Cu.M
Walk-in Freezer : 8 Cu.M

Speed : 10.0 Knots
Fuel Consumption : MF 30 / 7 mt per day , MGO 0.5 per day
Endurance : 35 days
Bollard Pull : 52.5 MT

Radar 1 : JRC / JMA-3204
Radar 2 : JRC / 33733689
Navigator DGPS : Navis-2600
Echosounder : Koden / CVS-106
Gyrocompass : Tokyo Japan / S.33557
AIS : Samyung / SIS-5D
Inmarsat C : Thrane & Thrane / TT-3606E
Weather Fax Forecast : Furuno / DFAX
Navtex receiver for GMDSS Samyung / SNX-300
Steering motors : 2

Deck Crane : 0.9 MT SWL @ 10 m Radius
Rescue Craft : 1 x 15-men FRC

Cabins for Crew :
4 x 1-man = 4
1 x 2-man = 2
1 x 5-man = 5
Total Accomodation capacity = 11

Tug for sale
1986 Built Tug for sale
---------------------------------------------------------------------------------------------------------------------------

Vessel : 40m Aluminium Crew/Utility Boat
Classification : ABS+A1 HSC Crewboat + AMS
Safety Regulation : ABS and Flag state requirements

Outline of Vessel :
All Welded aluminium Monohull with quadruple propellers/twin rudders.
Forward fully air conditioning crew accomodation/passenger saloon.
And flush,no-obstructed cargo deck


Length Overall : 40.00m
Beam : 8.20m
Moulded depth : 3.65m
Moulded draft : (Approx.) 2.0m
Summer Freeboard : 1.65m


Clear Deck Space : 115 square meter(18.0m length x 6.4m width)
Safe Deck Loading : 70 tonnes
Deck Strength : 2500 kg/square meter
Deck Crane : 2.3mt@4.1m reach
Tugger Winch (Option) : 50 KN @ 20m/Min

:
Adquate cargo retainers and lashing lugs on both sides for securing
deck cargo
Aft Deck suitable for helicopter winching


GRT : 250 (Estimated)
NRT : 75 (Estimated)
Deadweight(Approx.) : 150 MT


Number of Main Engines : 4
Propulsion : Quadruple Screw
Make Type : Cummins KTA 38-M2
Total BHP/KW : 4 x 1350 BHP
Propellers : 4 Fixed Pitch
Bow Thruster : 1 x 120 HP
Bow Thruster drive engine : 1 x Marine Diesel High Speed Engine 150 kw


Service Speed : 27 knots,85% MCR @ 50 MT DWT
Maximum Fuel Consumption : 1020 L/hr
Laden Speed : 20 knots @ 85% MCR Fully Loaded 860 L/hr


Prime Movers : 2 x 108KW @ 1500 RPM
Make/Type : Cummins CSMX TA5.9 of equal
Generators : Stamford UCM274E,2 x 80ekw
Vessel Power Supply : 415/220 Volt AC,50Hz,3ph + 24 Volt Dc

Passenger Capacity : 100 Aircraft type economy class seat
Crew : 8 bunks in 4 cabins
Mess : Seating for 8 Crew


GMDSS : GMDSS A2
VHF : Furuno FM-8500 + hand held
SSB Radio : Furuno FS-2570 + Furuno FS-1503(non GMDSS)
Satellite Telephone/Fax : MINI-M
GPS : Furuno GP-32
Depth/Echo Sounder : 1 unit depth-Foruno; 1 unit echo-Furuno FCV-667
Gyro Compass : Roberson RGC 50
Magnetic Compass : 6" Magnetic Compass (with deviation card)
Speed Log : Furuno DS-80
Navtex : Furuno NX500
Marine Radar : 2 unit Furuno 1932 MK2
EPIRB : McMurdo E3A
SART : McMurdo S4
AIS : Furuno FA-100
Public Address/Intercom System : Vingtor Pro-700
Search Lights : 3 units Perko LSLT-PKO CC12, 1000W


Fuel Oil @ 23 cu.m/hr discharge rate : 100,000 litrs
Fresh Water : 30,000 litrs


Dirty Oil Tank : 1.0 cub m
Oily water separator : 0.25 cu./hr
Sewage Treatment plant : Hamworthy KSE STO Super trident or equal


Life Rafts : TWO 30 pax SOLAS type on each side
Life Jackets : 120
Life Buoys : 8 on board per SOLAS
Rescue Zone : Yes
Scrambling Nets : 2 units
Other Equipment : Pyrotechnics,Line throwing apparatus


Fire Fighting : 600 cube meter/hr monitor
Inflatable Workboat with 25HP outboard motor : Provided
IMDG Equipment : Fitted as per requirement
Water Spray for Cargo deck and superstructure : Fitted

Aluminium Crew Boat / Utility Boat for Sale - 40M
40M New Aluminium Crew Boat for Sale

Multi-purpose Field Support Vessel for sale
Newbuilding MPSV Slot For sale
Multi-purpose Field Support Vessel - Newbuilding - MT6007 MKII MPSV
New Norwegian Built MT6007 MKII Support Vessel For Sale

The hull to be dimensioned for a maximum draft of approx. 6,22 m.
Two fixed pitch azimuth main propellers, two tunnel thrusters to be installed.

Main deck to be arranged for deck cargo with an area of approx. 51m x 13,4m
and for a load of 5 t/m2.

The vessel to be arranged with accommodation for 40 persons.


Length overall 79,67 m
Length between p.p. 72,00 m
Breadth moulded 16,40 m
Max. draft midship 6,220 m
Depth maindeck midship 7,45 m
Depth shelterdeck 10,20 m


Fuel oil approx. 1355 m3
Water ballast approx. 1135 m3
Drill water approx. 965 m3
Cement tanks (5 tanks) approx. 320 m3
Fresh water approx. 650 m3
Liquid Mud (s.q. 2,5) approx. 1083 m3

Brine (s.q. 2,5) approx. 424 m3
Base oil (s.q. 0,9) approx. 347 m3
Glycol approx. 1290 m3
Metanol approx. 206 m3
Dead-weight appr. : ~3500 tonnes
Gross tonnage : ~2995 T
Net tonnage : ~1100 T

Speed at d = 4,5m, approx. : ~14,5 knots
Cargo deck 55,8 m x 13,4 m = 745 m2

Hull to be built of steel with full strength to main deck, and to class Det norske
Veritas +1A1 - E0 - SF, dk(+), hl(2,5), AUTR, LFL*
Class notation CLEAN, COMF-V (rating 3),

Bridge arrangement to comply with the following recommodations : Naut OSV,
without class notation.

Thruster capacities : Document of compliance after noise measurement acc. to DnV.

-----------------------------------------------------------------------------------------------------------------------------------

Multi-purpose Field Support Vessel for Sale
Newbuilding MPSV Slot For sale
Newbuild MPSV for Sale
Multi-purpose Field Support Vessel - Newbuilding - MT6007 MKII MPSV
New MPSV for sale
New Norwegian Built MT6007 MKII Support Vessel For Sale
Norwegian Built MPSV Newbuild slot for sale
New MT6007 Slot For Sale
MPSV MT6007 MKII Newbuild for sale

---------------------------------------------------------------------------------------------------------------------------------

280 Feet

Accommodation Work Barge

Length Overall : 85.344 m (280ft)
Length BP : 81.93 m
Breadth Moulded : 24.38 m (80 ft)
Depth Moulded Admidship : 4.88 m (16 ft)
Displacement Max. Draft : 8935.77 T
Draft (Max) : 4.50 m
Built : 2008
GRT / NRT : 4441/ 1332 / 3951 T
Class : B.V.(Bureau Veritas)
Notation : 1 + HULL Special Service-Offshore Work Barge

Deadweight : 3951.22 T
Deck Strength : 15T/sq.m
Clear Deck Area : 650 Sq.Mtr (W/out Crane Space)
Fuel Oil : 906.40 M3 (approx)
Fresh Water :
895.6 M3 (approx)
3070.2 M3

Fresh Water Cargo Transfer Pump : 1 X 80 m3/hr @ 50m/head
Fresh Water Pressure Pump : 2 x 50 m3/hr @ 50m/head
Sea Water Pressure Pump : 2 x 100 m3/hr @ 600m/head

Generator : 3 x Cummins Chongqing - Model KTA19G4M
Alternator : 500kVA, 0.8pf, 400kW, 415/230V, 50Hz 1500rpm
Emergency Generator :
1 x Cummins Marine - Model 6CT8.3-GM115
123.75kVA, 0.8pf, 99kW, 415/230V, 50Hz 1500rpm

2 x 1 man Cabin : 2 men
1 x 10 men Cabin : 8 men
Total : 12 men

8-point Mooring:
4 x Diesel driven drum waterfall winch, 77 tones line Pull (AM HOIST-AM77EF)
Drum Cap 1200m (L) x 38mm (Ø) SWR
16 vertical sheaves & 8 fairleaders

Single berth : 6 x 1 berth (6 men)
Double berth : 4 x 2 berth (8 men)
Four (4) men berth : 34 x 4 berth (136 men)
Total : 150 men
All cabins fully air-conditioned.
(AHU Central Air Cond' System on M'Dk, Level 1, Level 2 )

GMDSS : Sea Area A1+A2
SSB : 1 x Furuno FS-1570 (MMSI-370940000)
Link Sintel-Tel Net (F.B.B) : 1 x Sailor 150 Fleetbroad band

Ballast / Bilge/ GS/ Fire pump : 2 x 100 m3/hr @ 60m/head
Main Fire Pump : 1 x 150 m3/hr @ 110m/head
Sprinkler Fire Pump) : 1 x 84 m3/hr @ 65m/head
Sprinkler Jockey Pump : 1 x 3 m3/Hr @ 112m/head
Emergency Fire Pump : 1 x 40m3/hr @ 60m/head

Hospital : 1 x double berth hospital with attached paramedic room
Galley :
1 w/ cooking utensils, refrigerators etc.
(Prov' 25.54M2/Freezer 22.54 & Chiller 25.50M2)
Messroom : Level 1 (99.21M2) Seating capacity 80 men
Offices : 2 Rooms on Main Deck
Conference Rooms :
1 with seating capacity for 18 men
(LAN-Type A available)

----------------------------------------------------------------------------------------------------------
Search words (for official use only) -
AWB - 280 Feet

Accommodation Barge for Sale

150 men Capacity

Accommodation Barge

--------------------------------------------------------------------------------------------------

Deepwater Ice Class Anchor Handling Towing Supply Vessel

12240bhp 1983 built Supply Vessel for Sale

Built : 1983
Classification :
Lloyd's +100A1. +LMC UMS "Offshore
Tug/Supply Vessel" Ice Class 1*

Deck cargo capacity : 550 ts
Deck measurement : 36.0 m x 11.0 m
Cargo rail height : 20 m / 11.5 m
Deck strength : 5 ts/sqm

Cement : 4 tanks, totalling 290 cbm (10.240 cu.ft)
Liquid mud : maximum 1200 barrels in 2 tanks
Discharge rate cement : 2 x 19.2 cbm/h compressors. 80 psi
Discharge rate mud : 2 x 60 cbm/h at 60 m head

Potable water : 330 cbm
Drillwater/ballast : 681 cbm
Total fuel : 937 cbm
Domestic fuel : 520 cbm
Rig fuel oil (diesel) : 417 cbm
Discharge rate potable water : 150 cbm/h at 60 m head
Discharge rate drill water : 100 cbm/h at 60 m head
Discharge rate oil : 150 cbm/h at 60 m head
Discharge stations : aft under cargo rails
Discharge lines : All 4" with WECO couplings

Main engines :
4 x Bergen diesel/type KVMB-12 each 3,060 BHP. total 12,240 BHP.

Maximum speed/consumption :
consumption according to Yard trail 16
kts on 30ts gas oil/24 hrs.
Economical speed :
12 kts on abt. 18.0 ts 10 kts on abt. 12.5 ts 8 kts on abt. 9.0 ts
Consumption in port : 0.5 ts/24 hrs.
Consumption stand-by, at sea : abt. 5.0 ts/24 hrs.
Bollard Pull : 120 tons continuous
Propellers : 2 x Ulstein controllable pitch in nozzles.
Thrusters
Stern  : 1 x 800 BHP
Bow : 2 x 800 BHP
Ulstein make all electrical driven

Generators :
2 x 1570 kva shaft generators
2 Caterpillar diesel each driving a 250 KW generator.
1 Caterpillar diesel driving a 94 kva generator.

Joystick control : Ulstein Joystick control
Autopilot : Robertson
Gyro compass : RGC -11
Radars :
1 x Decca bridgemaster 250 (10 cm)
1 x Decca bridgemaster 180 (3 cm)
+ Slave monitor Decca MX 400
Professional navigator
Echo sounder : Scipper 60s -101
Facsimile receiver : Furuno fax 208A
DGPS : Trimble 4000DS DGPS Positioning eqm incl. Hydro Nav. Package software

Complete GMDSS package consisting of:
1 x TT3606A Sat-c communication Units
1 x TT3020C Sat-c communication Unit
Sailor compact VHF RT 2048.
Furuno MF DSC terminal/receiver Furuno
VHF radiotel FM 8500.
Furuno VHF radiotel FM 8500.
Furuno FS 1562 15 tranciver 4 VHF
portable radios Standart Horizont


1 x Command Intercom PSA 204
Iridium ID telephone
1 x Saturn M telephone Nera
1 x HP PC with e-mail connection

Winch  :
Brattvaag hydraulic triple drum.
Waterfall type with 250 ts pull and 400 ts static holding force.
2 anchor handling drums each for 1,000 m 64 mm diameter deadman wire.
1 towing drum for 1.000 m 64 mm diameter towing wire.
Pennant reels : pennant reel for 900 m 76 mm wire + 2 x 500 m 76 mm wire.
Wildcats : for 3"/76 mm rig chain
Chain lockers : 2 rig chain lockers - 104 cbm for 1150 m  of 3" chain each.

Capstans :
1 pc. 8,5 ts pull capstan on focsle head hydraulic driven.
2 pcs 5ts pull capstans on aft deck hydraulic driven.
2 pcs 5 ts pull tugger winches hydraulic driven.
Crane : 1 crane. 5 ts. 9 m outreach

Towing pins : 2 hydraulically operated towing pins, permit side pressure 501
Stern roller : 1 x 350 ts SWL stern roller with dia. of 1.8 m and length of 3.66 m.
Furthermore, the vessel is well equipped with stoppers, chaser, grapnel,
shackles, fuse wires, etc.

Hydraulic winch with 24 shackles of 36 mm chain.
1 x deep water anchor winch with declutchable drum cap. of
1,500 m x 38 mm diameter wire, remote controlled from wheelhouse.
Anchoring depth 400 m

Crew cabins : 13 persons in single cabins.
All accommodation, bridge and engine control rooms are fully
airconditioned. Separate air condition units installed for bridge
and engine control room. Extra insulation for work in cold areas.

Spray booms : Yes
Lifeboats : 2 x 16 persons
Liferafts :
VIKING 4 x 20 persons
VIKING 2 x 20 persons

---------------------------------------------------------------------------------------------------------------
Search words(for official use only) -
Supply Vessel

1983 Built Deepwater Ice Class

AHTS For Sale

AHTS For Sale

Towing and Anchor Handling Vessel for Sale

12240 bhp

Anchor Handling Vessel For Sale

--------------------------------------------------------------------------------------------------------------

Anchor Handling Tug Supply Vessel for Sale

61M Anchor Handling Tug Supply Vessel for Sale
1975 Built Supply Vessel for Sale
AHTS for supply

Built : 1975
Reconstruction : 2002
Classification :
Vessel built to ABS class + A1,(E) Towing Service + AMS
for worldwide operation and for servicing and towing oil drilling Rigs.
Vessel has outstanding speed and cargo capacity and is specially
designed to serve oil rigs in remote areas.


Displacement : 2459.31 Ton
Deadweight : 1262.30
GRT : 1163
NRT : 349
Length BP : 56.85 m
Length OA : 61.27 m
Breadth 12.8 : m
Height fm keel : 28 m
Molded depth : 6.2 m
Free board : 806 mm
Light draft : 2.85 m
Molded draft : 5.00 m

Main engine :
Two Niigata diesel 12 MGV28BX
6000 BHP continuous rating , 6590 BHP Max (2 x 2205 KW)
Dual control of ME & BT unit, forward & aft

Auxiliary

Three unit generators caterpillar 3306 diesel 275 BHP
205 KW 440 V AC each three Phase 60 HZ

Bow Thruster

Detroid diesel GM 8V71 287 BHP
Hydraulic pump giving a maximum thrust 3,4 tons
Propellers : Two

Cargo dead weight : 1062 : Total cargo
Deck cargo : 500 t
Fresh water capacity : 247 t : Transfer pump 100 cbm/hr at 60 m head
Drill water capacity : 390 t : Transfer pump 100 cbm/hr at 60 m
head drill water hoses 1 x 25 mtr x 75 mm dia
Fuel oil (100%) : 520 t : Transfer pump 60 cbm/hr at 60 m head Fuel
Hoses 3 x 25 mtr x 75 mm dia
Bulk pressure tanks : 4 x 42 : Total 170 cbm ( 6000 ft3 )
compressor 725 cbm/ hr at 42.66 P.S. I App. rate 550 cbm/hr
at 50 m head bulk hoses 4 x 25 mtr x 100 mm dia
Manifold : 4 : 4 - port, 4 Starboard

Strengthened deck with wooden sheathed (60 mm Thickness) suitable
for carry up to 500 tons of drilling equipment within the range of stability, Clear deck
Space in between cargo rails :
10 m x 30 m = 300 sqm {100ft x 40ft).
Deck strength : 1.7 t / sqm
Cargo rail height : 1.5 m
Special place for two removable containers (Refrigerator)

Deep freeze : 10 cbm at - 17°C
Cold room : 20 cbm at + 2°C

Main engine : NIIGATA
Type : 12 MGV-28BX
H.P : 2 X 3000 H.P

Main Engine : Max. rpm
Rated : 720
Normal (Full Speed) : 650
Cruising Speed : 620
Economical Speed : 600

Main Engine : Pitch
Rated : 100%

Main Engine : Percentage %
Rated : 100 %
Normal (Full Speed) : 90%
Cruising Speed : 86%
Economical Speed : 83%

Average Speed (Good Weather Condition)
Main Engine : Free Running
Rated: 14 Knots
Normal (Full Speed) : 12 Knots
Cruising Speed : 9 Knots
Economical Speed : 7 Knots

Main Engine : Towing / Cargo
Rated : 9 Knots
Normal (Full Speed) : 8 Knots
Cruising Speed : 6 Knots
Economical Speed : 5 Knots
Towing Free Cargo


Ltrs / Hrs -
Towing Consumptions : 882  Ltrs
Towing Consumptions : 796  Ltrs
Towing Consumptions : 776  Ltrs
Towing Consumptions : 735  Ltrs

Ltrs / Days -
Towing Consumptions : 21.168  Ltrs
Towing Consumptions : 19.104  Ltrs
Towing Consumptions : 18624  Ltrs
Towing Consumptions : 17640  Ltrs

Metric Tons / Day -
Towing Consumptions : 18.308  Mt
Towing Consumptions : 16.52  Mt
Towing Consumptions : 16.107  Mt
Towing Consumptions : 15. 256  Mt


-
Ltrs / Hrs : 25.75  Ltrs
Ltrs / Days : 618  Ltrs
Kgm / hours Metric Tons ? Day : 0.533  Mt

-
Ltrs / Hrs : 26  Ltrs
Ltrs / Days : 624  Ltrs
Kgm / hours Metric Tons ? Day : 0.540  Mt

Hospital :
Stretcher Neil Robertson 1 set
Stretcher type para guard 1 set
Medical oxygen resuscitator 1 Set,
1 spare bottle pharmacist certification first aid locker 9th April 2007
Portable first aid kit - Three boxes
Single cabins : Four
Double cabins : Nine
4 berth cabins : Two
Total berths : Thirty

Windlass : Hydraulic motor driven cap 9 t x 9 m/min
Anchor chain : Grade 2 34 mm x 385 M each (14 Shackles each)
Anchors : 2 x 1,080 kg (Danforth)
Crane : 2,500 kg hydraulic crane on starboard side
Tugger winches : 2 hydraulic, 5 tons pull each, wire 18 mm x 100 m
Capstan : 2 Aft P/S,3 ton each
Search lights : Two x 1,000 watt, one forward/aft

Welding & cutting Equipment

Telwin - Type 500 HD one sheet + cutting torch including 4 bottles
Oxygen - 3 bottles acetylene
Salvage pump : Cap. output 3,1 KW (Yanmar)
Cargo deck floodlights : 4 x 1000 watt

EPIRB 406/121.5 mhz : 1 Mac. Murdo E3 / 406 MHZ
S.A.R.T. : 2 Mac. Murdo RT 9-3
Immersion suits : 30
Thermal protective aids : 40
Rescue boat : 1 mercury OT 3755571, capacity 6 person

Life raft : 2 For 25 person each
Life raft : 2 For 10 person each
Life buoys & Lights : 2 MSC 8177
Smoke & Light Buoys : 2 MSC 8177
Buoys with Line : 4 MSC 8177
Life jackets : 40 Jiangyin
Line throwing apparatus : 4
Pyrotechnics :
2
12
6

Bollard pull : Sustained bollard pull 63.5 T
Towing winch : Double drum waterfall 150 t
FUKUSHIMA Model DDW-35D : Winch control from wheel house
Working drum : 1000 m capacity
Working drum wire : 100 meters x 38 mm
Towage drum : 1000 m capacity
Towage drum wire : 800 meters x 64 mm diameter
Spare towing wire : 800 meters x 64 mm diameter
Towing stretcher : 14" Cir X 25 mtr 8 strand 2-part nylon
Towing pin : Pin cap. 100 t (SWL)
Strong jaw : Jaw cap. 150 t (SWL)

Stern roller : 80 Tons SWL (450 mm x 1950 mm)
Removable stern guard pins : Two (P / S)
TWG wire protector - round type : 2 Pcs
Anchor hook line 15 T & 20 T : 3 Pcs
Gog wire 44 mm x 4 M : 2 Pcs
Gog wire 44 mm x 5 M : 2 Pcs
Pennant wire 57 mm x 45 M : 1 Pcs
Pennant 57 mm x 30 M : 1 Pes

Wire rope clip 2.5" : 8 pcs
Wire rope clip 50 mm : 10 pcs
Shackles Swl 85 T : 10 Pcs
Shackles Swl 55 T : 11 Pcs
Shackles Swl 35 T : 10 Pcs
Shackles Swl 25 T : 8 Pcs
Shackles 17 T : 9 Pcs
Shackle 9 1/2 T : 5 Pcs
Shackle 6 1/2 T : 5 Pcs

Delta plate : 1 Pes capacity 55 ton
Wire bridle 15 M x 54 mm : 4 Pcs
Wire bridle 15 M x 57 mm : 1 Pes
Pelican hook : 1 Pc
Emergency rope 12"x50 M : 1 Pes
Norwegian buoy : 2 Pcs
Chaffing chain 60 mm x 2.5 M : 4 pcs
Towing navigation light : 2 Set

Lead acid battery c/w metal box : 6 Box
Yellow light flashing : 3 Pcs
Spare gog wire 44 mm x 5 M : 2 Pcs
Snatch block,5 ton cap. : 2 Pcs
Eye foundary hook 7/8" : 2 Pcs
Lock A-loy 7/8" : 2 Pcs
Crosby spelter socket : 1 Pc
Claw bars : 4 Pcs

Radar : 1 Set ( Furuno Model FR 1510 MARK 3)
Auto pilot : Furuno FAP 330 - S/N 2782
Barometer : 1 Pc. MERK HAMBURG
Clear view screen : 3 Forward & 1 aft
Compass divider : 2 Set
Digital master gyro : SIMRAD RGC -12 -S/N 62797
DSC / watch receiver : 1 unit ( Furuno Model DSC 60 )

Echo sounder

1 Unit ( Furuno FE 606 / 8606 - 7788)
GMDSS VHF radio : 3 unit (Murdo Model R1)
GPS : 2 Unit (Furuno Model GP 80, GP 32)
Gyro digital repeater SIMRAD AR 77
INETRCOM ring master 2 unit
INM MINI-C For SSAS : 1 set ( Furuno Model Felcom 16)
iNM-C C/W remote alarm : 2 set ( Furuno Model Felcom 12)
Master gyro compass : 1 unit (PASS RGC-12)
Navtex receiver : ICS Nav 5
Portable VHF radio : 5 unit (ICOM IC-M1V)

Radar : 1 set (Furuno Model 1932 Mk2)
Radio console (FURUNO) : 1 unit .MDL RC-1500 -IT
Rudder angle indicator : 1 set (Palmarine)
SSB transceiver : 1 set ( Furuno Model FS1562 - 25)
Standard magnetic compass : DIEKO - KEIKI SR150PK/8476
UAIS transponder : 1 unit ( Model Furuno FA 100)
VHF radio telephone : 2 unit ( Furuno Model FM 8500, FM)
VHF radio telephone (ICOM) :1 unit (IC- M302 )
Weather fax : 1 set (Furuno Model Fax 207)
Wind speed : 1 pc. Merk Young

Main fire pump : One. 100 cbm/h at 20m head, Motor
Fire pump : One. 200 cbm/h diesel
Monitors : One water monitor
Fire fighting pump : One 200 cbm/hr at 140 mtrs Head
Emergency fire pump : One, 100 cbm/hr. at 20 mtr head
Portable extinguishers : 4 pcs. in engine room (6,8kg) 15 pcs
Portable foam ext. : One. 10 gallons
C02 fixed system : 16 bottels, each 45 kg.total 765 kg C02
Hydrants : 11 pcs

Fire detectors : 22 & 3 Eltek Marine ANX 95 (smoke & heat)
Fire alarm : 1 & 10 Eltek Marine ANX 95 (masters & call point)
Hoses & Nozzels :
11 Pcs. 1 1/2"X 20m length ,
Spray & jet nozzles
2 Pcs. spare multipurpose
2 Pcs.2" x 20m length, spray &
Jet nozzles
2 pcs, spare spray & jet nozzles
Int. shore connections : 1 Pcs
Breathing apparatus : Two & two spare bottles
Fireman's outfit : Two sets

As additional fire pumps can be used drill water transfer pump 100 cbm

Price & terms : Please enquire using the email form below.

------------------------------------------------------------------------------------------------------------------
Search words(for official use only):

Towing Supply Vessel for Sale

61M AHTS Vessel for Sale
1975 Built Towing Supply Vessel
Towing Vessel for Serving Oil Rigs
Supply Vessel for Deep Water and Shallow Draft Operation

----------------------------------------------------------------------------------------------------------------

-----------------------------------------------------------------------------------
Search words(for official use only) :
Pipelayer Barge for Sale

Pipe Laying Barge - Over 137m

Over 137m Pipe Laying Barge for Sale
Pipelayer Barge for Charter or Sale

----------------------------------------------------------------------------------

AHT Bollard Pull for Sale

4,400bhp Anchor Handling Tug
50MT Bollard Pull AHT for Sale

4,400 BHP AHT for Sale
2011 built AHT Vessel for Sale

Length Overall : 49.95 m
Length W.L. : 48.60 m
Breadth Mld : 12.60 m
Depth moulded : 5.75 m

Tank Capacities with tanks 100% full, the approx.
capacities will be as follows :

3 x 4-berth cabin : 12 men
6 x 2-berth cabins : 12 men
3 x 1-berth cabins : 3 men
Total Complement : 27 men

Main Engines

Main engines to be 2 Cummins QSK 60, each developing an MCR
of 2200bhp at 1800 rpm, giving a total of about 4400 bhp continuous
power.

Life saving equipment is to be in accordance with Classification
and Solas requirements for an Ocean Going Vessel with a total
complement of 30 men.

:
4 inflatable liferafts to SOLAS requirement, each certified for
20 men are to be stowed in hinged type cradles for quick sideway
launching. All to be SOLAS Approved.

:
8 lifebuoys of PVC or equal approved construction.4 lifebuoys with
90-Ft buoyancy line 4 lifebuoys with 90-Ft buoyancy line and
selfigniting electric lights 2 smoke signals of the latter). All to be
SOLAS approved. 1 lifebuoy to be positioned close to stern.

:
38 approved type lifejackets to be supplied and stowed  adjacent to
each berth. Including 2 Spare jackets. All to be SOLAS approved.

:
12 parachute distress rockets. 2 orange smoke signals each to have
120 seconds discharge time and be waterproof.

:
1 Solas approved type rigid 6-men rescue Boat c/w 25BHP outboard
engine and approved gravity type davit is to be provided.

:
1 set Line Throwing Apparatus to meet with SOLAS requirement.

:
Life Saving appliances are to be fitted with reflective tapes.

:
2 boat hooks c/w approx. 8mm handle.

: As per rules.

:
Fire-fighting equipment is to meet Classification and relevant Flag state
Regulations. Generally all in accordance with the following :

:
A firemain and hydrants are to be installed, 6 on various deck levels and two in
engine room. 10M canvas fire hose c/w brass coupling and nozzle is to be
supplied and stowed alongside each hydrant in a protective box. All nozzles
to be dual jet/spay type.
International shore connection is to be fitted.

:
2 complete sets (each contained in its own separate storage unit) of fireman's outfit are to be provided, comprising the following :

:
The following equipment are to be fitted for the vessel to comply with half Fi Fi
standards with water spray curtain.

:
2 unit seawater pump, one 1700 M3/Hr drive by main engine , other one 1200
M3/H drive by independent engine at 14 kg/cm2 to supply the fire monitor.

:
2 units monitor at 1200 m3/hr each (Foam/ Water) Remote controlled.

1 unit of DSC watch keeping receiver
1 Inmarsat “C” station with voice, fax, email facility
1 EPIRB
2 Radars, both X-band, meeting SOLAS & GMDSS, both Furuno 1510 with ARPA function
2 units of search and rescue radar transponder (SART)
1 unit of NAVTEX Receiver
1 MF/HF SSB
1 speed log system comprising transducer receiver, inter-phasing facility and
interconnecting cable shall be provided and installed

1 set electro-hydraulically operated anchor handling fork (hydraulic retractable shark jaws)
of approved make to be installed in centreline on main deck aft. The stopper to be able to
take 2” to 3” dia. Wire and 1-1/4” to 3” dia. Chain.

2 vertical hydraulic towing pins of approved make, retractable type, closed top to be installed
in the centreline of the main deck. The anchor handling pins to extend about 600mm above
main decklevel in the fully extended position. The pins are to be operable from wheelhouse
aft and locally.

2 electro- hydraulic/hydraulic capstans each of 5 tonnes at 15m/min capacity to be installed
aft as shown on the General arrangement drawing light load speed to be 30m/min. Local
controls.

----------------------------------------------------------------------------------------------------------------------------------
Search words (for official use only) -

AHT Bollard Pull for Sale

4,400 BHP AHT Bollard Pull for Sale
Overall 49.95m long AHT for Sale
4,400bhp Anchor Handling Tug Supply Vessel
50mt BP AHT for Sale

AHT Vessel - 2011 built - for Sale
50MT Bollard Pull AHT for Sale
2011 built AHT Vessel

-------------------------------------------------------------------------------------------------------------------------------------

Dimensions

250' x 72' x 16'

Redundant DGPS Systems
Taut Wire System
Kongsberg HiPap 500

Lima Model 7707 Pedestal Mounted (Main Crane) - 110'-150' Boom
15 Ton (Man Rated) Pedestal Crane

3 - 300 KW Electric Generators
1 - 99 KW Std-by Generator

Heliport - 44' x 44' - 11,700 lb. cap.
Below Deck Machinery Space
Fire Pumps
Internal Ballast System
Sewage Treatment System
Satelite Communications
Internet Access
INMARSAT


60 Person Living Quarters
• Client Offices / Accommodations
• Safety Office
• Recreation Room
• Weight Room
• 32 Person Galley Capacity

Multi Purpose Barge Rentals
• Subsea / Topside Construction Support
• Living Accommodations
• Offshore Transportation
• Salvage / Dive Support
• Special Applications

-------------------------------------------------------------------------------------------------------
Search words(for official use only) -

Multi Purpose Work Barge For Charter
DP3 Construction Barge for Lease
DP3 Multi Purpose Work Barge for Charter
Offshore construction barge for charter
Multi Purpose Offshore Barge - DPS3
DP3 Offshore Barge for Lease
Offshore accommodation Work Barge for lease
Offshore work barge for charter

-------------------------------------------------------------------------------------------------------

Tank Capacity

Cargo Discharge Rates

Deck Machinery

Air Conditioning Ventilator

Accommodation

-----------------------------------------------------------------------------------
Search words (for official use only) -

AHT Vessel for Sale
4,000 BHP AHT Bollard Pull for Sale
50Ton Bollard Pull AHT for Sale
Overall 40m long AHT for Sale
4,000bhp Anchor Handling Tug Supply Vessel
50Ton BP AHT for Sale
