Tug Boat For Sale
Description:
Type of Ship : Harbour and towing Tug Boat with FiFi Built Year : 18 Oct,2008 Class : ZC Navigation/service area : Coastal/A1 GRT/NRT : 493t/147Mt
Dimensions Loa : 38.80 m Lpp : 35.00 m Breadth (M) : 10.20 m Depth(M) : 4.80 m Draft(light/loaded) : 2.65/3.43 m Light/loaded displacement : 714.90/1019.40 Mtons Material(hull/deck) : Steel/steel
Engine M/E(type/output/rpm/set) : G8300zc6B,1500kwx500rpm,2sets, Made in Wuxi,China Aux.(type/output/rpm/set) : 495AZD/35.30KW/1500RPM,/1sets, Made in China 6135Zcaf/1330KW/1500RPM/2sets, Made in China Generator(type/output/rpm/set) : STC-30/30KW/1500RPM/1sets, Made in China T2H2XV-120-2/120kw/1500rpm/2sets, Made in China
Bow thrust : Fitted Oil : Light oil Navaids : 1 STR6000,1 FT1500,1 H3E/H3E/J2B/F1B,1 SAR-9, 1 SEP-406,2 STV160,1 GPS,/2 MAGNETIC COMPASS, 1 SOUNDER ECHO
FiFi : Main fire pump 3BA6/60m³/h/0.50Mpa, Fire extinguisher 11sets,others 6uints
Propulsion : 1 Gear 1.757:1,2 stern shaft Dia.240mm,2 Dia.2000mm fixed Cu propeller
Annual survey : 27 Sept.,2009
Price & terms : Please enquire using the email form below.
If you cannot find the vessel, crane, rig or equipment that you need, please send us an email to mail@worldoils.com stating your requirements and we shall find it for you.
We can arrange delivery of equipment and towage of rigs and vessels where needed.
The details mentioned above are believed to be accurate but are not guaranteed. -------------------------------------------------------------------------------------------------------- Search words (for official use only) - Tug Boat - 2 x 2040hp - For Sale 2008 Built Tug for Sale Tug Boat 2008 Built For Sale Tug For Sale --------------------------------------------------------------------------------------------------------

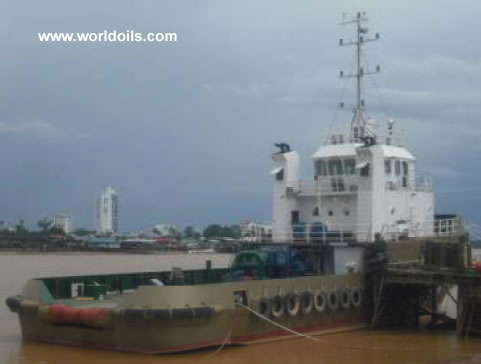

Twin Screw Tug For sale 1600HP Twin Screw Tug For sale Used Twin Screw Tug For Sale
Type : Steel Twin Screw Tugboat Built : 2001 Classification : NKK LOA : 27.00 M Registered Length : 25.82 M Registered Breadth : 8.50 M Registered Depth : 4.15 M GRT / NRT : 217 / 66 Tons Bollard Pull : 20 T
Main Engine : 2 X 800 HP Yanmar 6N165-EN @ 1400 rpm with Kort Nozzle Estimated Speed : 10 knots Aux Generator : 2 X 40 KW / 50 HZ Perkins Model: LJ35009-T4.236
Fuel Oil Capacity : 185 M3 Fresh Water Capacity : 45 M3 Ballast Capacity : 29 M3 Accommodation : 12 Crew
Navigation Equipment : Marine Radar – JRC JMA-2253 GPS Navigator – Furuno GP-31 SSB MF / HF Marine Transceiver – Furuno FS-1503 VHF Marine Radio – Icom M IC-M45 VHF Marine Radio – Furuno FM-27 Color Fish Finder – Furuno FF-35 Navtex Receiver – Furuno NX-500 Magnetic Compass – Daiko Towing Winch : 20 Tons Capacity with Holding Brake 60 Tons
Sewage Treatment Plan : Capacity - 15 persons
Fresh Water Maker : Yes
Air Condition : Wheelhouse, Capt Cabin, C/E Cabin and Crew Compartment
The details mentioned above are believed to be accurate but are not guaranteed.
------------------------------------------------------------------------------------------------------- Search words(for official use only) : Twin Screw Tug For sale 1600bhp Twin Screw Towing Tug for Sale Used Towing Tug for sale in Asia Towing Tug for sale Towing Tug for sale in Singapore 1600 bhp Twin Screw Tug Towing Tug from Malaysia -------------------------------------------------------------------------------------------------------
2500T DWT Bulk Carrier for Sale
Description
DWT : 2500 tons Built : 1986 Class : ZC GRT/NRT : 1505 / 959 tons Loa X Lbp X B X D : 76.00 x 70.00 x 12.00 x 6.00 m Draft : 4.95 m Grain / Bale : 3500.70 CBM / 3230.80 CBM Ho / Ha : 1/1 Hatch size : 42.00m x 8.00 m Hatch Cover : Steel M/E : HANSHIN 6LU28A, 1320ps@ 395 rpm Consumption : CST120, 2.8 tons / day Generator : (2 sets)Yanmar 6KFL-HT 220PS 440V144KW Consumption : MDO 0.3 tons / day Speed : 10 knots Price & terms : Please enquire using the email form below.
The details mentioned above are believed to be accurate but are not guaranteed. --------------------------------------------------------------------------------------------------------------------------- Search words(for official use only) : Bulk Carrier 2500T DWT For Sale Bulk Ship For sale 1986 Built Bulk Carrier for Sale Bulk Carrier for Sale Bulk Ship 1986 Built For Sale ------------------------------------------------------------------------------------------------------------------------------
Trailer Hopper Suction Dredger for sale 7000cbm Dredger for sale
Description 7000 Cube Meter ZC Class Trailer Hopper Section Dredge-NB Vessel’s Main Particulars 1. Length over all ~ 110.40m 2. Length bp 100.60m 3. Breadth mld 20.60m 4. Depth mld 8.50m 5. Design draught 5.50m 6. Dredging draught 6.80m 7. Soil load(in dredging condition) 7922t 8. Scanlting draght 7.7m 9. Deadweight at scanlting draught) 9696t 10. Max. dredging depth（Below light WL） 27m 11. Complement 36P 12. Main engine power 2×3088KW 13. Free Speed 12kn 14. Gross tonnage 5970 15. Height between decks： 16. Main deck to Poop deck 3.00m 17. Poop deck to Accomm. deck 2.70m 18. Accomm.deck to Boat deck 2.70m 19. Boat deck to Bridge deck 2.70m 20. Bridge deck to Compass deck 3.00m 21. Main deck to Forecastle deck appro. 3.00m 22. Hopper coaming 3.00m
Power Supply 1. Main Engine: 2 X G8320ZC18B 3088kW @ 650rpm Fuel: DO 2. Dredger pump engine: 2 X G6300ZC7B 1470 Kw @ 600rpm Fuel: DO 3. High pressure jet pump engine: 2 X XCW8200ZD 928 Kw @ 1000rp Fuel: DO 4. Diesel-generator: 3 X CCFJ396J-M10 400 Kw @ 1000rp Fuel: DO 5. Emergency: 1 X CCFJ120Y 120 Kw @ 1500rp Fuel: DO
Dredge Pump Parameter 1. Type: Changsha water pump manufacture co., ltd.---WNB1900(S) 2. parameter When Loading When Self-emptying 3. capacity 10300 m3/h 9000 m3/h 4. waterhead 21 m 32m 5. speed 255 r/min 300r/min 6. power 1000KW 1400KW 7. Suction pipe diameter DN800mm 8. discharge pipe diameter DN750mm
High Pressure Jet Pump 1. Two high pressure jet pump shall be equipped for draghead high pressure flushing and sel-emptying . The jet pumps are as follows: 2. Capacity 3200m3/h 3. Waterhead 84m 4. Speed 1500r/min 5. Power of shaft 861.2KW 6. Suction pipe diameter DN500mm 7. Discharge pipe diameter DN400`mm
Design Load Capacity 1. Soil 7180.8t 2. Diesel oil 500t (max 1140.6t) 3. Lub. Oil 25t (max 89.6t) 4. Fresh water 180t (max 237.5t) 5. Supplies and stores 20t 6. Crew and luggage 5t 7. Provision 3t 8. Sewage 8t 9. Total 7921.8 t Dredging Character Maximum Dredging Depth In light condition, suction pipe at 45 degree , the dredging depth is 27 m below light water line.
1. Loading Time Dredge middle hardness fine sand, depth 27m, with double suction pipe, the charging time I-s approximate 65 minutes.
2. Dump Time With jet water, dumping time is 5 minutes
3. Hopper Capacity Maximum hopper capacity is 7203 cubic meters, the level of soil is below the hopper coaming top 800mm.(overflow wier highest place) Price & terms : Please enquire using the email form below.
The details mentioned above are believed to be accurate but are not guaranteed. -------------------------------------------------------------------------------------------------------------------------- Search words (for official use only) - 7000cbm Trailer Hopper Suction Dredger Dredger for sale Trailer Hopper Suction Dredger 7000cbm For Sale ---------------------------------------------------------------------------------------------------------------------------
GRT : 2,826 NRT : 1,283 DWT : 4,485 M/E : 6EL40
BHP : 3,300 CV RPM: 130 Cargo Gear : - Derricks : 3 Units x 15 Mts Service Speed : Full Loaded : 12.3 knots In Ballast : 15.1 knots
The service capacities of bunker and fresh water : FW / DO / FO : 390.7 / 37.4 / 331.6 mts
Daily Consumption Main Engine : 8.0 mts FO/day
Ventilation System : Natural Cargo batten fitted : NIL Type of Hatches’ cover : Pontoon
Towing Tug for Sale 1991 Built Tug for sale
Built : 1991 Class : JG Coastal LB :11.94x4.95 M/E : MHI SBB-MTC 500ps x 2/300rpm
Inspectable Place: West Japan
The details mentioned above are believed to be accurate but are not guaranteed. ---------------------------------------------------------------------------------------------------------------------------------- Search words (for official use only) - Towing Tugs 1991 Built for Sale 1991 Built Towing Tug for sale Used TowingTug for Sale Tug for sale -------------------------------------------------------------------------------------------------------------------------------------

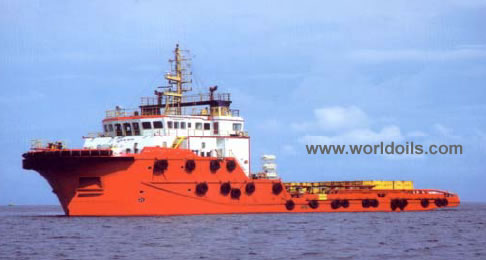

Offshore Support Vessel - 58m - for sale - 2003 built OSV for sale Specifications : Type of Vessel : Offshore Support Vessel Year built : 2002 Registered : 2003 GRT/NRT : 1368/410 Plying Limit : Unrestricted Classification : American Bureau of Shipping. Class Notation : ABS + A1 E Offshore Support Vessel *AMS* FiFi Class1 Horse Power : 2 x 2100 BHP Cruising Speed : 12 Knots
Fuel Consumption : Cruising Speed 650 Litres/hour Generator 80 Litres/hour
Main Characteristics : L.O.A : 57.50 M Breath Moulded : 13.80 M Depth Moulded : 5.50 M Max Draft : 4.50 M Deck Strength : 7 MT/sq m Clear Deck space : Approx. 350 sq. m Deck Cargo : 700 MT Deadweight : 1369 Tonnes
Capacities : Fuel Oil : 350 cu.m Fresh Water : 200 cu.m Drill Water : 380 cu.m Liquid Mud : 2 x 125 cu.m Dry Bulk : 4 x 1650 cu. ft Foam : 11 cu.m Detergent : 11 cu. m Freezer : 6 cu. m Chiller : 8 cu. m
Auxiliaries : 3 x Caterpillar 3408 C Genset 315KW/415V/3Ph/50Hz Pump : 2 x 1200 cbm/hr @ 11 bar cu.m. at head 30m. Main fire pump : 1 x Allen gwynnes nimbus pump capacity of 50 cu.m at head 100 m. Emergency fire pump : 1 x Yanmar VDP20E pump capacity 500 ltrs/min at head 30m.
Deck Machinery : 3 x 5 MT electric capstan. 1 x 8 MT @ 12 m/min electric hydraulic type c/w 2 x wildcats plus 2 x warping drums 2 x 1590 kg stockless bower anchors Total 372 m x 34 mm U2 stud-link chain
Propulsion Machinery : Main Engines : 2 x Caterpillar 3516 B each of 2100 BHP Marine Gearbox : 2 x Reintjes WAF 862 L with ratio 5.50 : 1 Propulsion : 2 x Berg controllable pitch in kort nozzles Bow Thruster : 1 x 325 KW Kawasaki KT-43 B1 (CPP) tunnel units of 5 MT thrust
Navigation & Communication Equipment : GMDSS : Area 3 Gyro Compass : 1 x Furuno Radar : 2 x Furuno Echo sounder : 1 x Furuno SART : 2 x Joltron EPIRB : 1 x McMurdo MCM-406A Navtax Receiver : 1 x Furuno Autopilot : 1 x Anschuetz Weather Fax : 1 x Furuno Speed Log : 1 x Furuno GPS Plotter : 1 x Furuno
Accommodation : Fully air conditioning total 50 berth 1 x 2 berth hospital & 1 x office
Fire Fighting Equipment : Fire Pump : 2 x 1200 cbm/hr @ 11 bar Fire Monitor : 2 x 1200 cbu/hr @ 12 bar Fire Extinguish system : Fixed Co2 system for engine room Fire Hydrants and Extinguishers : As per Classification’s requirement
Life Saving Appliances : As per SOLAS 74/78, Port of Registry and Classification’s requirements
Other Equipment Life Rafts : 4 x 25 men Rescue Boat : 1 x 6 men rigid rescue craft c/w davit & 25 HP outboard engine. Manoverboard : 2 x Comet. Deck flood light : 3 x 1000 W deck flood light. Compressor : 1 x BA recharging compressor
--------------------------------------------------------------------------------------------------------------------------------- Search words(for official use only) - Offshore Supply Vessel For Sale Offshore Supply Vessel For Sale in Singapore, Malaysia, Indonesia OSV for sale in Singapore, Malaysia, Indonesia Offshore Support Vessel OSV For Sale ---------------------------------------------------------------------------------------------------------------------------------

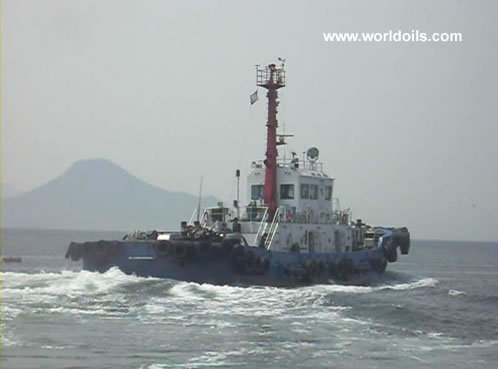

3600hp ASD Tug Boat for sale 2008 Built Tug for Sale Description Built : Nov 2007 Capacity : 3600hp Class : Korea Dimensions : 33.80 x 9.4 x 4.15 m Location : Korea GT: 213 tons M/E : NIIGATA 6L25HX, 1323kW @ 750rpm x 2sets Propeller: NIIGATA Z-peller x 2sets Speed : 13.5 knots (design speed) / 13.93 knots (sea trial max.) Fuel consumption: 201 g/kW. Hr Nav. & Comm. : Radar, GPS Plotter, AIS, VHF, Magnetic Compass, etc. Hyd. Winch : Fitted at bow & stern Fi-Fi system : Fitted More details available on request.
The details mentioned above are believed to be accurate but are not guaranteed. ---------------------------------------------------------------------------------------------------------------------------- Search words (for official use only) - ASD Tug Boat for Sale 3600hp Tug Boat for Sale 2008 Built Tug Boat for Sale Tugboat for Sale - 3600hp ASD Tugs for Sale -------------------------------------------------------------------------------------------------------------------------------
Coal/Ore/Sand Loading barge for sale Description Built: 2008 Loading Capacity: 2000ton/HR Available: COAL / ORE / SAND Loading at offshore from barge to huge vessel. Inspectable Place : West Japan Price & terms : Please enquire using the email form below.
The details mentioned above are believed to be accurate but are not guaranteed. -------------------------------------------------------------------------------------------------------- Search words (for official use only) - Coal/Ore/Sand Loading Barge 2008 Built for sale 2008 Built Coal Loading Barge for sale 2000ton/hr Loading Capacity Barge 2008 Built Sand Loading Barge for sale -------------------------------------------------------------------------------------------------------
---------------------------------------------------------------------------------------------------------
New Tug For Sale Newbuilding 1658BHP 26M Towing Tug 1600BHP Towing Tug For Sale
Principal Particulars Class : GL Length overall : 26.00m Length B.P. : 23.98m Breadth moulded : 8.00m Depth moulded : 3.65m Draft moulded : 3.00m Trial speed : approx 10 knots Designed bollard pull : 22 tonnes (approx) Machinery Main Engine : Yanmar 6AYM-ETE, 2 x 829BHP / 1900 rpm Gear box : Yanmar YXH 240 L, Ratio: 5.91:1 Propeller : 2 x solid fixed pitch propellers Main generator : 2 x 28KVA Cummins / Yanmar Tankage Fuel oil : 153M³ Fresh water : 46M³ Ballast : 29M³ Deck Machinery Anchor : 2 x stockless bower anchors (420kg) Chain Cable : Nine (9) lengths of Grade U2 chains Anchor Windlass : 17.5mm anchor windlass Towing Hook : 1 x 25 tons
Navigation & Communication Equipment Echo Sounder : 1 GPS : 1 Radar : 1 4” Spare Magnetic Compass : 1 SSB & VHF : 1 EPIRB : 1 Battery Clock : 1 Barometer : 1 Searchlight : 1 Floodlight : 3 Clear View Screen : 1 High Steering Wooden Chair : 1 Auxiliary Equipment Bilge & Ballast pump : Power: 1 x 2.2HP / 1.65kw / 415v50Hz Q (1/min): 50 – 170 H (m): 42 -22 GS & Fire pump : Power: 1 x 2.2HP / 1.65kw / 415v50Hz Q (1/min): 50 – 170 H (m): 42 -22 Fresh water pressure set : Power: ½ HP Suction head (m): 8 Max. Quantity (1/min): 48 Sea water pressure set : Power: ½ HP Suction head (m): 8 Max. Quantity (1/min): 48 Fire Fighting System 2’ Firehouse + Hydrants : 3 sets Fire Extinguisher : 9 nos Fireman Axe : 1 Scoop & Sand Box : 1 Fire Bucket : 3 Anchor Ball : 3
Life Saving Equipment Life Raft : 2 units (10 men) Life Buoy : 8 pcs Life Jackets : 14 pcs Parachute Distress Rocket : 12 pcs Fireman Outfit : 1 set Accommodation Total Complement : 10 Crews Price & terms : Please enquire using the email form below. If you cannot find the vessel, crane, rig or equipment that you need, please send us an email to mail@worldoils.com stating your requirements and we shall find it for you. We can arrange delivery of equipment and towage of rigs and vessels where needed. The details mentioned above are believed to be accurate but are not guaranteed.
------------------------------------------------------------------------------------------------ Search words ( For official use only) : Towing Tug for sale Towing Tug for sale in Singapore Newbuilding Towing Tug for sale in Asia 1600bhp Towing Tug for Sale Tug For USA Tug For Columbia 1658 bhp towing Tug Tug For South America Tug For Mexico New Towing Tug For Sale in Singapore Tug For Trinidad --------------------------------------------------------------------------------------------
DP1 Subsea Support Vessel 4400BHP DP1 Support Supply Vessel for Sale Specifications
General Class : ABS Notation : ABS Class+A1 (E) “Offshore Supply Vessel, Fire Fighting Vessel Class 1” + AMS + DPS-1
Principal Particulars Length Overall : 59.25m Length Waterline : 46.00m Breadth Moulded : 15.00m Depth Moulded : 6.10m Draft (max) : 4.60m GRT/NRT : 1600/ TBA (approx)
Performance Maximum Speed : 12.5 Knots Economical Speed : 10 Knots Type of Fuel : Marine Gas Oil Bollard Pull : Nil
Fuel Consumption : 19 cbm /24 hours @ max speed 12 cbm /24 hours @ econ speed
Cargo Capacities Deadweight : 1450 Ton (approx) Deck Cargo : 500Ton (approx) Deck Strength : 7 Ton/sqm uniform loading Clear Deck Area : 350 sqm (approx) Fuel Oil : 1000 sqm (approx) Fresh Water : 250 sqm (approx) Ballast/Drill Water : TBA sqm (approx) Liquid Mud : Nil Cement TankCement Tank : Nil Freezer / Chiller : 10 cbm / 10 cbm Foam / Detergent : 15 cbm / 15 cbm Rig Chain Locker : Nil
Pumps Fuel Oil : 1 x 150 cbm/hr @ 60 m head Fresh Water : 1 x 100 cbm/hr @ 75 m head SWB/Drill Water : Nil Liquid Mud : Nil Bilge/Ballast : 2 x 75 cbm/hr @ 40 m head GS/Fire Pump : 1 x 75 cbm/hr @ 40 m head Bulk Cement Compressor : Nil
Propulsion System Main Engines : 2 x 2200BHP (1600kw) @ 1600rpm, Wartsila 8L20 Main Generator : 3 x 350kw, 415V/3Ph/50Hz, CAT Emergency Generator : 1 x 80kw, Cummins Bow Thruster : 1 x 5 Ton Thruster, abt 350kw, Kawasaki KT-43B1 Steering Gear : Nil Z-Peller : 2 x Wartsila，Lips CS 225ï¼S/WN-K DP1 : MT or Kongsberg
Deck Equipment Anchor Windlass 1 x electro hydraulic, 8 tons @12 m/min for 40mm Drum Nil Mooring lines 4 x 160M @ 157kn breaking strength Tow line 1 x 190M long towline of min. 406KN breaking Bow Anchors 2 x 1575 kg HHP anchor Chains 440 m (L) x 40 mm (Dia), Grade U2 Capstan 2 x 5 mt @ 15 m/min electro hydraulic, Marine Equipment
Mooring winch : 4 x 60 mt @ 1000M, 32mm dia. wire 4 x 3 tonnes high holding type anchors
Deck Crane : 10 tons x 20m
Accommodation 4 x 1 berth cabin = 4 3 x 2 berth cabin = 6 10 x 4 berth cabin = 40 Total : 50
Hospital Hospital 1 x 1 berth cabin = 1 All cabins fully air-conditioned & c/w attached washroom.
Radio & Navigation Equipment GMDSS Area A3, consist of : SSB 1 x JRC/Furuno Inmarsat C 2 x JRC/Furuno VHF Radio 2 x JRC/Furuno Navtex ReceiverNavtex Receiver 1 x JRC/Furuno1 x JRC/Furuno SART 2 x JRC/Furuno EPIRB 1 x JRC/Furuno Portable VHF Radios 3 x JRC/Furuno Radar 2 x JRC/Furuno Echo Sounder 1 x JRC/Furuno DGPS 1 x JRC/Furuno Gyrocompass 1 x JRC/Furuno/Anschutz/Tokimec Autopilot 1 x JRC/Furuno/Anschutz/Tokimec Magnetic Compass 1 x JRC/Furuno Weather Fax 1 x JRC/Furuno Speed Log 1 x JRC/Furuno Wind Indicator 1 x JRC/Furuno AIS 1 x JRC/Furuno
Joystick Kongsberg/MT Vessel also fitted with PA Talkback System & Self-powered Telephone.
Fire-Fighting Equipment and Anti-Pollution Equipment External : FiFi System Class 1 with water curtain all round Fire Pump 2 x 1200 cbm/hr @ 11 bar driven by front PTO ME Monitors 2 x fire monitors water/foam 1 x 300 - 1200 cbm/hr, FFS water 1 x 1200 cbm/hr, FFS Oil Dispersant System 2 x Cluster nozzles
Internal : Emergency Fire Pump 1 x 25 m3/hr x 45m head BA Recharing Comp 1 x 75 ltr/min @ 200 bar CO2 system in engine room Fire Detection & Alarm in living spaces and engine room.
Miscellaneous Liferafts 6 x 20, SOLAS standard,ChinaMake Rescue boat 1 x 6 men, c/w outboard engine, China Make ina Make Oily Water Separator 1 x 1.0 m3/hr c/w 15ppm alarm Water Maker 1 x 5 T/day, Sweden Sewage Treatment Plant 1 x 60 men/day,China Make Air cond and freezer Germany
----------------------------------------------------------------------------------------------------------------------------------- Search words (for official use only) - 4400bhp New DP1 Support Supply Vessel DP1 Subsea Support Vessel 4400bhp for sale New 4400BHP DP1 Support Supply Vessel for Sale Brand New Subsea Support Vessel Over 59m Subsea Support Vessel for sale -----------------------------------------------------------------------------------------------------------------------------------------

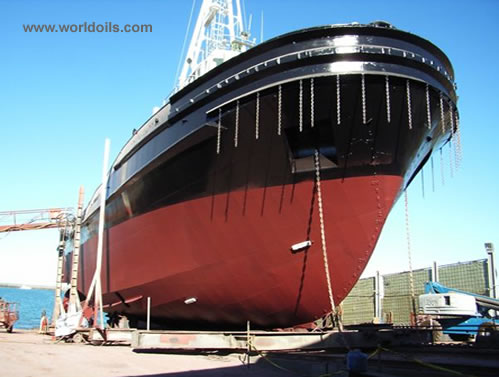

55Ton BP ASD Tugs for sale ASD Tugs Z-Peller for sale
Particulars of the 2 units ASD Tug Delivered 1983 – Australian Shipbuilding, WA 35.01m x 11.16m x 4.25m (draft) 2 x Niigata 8L27.5X 2,100bhp @775rpm (ttl 4,200bhp) Niigata Z-Peller Approx 55t BP LR Class, SS due 2013 Price & terms : Please enquire using the email form below.
---------------------------------------------------------------------------------------------------------------- Search words(for official use only) : Used ASD tugs for sale ASD Tugs for sale 55Ton bollard pull ASD tugs for sale 55Ton BP ASD tugs -------------------------------------------------------------------------------------------------------------------------
Platform Supply Vessel For Sale 3500hp PSV For Sale PSV for Sale
Dimensions L.O.A : 61.6 metres L.B.P. : 57.2 metres Beam (Moulded) : 11.6 metres Depth (Moulded) : 4.65 metres Draft (Moulded) : 4.03 metres Max Deadweight : 1,137 tonnes Load displacement : 1,943 tonnes Air Draft : 24.20 metres GRT/NRT : 846/328 Machinery Main Engines : 2 x Yanmar Type 6Z-ST, each rated 1,760 bhp at 702 rpm Total BHP : 3,520 bhp Auxiliaries : 3 x Caterpillar, each 200kW/60 Hz, plus 1 x 50 kW/60Hz harbour set Electrical Power : 2 x Becker Rudders Propellers : 2 x 4 bladed, fixed pitch Bow Thruster : 1 x 605 bhp, omnidirectional Gilljet Stern Thruster : 2 x Becker rudders Tugger Winches : 1 5 tonnes at 10m/min Capstans : 2 x 5 tonnes at 10m/min Cargo Capacities Deck Area/Dimensions : 333 sqm (37.0 metres x 9.0 metres) Deck Cargo/Load : 650 tonnes (5 tonnes/sqm) Potable Water (cbm) : 148.5 cbm (+ 30 domestic) Drill Water (cbm) : 318 cbm Fuel Oil (cbm) : 333 cbm Oil Based Mud (bbls) : 2,115 bbls Brine (bbls) : 2,115 bbls Base Oil (bbls) : 2,115 bbls Dry Bulk (cu ft)/No of tanks : 8,181 cu ft/Three Discharge Rates Potable Water : 80 cbm/hour against an 85 metre head Drill Water : 80 cbm/hour against an 85 metre head Fuel Oil : 80 cbm/hour against an 85 metre head Oil Based Mud : 500 bbls/hour against an 60 metre head Brine : 250 bbls/hour against an 60 metre head Base Oil : 500 bbls/hour against an 60 metre head Dry Bulk : 40 tonnes/hour through 120 metre 5” pipe (Claudius Peters pressureless tanks)
Performance Speed/Consumption : 0.5 tonnes MGO per day in port 1.5 tonnes MGO per day on location 4.5 tonnes MGO per day at 10 Knots (economical) 8.3 tonnes MGO per day at 13.25 Knots (maximum) Navigation/Commumications Radar 1 : Furuno 1505 DA Radar 2 : Furuno 1505 DA Gyro compass : Anschutz 12 Gyro Repeater : LR 40 Magnetic compass : Brown Sestreline II Auto pilot : Decca Arkas 450G GPS Navigation : Valsat GPS Main Receiver : Sailor R1119 VHF radios : 2 x Sailor RT144c Portable VHF : 3 x ICOM IC – M12 Weather Keeper : Sailor R501 Navtex receiver : ICS Nav 5 S.A.R.T : 2 x McMurdo RT9 EPIRB : JRC JQE – 2A Cellular Telephone : Yes Echo sounder : Simrad ED 161 Satellite communication : Inmarsat C Accomodation Crew : 11 berths total (9 x 1 berth, 1 x 2 berth) Passengers : 12 berths total (3 x 4 berth cabins)
------------------------------------------------------------------------------------------------------------------------- Search Words (for official use only) : Platform Supply Vessel For Sale PSV For Sale - 3500BHP Platform Supply Vessel in Singapore 3500BHP PSV for Sale PSV for Sale in Europe PSV for sale in Middles East 3500bhp Platform Supply Vessel ----------------------------------------------------------------------------------------------------------------------------
Mini Bulker For Sale 1978 Built Small Bulker For Sale
6.100 tdw on 8.45 m Singledecker with boxhold Built : 1978 Lloyds class
Dims : 80.20x16.0 m 1 boxhold 7373/7271 cbm gr/bale – 1 hatch Tanktop 15 ts/m2 Cranes 2 x 15 tons sidemounted Hanshin 3000 hp - IFO burner Price & terms : Please enquire using the email form below.
------------------------------------------------------------------------------------------------------------------------ Search Words(for official use only) : Bulk Carrier for Sale in Caribs 6000T dwt Bulk Carrier For Sale Small Geared Cargo Ship for sale 6000 dwt bulker for Sale Bulk Vessel for sale ---------------------------------------------------------------------------------------------------------------------------
Utility Boat - 26m / 50 Pax / 1991 blt for sale Crewboat for Sale / Utility boat for sale
Year : 1991 Class : Bureau Veritas (BV)
Dimensions : Length overall : 85.00 FT Breadth : 19.40 FT Depth : 08.80 FT Draft loaded : 06.00 FT Gross tonnage : 90.00 Ton Net tonnage : 28.00 Ton
Machinery : Main engines : 2 x Detroit Diesel 12V 71TI x 510bhp Propellers : 2 fixed pitch Generators : 2 x KATO 120/208 V, 60 Hz, 40 kW each
Speed : Maximum / Cruising : 18/16 knots Fuel / Stby : 12 ltr/hour
Fuel Consumption : Max speed 190 ltrs/hrs Pump capacity N/A Cruising speed : 180 ltrs/hrs
Capacities : Fuel oil : 18,000 Ltrs Water : 9,000 Ltrs Free deck space : 50 M2 Deck cargo capacity : 20.00 LT Accommodation fully air conditioned : 6 crew, 50 pax (reclining seats)
Navigation/Communication : Radar : 1 x Furuno, FR 8050D, Range 48 NM Loudhailer : 1 x Raytheon, Ray 420 Echo sounder : 1 x Furuno FCV-667 Magnetic compass : 1 x Danforth Satellite navigation (GPS) : 1 x Furuno GP 30 SSB radio : 1 x ICOM IC-M700 VHF radio : 2 x Sailor RT 2048 Gyro Compass : 1 x Sperry –SR-50-Mod-1, M2958 Depth Sounder : Datamarine 3000
Fire Fighting/Safety : Monitors : N/A Safety Equipment : as per SOLAS, Flag and Class Society requirement
------------------------------------------------------------------------------------------------------------------------ Search words : Offshore crewboat for sale Offshore utility vessel for sale 26mt 50 pax crewboat/utility boat for sale Crewboat for sale Untility boat for sale ---------------------------------------------------------------------------------------------------------------------
Accommodation Work Barge for sale - 95.4m 300men 300 men Accommodation Work Barge for sale
95.4M/300 men Accomodation Work Barge ------------------------------------------------------------ Principal particulars : Built : 2010 Classification : ABS+A1 Accomodation Work Barge
Dimensions : Length overall (LOA) : 95.4 m Breadth moulded : 30.0 m Depth : 6.5 m Draft (design) : 4.0 m Lightship draft : 2.5 m DWT 4.0m draft : abt 5,100 t GRT/Nett tonnage : 8,691t /2,607t
Deck Loading : Cargo deck area : approx. 1135 sqm Cargo deck design load : 10 t/ sqm
Capacities : MGO/ Fuel : 1323 cbm Fresh water : 2621 cbm Ballast : 3000 cbm
Discharge Rates : Fresh water/pump : 1 x 100 cbm/hr @ 80m head Fuel oil/pump : 1 x 100 cbm/hr @ 80m head Ballast water : 2 x 160 cbm/hr @ 90m head
Machinery : 5 x Generator set diesel driven, each 420 kW @ 1800 rpm 1 x Radiator cooled emergency generator set 99 kW @ 1800 rpm
Life saving and safety equipment : As per SOLAS Class requirement Liferaft : 36 units x 25 persons Rescue boat : Cap 6 persons (Vanguard) c/w davit
Accomodation : 4 x 1 men cabin 10 x 2 men cabin 69 x 4 men cabin Complement - 300 men
Deck equipment : Pedestal crane : All main drive and hydraulic operated, Min boom length 52m offshore floating rating 200t @ 15m radius Auxiliary crane : 30t @ 10m radius Bouy handling crane : 2t x 10m @ B deck bow Mooring winch : 8 x skid mounted self-contained single drum rated pull 75t x 10m/min/20t x 0-30m/min Drum capacity : 1400m of 44 mm dia steel wire rope Anchors : 8 x Flipper Delta 700kg high holding power Helideck : Suitable for Sikorsky 61N capacity
Navigation and communication equipment : VHF (Furuno FM-8800)/DSC Radio Telephone : 2 sets MF/HF Radio Telephone : 1 set Radar Transponder (SART) McMurdo S4 GMDSS 9GHz :1unit Two-way hand-held VHF Radio Telephone : 3 units DGPS (Furuno GP37 DGPS Receiver) : 1 unit Aviation portable radio : 2 sets Inmarsat (Furuno Felcom 16 SSAS) : 1 unit Inmarsat Fleet Boroadband (KVH FB 500) : 1 unit Echo sounder (Furuno FCV-620) : 1 unit Navtex (McMurdo Nav-7) : 1 unit Anemometer (RM Young wind anemometer) : 1unit EPIRB (McMurdo Smartfind E5) : 1 unit AIS (Furuno FA150) : 1 unit SSB (Furuno FS1570 MF/HF) : 1 unit Helicopter comm system ( 1 x Icom A210 VHF AM Transceiver, 2 x Icom A24 aviation portable radio beacon)
Accomodation spaces/equipment : Galley : 1 x 180-catering with cooking utensils/refrigeration Day room : 2 x Master/Senior tool pusher day room and bedroom c/w toilet Mess room : 2 x abt 150 persons each with furnitures and fittings Lecture room : 1 x crew TV/Video room Recreation room : 2 x crew/officer recreation room (including smoking rooms) Gymnasium : 1 x fully outfitted Laundry room : 1 Changing room : 1 Treatment room : 1 Tool pusher office : 1 Freezer/chiller : 1 Church room : 1 Heli waiting room : 1 Watermaker : 2 x R/O units @ 50T/day Sewage treatment : 200-pax capacity complying to IMO and USCG Workshop : 2 x company/deck workshop Hospital : 1 c/w 5 berths, furnitures and toilet Conference room : 1 c/w meeting facilities Office : 3 x furnished at top deck Radio / control room : 1 x fully outfitted with communication and fire safety monitoring alarm system at top deck Blasting and painting room : 1
Particulars believed to be correct. Owners reserve their rights to amend specifications without notification
---------------------------------------------------------------------------------------------------------- Search words : 300pax Accommodation Barge for Sale Accommodation crane barge 300 men Accommodation Work Barge for sale Accommodation Work Barge for Charter 300pax Accommodation Work Barge Accommodation Work Barge for sale - 95.4m 300men ------------------------------------------------------------------------------------------------------------

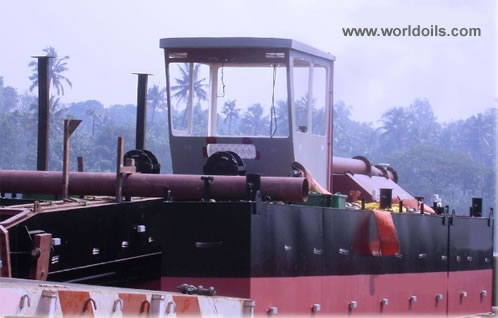

Dredger For Sale - CSD 250 New build 410HP Cutter Suction Mini Dredger for Sale New CSD 250 Cutter Suction Mini Dredger Principal Dimensions and Particulars 410 HP CSD-250
General - Hull Length : 12.95 mtrs Hull Width : 4.58 mtrs Hull Depth : 1.5 mtrs Length Overall : 15.85 mtrs Height Overall (spuds installed and elevated) : 9 mtrs Height overall (spuds, spud hoists, and muffer removed) : 4.0 mtrs Digging Depth - Maximum : 6 Mtrs (Option : 10 Mtrs) Minimum : 1.0 Mtr Prime Mover Caterpillar Diesel Engine CAT 3406 B DITA : 306 Kw (410 hp) Cutter - Shaft Power : 30 Kw Cutting Force : 1815 Kg Cutter Speed : 0-39 Rpm Cutter Diameter : 1100 mm Swing Winches - Wire size : 12 mm Drum Capacity : 80 mtrs Optional Equipment Choice of air conditioning or heating, standby generator, anchor booms, production assess-ing equipment, discharge pipeline & components. Specifications Hull Welded steel construction with ladder well forward. Built in fuel and hydraulic oil tanks. Main Dredge Pump Unit Directly coupled with gear box and water cooled Caterpillar diesel engine with Electric starter. Totally enclosed anti-friction radial and thrust bearing with impeller mounted on Acme threads. Hydraulic Power Package Triple section hydraulic gear pump direct off the main Engine. Hydraulic system includes three independent operating circuits; one for swing winch, one for cutter, and one for spud and ladder hoist. All controls are PLC based controls. Excavating Module and Ladder Cutter direct driven by gear type hydraulic motor. Spline connected to planetary reduction gear. Maximum cutter force available at all speeds. Underwater excavating module features short drive shaft with weight concentrated at the cutter for efficiency. Ladder Hoist Two no’s Double acting hydraulic cylinder Power Swing Winches Individual single direct line winches direct-driven by gear-type Hydraulic motors through planetary reduction gear, Speed and reverse controls at operator’s Console. Heavy-duty hydraulic system provides constant line pull at variable speed. Electrical System 24 volt DC internal/external lighting and electrical system is powered by Main diesel engine also with an option for shore connection. Spuds and Spud Hoist Heavy wall, Hydraulic steel spuds mounted in spud keepers at Stern, Spuds are hoisted by vertical hydraulic cylinder and choker sling arrangement. Assembly and Transportation Can be accomplished in 3 days provided all tools, site Preparations and personnel are available. The CSD-250 can be transported on two trucks with the spuds stowed on deck. Price & terms : Please enquire using the email form below. If you cannot find the vessel, crane, rig or equipment that you need, please send us an email to mail@worldoils.com stating your requirements and we shall find it for you. We can arrange delivery of equipment and towage of rigs and vessels where needed. The details mentioned above are believed to be accurate but are not guaranteed. ---------------------------------------------------------------------------------------------------------------------------------------- Search words (for official use only) - Cutter Suction Mini Dredger for Sale 410 HP Cutter Suction Mini Dredger for sale Cutter Suction Mini Dredger for sale - Newbuild Newbuild Mini Dredger - 410HP Cutter Suction Mini Dredger - CSD 250 for Sale in India New Mini Dredger for Sale Cheap New 410HP Dredger for sale Newbuild CSD 250 Cutter Suction Mini Dredger for Sale Cheap New Mini CSD Dredger for sale Cutter Suction Mini Dredger in Asia ---------------------------------------------------------------------------------------------------------------------------------------
Principal Particulars Class : KRS Built : 2011Gross Tonnage : 287 LOA x B x D : 33.0 c 10.0 x 4.5 mts Draft : 3.4 mts Bollard Pull : 63.5 Tons Complement : 10 persons
Machinery & Equipment Main engine : 2 x Niigata 6L28HX Propeller : Niigata ZP-31 x 2 sets (Kort Nozzle) Power : 4500PS (2250 x 2 sets) Aux engine : 2 x 250ps x 1800rpm Fuel capacity : F.O : 145 m3 MGO : 25 m3
Fresh Water : 25 m3 Service speed : 13.5 knots Towing hook : 60 Tons Navigation area : Coastal (inl ocean going)
Communications Tele-communications : 2 radars / VHF SSB Inmarsat - C
--------------------------------------------------------------------------------------------------------------------
Machinery and Propulsion Main Engines : 2 units x Cummins KTA50M21600 hp @ 1800 rpm Main Generator : 2 units x Cummins 6BT5.9DM 80kw Main Gearbox : 2 units x Reintjes WAF665 5.950
Tank Capacities - approx. Fuel Oil : 268M3 Fresh Water : 46 M3 Ballast : 60 M3
Deck Equipment - Local Made Anchor Windlass : 22mm Type Towing Winch : 40 tons Towing Hook :40 tons Capstan : 3 Tons
Performance Speed : Approx. 12 knots Bollard Pull : Approx. 38 tonnes Accomodation : 12 men
Steering Gear Control System Transpacific : Rudder Torque : 3.50 TM
PUMPS Bilge & Ballast Pump : 15M3/h @ 28m head GS & Fire Pump : 15M3/h @ 28m head Fuel Oil Transfer Pump : 5m3/hr @50M head FW Pressure Set : Pedrollo SW Pressure Set : Pedrollo (20m3/hr x 20m head) Emergency Fire Pump : 2" portable diesel engine Rotary Pump : Hand Rotary Pump
Air-Condition : Split unit type Oily Water Separator : CYF-0.50Y Sewage Treatment Plant : For 20 men
Navigation AREA - A1,A2,A3 SSB : Furuno FS-1570 Inmarsat-C x 2 : Felcom-15 VHF x 2 : Furuno FM-8800 Radar : Furuno FAR-2117 GPS : Samyung SPR-1400 Epirb : Samyung SEP-406 Navtex Receiver : SNX-300 Echo Sounder : Samyung SES-2000 SART : Samyung SAR-9 SpeedLog : Furuno DS-80 Walkie Talkie x 3 : Icom IC-M1600
Others Propeller Shaft : 177.80mm (8' diameter) Propeller : 2300mm Dia Fenders : Rubber Fenders
2008 Built General cargo Vessel for sale General cargo/Container ship for sale Description Ship’s Type : General cargo/Container ship Class : IRS ( PANAMA ) Building finish date : December 23, 2008 Dimensions : 118.45 x 17 x 8m Length over all : 118.45m Breadth : 17.00m Depth : 8.00m Design draft : 5.80m GRT : 4967.0t NET : 2108.0t DWT : ABOUT6500.0t/413TEU Hold NO.1 CAP : 2600.53 m3 NO.2 CAP : 2723.29 m3 NO.3 CAP : 2723.29 m3 Hatch dimensions: NO.1: 25.35m╳12.6m NO.2: 25.35m╳12.6m NO.3: 25.35m╳12.6m Ballast water CAP : 3030.67 m3 Fuel oil CAP : 258.28 m3 Diesel oil CAP : 68.55 m3 Fresh water CAP : 174.14m3 Main engine : 1 set/GUANGZHOU DIESEL/ type:8320Zcd-6/ power: 2060kw(2800HP)/r.p.m:525r/min Generators : 3sets/ type:CCFJ150J-W1 (diesel engine:type: 615C -22/176kw/1500r/min; alternator:type:MP-H-150-4/150kw/50Hz/400v) Emergency generator : 1set/ type:CCFJ64Y-WJ (diesel engine:80kw/ 1500r/min; alternator:64kw/50Hz/400v) Speed : 11kn Endurance ability : 4000n miles Price & Terms : Please enquire using the email form below. If you cannot find the vessel, rig or equipment or rig that you need, please send us an email to mail@worldoils.com stating your requirements and we shall find for you. We can arrange delivery of vessels where needed. ------------------------------------------------------------------------------------------------------------------------------------- Search words(for official use only) : General cargo/Container ship 2008 built for Sale 2008 Built Container ship for Sale General cargo Vessel ----------------------------------------------------------------------------------------------------------------------------------------
Supply/Diving/Support Vessel for Sale
Type: Supply/offshore vessel
Built: 1974 Class: Lloyds +100 A1 Class Status: New classed in 2009 Tonnage: 1210 GT 363 NT Dimensions: Loa 58.25 x Beam 12.80 x Depth 5.10 m Main engine: 4200 BHP Nohab Polar, 4 x 1.050 BHP Propeller: 2 x CCP-propeller in nozzle rudder Side Thrusters: 600 BHP Samuel White Giljet bow tunnel side thrusters, 2 x Spade rudders
Generators: 1 x 220 Kw 2 x aprx. 220 Kw (shaft gen)
Deck equipment: 1 x Deck crane type Petrell 125 ts/m , new 2009 2 x Mooring winches, new 2009 2 x Anchor winches aft - Hydr. pumping station, new 2009
Bunkers: Fuel: 845 m3 Water: 565 m3
Electronics: 2 x radio GPS Echosounder navtex Gyro VHF GMDSS A1+A2 etc.
Accommodation: 10 x single cabins for crew, 4 single cabins for clients, 4 double cabins for clients
Cargo capacity: 160m2 deckspace 80m2 topdeck space Freeboard at rescue zone 0,61m
Fuel consumption: Approx. 10 knots on 5.100 ltrs. gasoil per day approx. Eco approx. 7 knots on 3.800 ltrs. gasoil per day approx. Standby approx 2.500 ltrs. gasoil per day approx.
Accommodation: 2 mess room for crew 1 day room for the crew 1 mess room/ Office for Clients (in client area) 10 single cabins for crew (2 with own shower and toilet) Complete new client area build 2008-2009 4 single cabins for client 4 doublet cabins for client 3 shared toilet/showers in client area Rescue rafts: Viking - 4 x 20 persons.
MOB: Solas approved delivered by Viking Work Boat/FRC: RIB 2 x 60 HP SMC / ISM certification
The details mentioned above are believed to be accurate but are not guaranteed. ------------------------------------------------------------------------------------------------------------------------------- Search words : Support vessel for sale Supply vessel for sale Offshore Supply Vessel for Sale OSV 103 for Sale Used SV 103 for sale ------------------------------------------------------------------------------------------------------------------------------
Accommodation Work Barge For Charter Accommodation Work Barge for Sale
---------------------------------------------------------------------------------------- Search words(for official use only) -
Showing 145 to 192 of 630 results
.png)
.png)
.png)
.png)
.jpg)
.png)
.png)
.png)
.png)
.png)
.png)
.png)
Search Here

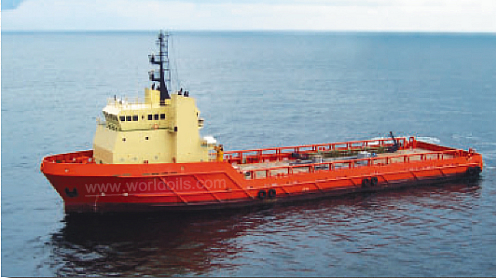

1629719304900.jpg "Offshore Supply Vessel - 1999 Built - For Sale")
