Split Hopper Barge for Sale 440 cubic meters Split Hopper Barge for Sale Non-Propelled Split Hopper Barge
General Information Year of Built : 2011 - keel laid end 2009 Class : Turk Loydu Notation : Pontoon +1A5 Coastal Class
Dimension and Capacities Lenght Over All : 43.0 m Breadht : 9.0 m Depth : 3.5 m Draft (loaded) : 2.7 m Hopper Capacity : 440 m3 Lenght of Hopper : 29.0 m Breadth of Hopper : 6.0 m
Generators Type : Deutz 90 BHP - Hydraulic Sunfab 120 lt (SC084 ) , Max pressure 400 bar Standford 16 kva , Alternator driven from genset. Double pistons working
Others Steel Tickness : 14 mm bottom of the hold 12 mm sides of the hold 10 mm keel plate 8 mm Hull and remained places
Price & terms : Please enquire using the email form below.
If you cannot find the vessel, crane, rig or equipment that you need, please send us an email to mail@worldoils.com stating your requirements and we shall find it for you.
We can arrange delivery of equipment and towage of rigs and vessels where needed.
The details mentioned above are believed to be accurate but are not guaranteed. ----------------------------------------------------------------------------------------------------------------------- Search words(for official use only) : Split Hopper Barge For Sale 440 cubic meters - Non-Propelled Split Hopper Barge Non-Propelled Barge for Sale Split Hopper Barge for Sale - Non-Propelled - 2011 Built Split Hopper Barge for Sale - 440 cubic meters 2011 built Non-Propelled Split Hopper Barge for Sale --------------------------------------------------------------------------------------------------------------------------
Platform Supply Vessel for Sale DP2 Platform Supply Vessel for Sale - Newbuildings MMC887 PSV FiFi 1 for Sale Newbuildings DP2 PSV For sale Classification : ABS +A1, (E) Offshore Support Vessel, +AMS, +DPS-2, +FFV Class 1
Other Compliances : International Load Line Convention 1966, International Tonnage Convention 1969, COLREG 1972, SOLAS 1974 with amendments (where applicable), International Radio Communication Regulations, MARPOL 73/78 (Annex I, II, IV, V, VI)
Principal Dimension : Length O.A : abt. 88m LPP : abt. 82.00m Breadth MLD. : abt.19m Design Draft : abt. 5m Max Draft : abt. 6m Deadweight : abt. 5145 Tonnes Gross Tonnage : abt. 3601 Tonnes Net Tonnage : abt. 1429 Tonnes Deck Cargo : abt. 1000 Tonnes Deck Strength : 5 Tonnes/sqm Speed : abt. 14.3 knots at 100% MCR, 5m draft Economic Speed: abt. 13 knots at 75% MCR Deck Area : 1000 sqm Complement : 52 men Fuel Type : Gas Oil
Tank Capacity (Approximation) : Potable F.W. : 1770 cbm F.O. (Total) : 1100 cbm Liquid Mud / Brine (S.G 2.4) : 680 cbm Dry Bulk Cargo Tank (Cement/Baryte) : 400 cbm Drill Water / Water Ballast : 1830 cbm Methanol (SG 0.9) : 430 cbm
Bulk Handling System : Suitable for Carriage of Cement/Baryte Class : ABS Total Capacity : 400 sqm approx. (in 5 tanks) Working pressure : 80 psi
Main Propulsion : Main Propulsion – 2 x 2000 kW Fixed Pitch azimuth thruster c/w electrical motor. Bow Thruster - 1 x 910 kW Tunnel Thrusters CPP c/w electric motor speed at 1800 rpm driven. Retractable Thruster - 1 x 800 kW Retractable Thrusters CPP c/w electric motor speed at 1200 rpm driven.
Power Plant : 1) Prime Mover(Diesel Engine) - 4 x 1825 kW Cummins Engine c/w generator, 480/3/60 2) Emergency / Harbour Generator - 1 x 350 kW approx, 480/3/60
Deck Machinery : 1) Anchor Windlass - Electro-Hydraulic driven, 2 Declutchable Drum, 2 Declutchable cable lifter, 2 Fixed Warping End Nominal Pull : 10 MT, 0 – 20m/min
2) Deck Crane - 2.0MT SWL at outreach 10.0M. 3) Others - 2 x Capstan (7.5mt pull) and 2 x Electric Mooring Winch(10mt pull)
Fire Fighting : 1) External Fire Fighting System – Class FiFi 1 having 2 in nos main fire pump (1600cbm/h) driven by generator engine front PTO c/w 2 x Fire Monitors (1200m3/h) and with fixed water spraying system as per classification rules.
2) Fixed Fire Protection System - Engine Room, Paint Store & Emergency Generator Room installed with fixed CO2 Fire protection system
Navigation Equipment : 1) Echo Sounder 2) Radars 3) Voyage Data Recorder 4) Magnetic Compass 5) Auto Pilot 6) AIS 7) Weather Facsimile Receiver 8) Doppler Speed Log 9) Ship Security Alert System
Communication Equipment : 1) GMDSS for Area A3 2) PA/Talk back 3) Auto Telephone System
Dynamic Position System : Dynamic positioning system according to ABS DPS-2 c/w with 2 off DP operator stations, 1 off cJoy Operating Terminal, 1 off cJoy Wing Terminal(Portable), 2 off Gyrocompass, 2 off Wind sensors, 2 off Motion reference units, 1 off Spotbeam, 1 off RADius Position reference system, 2 off DGPS, 2 off UPS, 2 off Alarm and Event Printer.
The following basic operational modes are included : • Joystick Mode • Auto Pilot Mode • Auto Heading Mode
Accommodation : Fully Air-Conditioned c/w hot water heating and air distribution system. One off electrical heater to be installed in cabins. 16 x 1 man cabin – 16 men 10 x 2 men cabin – 20 men 4 x 4 men cabin – 16 men Total – 52 men Dispensary – 1 men
Spare Parts : Class Standard requirements applied. Price & terms : Please enquire using the email form below.
The details mentioned above are believed to be accurate but are not guaranteed. ------------------------------------------------------------------------------------------------------------------ Search words (for official use only) : Platform Supply Vessel for Sale DP2 PSV FiFi 1 for Sale - Newbuildings MMC887 Platform Supply Vessel Newbuildings PSV-DPII FiFi 1 for Sale MMC887 PSV for Sale --------------------------------------------------------------------------------------------------------------------
Supply Vessel For Sale 2400BHP Supply Vessel For Sale 48M Supply Vessel - 2010 Built Used 2400BHP Supply Vessel
General : Classification : IRS / American Bureau of Shipping Year of Built : 2010
Main Dimension Length O.A : 48.00 M Beam : 11.00 M Depth : 03.50 M Designed Draft : 02.79 M Max Draft : 02.79 M Gross/Net Tonnage : 495 / 149
Performance Speed : 11 Knots Endurance : 18 Days Power : 2 x 1200 BHP @ 1800 RPM (keel cooled)
Machinery Generator : 2 x 120KW, 1 x 65KW Bow thruster : HRP 3001 TT @ 350 HP Control : Fwd & aft Main Engines : Cummins KTA-38-M2
Tank & Loading Capacity Long range fuel : 204.0 MT Fuel Tank : 149 MT Potable Water : 55 MT Domestic water : 192mt
Deck Area : 320 Sq m Dead Weight : 520.9 Tonnes Displacement : 1026.8 T Approx lt ship : 506mt
Deck Machinery Bow Anchor : 2 X 900 kg Stockless Anchor with 9 shackles anchor chain Elector Hydraulic Windlass Twin Gypsy c/w 2 wraping heads c/w hydraulic electro power pack
Navigation and Communication Complied with GMDSS A3 for vessel < 500 GRT GMDSS Hand held radio : 3 GPS : 2 Navtex 1 : 1
Magnectic compass : 1+1 VHF : 2 MF/HF/SSB Radio : 1 INMARSAT C : 2 Radar : 1 x 48 NM range Echo Sounder : 1
Accommodations Fully air-conditioned : 22 berths Crew complement : 10 Passenger : 12 LSA is for 22 -men complement
The details mentioned above are believed to be accurate but are not guaranteed. -------------------------------------------------------------------------------------------------------------------------- Search words(for official use only) - Supply Vessel For Sale 2400BHP Supply Vessel Used 48M Supply Vessel Offshore Supply Boat for Sale 2010 built Supply Vessel For Sale Newbuilding 48M Supply Vessel For Sale ----------------------------------------------------------------------------------------------------------------------
Utility Tug For Sale 2300bhp Utility Tug For Sale
General Year : 1976 Class : Bureau Veritas
Dimensions Length overall : 37.3m Breadth molded : 9.2m Depth molded : 3.9m Draft@Summer LWL : 3.66m Clear deck area : 99.9 sqm Net tonnage : 121.00 Gross tonnage : 404.00
Machinery Main engines : 2 NIIGATA model 6MG 2S BX diesel engines 1,150bhp at 680rpm each
Generators : Model : GM8V71 Bow thruster : 1 Schottel type 125hp developing 1.0 ton thrust Propellers : 2 fixed pitch propellers
Speed Top speed : 10.00 knots Service speed : 8.5 knots
Fuel consumption per day Top speed : 6.77cbm Service speed : 5.6 cbm Standby (main engines secured) : 0.3 cbm
Crane : Fixed mounted hydraulic knuckle boom crane
Liquid capacities : Fuel oil : 253.5 cbm Potable water : 68 cbm Ballast : 88.7 cbm
Bollard pull : 31.5 mt Deadweight : 394.3mt
Accomodation : Total no. of berths : 21 fully air conditioned berths Minimum no. of crew : 9 Max. no. of passenger : 12
Deck Equipment : Towing winch : 1 Setozaki, single drum, hydraulic driven, with 24 tons line pull
Anchor windlass : 2 Setozaki, single chain and warping drum, electric driven, tons x 9m/min capacity
Bower anchor : 2 270kg stockless anchor Capstan : 1 Setozaki, electric driven, 6 tons x 9 m/min capacity Towing wire : 1 44mm Ø x 150 meter long
Navigation and Communications Equipment : Steering controls : 1 at fwd part of wheelhouse Position : 1 at aft part of wheelhouse Radar : 2 SSB radio : 1 VHF radio : 2 GPS : 1 Magnetic compass : 1 Gyro compass : 1 Auto pilot : 1 Echo sounder : 1 Navtex : 1
Fire Fighting, Safety, Rescue & Oil Polluting Equipment Fire monitor : 2 on monkey island Rescue boat : 1
The details mentioned above are believed to be accurate but are not guaranteed. ---------------------------------------------------------------------------------------------------------------------- Search words(for official use only) - Utility Tug For sale Utility Tug For Sale in Singapore, Malaysia, Indonesia Used 1976 Built Utility Tug For Sale 2300BHP Utility Tug For Sale Used Utility Tug For Sale in Middle East, India 37m Utility Tug For sale 1976 Built 37M Utility Tug For Sale ----------------------------------------------------------------------------------------------------------------------------
Multi Purpose Anchor Handling Vessel for Charter 2008 Built Multi Purpose Anchor Handling Vessel for Sale Year Of build : 2008 Classification : Bureau Veritas 1 + HULL * MACH Tropical zone A2 Dimensions : L.O.A : 30.00 mtrs. Length W.L. : 29.00 mtrs Breadth : 12.00 mtrs. Depth(MLD) : 3.50 mtrs. Draft (Design) : 2.80 mtrs. Frame spacing : 500 mm
Deck strength : 10 Tons/sqm (frame 25 to 56) Deck plate 16 mm 5 Tons/m2 (frame 02 to 25) Wooden sheet covered Propulsion System : Main Engines : Caterpillar 3412 Marine propulsion Engine Rated “B” at 720 bhp @ 1800 rpm Total horsepower : 1440 bhp Keel cooled type
Main engines controls : Kobelt twin stations electronic engine control system Steering System : Kobelt Rudders : Aerofoil type built by the shipyard. Gearboxes : Reverse reduction gearbox type Reintjes WAF 364L Reduction Ratio : 4.92 : 1 2 Units Diameter : 66” Inches fixed pitch, propellers in Kort nozzles Auxiliary Equipment Main Generators : 2 x Caterpillar x C4.4 / 86KW 1 x 3056 T / 84 KW Marine Gensets Keel cooled, electric motor start for stand 50 Hz/1500 rpm/ 380V/3phase Total power : 256 KW working in parallel Capacities Fresh water : 140 m3 (approx.) F.O. : 120 m3 (approx.) Deck space : approx. 160 sqm Performance Speed : 10.00 knots Bollard pull : 17 Tons continuous Pumps & discharge capacities 1) F.W. Hydrophone (Make – AZCUE) 3 m3/hr @ 25m head, 1.5 kW; 1450 rpm (with 200L tank)
2) S.W. Hydrophone (Make – AZCUE) 3 m3/hr @ 25m head, 1.5 kW; 1450 rpm (with 200L tank)
3) Sewage Pump (Make – AZCUE) 5 m3/hr @ 15m head, 1.5 kW; 2900 rpm
4) Fuel oil transfer pump (Make – AZCUE) 10 m3/hr @ 25m head, 2.2 kW; 2900 rpm
5) Bilge pump (Make – AZCUE) 25 m3/hr @ 30m head, 5.5 kW; 2900 rpm 6) Fire pump (Make – AZCUE) 25 m3/hr @ 30m head, 5.5 kW; 2900 rpm
7) Fresh water cargo pump (Make – Desmi) 120 m3/hr @ 25m head, 15 kW; 2900 rpm
8) Diesel cargo pump (Make – Desmi) 120 m3/hr @ 25m head, 15 kW; 2900 rpm
9) Emergency Fire pump (Make – Desmi) 20 m3/hr @ 30m head, 3600 rpm; 4-stroke HATZ diesel engine of 5kW Deck Machineries Crane (1) : Heila pedestal knuckle boom crane HLRM 200-4SL 22.50 Tons @ 07.76 mtrs. 17.40 Tons @ 09.92 mtrs. 09.00 Tons @16.31 mtrs. Main Winch : 80T Hydraulic Power pack : Combined power pack for the crane & winch. Tugger winch : 8 Tons Capstain : 10 Tons Towing hook : 20 Tons SWL Anchor winch/Windlass : 1 x Model AW/G-22mm U2 / 2.1 T @ 10 m/min
Bow/roller : as per G.A. Push Bow : as per the G.A.
Accommodation & Extra equipment - Fully Air conditioned Wheelhouse, galley, dining and living spaces for 8–10 persons. - Seawater cooled A/C system. With the optional heating facility . - Insulation of accommodation is with Isolamin rockwool sandwiched panels as per Class rules. - 1 store accessible from the main deck via water tight flush hatch. - All tanks are epoxy coated (Jotun paint system). - Vessels four corners are protected by vertical type rubber key hole fender SQK 350 Size 350 mm W x 350 mm H with 150 mm dia centre hole x 900 mm long. - Connection of the main deck to the side shell is rounded in order to avoid damages to the rubber hoses. - Sewage Treatment plant fitted. - Oily water separator fitted . - Fixed CO2 system for the engine room fitted.
The details mentioned above are believed to be accurate but are not guaranteed.
------------------------------------------------------------------------------------------------------------------- Search words(for official use only) : Multi Purpose Anchor Handling Vessel for sale Anchor Handling Vessel for Sale Multi purpose Offshore Vessel MPAHV for sale Multip Purpose Anchor Handler For Sale ------------------------------------------------------------------------------------------------------------------
Anchor Handling Towing Supply Vessel for sale 8160bhp AHTS For Sale 2006 built Anchor Handling Towing Vessel For Sale Principal Particulars : Length Overall : 70.00 m Length Waterline : 66.80 m Breadth Moulded : 16.80 m Depth Moulded : 7.50 m Draft (Max) : 5.80 m
Built : 2006 GRT/NRT : 2400 / 730 Class : ABS Notation : ABS + A1E Offshore Support Vsl & Fire Fighting Vsl Class 1 + DPS-2 + AMS
Performance : Maximum Speed : 14 knots Economical Speed : 11 knots Type of Fuel : Marine Gas Oil
Fuel Consumption : 30 cbm/24 hours @ max speed 17 cbm/24 hours @ eco speed Bollard Pull : 103 mt
Cargo Capacities : Deadweight : 2000 mt Deck Cargo : 800 mt Deck Strength : 7.5 mt/sqm uniform loading Clear Deck Area : 490 sqm Fuel Oil : 1250 cbm Fresh Water : 360 cbm
Ballast/Drill Water : 440 cbm Liquid Mud : 490 cbm Bulk Cement : 226 cbm (4 x 2000 cu.ft) Freezer/Chiller : 12 cbm / 12 cbm Foam/Detergent : 20 cbm / 20 cbm Rig Chain Locker : 74 cbm each side
Pumps : Fuel Oil : 1 x 200 cbm/hr @ 90m head; Allweiler Fresh Water : 1 x 120 cbm/hr @ 90m head; Allweiler SWB/Drill Water : 1 x 150 cbm/hr @ 90m head; Allweiler Liquid Mud : 2 x 75 cbm/hr @ 240m head; (SG2.5) Allweiler Bulk Cement : 2 x 20 cbm/min @ 80 psi air compressors; Aiman
Propulsion System : Main Engine 2 x 3000 kw (4080BHP) @ 750 rpm Wartsila 6L32 Main Generators : 2 x 410 kw @ 1800 rpm Caterpillar 3408 DITA c/w Leroy Somer LSAM 47.1L9 rated at 370 kw/440V/3Ph/60 Hz
Emergency Generator : 1 x 60 kw @ 1800 rpm Olympian GEP 65-3 c/w Leroy Somer LL2014 rated at 52 kw/440V/3Ph/60 Hz
Shaft Alternator : 2 x 2300 kw @ 1800 rpm ABB AMG 500L4 rated at 440V/3PH/60 Hz
Bow Thruster : 2 x 680 kw electric-driven Kawasaki KT-88B3 tunnel type (CPP); 10T thrust
Stern Thruster : 1 x 680 kwelectric-driven Kawasaki KT-88B3 tunnel type (CPP); 10T thrust
Steering Gear : 2 x Wanger LA29. 1-45-CB2: 9TM 45 deg angle Propulsion : 2 x CPP type; Wartsila Lips
Rudders : 2 x Becker rudder; S.A 2050/243F.2
Deck Equipment : Anchor Windlass : 1 x electro-hydraulic Brattvaag BFMG63.046 Drum : Suit for 230 m (L) x 60 mm (Ø)SWR rated pull 22 mt @ 0-14 m/min @ 1st layer
Gypsies : suit for 46 mm (Ø) chains rated pull 16 mt @ 0-18 m/min
Warping drum : 500 mm (dia) x 500 mm (L) rated pull 17 mt @ 0-18 m/min
Bow Anchors : 2 x 1980 kg anchors AC14 2 Chains : 467.5 m x 46 mm (Ø) Grade U2 (each side)
Capstan : 2 x 10 mt @ 0-25 m/min electro-hydraulic; Brattvaag CM4110 Tugger Winch : 2 x 10 mt @ 0-24 m/min electro-hydraulic; Brattvaag AKM4110 Towing/AH Winch : 1 x electro-hydraulic double drum Brattvaag SL 225WX-B2T
Upper Drum Cap (Tow) : 1 x 1400 m (L) x 58 mm (Ø) SWR Lower Drum Cap (AH) : 1 x 1400 m (L) x 58 mm (Ø) SWR Line Pull (Low speed) : 225 mt @ 0-4.6 m/min @ 1st layer 121 mt @ 0-7.1 m/min @ 1st layer 48 mt @ 0-14 m/min @ 1st layer
Stall Pull : 235 mt @ 1st layer Line Pull(High speed) : 47 mt @ 0-22 m/min @ 1st layer 25 mt @ 0-34 m/min @ 1st layer 10 mt @ 0-68 m/min @ 1st layer
Stall Pull : 50 mt @ 1st layer Brake Capacity : 275 mt static @ 1st layer for both drums Remote control from aft control stand in wheelhouse
Gypsies : suit for 76 mm - 89 mm chains Warping drums : Nil Stern Roller : 5.00 m (L) x 2.50 m (dia); SWL 300 mt Shark Jaws : 1 set electro-hydraulic Karmfork SWL 400 mt Tow Pins : 2 x electro-hydraulic with turntable top flaps
Rope Reel : 1 x Brattvaag ALM637.5 suit for 1500 m (L) x 76 mm (dia) SWR Deck Crane : 1 x 2T @ 12.2 m / 5.5 T @ 8m CSSC marine crane
Accomodation : Berths : 10 x 1 berth cabins = 10 15 x 2 berth cabins = 30 Total : 40 Hospital : 1 x 1 berth cabin = 1 All cabins fully air-coditioned & c/w attached washroom
Radio & Navigation Equipment : GMDSS : Furuno RC-1800T (Area 3) comprising SSB : 1 x Furuno FS-1562-25 with built-in DSC Inmarsat C : 1 x Furuno Felcom 12
VHF Radio : 2 x Furuno FM 8500 with built-in DSC Navtex Receiver : 1 x Furuno NX 500 SART : 2 x McMurdo RT9 (9GHz) EPIRB : 1 x McMurdo E3A
Portable VHF Radios : 3 x McMurdo R2 Radar : 1 x Furuno FR 2115 (X Band) 1 x Furuno FR 2135S (S Band)
Echo Sounder : 1 x Furuno FE 700 plus repeater FE720 DGPS : 1 x Furuno GP 80 Gyrocompass : 1 x Anschuetz Standard 20 Autopilot : 1 x Anschuetz Pilotstar D
Magnetic Compass : 1 x Cassens & Plath Reflector 5 Weather Fax : 1 x Furuno FAX 207 Speed Log : 1 x Furuno DS-80 AIS : 1 x Furuno FA-100 DP : DP2 system Joystick : C-Joy SJS01 Kongsberg
Vessel also fitted with Vingtor PA Talkbalk System & Self-Powered Telephones
Fire-fighting Equipment & Anti-Pollution Equipment : External : FiFi System : Class 1 with water curtain all round
Fire Pump : 2 x 1705 cbm/hr @ 13 bar Unitor SFP 250 x 350 driven by front PTO of M/E
Monitors : (water/foam) : 1 x 300-1200 cbm/hr; Unitor FJM-200K/EL (water) : 1 x 1200 cbm/hr; Unitor FJM-200K/EL Throw length / height: 120 m / 45 m
Oil Dispersant System : 1 set Unitor c/w 2 sprey booms of 6 nozzles each
Internal : Emergency Fire Pump : 1 x 35m3/hr @ 50m head; Azcue
BA Recharging Comp : 1 x 260 ltrs/min @ 300 bar, MCH 16/E-TS CO2 system in engine room Fire Detection & Alarm System in living spaces & engine room
Miscellaneous : Search Lights : 3 x 2000 W Zhejiang Hai Xin Floodlights : 5 x 1500 W Aqua Signal Liferafts : 6 x 25 men SOLAS approved type Rescue boat : 1 x 6 men c/w outboard motor
Oily Water separator : 2 x 5 cbm/day reverse osmosis, Tecnicomar MD2000 Sewage Treatment Plant : 1 x 40 men/day JiangShu Nanjo ECB 50 Price & terms : Please enquire using the email form below. If you cannot find the vessel, crane, rig or equipment that you need, please send us an email to mail@worldoils.com stating your requirements and we shall find it for you. We can arrange delivery of equipment and towage of rigs and vessels where needed. The details mentioned above are believed to be accurate but are not guaranteed. -------------------------------------------------------------------------------------------------------------------------------------------- Search words(for official use only) - Anchor Handling Towing Supply Vessel for Sale AHTS For Sale 8160bhp AHTS For Sale in Asia, Singapore, Malaysia 2006 built Anchor Handling Towing Supply vessel for sale AHTS For Sale - 8160bhp 2006 built AHTS for sale Anchor Handling Towing Supply vessel For Sale in South America -----------------------------------------------------------------------------------------------------------------------------------------------
Pipelay Barge for Sale 292 men Pipelay/Diving Barge for Charter or Sale Modern Pipe-Lay Barge for Sale Pipelay Barge for Sale - 2008 built
Principal Particulars : Class : ABS +A1 unrestricted service with MODU code attestation Built : 2008
Gross Tonnage : 11,133 T Max Draft Wt : 16,873 T Light Ship : Wt 6,640 T
Dimensions : Length overall : 111.63m Breadth Moulded : 31.7m Depth : 9m Designed Draught : 4.8m
Machinery : Generators : 5x Mitsubishi 1200 kva 60 cycle.
Emergency Generator : 1 xDiesel Caterpiller 500 kva 60 cycle
Tank Capacities : Fuel Oil : 2211cbm Potable Water : 1926 cbm Grey Water : 23 cbm Black Water : 23 cbm Bilge : 23 cbm Dirty Oil : 27cbm Cooling Water : 750 cbm
Pumps : Fire/General Service : 2 x 130 cbm hr 80m head Fuel Oil : 2 x 20 cbm hr 30m head Ballast Water : 2 x 300 cbm hr 30m head Potable Water : 1 x 120 cbm 3hr 35m head Domestic F Water : 1 x 30 cbm hr 35m head Domestic S Water : 1 x 30 cbm hr 35m head Emergency Fire : 1 x 50 cbm 55m head
Deck Area : Clear deck area over 2000sqm Deck Strength 12.5t/sqm rating Carriage Capacity over 11,000 tons Provision ondeck for suitable crawler crane
Pipelaying Facilities : Pipelay Equipment Pipelay capability for 200mm to 1500 mm 90 ton pipe lay tensioner capacity (30m/min) 100 ton pipe lay abandonment / recovery winch Automatic tensioner transfer system Pipelay conveyor and transfer system rated to 32 ton 7 welding stations with semi-automatic welding system (STT & flux core) 1 NDT station 2 field joint stations Dark Room
Stinger/Ramp 3 degree sloping production firing line 34m outrigger stinger adaptable to different project requirements
Accommodation : High Standard of Accommodation Tank Top Cabins : 30 x 2 = 60 Tween Deck Cabins : 30 x 2 = 60 Deck 1 Cabins : 24 x 2 = 48 Main Deck : 1 x 2 = 2 Deck 2 Cabins : 32 x 2 = 64 Deck 3 Cabins : 28 x 2 = 56 Additional Deck : 3 Cabins 2 x 1 = 2 Total Berths : 292 Cabins with en-suites and fully air conditioned In-built moon-pool (5.5m x 5.5m) Support services for modular saturation diving spread
8 Point Mooring System : 8 x single drum 90 ton mooring winches c/w tensional sensor,wire length counter 8 fairleads, with 1500m of 52mm wire rope. 9 x 10 ton Delta Flipper anchors 9 x Pennant Buoys
Helideck : Size: 22 x 22m for Sikorsky S61
Safety Systems : Mass Evacuation Slide and Raft System Life rafts to 590 person capacity 600 life jackets/12 life rings 1 x fast rescue boat Active high specification smoke and fire monitoring and extinguisher system in all accommodation, engine, winch, paint and boiler rooms Sprinkler system Machinery guarding systems Dedicated boat landing transfer points
Environmental : Sewage treatment system meeting MARPOL standards Spill prevention systems
Other Facilities : Hospital with 2 beds Well equipped galley Mess room with seating for 180 people Large cinema, TV room for 110 people Recreational Room for 60 people seating Internet and email room Well equipped gym Laundry and large food storage facilities 5 Specialist Personnel Office rooms 2 Client office rooms 3 General office rooms 2 Control rooms with CCTV and metering Navigation /Radio Control room with helicopter coms Conference room for 25 people Prayer room Paramedic room Change room with lockers and wash facilities Work shop with Lathe, Drill press plus other tooling 2 water makers of 40 ton per day capacity
Price & terms : Please enquire using the email form below. If you cannot find the vessel, crane, rig or equipment that you need, please send us an email to mail@worldoils.com stating your requirements and we shall find it for you. We can arrange delivery of equipment and towage of rigs and vessels where needed. The details mentioned above are believed to be accurate but are not guaranteed. ------------------------------------------------------------------------------------------------------------------------ Search words(for official use only) - Pipelay Barge for sale Pipelay/Maintenance and Accomodation Barge 292 men Pipelay Barge for Charter Barge for Charter Diving and Maintenance Pipelay Barge for Charter Pipelay Barge for sale - 2008 built 2008 built Pipelay Barge for Charter or Sale Accomodation Barge for Sale and Charter --------------------------------------------------------------------------------------------------------------------------------------
Offshore Research Vessel for Sale Research Vessel for Charter Offshore Research Vessel for Charter
Classification Classification : RINA 100 A1,1-NAV IL-ST-Ap-GC Ice Class RG1* equivalent to 1A Super Main Particulars Built/type : built 1981, converted into Research Offshore Support Vessel 1990 and upgraded 1996 further upgrading 2002 – 2005 2006
LOA 130,30 mt Breadth 17,30 mt Depth 8,50 mt Draft Summer max 6,9 mt
Holds (available space) Hold 1 abt 700 m³ Hold 2 abt 1700 m³ Hold 3 abt 1200 m³ Hold 4 abt 1400 m³
Hatches 12.60 x 8.50 mt 12.60 x 12.80 mt 18.90 x 12.80 mt 6.00 x 12.80 mt
Gross Tonnage 5825 Net tonnage 2473
Bunkers capacity abt. 700 tons IFO/Gasoil abt 800 m³ gasoil (in alternative to jet A1 - see below) Jet A1/Gasoil tanks abt 800 m³ jet A1 aviation fuel in separate ship tanks whit pumping arrangements to ashore Jet A1 transfer pump 2 x Hydrazer ACF80-3N4F 50m³/h
Potable water SWS 12000 Culligan - 40 tons/day reverse osmosis plant
Machinery Main engine 6100 BHP Burmaister & Wain 2SCA 5 DKRN 62/140-3 Bow thruster White Gill Jet Unit 50T3, azimuthal type, driven by CAT3508, 1800 rpm, 1000HP (installed in 2006)
Generators 3 x 6CHN 25/34 DPR 320/500 Pervomajsk, 400kVA
Emergency generator 1 x 125 kVA
Deck Machinery Derricks 3 x 20 tons plus 1 x 40 tons plus 1 hydraulic crane x 2 tons
Fuel Consumption Full speed abt 16.5 kn on abt 24 tons IFO 40/180 + abt 2/3 tons gasoil Cruising abt 14 kn on abt 15 tons IFO 40/180 + abt 2/3 tons gasoil Economical speed abt 12 kn on abt 12 tons IFO 40/180 + abt 2/3 tons gasoil When forcing ice consumption max 19 tons gasoil daily Stand-by Abt 2/3 tons gasoil Endurance at sea up to 120 days
Accomodation Charterers' personnel 90 (2 single + 2 double + 21 four bunk cabins) fully air conditioned with private facilities. Total bunks: 129
Other Mess room for 56 persons Laboratory space 14 laboratories for abt 200 sqm Offices 2 offices for Charterer’s personnel Meeting Room 45 m²
Wastewater treatment DVZ SKA 50 BIOMASTER comply with Marpol 73/78
Garbage compactor Type ORWAK 5030 CMTXI 3 0kN
Internal communication system SIEMENS
Suitable for the carriage of dangerous goods in package form in and above hold no 1 and no 2. Other facilities Helideck Hospital Laundry Oil water separator Incinerator
------------------------------------------------------------------------------------------------------------- Search words(for official use only) : Research Vessel for Charter Ice Class Research Vessel for sale Reserach Vessel for Sale Ice Class Research Vessel for Charter Ice Class Offshore Research Vessel ------------------------------------------------------------------------------------------------------------
DPII Survey Vessel for Sale or Charter DPII ROV Vessel DP2 Survey Vessel for Sale or Charter DPII Vessel for Survey, Light Construction, ROV, Diving and Maintenance services
Classification : Classification R.I.Na. 100 A 1.1, AP; ST Unrestricted Nav. Dynapos AM/AT R
Main Particulars : Built 1971 Vessel Conversion 1999, 2009 LOA 68.25 mt LBP 60.96 mt Breadth 13.41 mt Depth 7.16 mt Draft Summer Freeboard 4.57 mt
For the extensive works carried out in 2009 inclusive of the installation of new engines and new accommodations, the vessel conventional age has been reduced by 23 years by RINA.
Capacities : Deadweight 580 DWT Gross tonnage 1722 t. Net tonnage 516 t. Free deck area abt 220+abt 80 m² Gasoil abt 400 cbm Potable water abt 100 cbm Machinery: Main engines 1 x 1100 kW CAT3512 2 x 1100 kW W6L20 (installed in 2009) Main propeller 1470 kW electric driven fixed propeller in kort nozzle rudder Bow thruster 1 x 420 kW Gill Jet azimuth thruster 1 x 600 kW ABB tunnel thruster Aft thruster 2 x 360 kW Brunvoll tunnel thruster Aux. Generators 1 x 370 kW CAT3408
Deck Machinery : Cranes 1 x COVIS Crane 40 tons @ 6.00 mt 4.5 tons @ 24 mt 2 x 2 tons
Mooring Equipment 4 point mooring Mooring lines: 2 x 1000 mt 2 x 900 mt (fore) diameter of wire: 32 mm
Dynamic positioning : Kongsberg K-POS DP21 (latest version) installed in 2009
Reference Systems: Simrad HiPAP 500 Kongsberg Fanbeam Mk 4.2 2000 m
Fuel Consumption : Steaming abt 11 kn on abt 7 tons gasoil Stand by abt 2 tons gasoil Dynamically positioned abt 5/7 tons gasoil On 4 point mooring abt 2/4 tons gasoil
Accommodation : Total berths 48 Ships’ crew 16 Charterers’ crew 32 (2 suite + 15 double) Hospital 1
Other facilities : recreation rooms: 1 x 32 m² Mess room 1 x 42 m² On—Off line room 32 ² Office #1 16 m² Office #2 9 m²
Deck machinery : Derricks 2 @ 5 tons + 1 @ 40 tons boom (forward - to be classified) 1 @ 10 tons
A-Frame 1 stern A-Frame @ 10 tons served by oceanographic winch (7000 mt cable length, 20 mm diam.)
------------------------------------------------------------------------------------------------------------
Search Words(for official use only) : DPII ROV Vessel for Sale or Charter DP2 Light Construction Vessel for Sale DPII Diving Vessel for Sale or Charter DP2 ROV Vessel for Charter DPII Survey Vessel for Sale DP2 Survey Vessel for Charter ------------------------------------------------------------------------------------------------------------

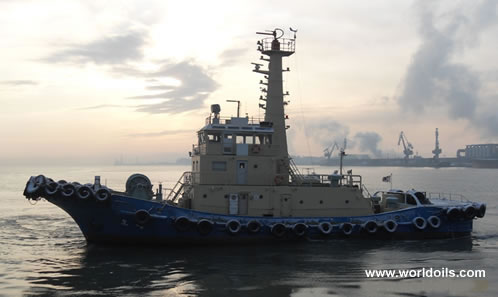

Harbour Tug For Sale 4500PS Harbour Tug For Sale 4500 PS 60Ton BP Tug For sale 60Ton Bollard Pull Harbour Tug
Principal Particulars Class : KRS Built : 2011Gross Tonnage : 287 LOA x B x D : 33.0 c 10.0 x 4.5 mts Draft : 3.4 mts Bollard Pull : 63.5 Tons Complement : 10 persons
Machinery & Equipment Main engine : 2 x Niigata 6L28HX Propeller : Niigata ZP-31 x 2 sets (Kort Nozzle) Power : 4500PS (2250 x 2 sets) Aux engine : 2 x 250ps x 1800rpm Fuel capacity : F.O : 145 m3 MGO : 25 m3
Fresh Water : 25 m3 Service speed : 13.5 knots Towing hook : 60 Tons Navigation area : Coastal (inl ocean going)
Communications Tele-communications : 2 radars / VHF SSB Inmarsat - C Price & terms : Please enquire using the email form below.
----------------------------------------------------------------------------------------------------------------------- Search words(for official use only) - Harbour Tug for Sale 4500PS New harbour Tug For Sale 60 Ton Bollard Pull Tug For Sale in Singapore, Malaysia New Tug For Sale 4500BHP Harbour Tug 60Ton BP Harbour Tug 4500BHP Tug For sale 60Ton Bollard Pull Tug For sale in Asia -------------------------------------------------------------------------------------------------------------------------
Double Hull Tanker - 20,000Ton For Sale Specifcations - DWT : 19,990 MT - LDT : 6035 Ton - Built : 1986 - Class : NK ( oil and chemical tanker IMO-II/III )
- LOA / LBP : 161 - Beam : 22.9 - Depth : 12.00 - Draft : 9.15 - Summer - Pumps : 7 Set 250CBM X 5/Deepwell + 70CBM X 1/portable天500CBM X 2 /screw - Heating : Coiled - Tanks : 21 + 2 Tanks / EPOXY ( 135C-Sigma Phen. Other-Epilite SL-C ) - Cubic : 24,127 CBM AT 100 % - SPD/Cons : Average speed abt 12.0 Kts on abt 15.50 M/T of IFO- 380CST + 2.00M/TS of M.G.O / each G/E in normal weather - Segregations : 6 Grades 1C - 2,667 CBM 2C - 2,708 3C - 1,102 4C - 2,708 5C - 2,796 All Wing - 12,146 - Derrick : 5.0 tons x 1set / crane - Main Engine : MITSUI B&W-6L50MCE 7,000BHP X 133RPM X 1set - Generator : Yanmar-M200AL-DT X 830BHP X 900RPM X 400KW X 3set - Boiler : Nishida X 9.0KG/CM2 X 16,000 KG/hours The above data is believed to be accurate but with no guarantees. Please contact us on mail@worldoils.com for further information ------------------------------------------------------------------------------------------- Search words(for official use only) : Double Hull Tanker for Sale DH Tanker for sale Tanker for sale 20,000 Ton dwt Tanker for sale 20,000T Double Hull Tanker For Sale -----------------------------------------------------------------------------------------
Harbour Tug For Sale 60Ton BP 35m Harbour Tug For sale New Harbour Tug For Sale - 60Ton Bollard Pull
Built : in Malaysia Class : BV LOA : 35mts GRT/NRT : 493/147 Main Engine : Total 5150HP 2 x CAT 2575HP Propulsion : Schottel SRP 1515-EP Bollard Pull : Abt 60T FiFi 1
------------------------------------------------------------------------------------------------------------------------- Search words(for official use only) - Harbour Tug For Sale Newbuilding harbour Tug For Sale in Malaysia, Singapore 60Ton Tug For sale - Newbuilding 60Ton BP 35mts Harbour Tug For Sale New 60Ton harbour Tug For sale Newbuilding 35mts 60T bollard Pull Harbour Tug For Sale ----------------------------------------------------------------------------------------------------------------------------
Utility boat for sale Used Crew Boat for sale 36mtr - 58 pax
General Vessel : 36 meter Aluminium Crew/Utility Boat Year Built : 2007 Delivery : 17/1/2008 Classification : ABS +A1 HSC + AMS "Crewboat" - Maximum Significant Wave Height 3 Meters"
Principal Particulars GRT : 230 NRT : 75 DWT : 110 mts. L.O.A : 36.00 m Breadth Moulded : 7.60 m Depth Moulded : 3.65 m Draft Loaded : 1.88 m
Accommodation Passenger Capacity : 58 Reclining seats c/w food tray Owner Representative : 2 Bunks in cabin Crew : 8 Bunks in 4 cabins Mess Room : Seating 8 crew
Tank Capacities Fuel Oil : 70,000 ltrs Fresh Water : 25,000 ltrs Lub Oil : 800 ltrs Dispersant : 400 ltrs
Cargo Deck Freedeck Space : 75 sqm Deck Strength : 2000 kg/sqm Deck Load : 70 mts Refrigerator Container Power Supply : 3 sets 415 V/3P
Machinery Propulsion : 3 FPP Main Engine : 3 x Cummins KTA38 M2 1350 HP @ 1900 rpm c/w Gear Box Twin Disc MGX 6690 Aixiliaries Engines : 2 x Cummins CSM TA5.9-2 c/w UCM 274E alternator 80kw, 415 V/3ph/50Hz,0.8PF Bow Truster : 1 x Electro hydraulic (75kw Electric motor)
Speed 25 Knots @ 31.8 mts pay load, 100% MCR 24 Knots @ 31.8 mts pay load, 85% MCR
Consumption 3 x 180.5 ltr. @ 85% MCR 3 x 240.0 ltr. @ 100% MCR
Navigation Equipment (2) X-band 10" 6kw marine radars - Range 0.25 to 48 n.m (1) Gyro compass with repeater (1) Magnetic Compass (1) Echo sounder, colour display, 2-800 m digital read out (1) Echo sounder remote display at aft control station (1) Auto pilot (1) Electronic chart plotter (1) AIS (1) SAS (1) Wind Speed Indicator (2) Rudder Indicator - One at each control station
Radio Equipment (1) VHF with built in DSC (1) VHF with marine channels at aft station (1) MF/HF - GMDSS compliance (1) Navtex receiver (1) EPIRB 406 Mhz & 121.5 MHz (1) 150W SSB - Non GMDSS (1) Mini M satelite phone/email (1) Power supply battery charger (1) Vessel Tracking System
Special Equipment External Fire fighting Sys (600 cu.m/hr) c/w 1 Fire monitors Spray Boom & Dispersant system Deck Spray System Bunkering Flow Meter Sewage Treatment Plant Eye wash station Aluminium portable gangway Workboat (35HP outboard) c/w launch davit Gas detector
The details mentioned above are believed to be accurate but are not guaranteed. ------------------------------------------------------------------------------------------------------------------ Search words(for official use only) : Crew/Utility Boat for Sale 36 metre Crew Boat/Utility Boat For Sale Utility Boat for sale 2007 built 2007 built Crew Boat for sale Aluminium Crew/Utility Boat for Sale ------------------------------------------------------------------------------------------------------------------------
Bollard Pull Tug For Sale 38T Bollard Pull Tug For Sale Tugboat for Sale - 33mts
Main Dimensions Length Overall : 33.20 M Breadth Mld : 9.70 M Depth Mld : 4.30 M Draft : 3.50 M
Machinery and Propulsion Main Engines : 2 units x Cummins KTA50M21600 hp @ 1800 rpm Main Generator : 2 units x Cummins 6BT5.9DM 80kw Main Gearbox : 2 units x Reintjes WAF665 5.950
Tank Capacities - approx. Fuel Oil : 268M3 Fresh Water : 46 M3 Ballast : 60 M3
Deck Equipment - Local Made Anchor Windlass : 22mm Type Towing Winch : 40 tons Towing Hook :40 tons Capstan : 3 Tons
Performance Speed : Approx. 12 knots Bollard Pull : Approx. 38 tonnes Accomodation : 12 men
Steering Gear Control System Transpacific : Rudder Torque : 3.50 TM
PUMPS Bilge & Ballast Pump : 15M3/h @ 28m head GS & Fire Pump : 15M3/h @ 28m head Fuel Oil Transfer Pump : 5m3/hr @50M head FW Pressure Set : Pedrollo SW Pressure Set : Pedrollo (20m3/hr x 20m head) Emergency Fire Pump : 2" portable diesel engine Rotary Pump : Hand Rotary Pump
Air-Condition : Split unit type Oily Water Separator : CYF-0.50Y Sewage Treatment Plant : For 20 men
Navigation AREA - A1,A2,A3 SSB : Furuno FS-1570 Inmarsat-C x 2 : Felcom-15 VHF x 2 : Furuno FM-8800 Radar : Furuno FAR-2117 GPS : Samyung SPR-1400 Epirb : Samyung SEP-406 Navtex Receiver : SNX-300 Echo Sounder : Samyung SES-2000 SART : Samyung SAR-9 SpeedLog : Furuno DS-80 Walkie Talkie x 3 : Icom IC-M1600
Others Propeller Shaft : 177.80mm (8' diameter) Propeller : 2300mm Dia Fenders : Rubber Fenders
The details mentioned above are believed to be accurate but are not guaranteed. ------------------------------------------------------------------------------------------------------------------------------------ Search words(for official use only) : Bollard Pull Tug For Sale 33m Tugboat for Sale Newbuiling Tug For Sale Tugboat For Sale 38T Bollard Pull Tug For Sale Tug For Sale -------------------------------------------------------------------------------------------------------------------------------------
Utility Tug For Sale 4400 bhp Utility Tug For Sale Description 4,400BHP Utility Tug Built : 2010 NK class LOA : 37m Draft : 4m M/E : 2 x 2200BHP Cummins Bollard pull : about 50T Fuel Oil capacity : 320 m3 Fresh Water capacity : 80m3 Accommodation for 14 men Price & terms : Please enquire using the email form below. If you cannot find the vessel, crane, rig or equipment that you need, please send us an email to mail@worldoils.com stating your requirements and we shall find it for you. We can arrange delivery of equipment and towage of rigs and vessels where needed. The details mentioned above are believed to be accurate but are not guaranteed. ----------------------------------------------------------------------------------------------------------------------- Search words(for official use only) : Utility Tug - 4400 bhp For Sale 4400 bhp Utility Tug 2010 Built For Sale 50T Bollard Pull Tug For Sale New Utility Tug For Sale 2010 Built Utility Tug New Built Tug For sale ----------------------------------------------------------------------------------------------------------------------
Landing Craft For Sale Landing Craft For Sale - New- 57 mts - 1500T dwt Landing Craft 57 mts - 2009 built - For Sale 1500T New LCT for sale
Particulars Length overall (LOA) : 64.00 m Length of perpendicular : 59.70 m Breadth moulded : 14.00 m Depth moulded : 4.50 m Deck load : 10 ton/sq.mt Service speed : 9 knots Complement : 12 persons Draft (design) : 3.30 m
Engine Main engine : 2 unit Volvo Penta D16-750 mh, rpm 1900, 750 hp Cylinder : 6 Serial number : 1016036790, 1016036791
Fuel consumption : sesuai spect
Main Auxiliaries Engine Mesin / motor diesel : mitsubishi 6D22 x 2 Daya putar : 154 hp / 1500 rpm & 184 hp / 1800 rpm Jumlah cylinder : 6 (enam) cylinder No seri : 844178 - 722878 Generator Merk / type : stamford / SLG 274 x 2 Kapasitas : 120 KVA Putaran : 1500 rpm Frequency : 50 hz No seri : A 808251290 - A 808251294
Auxiliries Engine Mesin / motor diesel : mitsubishi 4D34 Daya putar : 64 / 1500 rpm & 77 / 1800 rpm Jumlah cylinder : 4 (empat) cylinder Generator merk / type : stamford SLG18 x 1 Kapasitas : 35 KVA Putaran : 1500 rpm
Gear box : JD400A rasio 1:5 Steering wheel : hydraulic manual
Fuel oil tank capacity : 90.32 cub.mt (2x35.689 cub.mt, 2x9.473 cub.mt) Cargo tank capacity : cub.mt Cot 1 P/S : 137.7 x 2. Cot 2 P/S : 213.2 x 2 Cot 3 P/S : 213.2 x 2 Cot 4 P/S : 248.5 x 2 Total : 1625 cub.mt
Fresh water tank capacity : 46.649 cub.mt
Navigation & Communication Equipment Magnetic compass : Daiko magnetic compass T150B 6" (table type) 1 set Radar : F-1715 furuno marine radar c/w std acc, 24nm Echo sounder : FCV-620 furuno 5,6" color LCD GPS : Furuno GPS GP-32 video plotter VHF : ICOM VHF marine radio trans IC - M304 SSB : ICOM SSB radio telephone IC-M700PRO EPIRB : Samyung EPIRB SEP-406 HT ICOM : ICOM VHF HT marine radio trans IC-M34 Clear view screen : 1 unit Rudder indicator : 1 unit Binocular : 1 unit Search light : 1 unit
Safety Equipment Ring buoy : fiber 6 unit Life jacket : 14 unit Inflatable life craft : 2 unit (@ 15 persons) Red hand flare : 6 pcs Parachute : 6 pcs Smoke signal : 2 pcs Smoke detector : battery operated Fire extinguisher CO2 : 1 set Fire extinguisher powder : 1 set Fire extinguisher foam : 1 set Bell : 1 unit Sirene : 1 unit
Fire Fighting / Pump Equipment Fire fighting pump : 1 unit master pump 50 cub.mt / jam Type : ALG 80-250A General service and ballast pump : ALG 80-250A x 1 unit Slude pump : DSR A&B - 40 F x 2 unit Cargo pump : 2 unit master pump capacity 150 cub.mt / jam Type : IH 125-100-200 x 2 unit Ballast pump : IH - 100-80-160 x 1 unit Fuel oil transfer pump : RT - 40 x 1 unit
Anchor + chain weight : 2 x 2190 kg Capstanl : 4 - 5 ton
The details mentioned above are believed to be accurate but are not guaranteed. ------------------------------------------------------------------------------------------------------------------------------- Search words(for official use only) - Landing Craft For Sale New Landing Craft - 57 mts - For Sale LCT For sale 1500T dwt LCT For Sale 1500T New Landing Craft For Sale 57 mts New LCT For Sale Landing Craft - 2009 Built For Sale in Singapore LCT For Sale in Dubai, Malaysia, India, Indonesia ---------------------------------------------------------------------------------------------------------------------------------------

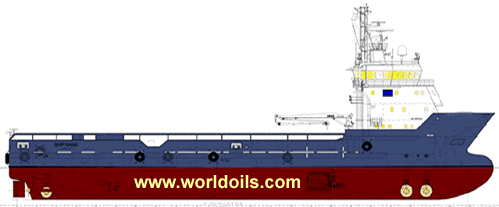

Platform Supply Vessel for Sale Rolls Royce UT 755 LN PSV for sale DP2 PSV For sale Type : UT755 LN
Platform Supply Vessel (PSV) Special Features Rolls Royce Bulk Handling System Tank Washing System Anti Rolling Tanks DP 2 System Classification +1A1 – Fire Fighter I SF E0 DYNPOSAUTR Clean DK(+) HL(2.8) TMON COMF(V3) Dimensions And Main Data Deadweight: abt. 3300ts Draft loaded: 5, 83 m Draft scantling: 6, 25 m Length o.a.: 73, 60 m Length B.P.: 68, 30 m Beam: 16, 00 m Depth MD Midship: 7, 00 m Engines Main engine: 2x MaK 6M25 2x 1980 kW @ 750 r.p.m. Propulsion System: 2 Kamewa CPP &, reduction gear. Aux Diesel Generator: 2 x 320 kW Shaft Generator: 2 x 1750 kVA Emergency diesel generator: 1x 72kW Bowthruster: Forward: 2x 590 kW Aft: 2 x 590 kW Kameva Ulstein Air cooled thruster motors Rudder: 2 x Flap Rudder Highlift Service Speed Abt. 14,0 Knots Navigation Equipment 1x S-Band ARPA 1x X-Band ARPA 1x Electronic Plotter 1x Furuno GP 150 WAS/EGNOS DGPS 1x Furuno AIS Transponder 1x SSAS 1x Anschuetz Digital Gyro Compass 1x Furuno FE 700 Echosounder 1x Furuno DS-80 doppler speed log Communication Equipment 1x Furuno FS1570 MFHF Radiostation 150W Semi duplex 2x Inmarsat C with EGC Receiver 1x Navtex Receiver 1x Inmarsat F, Fleet77 with Fax 2x Semiduplex VHF Stations 1x Simplex VHF Station 1x PABX System, with pos. GSM Phone and Telefax Mooring & Deck Equipment Anchor Winch:2 x 8 T @ 10,5m/min Anchors: 2 x 2460 kg Chain: 467,5 m x 38mm Tugger Winch:2 x 10 T @ 0-19 m/min Slack Rope 73m/min Capstan aft: 2 x 8 T @ 0-16m/min Light Line: 21m/min Crane: 1 x 3 T @ 16m 8m retracted
Capacities Fuel, Capacity: abt 970 m³ Portable water: abt 820 m³ Mud / Brine: abt 980 m³ Drill Water: abt 1300 m³ Brine: abt 390 m³ Base Oil: abt 200 m³ Bulk: abt 320 m³ Discharge Rates Fuel Oil: 200 m³/hr @ 9 bar Oil based Mud: 2x 75 m³/hr @ 18 bar Ballast : 200 m³/hr @9bar Fresh Water: 200m³/hr @ 9 bar Drill Water: 200m³/hr @ 9 bar Dry Bulk: 2 x 25,6m³/min Brine: 75 m³/hr @ 18 bar Base Oil: 150m³/hr @ 9 bar Deck Cargo Cargo Deck: 51m x 13,3m= abt. 680m² Load: 5,0mt/m² Capacity: approx 1600 mt by 1,0 VCG above Deck Accommodation 12 Officers and Crew Manoeuvering Equipment Poscon Joystick Rolls Royce DP 2 Hot water Tank washing Price & terms : Please enquire using the email form below.
The details mentioned above are believed to be accurate but are not guaranteed. -------------------------------------------------------------------------------------------------------------------------- Search words (for official use only : Rolls Royce UT 755 LN Platform Supply Vessel for Sale Platform Supply Vessel for Sale Rolls Royce Design PSV for Sale DP2 PSV for Sale -----------------------------------------------------------------------------------------------------------------------
PSV for sale - 4400bhp Platform supply vessel PSV UT 705
General : Porty of Registry : Belize Year built : 1978 Classification : DNV + 1A1, EO Length overall : 80.77m Length bpp : 76.20m Breadth moulded : 18.00m Moulded depth : 7.10m Draft - loaded : 5.61m Deadweight (approx.) at 4114t Gross tonnage : 2478 tons Nett tonnage : 743t Cargo capacity : Fuel oil : 600cbm/1.000cbm Portable water : 470cbm Drill water/ballast : 1398cbm Brine : 352cbm Liquid mud : 424cbm Cement in bulk : 340cbm Deck cargo : 2400 tons Clear deck space : 53m x 15m Deck strength : 5 tons/sqm Refrigerated storage capacity Deep freezer : 7.5 cbm Cool room : 7.5 cbm Propulsion : Main engine : 2 x 2,300 bhp Nohab Polar F212V Main generators shafts : 2 x 1,040 kVA Auxiliary engines : Detroit Diesel Allison 12V-71N Detroit Diesel Allison 6V-71N Propellers : 2x pitch propellers Thrusters : Tunnel thruster : Ulstein 2 x 500hp Ulstein TV 90 Tunnel stern thruster : Ulstein 1x 800hp Ulstein TV 150 Rudders : 2 independent rudders with active flap Cargo pump capacity : Fuel oil : 120cbm/hr @ 90m head Portable water : 100cbm/hr @ 90m head Drill water : 100cbm/hr @ 90m head Flowmeter : 01 unit fuel, 01 unit water Liquid mud : 150cbm/hr @ 60m head Brine : 150cbm/hr @ 60m head Cement in bulk : 60cbm/hr at 80m Performance : Consumption (approx) : 14 tons/day at 13.0 knots (max speed) Econ. speed : 11.0t/day at 11 knots (service speed) Accomodation : 16 persons Officers and crew 12 person Pax : 2 x single and 1 x 2 men cabins Hospital : 2 persons 1 x galley 1 x mess room Seating capacity : 20 persons, fully air-conditioned Anchor handling equipment : Tugger winch : 1 x 10 tons SWL, Hydr. Brattvaag Towing pins : 2 x Karm Fork Shark Jaw : 2 x Karm Fork Capstan: 2 x 10 tons SWL, Hydr. Brattvaag Deck crane : 1.5 tons SWL Windlass : 1 x 12.6 tons SWL, Hydr. Brattvaag double drum Anchors : 2 x 2,460kg Anchor chain : Port, 14 shackles Stbd 15 shackles Navigation equipment : 1 Joystick (Ulstein) 2 radars (Decca RM 916 C) 1 gyrocompass (Sperry SR 220) 1 speed log (Galatee) 1 Echo sounder (Simrad EN) 1 Autopilot (Robertson AP 45) 1 GPS navigator (Koden KGP-911) Communication equipment : SP radio equipment to GMDSS A3 Standard comprising VHF & DSC (Sailor) MF/HF (T2130) DSC (Skanti 3000) Price & terms : Please enquire using the email form below.
The details mentioned above are believed to be accurate but are not guaranteed. -------------------------------------------------------------------------------------------------------------------------- Search words(for official use only) : 4400 bhp PSV for Deepwater operations for sale PSV UT705 for sale 4400bhp PSV for sale 4400bhp Platform Support Vessel for sale PSV for Deepwater for Sale UT705 for sale 4000 hp PSV for sale ---------------------------------------------------------------------------------------------------------------------------------
Double Hull 38000t dwt Bulk Carriers available For Sale Double Hull 38000T dwt Bulk Carriers New Building for Sale Handy size New Building Bulk carriers available - slots Bulk Carriers - 38,000MT - 1 slot (New Building) Type : Bulk Carrier Hull Configuration : Double hull-box type Quantities : 1 Deliveries : November 2010 Class : LR Class DWT (Metric Tons) : 38,000 mt Charter : Charter back option available Day rate : Please enquire
----------------------------------------------------------------------------------------------------------------------------------------------- Search words(for official use only) - Double Hull Bulk Carriers 38,000T dwt for Sale Handy Double Hull New Bulkers of 38k dwt for sale with charter options New Building 38000T dwt Bulk carriers available - slots Newbuild Handysize Bulk Carrier for sale with charter Double Hull Handy Size Bulker Handy Size Double Hull New Bulkers with charter options Double Hull New Building Bulk Carriers available For Sale New Double Hull Handysize Bulk Carrier Slots for Sale Bulk Carrier slots available at shipyards with charter options New Building Double Hull 38000T dwt Bulkers For sale Double Hull New Bulkers of 38k dwt for sale with charter options -----------------------------------------------------------------------------------------------------------------------------------------------
Platform Supply Vessel For Sale 89M Platform Supply Vessel For Sale Newbuild PSV For Sale ULSTEIN PX105 - Platform Supply Vessel For Sale - Oct 2011 X-bow Platform Supply Vessel PSV For Sale - Newbuild Main characteristics Length overall : 88.9 m Length between p.p. : 82.0 m Breadth : 19.0 m Depth to main deck : 8.0 m Draught max. : 6.6 m Design draught : 6.0 m Speed approx. : 15.5 knots Main generators : 4 x 1580 ekW Deadweight approx. : 4700 t Deck load (VCG 1 m above main deck) : 3000 t Cargo deck area : 985 m2 Cargo deck strength : 10 t/m2 Accommodation : 23 persons Classification DNV 1A1, SF, E0, DYNPOS-AUTR, CLEAN DESIGN, COMF-V(3), LFL*, DK(+), HL(+), ICE-C, NAUT-OSV
Tank capacities Fuel oil 870 : m3 Fresh water : 1260 m3 Ballast/drill water : 1520 m3 Liquid mud : 920 m3 Brine (combined with mud) : 550 m3 Dry bulk : 390 m3 Base oil : 150 m3 LFL* : 290 m3 Options Multi application cargo solution Exhaust gas system with seawater injection Bridge design with ~360° field of vision Diesel mechanical propulsion system Fire Fighter I OILREC
UlsteinX-Bow ® Hull Design Advantages Higher transit speed in calm water due to low angles of entry and increased waterline length. No bow flare, eliminating bow impact and/or slamming in foreship. Lower pitch and heave accelerations due to foreship volume distribution and slender hull lines. Reduced noice and vibration levels in foreship due to soft entries in waves. Less spray. Negligible occurrences of green water on bridge deck. Working deck and deck equipment better protected due to hull extended to full beam in accommodation area. Higher transit speed in head and following sea, giving reduced power consumption and/or higher fuel efficiency in waves and still water.
------------------------------------------------------------------------------------------------------------------------- Search words(for official use only) - X-bow Platform Supply Vessel For Sale Ulstein X-Bow PSV For Sale Newbuilding Ulstein X-Bow PSV For Sale Newbuild PSV For Sale ULSTEIN PX105 - Platform Supply Vessel For Sale - Oct 2011 X-bow Platform Supply Vessel PSV For Sale - Newbuild Newbuilding DP PSV For Sale New Ulstein PX105 PSV For Sale Ulstein PSV For Sale --------------------------------------------------------------------------------------------------------------------------
Showing 193 to 240 of 630 results
.png)
.png)
.png)
.png)
.jpg)
.png)
.png)
.png)
.png)
.png)
.png)
.png)
Search Here
1629719304900.jpg "Offshore Supply Vessel - 1999 Built - For Sale")
1629719304900.jpg "Offshore Supply Vessel - 1999 Built - For Sale")
