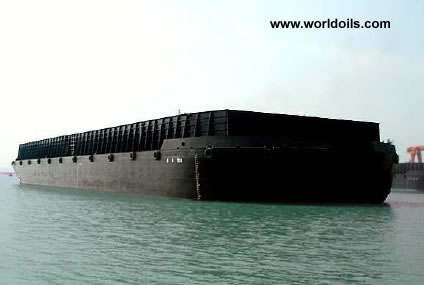

Dumb Barge for Sale 300 feet Dumb Barge for Sale
This unmanned steel dumb barge is suitably equipped for carrying deck cargo for unrestricted services.
Principal Particulars Length Overall : 300ft (87.78M) Breadth Moulded : 80ft (24.40M) Depth Moulded : 18ft (5.50M) Draft Moulded : TBA Class : BV Notation : I * HULL Pontoon Unrestricted Navigation Deadweight : ±7,500M/T Gross Tonnage : 3155 tonnes Nett Tonnage : 947 tonnes Deck strength : 5 tonnes / M²
Plating Deck Plate : 12.0mm Bottom Plate : 12.0mm Side Plate : 12.0mm Deck Longitudinal Angle Bar : 125mm x 75mm x 7mm Bottom Longitudinal Angle Bar : 125mm x 75mm x 10mm Side Shell Longitudinal Angle Bar : 125mm x 75mm x 7mm Longitudinal. Bulkhead Angle Bar : 125mm x 75mm x 7mm Web : 450mm x 100mm x 9.5mm Bulkhead : 8.0mm Bulkhead Stiffener : 125mm x 75mm x 7mm Stanchion : 250mm x 250mm x 9.5mm Diagonal : 150mm x 150mm x 9.5mm Chine Bar : 38mm dia Girder : 450mm x 100mm x 9.5mm
Price & terms : Please enquire using the email form below.
If you cannot find the vessel, crane, rig or equipment that you need, please send us an email to mail@worldoils.com stating your requirements and we shall find it for you.
We can arrange delivery of equipment and towage of rigs and vessels where needed.
The details mentioned above are believed to be accurate but are not guaranteed.
------------------------------------------------------------------------------------------------------------------------- Search words(for official use only) : Dumb Barge 300 feet for Sale 7500T Dumb Barge for Sale Unused 300feet Dumb Barge for Sale 300feet Dumb Barge for Sale --------------------------------------------------------------------------------------------------------------------

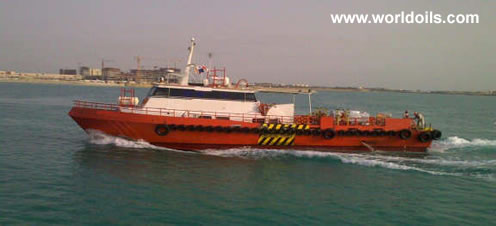

Utility Boat - 26m /46 Pax / 1991 blt for sale Aluminium Crewboat for Sale Year : 1990 Class : Bureau Veritas (BV) Dimensions Length overall : 85.00 FT Breadth : 19.40 FT Depth : 09.38 FT Draft loaded : 06.00 FT Gross tonnage : 95.00 Ton Net tonnage : 28.00 Ton Machinery Main engines : 2 x Detroit Diesel 12V 92TA x 720bhp Propellers : 2 fixed pitch Generators : 2 x KATO 120/208 V, 60 Hz, 40 kW each Speed Maximum / Cruising : 18/16 knots Fuel / Stby : 12 ltr/hour Fuel Consumption Max speed : 276 ltrs/hrs Cruising speed : 249 ltrs/hrs Capacities Fuel oil : 14,700 Ltrs Water : 9,000 Ltrs Free deck space : 50 M2 Deck cargo capacity : 7.50 LT Accommodation fully air conditioned : 6 crew, 46 pax (reclining seats) Navigation/Communication Radar : 1 x Furuno, FR 8050D, Range 48 NM 1 x Furuno 1830 Echo sounder : 1 x Raytheon 420 Magnetic compass : 1 Satellite navigation (GPS) : 1 x Furuno GP 31 SSB radio : 1 x ICOM IC-M700 VHF radio : 2 x Sailor RT 2048 Gyro Compass : 1 x Ritchie C453 Depth Sounder : Datamarine 3000 Fire Fighting/Safety Monitors : N/A Pump capacity : N/A Safety Equipment : as per SOLAS, Flag and Class Society requirement
----------------------------------------------------------------------------------------------------------------- Search words(for official use only) : Offshore crewboat for sale Offshore Utility Vessel 26m /46 Pax / 1991 blt / Aluminium Crew/ Utility Boat Aluminium Crewboat for Sale Utility vessel for sale -----------------------------------------------------------------------------------------------------------------
Handysize Bulk Carriers available For Sale Handysize Bulk Carrier for Sale - 1983 built 47000dwt Bulk Carrier for Sale Used Handysize Bulk Carriers available For Sale General Specifications : Year Built : 1983 Class : LLoyd's + 100A1 (Bulk carrier strengthened for heavy cargoes, hods 2 & 4 may be empty) ICE Class 1 C.Part H.T. + LMC & UMS, Finnish Ice due class IC Dimensions : L.O.A. : 189.00 m L.B.P. : 180.97 m Breadth (Moulded) : 32.20 m Depth (Moulded) : 16.60 m Tonnages : Summer DWT / Draft : 47,442 mt / 11.709 m Tropical DWT / Draft : 48,759 mt / 11.953 m Winter Draft (S.W) : 46,130 mt / 11.465 m Lightship / Draft : 9,488 mt / 2.2 m International Tonnage : GT 28,330 mt / NT 14,802 mt Suez Tonnage : GT 29,732 mt / NT 24,885 mt Panama Tonnage : GT 30,464 mt / NT 21,737 mt F.W.Allowance : 264 mm Constant : 270 mt Distances / Clearances : Freeboard : 4.925 m (Summer Draft) Airdrafts : Light Ballast : 43.94 m Heavy Ballast : 38.97 m Fully Loaded : 36.28 m T.P.C. : 53.87 t/cm (Summer) 53.67 t/cm (Winter) 54.08 t/cm (Tropical) Distance from water level to top of hatch coaming Hatch 3 : Light Ballast : 14.350 m Heavy Ballast : 9.380 m Fully Loaded : 6.691 m Height of Hatch Coaming : 1000 mm Camber of ship : 800 mm Dist Keel to Hatch Cover : 19.21 m Dist Keel - Hatch Coaming : 18.400 m Dist Keel - Highest Point : 47.990 m Holds / Hatches : Hold / Hatches : 5HO / 5HA Hatch Sizes : # 1 15.50 x 11.20 m # 2 19.80 x 15.60 m # 3 19.80 x 15.60 m # 4 19.80 x 15.60 m # 5 19.80 x 15.60 m Hatch Cover Sizes : # 1 15.50 x 11.20 m # 2 19.80 x 15.60 m # 3 19.80 x 15.60 m # 4 19.80 x 15.60 m # 5 19.80 x 15.60 m Tank Top Sizes : # 1 24.50 x 22.40 (aft) tapering to 8.1 (fwd) # 2 25.14 x 22.40 m # 3 25.42 x 22.40 m # 4 25.42 x 22.40 m # 5 26.24 x 22.40 (fwd) tapering to 12.9 (aft) Hold Capacities : Grain - #1 : 9,710 cbm , 342,905 cuft #2 : 11,827 cbm , 417,667 cuft #3 : 11,910 cbm , 420,598 cuft #4 : 11,999 cbm , 423,741 cuft #5 : 11,382 cbm , 401,952 cuft TTL : 56,828 cbm , 2,006,863 cuft Bale - #1 : 9,364 cbm , 330,687 cuft #2 : 11,391 cbm , 402,269 cuft #3 : 11,434 cbm , 403,788 cuft #4 : 11,525 cbm , 407,002 cuft #5 : 11,084 cbm , 391,428 cuft TTL : 54,798 cbm , 1,935,174 cuft Make of Hatch covers : KVAERNER Type of Hatch covers : Hydraulic - end folding type Ventilation in Holds : Mechanical (top and bottom) Fire Fighting System in Holds : Yes Co2 in Engine Room : Yes Smoke Detection in Holds : No Great Lakes : No Incinerator : Yes Fresh Water Generator : SASAKURA AFGUS 41 of 21mt / day Suez Canal Search Light : Yes Cement Holes : No Machinery : Main Engine : SULZER – 6RLB66 M.C.R. 12,600 bhp at 139 rpm N.S.O. 10,800 bhp at 129 rpm Aux. Engines : 3 nos x Man-B&W Model – 6S28LH-4 Bow Thruster : 1,200 bhp Emergency Generator : TAIYO 80kw powered by 124 bhp DAIHATSU diesel Bunker Grades : Fuel Oil (IFO) : 380 CST [RMG 35] at 50°C not exceed ISO fuel standard 8217, RMG380 Diesel Oil (MDO) : Marine diesel oil not exceed ISO 8217 : 2005 (E), DMB Bunker of different grades/qualities/suppliers not to be mixed. Speed/Consumption : In good weather, winds not exceeding 4 of Beaufort Scale, sea state not exceeding No. 3 of Douglas Scale and not adverse current. Speed & Consumptions : At Sea : Abt 12 knots on Abt IFO 32.9mt (Laden) Abt 13.0 knots on Abt IFO 30 mt (Ballast) In Port : Abt IFO 5.0mt (Idle) Abt IFO 7.0mt (Cargo gear working - 24 hours) (When entering/leaving port/ in restricted water when navigation in rivers or canals vessel's main engine burns IFO) P.S : Speed and consumption is given only for represntation purpose and not to form a part of any discussion or contract or negotiation. Tank Capacities : Tank Capacity : Diesel Oil 282.80 cbm Fuel Oil 1,555.10 cbm FW & DW 310.30 cbm Ballast Water 29,687.50 cbm (Incl no 3 hold) Hold floodable with SW : Hold no.3 (To be flooded only in extreme weather conditions, at Master’s discretion. Capacity : 11,947.20 m Cargo Gear : Cranes : 4 x 30MT SWL Type : K2530-4, Electro-Hydraulic Make : HAGGLUND Slewing : 1.2 rev/min Slewing Range : 360 degrees Hoisting Speed : 0-25t at 40m/min Luffing Time : max to min 44 sec Max Outreach : 11.4m from Shipside Situated : Crane # 1, between holds 1 – 2 Crane # 2, between holds 2 – 3 Crane # 3, between holds 3 – 4 Crane # 4, between holds 4 – 5 (Cranes are fitted with Grab Operating Mechanism) Grabs (Specification) : Bofors (wire operated grab buckets) Grab Fitted : 4 x 15cbm Allowable Loads : Allowable Cargo Load Tanktops : #1 : 30.0 mt/sqm #2 : 23.0 mt/sqm #3 : 33.0 mt/sqm #4 : 22.0 mt/sqm #5 : 29.0 mt/sqm Hatch Covers : #1 : 1.7 mt/sqm #2 : 1.7 mt/sqm #3 : 2.9 mt/sqm #4 : 1.7 mt/sqm #5 : 1.7 mt/sqm Price & terms : Please enquire using the email form below. If you cannot find the vessel, crane, rig or equipment that you need, please send us an email to mail@worldoils.com stating your requirements and we shall find it for you. We can arrange delivery of equipment and towage of rigs and vessels where needed. The details mentioned above are believed to be accurate but are not guaranteed. -------------------------------------------------------------------------------------------------------------------------------- Search Words(for official use only) : Handysize Bulk Vessel for sale Handysize Bulk Carrier for Sale in Asia 47000 dwt - Handysize Bulk Carrier For Sale Used Cargo Ship for sale - 1983 Built 47000 dwt bulker for Sale - Handysize ------------------------------------------------------------------------------------------------------------------------------------
Multi Purpose Supply/Utility/Dive Vessel for Sale Multi Purpose Supply Vessel for Sale - New building New Multi Purpose Utility Vessel for Sale New building Supply Vessel
Vessel : Build : 2009 Classification : RINA C+HULL + MACH, SUPPLY VESSEL,COASTAL GRT / NRT : 222/67
Auto Pilot : 1 x NAVITRON Autopilot - NT 921 MK II - Autopilot set
GPS Navigator : 1 x JRC GPS - JNAV 500 - GPS Navigator set
VHF : 2 x ICOM V.H.F - IC-M31 -Marine hand held V.H.F.
EPRIB : 1 x Jotron EPIRB - 95475 - Tron 40S EPIRB
Portable VHF (GMDSS) : 1 x ICOM VHF - IC-M411- Marine VHF set ( with DSC funtuanility)
SART : 1 x Jotron SART- SART 20 - Radar Transponder
Navtex Receiver : 1 x JRC Navtex - NCR 333 - Navtex receiver set
AIS : 1 x JRC A.I.S. - JHS 182 -AIS-Automatic identification system
AHTS Vessel for sale 24,128 bhp Anchor Handling Tug Supply Vessel for Sale 2011 built AHTS for Sale 250MT Bollard Pull AHTS for Sale
Principal Particulars Length Overall : 91.00 m LBP : 71.35 m Breadth Mld : 22.00 m Depth (to 1st Deck) : 9.60 m
Design Draft : 8.00 m Max Draft : 8.00 m Deadweight : Approx. 4,000 tonne (@ 7.90m) Deck Loading : 15.00 t/m² Max Deck Cargo : 700mt (Assuming 100% fuel and water)
Clear Deck Area : 700 m² Speed : 17.00 Knots Bollard Pull : Approx. 250 tonne
Classification : DNV, +1A1, ICE-C, TUG, SUPPLY VESSEL, OILREC, SF, E0, DYNPOS-AUTR, NAUT-OSV, CLEAN, COMF-V(3), DK(+), HL(p), TMON, BIS, FIFI 1
Main Machineries Main Engines : 2 x 8,000 kW MAK VM32C Total Power : 16,000 Kw (21,447 Hp), boost mode 18,000Kw (24,128 Hp) Propulsion System : 2 x Scana CPP with Propeller in Nozzle Bow Thruster : 2 x Brunvoll 880 kW CPP (Electric Motor Drive)
Azimuth Thruster : 1 x Brunvoll 800 kW CPP (Electric Motor Drive) Stern Thruster : 2 x Brunvoll 880 kW CPP (Electric Motor Drive) Generator : 2 x 1815 kW, 690V/3PH/60Hz Harbour / Emergency Generator : 2 x 4,500 kW, 690V/3PH/60Hz Generator-Propulsion Motor : 2 x 2,000 kW, 1,200 rpm PTI on Main Gearboxes
Accomodation State Cabins : 4 x 1 Berths 1-Man Cabins : 16 x 1 Berths 2-Man Cabins : 20 x 2 Berths Total Complement : 60 Berths
Dynamic Positioning Kongsberg K-POS DP22 DP System : Kongsberg C-Joy Independent Joystick System
Tank Capacities Marine Diesel Oil : Approx. 1,200 m³ Fresh Water : Approx. 1,100 m³ Ballast Water : Approx. 2,900 m³ (Includes Rig Chain Locker) Storage / Service Tanks : Approx. 150 m³
Rig Chain Lockers (ALL) : Approx. 670 m³ Liquid Mud / Brine : Approx. 670 m³ Oil Recovery (ORO) : Approx. 1,340 m³ Dry Bulk : Approx. 300 m³:
Urea : Approx. 35 m³: Active Damping : 2 Passive Roll Reduction Tanks *Tank arrangement Compliant with Revisions to MARPOL Regulation 12A - Guide Pins : 2 x Type S-300 Triplex (Retractable) Protection of Fuel Oil Tanks
Navigation and Communication 1 x Radar, 10 cm (S-band) Arpa Radar 1 x Radar, 3 cm (x-band (9GHz) Arpa Radar 2 x DGPS, GPS 1 x Echo Sounder for 1500m Depth
1 x Doppler Speed Log 1 x Weather Fax Receiver 1 x Auto Pilot 1 x GMDSS (Fleet77, Iridium, GSM) 1 x Navtex Receiver Intergrated Intercommunication System (ClearCom, V-Sat, VoIP)
Computer Network 3 x Portable VHF Transceiver 3 x Portable UHF Transceiver Ship Security Alert System Inmarsat C Satelite
Deck Machineries *All Deck Machinery HATLAPA Low Pressure Hydraulic Driven
Triple Drum Anchor Handling & Towing Winch (AHT) : 1 x Upper Anchor Handling Drum 1800/ 4100mm Æ, 4700m long 2 x Lower Towing Drums 1200/3600mm Æ, 3200m long Capacity 3,600m steel wire 76 mm Æ in 13-layers 500t / 200t @ 0-15 / 0-30m/min 1st Layer Brake Holding 600t 1st Layer
Secondary Winches : 2 x 170t / 68t @ 0-23 / 0-46m/min Tugger Winch : 2 x 25t @ 0-20m/min Capstan : 2 x 15t @ 0-30m/min Maker for winches & capstans : HATLAPA Guide Pins : 2 x Type S-300 Triplex (Retractable) Shark Jaws : 2 x 700 Triplex Anchor / Mooring Windlass : 2 x 8t @ 0-22m/min Split Stern Roller : 2 x 600t (SWL), 2 x 4000 mm, 4000 mm Æ 2 Provision Cranes : SWL 6T @ 17m Deck Crane : SWL 25T @ 12m, 10T @ 20 m, 5T @ 33 m 1 x Radar, 3 cm (x-band (9GHz) Arpa Radar (Certified for man riding)
Oil Recovery System (ORO) 10 x Combination Tanks with Total Capacity 1,340m³ 4 x ORO Pumps 125 m³/hr - 30 mwc
Oil Dispersant System Nozzles fitted : 2 units off-center flat spray nozzles Computer Network (12m spread on either side of the vessel)
Storage Capacity : 8800L of dispersant
Fire Fighting Water Monitor : 2 x 1200 m³/hr
Other Facilities Sanitary System : 2 x FW Hydrophore Pumps 6m³/h - 6 Bar 2 x Pressure Tanks 2m³ with Calorifiers
Garbage Disposal : 1 x Incinerator, 1 x Compactor, 1 x Bottle Grinder Galley : 1 x Room c/w Equipment and Utensils Mess & Duty Mess : 2 x Room c/w Entertainment Equipment Laundry Room : 1 x Room c/w 4 x Washers and 4 x Dryers Gymnasium : 1 x Room c/w Equipment Price & terms : Please enquire using the email form below.
The details mentioned above are believed to be accurate but are not guaranteed. ----------------------------------------------------------------------------------------------------------------------- Search words(for official use only) - AHTS Vessel for sale Anchor Handling Tug Supply Vessel - 2011 built 250mt BP AHTS for Sale 24,128 BHP AHTS for Sale Overall 91m long AHTS for Sale 24,128 bhp Anchor Handling Tug Supply Vessel AHTS Vessel - 2011 built - for Sale 250MT Bollard Pull AHTS for Sale -----------------------------------------------------------------------------------------------------------------------------
Safety Standby Vessel For Sale 40m Offshore Utility Vessel Standby/Survey/Utility Vessel Particulars Vessel Type : Standby/Survey/Utility Year Built : 1982 Classification : AMS, ABS A1+AMS + E
Price & terms : Please enquire using the email form below. If you cannot find the vessel, crane, rig or equipment that you need, please send us an email to mail@worldoils.com stating your requirements and we shall find it for you.
The details mentioned above are believed to be accurate but are not guaranteed. ------------------------------------------------------------------------------------------------ Search words(for official use only) : Offshore Standby Vessel for Sale Safety / Standby Vessel - 40m for sale Offshore Utility Vessel 1982 Built Standby Vessel for Sale 40m Utility Vessel for Sale Standby/Survey/Utility Vessel for Sale -------------------------------------------------------------------------------------------------
LPG/Ethylene tankers for Sale Used LPG Tankers 1992 built Ethylene Tankers for sale 12000tdw LPG/Ethylene tankers for Sale 1989 built tankers for sale Used Ethylene Tankers Ethylene/LPG Tankers for Sale 1990 built LPG Tankers - 12000 tdw Description : TBN 1 : 12,178 1990 Cant. Nav. 5240 LDT TBN 2 : 12,240 1992 Cant. Nav. 5240 LDT TBN 3 : 12,311 1989 Cant. Nav. 5107 LDT
Specifications :
About 12,178 mdwt on 9.42m Dims : 131.35 / 120 X 20.037 X 12.42m Abt 10,521 ins
B+W 5L50MC MCR 7,600 bhp 133 rpm Abt15K/24mt IFO380 4 tanks (2 deck tanks 2 x 37 cbm st.stl)
Abt. 10,501 liq (10,291 98%) 10,521 cbm (independant (st.stl) double-lobe cylindrical horizontal)
IMO 2 Double Bottom Pumps : 8 deepwell (2 per tank) Pumps : 2 Centrifugal booster pumps Pump design : Thune Eureka
Gens : 3 X 990 kw man 8L22/30 LPG / Ethylene/ Pressurized 4 bar / REF. / ammonia. 2 tks on deck 2 X 37 cbm st.stl
The ships have solid stainless steel tanks and pipes which means a very good residual scrap value. Price & terms : Please enquire using the email form below.
The details mentioned above are believed to be accurate but are not guaranteed. ----------------------------------------------------------------------------------- Search words (for official use only) - LPG/Ethylene tankers for sale Used LPG Tankers LPG Tankers for Sale - 1992 built 1989 built tankers for sale Ethylene Tankers for sale - 1990 built 1990 built LPG Tankers - 12000 tdw Used Ethylene Tankers 12000tdw LPG/Ethylene tankers for Sale 1992 built Ethylene Tankers for sale ----------------------------------------------------------------------------------------------------------------
Pipe Laying Barge for Sale 137M Pipe Lay Barge 2012 Built Barge for Sale General Built : 2012 Class : ABS (American Bureau of Shipping) + A1 Barge, CRO PGBOOM, MODU Compliance.
Principlal Dimensions and Characteristics Length OA (Hull) : 137.25 m Molded Beam : 37.82 m Molded Depth : 9.00 m
Tank Capacities Fuel : 4,700 cbm Ballast Water : 7,000 cbm Portable Water : 2,000 cbm Fresh Water : 2,000 cbm Lube Oil : 56 cbm Deck Loading : 12.5 tonnes Classification Society : ABS (American Bureau of Shipping) Year Built : 2012
Accomodation Berth : 288 total : Personnel (Single Berth Cabins: 10), Two Berth Cabins : 139
Other Facilities : Galley (1) Ness Hall (1) Cinema Room (1) Recreation Room (1) Internet Room (2) Phone Booth (1) Gymnasium (1) Conference Room (1) Laundry Room (1) Coffee Shop (1) Hospital and sick bay (1)
Auxillary Equipment Main : 1,500 kW x 4 Emergency : 1,500 kW x 1 Air Compressor : 875 Cfm @ 10 bar x 2 Air Receiver : 3,000 liters (793 gallons) @ 10 Bar x 2 Water Maker : 70 tonnes/day x 2 Oily Water Separator : 1 cbm/hr (cubic yard) @ 15 PPM Fresh Water system : 70 tons/day x 2 Hydraulic Loading : 55.5 cbm/day Organic Loading : 45.3 kg/day
Pipelay system Pipe Lay capacity : Max. 60 in.; Min. 8 in Coated Pipe Tensioner Machine : 70 tonnes x 2 A&R Winch : 182 tons Work Station : 1 x Beveling Station / 1 x Line-up Station / 4 x Welding Stations / 1 x NDT Station Repair & 1 x Field Joint Stations. Davit : 50 tonnes x 6 Stinger : Floating Truss, Total Length 60 m (feet) 1st Section length : 42 m 2nd Section length : 19 m
Crane Main Crane : PC300 Favelle Favco Main Hoist : 280 tons @ 20.0 m (66 feet), 77 degrees Auxiliary Hoist : 32 tons @ All Radius
Welding Machines : 1,000 amp Lincoln Sub-arc. x 4 800 amp Lincoln Welding Machine x 4 400 amp Lincoln Welding Machines x 4 Lincoln LF33 portable Welding Machine x 8 400 amp DC multi Process Lincoln Welding Machine x 14 600 amp DC Multi Process Welding Machine x 1
Mooring and Tow System Winches : Hydraulic Mooring Winches x 8 Line Pull : 125 tons x 13 m/min. at 1st speed @ 1st layer Wire Size diameter : 52 mm Length : 1,500 m Anchor Type : Delta Flipper Anchor capacity : 10 tons Wire Size diameter : 58 mm Length : 500 m Anchor capacity : 5 tons Winch capacity : 300 kN x 9 m/min. A 1st layer Anchor Type : 200 ton SWL
Helicopter Deck Suitable for "Sikorsky S92"
Safety and Life Saving Equipment Rescue Boat : 6 pax Semi Ridgid Inflatable Life Raft : 2 x 50 men Life Jacket : 640 Life Buoy : 10 Rescue Lifeline : 2 x 30 min
General Safety system : Chemical System - for Galley Hood Fm-200 Switch Board Room Automatic Sprinkler System - Accommodation, Public area, Working Area and Storage. Water Mist System - Machinery Room Automatic Fire and Smoke Detection System - Accommodation, Public Area, Working Area and Storage. Fire Monitor system
Communication/Navigation/Safety Radio Modu Code Compliance (Equipped with 2.4 M Vsat for Broadband and Services (PSTN).
All details on these pages are given in good faith and are believed to be accurate but no warranty of accuracy or completeness or suitability for purpose is either stated or implied. Prices are subject to change without notice. Price & terms : Please enquire using the email form below.
The details mentioned above are believed to be accurate but are not guaranteed. ----------------------------------------------------------------------------------- Search words (for official use only) Pipe Lay Barge for Sale 137M Pipe Lay Barge for Sale 2012 Built Pipelaying Barge 137M Pipelaying Vessel for Sale Pipelaying Barge - 137M 137M Pipe Lay Barge 2012 Built for Sale -----------------------------------------------------------------------------------

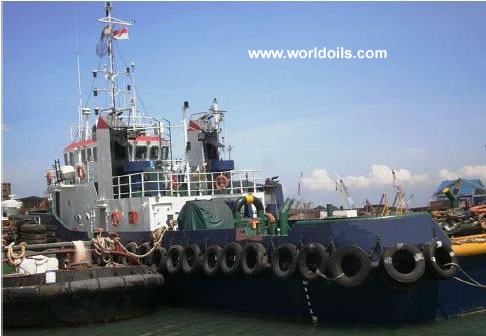

Tugs for Charter 2009 Built Tugs for Sale General Year Of Built : 2009 Basic Functions : Towing, mooring and survey Operations Classification : Bureau Veritas 1 * Hull MACH Tug Coastal Area Incl. tonnage certificate Painting : Epoxy paint system Dimensions Length O.A. : 16.56 m Beam O.A : 5.54 m Depth At Sides : 2.54 m Draught Aft : 2.35 m Scantlings : hull 10 mm, sheerstrake 20 mm
Tank Capacities Fuel Oil : 14.0 cbm Fresh Water : 1.1 cbm Sewage : 0.7 cbm Bilge Water : 0.5 cbm
Performance Main Engines : 2 x Caterpillar C18 TA / B Total Power : 896 bKW (1200 bhp) @ 1800 rpm Gearboxes : 2 x Reintjes WAF 264 L 4.5:1 Propellers : 2 x Kaplan II fixed pitch propellers Nozzles: 2 x 1350 mm Van de Giessen “Optima” with st.st. innerrings Rudders : 2 x streamlined, double plates Auxiliary Equipment Generator Set : Caterpillar C2.2 NA , 230V, 18 kVA , 50 Hz Alternator 24 V : 2 x main engine driven Battery Sets : 2 x 24 V 200 Ah + change over facility Alarm System : Engines , gearboxes + bilge alarm Bilge/GS Pump : Elec. Driven , Sterling SIHI VW SI 5013 20 m3/hr Fuel Oil System : Duplex filters , water separators + SOS valve Cooling System : Closed cooling system / Keel cooled Water System : Electrically driven freshwater hydrophore and Sewage pump Fresh Water Heater : 230 V , 30 liter . Ventilation: Mechanical Ventilation in E.R. Deck layout Anchors : 2 x 80 kg Pool (HHP) Chain (TOT) : 100 m shortlink chain 13 mm diameter Anchor Winch : manual for one anchor Towing Hook : Disc type , 25 ton Liferafts : One (or 2 optional) on top deck Accommodation The accommodation is completely insulated and finished with durable modern livings, acoustical Dampa ceiling in the wheelhouse and a floating floor . The air –conditioned wheelhouse is fitted with a corner settee with table and a control position . Below deck a galley , sanitary Facilities and a store are provided . Crew cabin with four bunks.
Nautical and communication equipment Search light : Pesch 250 W + flood ight 150 W Horn : Electric Radar : Furuno 1932 Compass : Magnetic Kotter type GPS : Furuno GP-32 Echosounder : Furuno LS-6100 VHF Radio : Sailor RT2048 Price & terms : Please enquire using the email form below.
---------------------------------------------------------------------------------------------------------------- Search words(for official use only) : Tugs for Charter Towing + Survey vessel for Charter TSC vessel For Charter Tugs 2009 Built for sale Towing Survey Vessel For Charter ------------------------------------------------------------------------------------------------------------------
Offshore Supply Vessel for Sale Offshore Tug For sale 1983 Built Offshore Tug For sale
Specification Built : 1983 Classification : Lloyd's : +100A1, +LMC UMS "Offshore Tug/Supply Vessel" Ice Class 1*, Special Purpose Ship, 56 Crew Members can be boarded Deck Load Capabilities Deck cargo capacity : 550 ts Deck measurement : 13.00 x 10.9m + 5.9 x 24.5m Cargo rail height : 2.0m / 1.5m Deck Strength : 5 ts/sqm
Mud/Bulk Tank Capacities Cement : 4 tanks, totalling 290 cbm (10,240 cu.ft) Liquid mud : max. 1200 barrels in 2 tanks Discharge rate cement : 2 x 19.2 cbm/h compressors, 80 psi Discharge rate mud : 2 x 60 cbm/h at 60 m head
Liquid Tank Capacities Potable water : 330 cu.m Drillwater/ballast : 681 cu.m Total Fuel : 937 cu.m Domestic fuel : 520 cu.m Rig fuel oil (diesel) : 417 cu.m Discharge rate potable water : 150cu.m/h at 60 m head Discharge rate drill water : 100 cu.m/h at 60 m head Discharge rate oil : 150 cu.m/h at 60 m head Discharge stations : aft under cargo rails Discharge lines : All 4" with WECO couplings
Propulsion Main engines : 4 x Bergen diesel/type KVMB-12 each 3,060 BHP, total 12,240 BHP. Speed/Consumption Max. speed/consumption : consumption according to Yard trail 16 kts on 30ts gas oil/24 hrs. Economical speed : 12 kts on abt. 18.0 ts 10 kts on abt. 12.5 ts 8 kts on abt. 9.0 ts Consumption in port : 0.5 ts/24 hrs. Consumption stand-by, at sea : abt. 5.0 ts/24 hrs. Bollard Pull : 120 tons continuous Propellers : 2 x Ulstein controllable pitch in nozzles.
Thrusters Stern : 1 x 800 BHP Bow : 2 x 800 BHP Ulstein make all electrical driven
Generators : 2 x 1570 kva shaft generators 2 Caterpillar diesel each driving a 250 KW generator 1 Caterpillar diesel driving a 94 kva generator.
Bridge Equipment/Manoeuvring Joystick control : Ulstein Joystick control Autopilot : Robertson Gyro compass : RGC - 11 Radars : 1 x Decca Bridgemaster 250 (10cm) 1 x Decca Bridgemaster 180 (3cm) + Slave monitor Decca navigator : MX 400 Professional Echo sounder : Scipper 60s - 101 Facsimile receiver : Furuno fax 208A DGPS : trimble 4000DS DGPS Positioning eqm incl. Hydro Nav. Package software
Communication Equipment Complete GMDSS package consisting of : 1 x TT3606A Sat-c comm. Units 1 x TT 3020C Sat-c comm. Unit Sailor compact VHF RT 2048 Furuno MF DSC terminal/receiver Furuno VHF radiotel FM 8500 Furuno VHF radiotel FM 8500 Furuno FS 1562 15 tranciver 4 VHF portable radios Standart Horizont
Other comm. equipment : 1 x Command Intercom PSA 204 Iridium ID telephone 1 x Saturn M telephone Nera 1 x HP PC with e-mail connection
Towing and Anchor handling Equipment Winch : Brattvaag hydraulic triple drum, Waterfall type with 250 ts pull and 400 ts static holding force. 2 anchorhandling drums each for 1,000m 64mm diameter deadman wire. 1 towing drum for 1,000 m 64 mm diameter towing wire. Pennant reels : pennant reel for 900m 76 mm wire + 2 x 500m 76 mm wire. Wildcats : For 3"/76 mm rig chain Chain lockeers : 2 rig chain lockers - 104 cu.m for 1150 m of 3" chain each.
Deck Equipment Capstans : 1 pc. 8.5 ts pull capstan on focsle head hydraulic driven. 2 pcs 5ts pull capstans on aft deck hydraulic driven. 2 pcs 5ts pull tugger winches hydraulic driven. Crane : 1 crane, 5ts, 9m outreach
Cargo Deck aft Shark jaws : 1 set hydraulically operated Triplex shark jaw. Towing pins : 2 hydraulically operated towing pins, permit side pressure 50t. Stern roller : 1 x 350 ts SWL stern roller with dia. of 1.8 m and length of 3.66m. Furthermore, the vessel is well equipped with stoppers, chaser, grapnel, shackles, fuse wires, etc. Anchoring System Hydraulic winch with 24 shackles of 36 mm chain. 1 x deep water anchor winch with declutchable drum cap. of 1,500 m x 38mm diameter wire, remote controlled from wheelhouse. Anchoring depth 400m.
Accomodation Crew cabins : 13 persons in single cabins Passengers : 44 persons in 11 x 4 - berth cabins. All accommodation, bridge and engine control rooms are fully airconditioned. Seperate air condition units installed for bridge and engine control room. Extra insulation for work in cold areas.
Rescue/Safety/Pollution Spray Booms : Yes Lifeboats : 2, each for 28 persons Liferafts : 2 x 16 persons VIKING
Details believed to be correct but not guranteed.
----------------------------------------------------------------------------------------- Search Words : OSV For sale Offshore Supply Vessel for Sale Offshore Tug/Supply Vessel for sale Offshore Tug for Sale -----------------------------------------------------------------------------------------
Anchor Handling Vessel For Sale 4000bhp Anchor Handling Vessel For Sale 50M AHT For Sale
Principle Particulars Length O.A. overall (Mld hull) : 49.95 m Length W.L. : 48.60 m Breadth moulded : 12.60 m Depth moulded : 5.75 m Draft moulded (design) : 4.50 m
Capacities Clear Cargo Deck aft : 220 m2 (22 x 10) Deadweight approx. : 700 t (at max. draft of 4.8m) Tank Capacities With tanks 100% full, the approx. capacities will be as follows: Portable, total : 242 M3 (approx) Fuel Oil, total : 500 M3 (approx) L.O. Storage (M.E) : 2 x 6 M3 (approx) L.O Storage (Gensets) : 2 M3 (approx) Hyd. Oil : 2 x 5 M3 (approx) Steering Gear Oil : 1 M3 (approx) Freezer/Chiller (Ship's use) : 2 x 5 M3 (approx) Bilge Holding Tank : 5 M3 (approx) Sewage Holding Tank : 5 M3 (approx) Dirty Oil Tank : 5 M3 (approx) Foam : 16 M3 (approx) Dispersant : 19 M3 (approx)
Complement and Accommodation 3 x 4-berth cabin : 12 men 6 x 2-berth cabins : 12 men 3 x 1-berth cabins : 3 men Total Complement : 27 men
Main Engines Main engines to be two (2) Cummins QSK 60, each developing an MCR of 2200 BHP at 1800 RPM, giving a total of about 4400 BHP Continuous power.
Geberators - Main Two (2) marine diesel generating sets, heat exchanger cooled, each rated approx 250 KW, 415V, 3 Phase, 50 Hz, 0.8 P.F.. The two units are to be able to operate in parallel. Basic Design Characteristics:- - Heat exchanger cooled - 4 strokes - Engine mounted L.O, fresh water, fuel oil and raw water pumps - Engine mounted L.O. and fresh water coolers - Local and remote start - Resilient mounting - Auto synchronizing
Life Saving Equipment Life saving equipment is to be in accordance with Classification and Solas requirements for an Ocean Going Vessel with a total complement of thirty (30) men. The Life saving equipment shall include at least the following:- Liferafts : Four (4) inflatable liferafts to SOLAS requirement, each certified for twenty (20) men are to be stowed in hinged type cradles for quick sideway launching. All to be SOLAS Approved. Lifebuoys : Eight (8) lifebuoys of PVC or equal approved construction. Four (4) lifebuoys with 90-Ft buoyancy line Four (4) lifebuoys with 90-Ft buoyancy line and selfigniting electric lights Two (2) smoke signals of the latter). All to be SOLAS approved. One (1) lifebuoy to be positioned close to stern. Lifejackets : Thirty-eight (38) approved type lifejackets to be supplied and stowed adjacent to each berth. Including 2 Spare jackets. All to be SOLAS approved. Pyrotechnics : Twelve- (12) parachute distress rockets. Two (2) orange smoke signals each to have 120 seconds discharge time and be waterproof. Rescue Boat : One (1) Solas approved type rigid 6-men rescue Boat c/w 25BHP outboard engine and approved gravity type davit is to be provided Line Throwing : One (1) set Line Throwing Apparatus to meet with SOLAS requirement. Retro Reflective : Life Saving appliances are to be fitted with reflective tapes . Boat Hooks : Two (2) boat hooks c/w approx. 8mm handle. First Aid Kit : As per rules.
Firefighting Equipment Internal firefighting Firefighting equipment is to meet Classification and relevant Flag state Regulations. Generally all in accordance with the following: Firemain:- A firemain and hydrants are to be installed, six (6) on various deck levels and two in engine room. 10M canvas fire hose c/w brass coupling and nozzle is to be supplied and stowed alongside each hydrant in a protective box. All nozzles to be dual jet/spay type. International shore connection is to be fitted. Fireman's Outfit:- Two (2) complete sets (each contained in its own separate storage unit) of fireman's outfit are to be provided, comprising the following:- -one (1) protective clothing -one( 1) breathing apparatus - oxygen tank and mask -one( 1) fireman's axe -one( 1) safety lamp of portable battery type -one( 1) set of gloves and boots
External Firefighting The following equipment are to be fitted for the vessel to comply with half Fi Fi standards with water spray curtain. a) Fire Pump Two (2) unit seawater pump, one 1700 M3/Hr drive by main engine , other one 1200 M3/H drive by independent engine at 14 kg/cm2 to supply the fire monitor. b) Fire Monitor Two (2) units monitor at 1200 m3/hr each (Foam/ Water) Remote controlled.
Navigation and Communications Equipment One (1) unit of DSC watch keeping receiver. Two (2) units of search and rescue radar transponder (SART) One (1) Inmarsat “C” station with voice, fax, email facility. One (1) unit of NAVTEX Receiver One (1) EPIRB One (1) MF/HF SSB Two (2) Radars, both X-band, meeting SOLAS & GMDSS, both Furuno 1510 with ARPA function One (1) speed log system comprising transducer receiver, inter-phasing facility and interconnecting cable shall be provided and installed. One (1) master gyro-compass fitted with five (5) gyro repeaters positioned as follows :- One (1) centrally located in wheelhouse forward steering station as steering compass One (1) centrally located in wheelhouse aft steering station Two (2) outside of wheelhouse positioned clear of obstructions so as to allow bearings to be taken, fitted with azimuthing ring capable of obtaining compass errors. One (1) auto pilot compatible and interfaced with gyro and steering compass. One (1) magnetic compass, 7 inch reflector type c/w correction magnet, quadrant balls and reflector tube and compass binnacle, Azimuth device. One (1) DGPS (Global Positioning System) navigator. One (1) echo-sounder, 0-036 ft deep range c/w repeater at aft manoeuvring station. Three (3) sets walkie talkie, intrinsically safe, complete with spare battery and chargers. SSB set (See separate clause). Item not specified above but required by the relevant Authority are to be supplied by owner
Anchor Handling Fork, Shark Jaw One (1) set electro-hydraulically operated anchor handling fork (hydraulic retractable shark jaws) of approved make to be installed in centreline on main deck aft. The stopper to be able to take 2” to 3” dia. Wire and 1-1/4” to 3” dia. Chain. SWL to be 200 tonnes. Stopper to have separate hydraulic power unit and to be remotely controlled from the cargo rail on main deck aft and from wheelhouse aft.
Towing Pins (200t SWL) Two (2) vertical hydraulic towing pins of approved make, retractable type, closed top to be installed in the centreline of the main deck. The anchor handling pins to extend about 600mm above main decklevel in the fully extended position. The pins are to be operable from wheelhouse aft and locally.
Capstans Two (2) electro- hydraulic/hydraulic capstans each of 5 tonnes at 15m/min capacity to be installed aft as shown on the General arrangement drawing light load speed to be 30m/min. Local controls.
The details mentioned above are believed to be accurate but are not guaranteed. -------------------------------------------------------------------------------------------------------------------------------------------------- Search words(for official use only) - Anchor Handling Vessel For Sale 4400bhp AHT For Sale AHT For Sale in Middle East, Dubai 4000bhp Anchor Handling Vessel For Sale 4000bhp Anchor Handling Tug in Singapore, Malaysia, Indonesia 4000 bhp AHT For Sale AHT For Sale AHT For Sale in Singapore, Malaysia, Indonesia --------------------------------------------------------------------------------------------------------------------------------------------------------
AHTS Vessel for Sale AHTS - 2011 Built - for Sale
Description :
Type : AHTS Dimensions : Loa: 63,7m Class : Lloyds Register Build : 2011 built Accom / Pax : 30 passenger apart from crew Machinery : M/E:5000 bhp Deck : Clear Deck Area:415m2 Capacities : Bollard pull : 61T Location : Middle East Others : DP2, FIFI-1 Price & terms : Please enquire using the email form below.
--------------------------------------------------------------------------------------------------------- Search words (for official use only) - Anchor Handling Tug Supply Vessel for Sale AHTS Vessel for Sale 30 Passenger Capacity Vessel for Sale Anchor Handling Tug Supply Vessel AHTS Vessel - 2011 Built ---------------------------------------------------------------------------------------------------------
Crew Boat for Sale 14m Crew Vessel for Sale Description :
Type : 14m Crew boat Dimensions : 14.9m x 5m x 0.6m Class : MCA Build : 2006 Accom / Pax : 12 passenger + 2crew Machinery : Cummins / 6CTA 430 hp x 2 // ttl : 860bhp Speed : 20 knots Deck : Deck space : 20m2 Location : Gulf of Mexico
--------------------------------------------------------------------------- Search words (for official use only) - Crew Boat - 14m for Sale 2006 Built Crew Vessel for Sale 12 Passenger Crew Boat - 14m for Sale Crew Boat for Sale in Gulf of Mexico 14m Crew Vessel for Sale -------------------------------------------------------------------------
AHTS Vessel for Sale 2007 Buit Anchor Handling Tug Supply Vessel
Description : Type : Azimuth AHT Dimensions : 50m x 10m x 4.20m Class : BV Build : 2007 Accom / Pax : 24 Machinery : 2 x Caterpillar 3516B Speed : 12 Deck : 227m2 Capacities : FO Capacity : 700m3 FW Capacity : 250m3 Others : FIFI
------------------------------------------------------------------------------------------------- Search words (for official use only) - Azimuth AHTS Vessel for Sale 24 Passenger Accommodation Vessel for Sale 2007 Built Anchor Handling Tug Supply Vessel Azimuth Anchor Handling Tug Supply Vessel AHTS Vessel - 2007 Built for Sale -----------------------------------------------------------------------------------------------

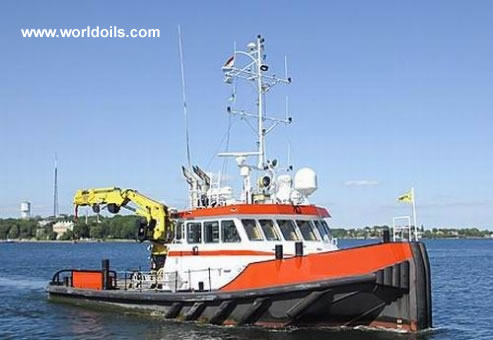

Tug Boat for Sale 1965 Built Tug Boat for Sale
Type : Tug Boat Dimensions : Loa :27m / B:6,9m / D:3,6m Class : MCA Build : 1965 built Accom / Pax : Accomodation: 6 persons Machinery : Bolnes 12 DVL 900HP Speed : 10 knots Capacities : Fuel: 26 tons water:25 tons Location : North Europe Price & terms : Please enquire using the email form below.
----------------------------------------------------------------------------------- Search words (for official use only) - Tug Boat for Sale in Europe 6 person Accomodation Tug Boat for Sale 27 m Tug Boat for Sale 1965 Built Tug Boat for Sale Tug Boat with 6 person Accomodation -------------------------------------------------------------------------------------
Twin Screw Tug for Sale 1994 Built Tug for Sale
Type : Twin Screw Tug Dimensions : 20m x 5m x 3.05m Class : IRS Build : 1994 Accom / Pax : 8 Machinery : 2 x Cummins NTA-855 M Speed : 9 Capacities : FW Capacity : 1000 Tons FO Capacity : 48 Tons Location : India Price & terms : Please enquire using the email form below.
--------------------------------------------------------------------------------------------------------- Search words (for official use only) - Twin Screw Tug Boat for Sale 1994 Built Twin Screw Tug 8 Passenger Accomodation Twin Screw Tug Twin Screw Tug Boat -1994 Built for Sale Twin Screw Tug Boat for Sale in India ---------------------------------------------------------------------------------------------------------

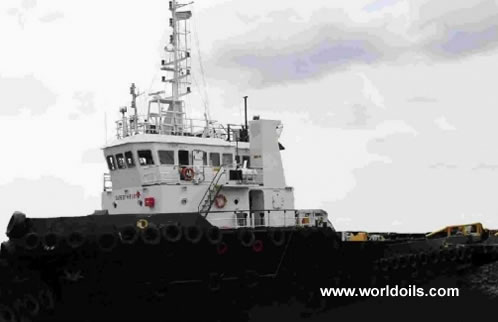

Twin Screw Tug Boat for Sale 1995 Built Tug Boat for Sale
Type : Twin Screw Dimensions : 30m x 10m x 4.11m Class : ABS Build : 1995 Accom / Pax : 8 Machinery : 2 x Yanmar, T240A-ET Deck : FWD Winch :1 x PLIMSOLL AFT Towing Winch:1 x PLIMSOLL Towing Hook :60 T Others : FIFI
The details mentioned above are believed to be accurate but are not guaranteed --------------------------------------------------------------- Search Words (for official use only) : Tug Boat for Sale Twin Screw 1995 Built Tug Boat for Sale 30m Tugboat for Sale 8 Passenger Tugboat for Sale Twin Screw Tug Boat for Sale ---------------------------------------------------------------------------------
Tug Boat for Sale 1999 Built Tug Boat for Sale
Type : Tug Boat Dimensions : Loa : 15,52m / B:5,52m / D:1,75m Class : Ministery of hellenic Build : 1999 built Machinery : Engines : Two (2) Caterpillar 340 8 B 2 X 402 bhp- 1800RPM CYL. 2X8 Capacities : Bollard Pull : 8 Tons Fuel Capacity : 18,9 T Water Capacity : FW 6T/9.848 Ballast Location : Aegean sea Price & terms : Please enquire using the email form below.
------------------------------------------------------------------ Search words (for official use only) - Tug Boat for Sale 1999 Built Tug Boat for Sale Tug Boat for Sale at Aegean Sea Tug Boat for Sale -1999 Built -----------------------------------------------------------------
Anchor Handling Tug - 40m - for Sale AHTS 2013 Built for Sale
Type : AHT Dimensions : Loa:40m/B:11,8m/D:3,8m Class : BV Build : Under construction(delivery 2013) Accom / Pax : Acc: 20 men Machinery : M/E:Mitsubishi S16R-MPTK Marine Diesel 2 x 1,850 BHP/ 1650 rpm Speed : 12 knots (Approx.) Deck : Clear deck area 150 m² (Approx.) Deck loading 5 tonnes/m² (Approx.) Capacities : Bollard pull: 45 ton Fuel oil 370.00m3 (Approx.) Fresh water 100.00m3(Approx.) Location : South East Asia Others : Fire Fighting System
--------------------------------------------------------------------------------------------------------- Search words (for official use only) - Anchor Handling Tug for Sale in Asia New AHT for Sale 40m AHT for Sale 2013 Delivery Vessel for Sale Anchor Handling Tug - 20 Men Accommocation Vessel ----------------------------------------------------------------------------------------------------------------------

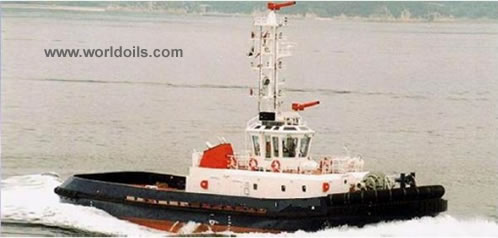

ASD Tug For Sale 4400BHP MULTI-PURPOSE ASD TUG
Main Particulars : Length O.A. : 30m Length B.P. : 25.2m Beam MLD. : 10.8m Depth MLD. : 5.4m Crew : 12 Design Draft : 3.6m Max Draft : 4.7m GRT : 469 NRT : 140
Classification Notation : BVâ… Hull Mach, Salvage Tug / Utility Boat / Fire Fighting Ship 1 unrestricted navigation
Year Built : 2010
Main Capacity : FO : ~267m3 FW : ~80m3 Fi-Fi Foam : 18.16m3 Spilled Oil Dispersant : 4.5m3 Lube Oil : 1.0m3
Anchoring and Towing Equipment : -Single Reel Hydraulic Towing Winch Set : Maker : Plimsoll - Singapore Capacity(Steel Wire) : φ46mm×770M Brake Holding : 150 MT Rated pull : 20MT@0~10M/min and 5MT@0~30M/min Hydraulic emergency release
-Hydraulic Anchor/Escort (Towing) Winch Set : Maker : Plimsoll - Singapore Anchor weight : 2 × 570 kg Diameter of anchor chain : Φ20.5 mm Rated hauling speed : 1.83MT@0~15M/min Capacity(P.P. Wire) : φ100mm×110M Brake Holding : 120 MT Rated pull : 18MT @ 0~10 M/min
- Electro-hydraulic collapsible mast : 1set
Main Machinery & Propulsion Unit : Main Engine Sets : CUMMINS – USA-UK - Power 2,200 BHP @1,800rpm/min - Model CUMMINS QSK60-M - Quantity Two Sets
Marine Gen. Sets CATERPILLAR – USA - Model CATERPILLAR 3406MGS - Power 245eKW /400V/50HZ/ 3Φ - Quantity Two Sets
Harbour Genset 1×DuFong-CUMMINS CCFJ-60J– US-China - Power 60KW /400V/50HZ/ 3Φ
Marine Crane SQ8ZB3 - Max. Lifting SWL0.98MT@12M/ 8MT@2M - Quantity One Set
ASD Propellers - Model AQUAMASTER US205MK2 FP - Maker ROLLS ROYCE – Finland - Quantity : One set
Bow Thruster 1×STT110L-FP Power 90KW
Oily Water Separator 0.25M3 x One Set
Sewage Treatment 20-22 persons Plant One Set External FIFI System (SOLAS – FIFI 1 Class) - Firefighting Monitor 2×1200/300M3/hr(water/foam), range120/70M(water/foam) height water throwing 50M(water) - Firefighting Pump 1×2400M3@1.17MPa - Maker FFS – Norwegian F.O. Separator 1 x 1500L/h
Lifesavng and FiFi Equipment : - In compliance with the SOLAS requirements, Hong Kong merchant shipping ordinance and class notation requirements as regards Lifesaving & FiFi equipment. - CO2 System as per BV Rules - 8 x Life buoy; 16 x Life jacket; 2 x 15persons Liferaft; Portable Fire Extinguisher : 11 x 9kg foam; 6 x 5 kg CO2; 9 x 6kg Dry Powder; 1x 45 L Foam Fire Extinguisher (cart-pushing); 4 sets fireman outfit with breathing apparatus; 2 sets breathing apparatus of artificer diver; 2 sets gas mask with filter; 4 sets flood protection unit of1M x 2M; 12 x parachute distress rocket; 2 x Orange Smoke signal; 6 x Floating Light - Salvage and support Pump ability : 100M3/h & 90M3/h - Electric Fifi General Pump ability : 25M3/hr - Spare Electric Fifi Pump ability : 25M3/hr - Spilled Oil Dispersant System
Main Radio & Navigation Equipment : Radar 1×FR-1510MK3 Echo Sounder 1×Furuno FE-700 Speed Log 1×Furuno DS-80 Anemometer 1×Furuno FI-50 GPS 1×Furuno GP-150 Electrical Horn 1×Yahagi E3M-24 Autopilot 1×Alphaseapilot MFC Vertical Standard Magnetic Compass 1×CPL-165 Steering Magnetic Compass 1×CPT-130 Sound Power Tele. 1×12KSL Public address system 1×KSGB-JQ AIS 1×Furuno FA-150
A3 sea GMDSS MF/HF SSB 1×Furuno FS-2570 Inmarsat-C(SSAS) 1×FELCOM-15(IC-307) Inmarsat-C 1×FELCOM-15 VHF telephone 2×Furuno FM-8800S NAVTEX 1×Furuno NX-700B SART 1×Pathfinder 3 SART EPIRB 1×ACR RLB-32 Portable VHF 2×ACR SR-102
Air Conditioning System : -Equipped centralized air- conditioning for Wheelhouse, Mess Room, Captain’s and Chief Eng. Room and other crew room. -Equipped split-type air handling unit for engine room centralized control room and split-type air- conditioner for wheelhouse.
Accommondation & main living facility 2×Senior Officer Cabin for single 1×Senior Officer Cabin for two men 2×Crew Cabin for four men 1×Assemble-type Provisions Freezer 2×Twin Head-type Induction Hob 1×Berlin centralized electric water heater 1×Cleemann Captain Chair – Germany - Model : Nautic D GZ - Material : Synthesized leather - Width : 610mm - Height : Min558mm / Max718mm - Length of rail : 2200mm Price & terms : Please enquire using the email form below.
-------------------------------------------------------------------------------------------------------------------- Search words(for official use only) - ASD Tug For Sale 4000bhp ASD Tug For Sale 4400hp ASD Tug For sale ASD Tug For Sale in Singapore, Malaysia, Indonesia ASD Tug For Sale in Middle East, India --------------------------------------------------------------------------------------------------------------------
AHTS - 1985 Built - for Sale AHTS Vessel for Sale
Type : AHTS Dimensions : 66X13X4 Class : ABS Build : 1985 Accom / Pax : 20 Machinery : 6140bhp Speed : 13 Deck : 336m2 Capacities : Drill Water : 100m3/Hr @ 61m Potable Water: 100m3/Hr @ 61m Fuel : 100m3/Hr @ 61m Methanol : 0m3/Hr @ 0m Liquid Mud : 270m3/Hr @ 55m Dry Bulk : 4m3/Hr @ 3bar Brine : 100m3/Hr @ 61m Others : 2xFPP IN NOZZLES Price & terms : Please enquire using the email form below.
--------------------------------------------------------------------------------------------------------- Search words (for official use only) - 1985 Built AHTS Vessel for Sale 20 Passenger Capacity Vessel for Sale Anchor Handling Tug Supply Vessel AHTS Vessel - 1985 Built ---------------------------------------------------------------------------------------------------------
Fast Ferry Boat for Sale 18m CAT Type Fast Ferry Boat Description :
Type : 18m CAT Type Fast Ferry Boat Dimensions : 18.05m / B:7.5m /Depth: 2.8m Build : New building order Accom / Pax : 49 seats Machinery : 2 x 700hp CAT C18 Speed : Max 25 knots Deck : Deck Strength: 2t/m2 Location : New building order – delivery UAE Price & terms : Please enquire using the email form below.
---------------------------------------------------------------------------------------- Search words (for official use only) - CAT Type Fast Ferry Boat for Sale New Fast Ferry Boat for Sale 18m Fast Ferry Vessel 49 Passenger Capacity CAT Type Fast Ferry Boat New Built Fast Ferry Vessel for Sale ---------------------------------------------------------------------------------------
Tug Boat - 1958 Built for Sale Tug for Sale
Type : Tug Dimensions : 24m x 5.5m x 2.8m Build : 1958 Accom / Pax : 2crew/12passenger Machinery : Lister blackstone Deck : Crane: 1750KG @ 5M Capacities : GRT: 78.9 Location : North Sea Price & terms : Please enquire using the email form below.
--------------------------------------------------------------------------- Search words (for official use only) - 1958 Built Tug for Sale Tug Boat 24m for Sale 14 person Accommodation Tug for Sale Tug Boat in North Sea for Sale Tug 1958 Built for Sale ------------------------------------------------------------------------------
Single Screw Vessel for Sale 15m Tugboat for Sale
Type : Single Screw Dimensions : 15m x 4.75m x 2.50m Class : non IACS Build : 1998 Turkey, 2018 Rebuilt Accom / Pax : 4 Machinery : MAN Diesel 1000 Hp / 2100 RPM Speed : 8.5 Capacities : Water Tank : 500 Lt Fuel Tank : 14000 Lt Location : Turkey Others : FIFI 1
--------------------------------------------------------------------------------------------------------- Search words (for official use only) - Single Screw Vessel 1998 Built for Sale Tugboat in Turkey for Sale 4 Passenger Single Screw Vessel Single Screw Tugboat for Sale ---------------------------------------------------------------------------------------------------------
ASD Tug for Sale 2001 Built Tug for Sale
Type : ASD Dimensions : Loa : 29.9m / B: 9.8m / Draft: 3.8m Class : LRS Build : 2001 Accom / Pax : 10 berths Machinery : 2 x 1663 kW Deutz SBV 8M628 @ 1000rpm, total 4460bhp Speed : 12 knots Capacities : Bollard Pull: 52t Fuel oil : 175.0 m3 Freshwater : 24.5 m3 Dispersant : 5.0 m3 Foam : 5.0 m3
Location : S.East Asia Others : FIFI Pump : 1 x Nijhuis HG1-250500, 1400m3/hr @ 14 bar c/w water curtain
--------------------------------------------------------------------- Search words (for official use only) - ASD Tug Boat for Sale Tug for Sale in Southeast Asia 2001 Built ASD Tug 10 Berth Accommodation ASD Tug ASD Tug - 2001 Built ---------------------------------------------------------------------
AHTS for Sale 2013 Built 65m AHTS Vessel
Type : AHTS Dimensions : 65m x 7m x 5.60m Class : ABS Build : 2013 Accom / Pax : 50 Machinery : 4 x 1500 kW (Diesel Engine Set) Speed : 13 Deck : 400m2 Capacities : FW Capacity : 400m3 FO Capacity : 650m3
Location : Far East Others : FIFI 1, Kongsberg DPS System
------------------------------------------------------------------------------- Search words (for official use only) - AHTS 2013 Built for Sale 65m Anchor Handling Tug Supply Vessel 50 Passenger Accommodation AHTS for Sale Anchor Handling Tug Supply Vessel for Sale -------------------------------------------------------------------------------
AHTS - 2005 Built - for Sale Anchor Handling Tug Supply Vessel 60m for Sale
Type : AHTS Dimensions : 60m x 15m x 4.9m Class : BV Build : 2005 Accom / Pax : 42 Machinery : 2 x CAT 3516 B Speed : 13 Knots Deck : 350 M2 Capacities : Cargo Water :125 t/h @ 75m Fuel Oil :127 t/h @ 75m Potable Water :125 t/h @ 75m Others : FIFI 1 Price & terms : Please enquire using the email form below.
--------------------------------------------------------------------------------- Search words (for official use only) - AHTS Vessel for Sale 42 Passenger Capacity Vessel for Sale 60m Anchor Handling Tug Supply Vessel AHTS Vessel - 2005 Built Anchor Handling Tug Supply Vessel -------------------------------------------------------------------------------
ASD Tug for Sale 2013 Built Tugboat for Sale
Type : ASD Tug Dimensions : 32m x 11.6m x 5.81m Class : LR +100 A1, TUG, +LMC, Fire Fighting 1 Build : 2013 Accom / Pax : 10 crew Machinery : 2 X 2682bhp@1600RPM (CAT3516B)// tt:5364bhp Speed : 12 knots Deck : Fwd Towing Winch/ : brake rating 150t Aft Winch : 150T Bh Towing Hook : 70t SWL (Plimsoll) Deck Crane : Palfinger PK6500M Capacities : Fuel Oil : 205 m3 Potable Water : 37 m3 Ballast Water : 120 m3 Location : Far East Price & terms : Please enquire using the email form below.
--------------------------------------------------------------------------------------------------------- Search words (for official use only) - ASD Tug Boat for Sale 2013 Built Tugboat for Sale 10 Passenger Tugboat for Sale ASD Tug - 2013 Built for Sale ---------------------------------------------------------------------------------------------------------
AHTS 64m for Sale 1983 Built Anchor Handling Tug Supply (AHTS)
Type : AHTS Dimensions : 64.00m x14.00mx5.02m Class : ABS Build : 1983 Accom / Pax : Total 20 Berths Machinery : 4 x Daihatsu 8DSMA-32 of 2125bhp at 500 rpm 8500 bhp Bollard Pull 80.2 MT Speed : 13 knots Deck : Free Deck Space 434.79m2 Capacities : Fuel Oil: 65m3/hour at 50m Potable water: 70m3/hour at 50m Drill water: 70m3/hour at 50m Bulk: 40m3/hour at 50m Liquid mud: 60m3/hour at 50m head
Location : Caspian Price & terms : Please enquire using the email form below.
------------------------------------------------------------------------------------- Search words (for official use only) - Anchor Handling Tug Supply Vessel for Sale AHTS 64m for Sale 20 Berth Accommodation Vessel for Sale 64m AHTS - 1983 Built for Sale AHTS Vessel for Sale ------------------------------------------------------------------------------------
AHTS Vessel 59m for Sale 1982 Built AHTS for Sale
Description : Type : AHTS Dimensions : Loa:59m/B:15/loaded D:5m Class : ABS Build : 1982 Accom / Pax : 26 accommodation Machinery : M/E: 4 units , 4x 2000: 8000 bhp Speed : Maximum Speed: 12 Knots approx. (weather permitting) Deck : Clear deck area: 360m2 Capacities : Bollard Pull: 80 MT (Approx.) Potable Water : 100m³ / hr @ 60m Fuel : 150m³ / hr @ 60m
Location : South East Asia Price & terms : Please enquire using the email form below.
------------------------------------------------------------------------------------------------ Search words (for official use only) - AHTS Vessel for Sale 59m AHTS for Sale 26 Passenger Accommodation AHTS AHTS Vessel for Sale in South Asia ------------------------------------------------------------------------------------------------
Anchor Handling Tug - 40m - for Sale AHTS Vessel for Sale Description Type : AHT Dimensions : 40X11.8X3.8 Class : BV Built : 2012 Accom / Pax : 20 Machinery : 4400bhp Speed : 12 Deck : 150m2 Capacities Fuel Oil 370.00m3 Fresh Water 100.00m3 Ballast Water 43.00m3 Others 2 X FPP propollers FiFi class 1 Price & terms : Please enquire using the email form below. If you cannot find the vessel, crane, rig or equipment that you need, please send us an email to mail@worldoils.com stating your requirements and we shall find it for you. We can arrange delivery of equipment and towage of rigs and vessels where needed. The details mentioned above are believed to be accurate but are not guaranteed. ------------------------------------------------------------------------------- Search words (for official use only) - Anchor Handling Tug for Sale 2012 Built AHTS 20 Passenger Capacity Vessel for Sale Anchor Handling Tug 40m for Sale Anchor Handling Tug- 2012 Built for Sale --------------------------------------------------------------------------------
AHTS for Sale 2014 Built AHTS Vessel for Sale
Description : Type : AHTS Dimensions : Length 51.80m xBreadth 15m x Draft 5m Class : Bureau Veritas Build : 2014 Accom / Pax : 24 Machinery : 2X Mitsubishi S12U-MPTK Power :2238KW @1100 rpm (6000 hp) Bollard Pull :80MT Deck : Deck Space : 181.21 M2 Capacities : Fresh Water : 90 M3 Fuel Oil :550 M3 Ballast :150 M3 Location : South East Asia
--------------------------------------------------------------------------------------------------------- Search words (for official use only) - New Built AHTS Vessel for Sale 24 Passenger Capacity Vessel for Sale Anchor Handling Tug Supply Vessel in Asia AHTS Vessel - 2014 Built ---------------------------------------------------------------------------------------------------------
Supply Vessel for Sale Supply Vessel - 1979 Built for Sale Description : Type : Supply Vessel Dimensions : 50.3m x 11.6m x 3.4m Drft : 2.6m Class : USCG Build : 1979 Accom / Pax : 20 person Machinery : 2 x Detroit Diesel 16V149 // ttl : 1800bhp Deck : Deck space : 225m2 Capacities : Cargo Water......128,400 gal ..... [486,047 l] Fuel Capacity..... 31,000 gal ....... [117,348 l] Potable Water..... 3,000 gal ........ [11,356 l] Lube Location : US Gulf Others : For sale 50.3m x 11.6m x 3.4m 1979 built 1800bhp
---------------------------------------------------------------------------------------------- Search words (for official use only) - 1979 Built Supply Vessel for Sale Supply Vessel - 50.3m for Sale 50.3m Supply Vessel for Sale 20 person Accomodation Capacity Supply Vessel Offshore Supply Vessel for Sale ---------------------------------------------------------------------------------------
Utility Vessel for sale Supply Vessel - 2002 Rebuilt for Sale Description : Type : Utility/Supply Dimensions : 33.52m x 7.92m x 3.5m Class : Bv Build : 1982(rebuilt 2002) Accom / Pax : 2+16 // 24 person Machinery : 2xGM detroit diesel 600x2@1800RPM Speed : Economical Speed 8 knots/max 10 knots Deck : Clear deck : 120m2 deck cargo capacity: 80t Capacities : Fuel oil : 83t fresh water: 124t Location : UAE
-------------------------------------------------------------------------------------------------- Search words (for official use only) - Utility Vessel 33.52m for Sale 33.52m Supply Vessel for Sale 24 person Accomodation Capacity Offshore Utility Vessel 2002 Rebuilt Utility Vessel for Sale Offshore Utility Vessel for Sale in UAE ------------------------------------------------------------------------------------------------
Multi-Purpose Workboat for Sale Multi-Purpose Workboat - 2010 Built for Sale Description : Type : Multi-Purpose Workboat (catamaran type) Dimensions : Loa : 12m / B: 4.6m / Draft: 1.2m Build : 2010 Accom / Pax : Passenger License: P5 for 12 persons Machinery : 2 x Perkins Sabre M215C, total 430bhp Speed : 11 knots Deck : Deck area : 25m2 Capacities : Bollard pull: 4 tons Fuel oil: 4360 litres Fresh Water: 500 litres Oil spill capacity: 6000 litres
Location : North Europe
--------------------------------------------------------------------------------------------------------- Search words (for official use only) - 2010 Built Multi-Purpose Workboat for Sale 12 persons Accommodation Capacity Workboat 12m Multi-Purpose Workboat for Sale Multi-Purpose Workboat - 12m for Sale Multi-Purpose Tug for Sale in North Europe -----------------------------------------------------------------------------------------------------
Seismic Ship for Sale Seismic Ship - 56m for Sale Description : Type : Seismic Ship Dimensions : 56m x 11.9m x 3.9m Build : 1976 Capacities : Gross tonnage 454 t Deadweight 988 t Location : Sounth East Asia
-------------------------------------------------------------------------------------------------------------------- Search words (for official use only) - 56m Seismic Ship for Sale Seismic Ship - 1976 Built for Sale 1976 Built Seismic Ship for Sale Seismic Ship for Sale in Asia -------------------------------------------------------------------------------------------------------------------
Multicat Vessel for Sale Multicat Vessel - 2009 Built for Sale Description : Type : Multicat Dimensions : 24 Build : 2009
------------------------------------------------------------------------------------------------------ Search words (for official use only) - Multicat Vessel - 24m for Sale 2009 Built Multicat Vessel for Sale 24m Multicat Vessel for Sale 24m Multicat Vessel - 2009 Built for Sale Offshore Multicat Vessel for Sale --------------------------------------------------------------------------------------------------------
Steel Landing Craft Tank for Sale Steel Landing Craft Tank - 2013 Built for Sale Description : Type : Steel Landing Craft Tank Dimensions : 66m x 13.5m x 3.6m Class : BKI Build : 2013 Accom / Pax : 14 person Machinery : 2 Units @ 605 PS Mitsubishi S6A3-MPTK/ 1900 RPM Speed : 8 – 12 Knots Deck : Hydraulic winch for ramp door Capacities : 702m2 deck space Location : S.E.Asia
--------------------------------------------------------------------------------------------------- Search words (for official use only) - 2013 Built Steel Landing Craft Tank for Sale Steel Landing Craft Tank - 66m for Sale 66m Steel Landing Craft Tank for Sale 14 person Accomodation Steel Landing Craft Tank Steel Landing Craft Tank for Sale in Asia ---------------------------------------------------------------------------------------------------
Landing Craft Tank for Sale Landing Craft Tank - 2010 Built for Sale Description : Type : Landing Craft Tank Dimensions : 37.5m x 7.5m x 2.25m Build : 2010 Accom / Pax : 10 person Machinery : Mitsubishi 2 X 320 PS 8 DC.91 (second) Deck : 230m2 deck space Location : S.E.Asia
---------------------------------------------------------------------------------------------------- Search words (for official use only) - 2010 Built Landing Craft Tank for Sale Landing Craft Tank - 37.5m for Sale 10 person Accommodation Capacity Landing Craft Tank 37.5m Landing Craft Tank for Sale Landing Craft Tank for Sale in Asia --------------------------------------------------------------------------------------------------
Multicat Vessel for Sale Multicat Vessel - 1995 Built for Sale Description : Type : Multicat Dimensions : 18.63m x 8m x 1.8m Class : BV Build : 1995 Accom / Pax : Fully air conditioned 2 x double cabins, galley and sanitary facilities. Machinery : Detroit Diesel – 12V71TA // 672 kW / 900 hp Speed : 9knots Deck : Hydraulic deck crane : Heila HLRM 40/35 Hydraulick towing winch : 30mT A frame : 40mT. Capacities : Fresh water 44.000 l. M.G.O 32.000 l. Location : W.Africa
----------------------------------------------------------------------------------------------------------- Search words (for official use only) - 1995 Built Multicat Vessel for Sale Multicat Vessel - 18.63m for Sale 18.63m Multicat Vessel for Sale Multicat Vessel for Sale in Africa Multicat Vessel 1995 Built for Sale in Africa --------------------------------------------------------------------------------------------------------
Shallow Draft Workboat for Sale Shallow Draft Workboat - 2012 Built for Sale Description : Type : Shallow Draft Workboat Dimensions : Loa : 28m / B:11m / D:2,5m Class : ABS+A1(E),Towing Vessel,+AMS Build : New Build delivery 2012 Machinery : 2 x Caterpillar 3412C TA 720 bhp@1800 RPM Total:1440bhp Speed : Free Run Speed : 8.5 knots Capacities : Bollard Pull : 19 tons Fuel Oil : 90m3 Fresh Water : 45m3 Location : S.E.Asia
------------------------------------------------------------------------------------------------------- Search words (for official use only) - Shallow Draft Workboat - 28m for Sale 28m Shallow Draft Workboat for Sale 2012 Built Shallow Draft Workboat for Sale Shallow Draft Workboat for Sale in Asia Offshore Shallow Draft Workboat for Sale --------------------------------------------------------------------------------------------------------
Shallow Draft Workboat for Sale Shallow Draft Workboat - 28m for Sale Description : Type : Shallow Draft Workboat Dimensions : Loa : 28m / B:11m / D:2.5m Class : ABS+A1(E),Towing Vessel,+AMS Build : New Build delivery 2012 Machinery : Main Engine:2 x Caterpillar C32 Acert DITA 750 bhp@1800 RPM Speed : Free Run Speed : 8.5 knots Capacities : Bollard Pull : 19 Tons Fuel Oil : 90m3 Fresh Water : 45m3
-------------------------------------------------------------------------------------------------------- Search words (for official use only) - Shallow Draft Workboat - 2012 Built for Sale 28m Shallow Draft Workboat for Sale 2012 Built Shallow Draft Workboat for Sale Offshore Shallow Draft Workboat for Sale ---------------------------------------------------------------------------------------------------------
Supply Vessel for Sale Supply Vessel - 1978 Built for Sale Description : Type : Supply Vessel Dimensions : 51.8m x 11m x 3.2m Drft : 2.3m Class : USCG Build : 1978 Accom / Pax : 22person Machinery : 2 x Detroit Diesel 16/149 // ttl : 2050bhp Deck : Deck space : 272m2 Deck Cargo : 350t Capacities : Cargo Water : 141,208 gal : [534,515 l] Fuel Capacity : 110,960 gal : [420,029 l] Potable Water :2,100 gal : [7,950 l] Lube Oil : 900 gal :[3,407 l] Location : US Gulf Others : For sale 51.8m x 11m x 3.2m 1978built 2050bhp
---------------------------------------------------------------------------------------------------- Search words (for official use only) - Supply Vessel - 51.8m for Sale 51.8m Supply Vessel for Sale 1978 Built Supply Vessel for Sale 22 person Accomodation Capacity Supply Vessel Offshore Supply Vessel for Sale ----------------------------------------------------------------------------------------------------
Supply Vessel - 38m for Sale Survey Vessel 1983 Built for Sale Description : Type : Survey / Supply Vessel Dimensions : Loa:38m/B:9,5m/D:3.43m Class : IRS Build : 1983 Accom / Pax : 35 Berth Machinery : M/E:973 bhp x 2 @ 1200 rpm Total: 1946 bhp Speed : Max. speed: 10 Kts / 3.0 MT/day Deck : Cargo Deck Area: 128.7 square meter (14.8 Mtrs x 8.7 Mtrs) Capacities : Fuel Oil Tank (MT)~180 Fresh Water Tank (MT)~150 Location : Asia Price & terms : Please enquire using the email form below.
---------------------------------------------------------------------------------------------------- Search words (for official use only) - 38m Survey Vessel for Sale 1983 Built Supply Vessel for Sale 35 Berth Accomodation Capacity Supply Vessel Supply Vessel for Sale in Asia Offshore Survey Vessel for Sale -----------------------------------------------------------------------------------------------------
Supply Vessel for Sale Supply Vessel - 1999 Built for Sale Description : Type : Supply Vessel Dimensions : 51.8m x 11m x 3.7m Drft : 1.8m Class : USCG Build : 1999 Accom / Pax : Total 20 men accom + 100 pax Machinery : 2x Caterpillar 3508 / ttl 1610bhp Deck : Deck space : 286m2 Deck Cargo : 500t Capacities : Cargo Water 81,500 gal [308,511 l] Fuel Capacity 52,800/124,200 gal [199,870/470,148 l] Potable Water 10,000 gal. [37,854 l] Lube Oil 1,300 gal [4,921 l] Dirty Oil 3,600 gal. [13,628 l] Location : US Gulf Others : For sale 51.8m x 11m x 3.7m 1999 built
---------------------------------------------------------------------------------------------------------------- Search words (for official use only) - Supply Vessel - 51.8m for Sale 51.8m Supply Vessel for Sale 20 Men Accomodation Offshore Supply Vessel for Sale 1999 Built Supply Vessel for Sale Offshore Supply Vessel for Sale in US Gulf --------------------------------------------------------------------------------------------------------------
Showing 481 to 528 of 630 results
.png)
.png)
.png)
.png)
.jpg)
.png)
.png)
.png)
.png)
.png)
.png)
.png)
Search Here
