Price & terms : Please enquire using the email form below.
Pipelaying Barge Pipelayer Barge for sale
Specifications : General Classification : ABS A1 CRC Derrick / Pipelay Barge Principal Dimensions and capacity Length overall (LOA) : 169m Length between perpendiculars (LPP) : 165m Breadth (molded) : 46m Depth molded : 13.5m Operating Draft : 7-9m Scantling Draft : 9m Full Load Displacement : 62,000mt GRT : 41,000 Ballast Capacity : 34,673mt Fuel Oil Capacity : 4,038mt Fresh Water : 2,632mt Structure Load in Main Dk Loading Area : 10mt/sqm Other area : 5mt/sqm On Pipe Laying Line Top Deck : 5mt/sqm Generators 4 x Generators STX Korea MAN B&W 8L 27/38 Switchboard: SaierNico Electric Co.,Ltd made in China Transformer: Haitian Electric Co.,Ltd
Mooring System 12 positional anchor winches driven by frequency conversion. The positional anchor winches will be operated either locally or remotely at a centralized control station installed in the CCR.
The main performance parameters of the positional anchor winches as follows : Diameter of galvanized wire rope : Φ76mm Duty pull : 1100kN （at mid layer） Mooring speed : abt. 24m/min （at 1100kN） Holding load : 3800kN （at 3RD layer） Drum capacity : 3000m
Crane Barge is installed a 3000t (when at fixed) or 2000t (when at rotary) marine engineering hoister. Hoist is driven by electric power supplied by generators.
Main claw completely rotary Safty working load x working radius : 2000 mt @ 35m Main deck jacking height when least working radius : > 80m Most working load hoisting speed : 0 - 1.5 m/min Part load hoisting speed : 0 - 3 m/min
Main claw (no back line) fixed aft hoister : Safty working load x working radius : 3000 mt @ 30m When 35 m working radius, deck hoisting hight : > 80m Most working load hoisting speed : 1.5 - 3 m/min Part load hoisting speed : 0 - 3 m/min Hook most entrance depth/ safty working load : 5m/3000 mt Auxiliary claw ： Safty working load x working radius : 600 mt @ 60m When least working radius , main deck hoisting height : > 80m Most load hoisting speed : 0 - 10 m/min Hook most entrance depth/safty working load : 150m/600 mt
Deck Crane Hydraulic and electric control : 50T*28M/20T*40m
Pipelaying System Pipe Laying System : Starboard mounted single joint S-lay system Depth laying : 300m Capacity : 4" – 48" diameter pipe Maximum external diameter : 60 inch Tensioner : 2 tensioners, 100 T each Davits : Five (5) mounted with load cells at starboard stored on board, capacity 30t each Price & terms : Please enquire using the email form below.
If you cannot find the vessel, crane, rig or equipment that you need, please send us an email to mail@worldoils.com stating your requirements and we shall find it for you.
We can arrange delivery of equipment and towage of rigs and vessels where needed.
The details mentioned above are believed to be accurate but are not guaranteed. ----------------------------------------------------------------------------------------------------------------------------- Search & help words : Pipelaying Barge for sale Pipelayer Barge Pipelaying Barge for charter Pipelaying Vessel for sale Pipelaying vessel for charter Newbuilding Pipe Laying Barge -------------------------------------------------------------------------------------------------------------------------------
Cargo deck
Tank capacities and pumps Fresh Water 151 tons Fresh Water Pump 50 m3/hour at 40m head Fuel Oil 74 tons Fuel Oil Pump 50 m3/hour at 40m head

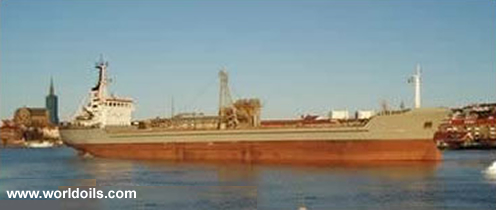

Ice Class Self Unloading Bulk Vessel For Sale 1975 built Self Unloading Bulker with Ice Class for sale Self Unloader Bulk Carrier with Ice Class For Sale
Self Unloading Bulk Vessel 6150 tdw on 6,75 m Built 1975 - converted/rebuilt 1985 Lloyds Ice 1 A 3963/2035 gt/nt Dims 101,95 x 15,3 m Hold 1 : 3519 cbm Hold 2 : 3391 cbm Total : 6910 cbm / 244.027 cuft Hold dims hold 1 : 32 x 12,80 -hold 2 : 33 x 12,80 m Hatch dimensions : Hold 1 : 14,50 x 12,80 & 15,50 x 12,80 Mtrs Hold 2 : 14,40 x 12,80 & 14,09 x 12,80 Mtrs
Self discharging gear : Kvaerner Cargo scooper Disch 300-500 mton hr depend quality of cargo Outreach boom conveyor : SB side (only) : 22,10 Mtrs m/e Bofors NOHAB 2356 kW /3520 bhp Consumption Sea : abt 8 mts MGO/24h In port : 0,8 mts / 24 h Bowthruster 225 kW / 300 hp
The details mentioned above are believed to be accurate but are not guaranteed.
------------------------------------------------------------------------------------------------------------------------------- Search words(for official use only) - Ice Class Self Unloading Bulk Vessel For Sale Self Unloading Bulker with Ice Class for sale 1975 built Small self Unloading Bulker For Sale Used Self Unloader Bulk Carrier with Ice Class For Sale --------------------------------------------------------------------------------------------------------------------------------------

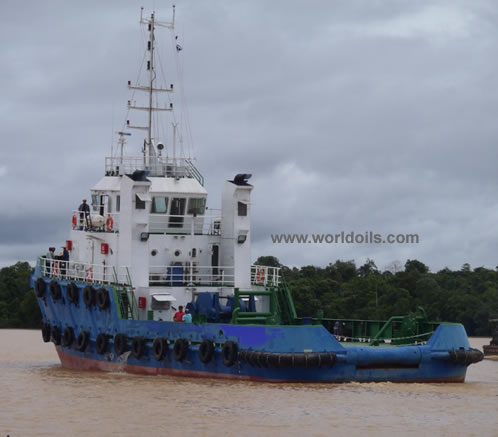

3200 BHP Tug For Sale in Malaysia Tug For Sale in Malaysia, Singapore Principal Particulars Length Overall : 33.20M Length BP : TBA Breadth Moulded : 9.76M Depth Moulded : 4.30M Draft Moulded : 3.50M Class Notation : BV + Unrestricted services Gross Tonnage : TBA Speed : 12.0 knots (approx)
Tankage Fuel oil : 297cbm (approx) Fresh Water : 44m (approx) Ballast Water : 42cbm (approx)
Machinery Main engine : 2 x Cummins KTA 50M2, 1600 BHP / 1800 RPM Reduction gear : Twindisc MG5506, 6.00 : 1 Propeller : 2 x 4 bladed manganese bronze FPP Main generator : 2 x 80KW Cummins
Accommodation For 15 men with 2 cabins for Captain and Chief Engineer, 1 x four-men cabin, 4 x two-men cabin and 1 x one-man cabin
Navigation Equipment (GMDSS Area 3) 1 set magnetic compass 1 spare table magnetic compass 1 set Radar 96NM 1 set GPS navigator 1 set Echo sounder 1 EPIRB 1 set Navtex receiver 1 set SART 1 set AIS 3 sets walkie-talkie
ECK Machinery Anchor windlass : 1 x 22mm electric hydraulic steel anchor windlass c/w double gypsy and drum Anchor : 2 x 480kg stockless bower anchors Capstan : 1 x 3 tonnes Towing winch : 1 x 40 tonnes single drum. Drum capacity 800m x 42mm diameter (wire rope to be supplied by buyer) Towing hook : 1 x 40 tonnes
Life Saving Equipment 2 x 15 men liferafts 8 sets Life buoy 12 sets lifejackets
Pumps Bilge & Ballast pump : Davey or ITUR pump or equal GS & fire pump : Davey or ITUR pump or equal F.O. Transfer pump : ITUR RC-1 Horizontal Gear Pump fitted with relief Valve c/w 1.5kW x 1430rpm Motor, 415V/3Ph/50Hz FW / SW pressure set : Davey or MYER pump or equal Dirty oil pump : Davey or ITUR pump or equal Sewage treatment system : for 15 persons
Fire Fighting Equipment A fireman and four (4) 1 "A" bronze hydrants are to be installed, two (2) in the engine room A complete fireman's outfit is to be provided Portable Fire Extinguisher are provided
ASD Tug 3600hp For Sale Tow-engine and Two shaft type propeller with z-peller Outline Purpose : Tugboat Vessel type : Tow-engine and Two shaft type propeller with z-peller Navigation area : Coastal area Vessel class : KR (Korean Register of Shipping)
Principal Dimensions Length overall : 33.80m Registered length : 28.50m Moulded breadth : 9.40m Moulded depth : 4.15m Gross tonnage : 213 ton Tank capacity : Fuel tank - 72 cbm (Bunker -A) 14cbm (D.O) Fresh water tank - 20cbm
Speed and power Sea trial speed : 13 knot (Maximum) Service speed : 9.75 knot (75% output power) Towing power : 43 ton
The maximum number of persons on board Crew members : 8 persons Passenger : 0 persons Other : 0 persons Total : 8 persons
Main Rooms Pilot house, captain's cabin, chief engineer's cabin, chief officer's cabin, 6 cabins for other crew members, 8 beds, salon, mess room, laundry, bath room, toilet, waterproof garment room, boatswain's store, deck store, 2 stores for ship articles, paint room, engine room, propeller unit room.
Deck Machinery Anchor-rope windlass : 2 - chain drum (3.0 ton x 12m/min) Rope windlass : 3 ton x 45m/min Drum capacity : Rope diam 120Ø x 120mtr Anchor and Anchor chain : Anchor : 660kg x 20 pcs / 22Ø x 150 mtr Braking force : 60 ton Brake : HYD band brake Control : Remote control in the pilot house and manual control Other characteristics : The inner side of drum is cover with steel plate Rope reel : Of the stern 1pc Power : 30/10 ton x 7.5/22mtr Drum capacity : rope diam 110Ø x 120mtr Brake : HYD band brake Control : Remote control in the pilot house & manual control Other characteristics : The inner side of the drum is cover with steel plate
Hydraulic power unit for hydraulic machinery Electric hydraulic pump unit Towing hook
Main Engine Type : 4-Cycle, Single-acting, Solid injection, Water cooled, Turbo charged, Trunk piston type diesel engine Maker, model : Niigata power system co., ltd. 6L25HX Quantity and Diameter of cylinders, stroke : 6 Cylinder, diam 250Ø stroke 350Ø Maximum Number of continuous Revolution : 750 rpm Maximum continuous Revolution : 1,800 PS * 2set = 3,600 PS (1,323kw ×2 sets)
Propulsion Unit Type : 360° degrees steerable, z drive propeller equipment Model : Niigata power system co., ltd. / Niigata ZP-21 Propeller : Skewed kaplan type 4-blade fixed pitch propeller Diameter of propeller : 2000Ø Average Pitch : 1900Ø
Electric Power Plant Engine Maximum continuous Output power : DOOSAN AD086TIS × 2SET/ DOOSAN AD034TIS × 1SET 168KW×1800RPM×2SET / 55KW×1800RPM×1SET Generator : DOOSAN INFROCORE CO.,LTD. Rated Output : 210KVA(168KW)/ 1800RPM
Forced Draft : Axial fan of Engine Room 220V×60HZ 3.7KW. 4P With Screw down damper
Air conditioning Equipment : Stand air conditioner x 3 set
Nautical Instruments Satellite Compass Autopilot : Nil Remote-controlled Maneuvering Mechanism of Main Engine : Remote Control In Pilot House First Navigation Radar : JMA-3254, 10.0W Aerovane : SAMYOUNG ENC CO.,LTD. NIVIS3100 Electric window Wiper Echo Sounder (with GPS-Plotter) : Nil
Lightning Equipment Projector : High efficient, Remote-Controlled Projector Electric portable lamp Flood light
Communication Device Maritime Telephone International VHF Radiotelephone Equipment : STR-6000A SAMYOUNG ENC CO.,LTD EPIRB : SEP-406 SAMYOUNG ENC CO.,LTD SART : Nil Public Addresser Inboard Wire Broadcasting System : Common battery system. Two-way conversation NAVTEX receiver : Nil TV Antenna : 1pc BS television Antenna : 1pc
Chemical Extinguisher and Sea Surface Cleaner Stand-alone Engine Water Jet Cannon on the Top of Mast : Nil Fire Extinguishing Stock Solution Tank : Nil Equipment For Spillage oil treatment : HANYOUNG ENG. CO.,LTD. OS-05cbm/h
Electrical Appliances Refrigerator-freezer : 400L 2 set Laundry Electric Water Heater : Gas heater type Toilet : With a bidet
Machine Tool Electric Welder Double ended Grinder Price & terms : Please enquire using the email form below.
The details mentioned above are believed to be accurate but are not guaranteed. ------------------------------------------------------------------------------------------------------- Search words(for official use only) - ASD Tug For 3600HP sale in Singapore ASD Tug For Sale Used ASD Tug For Sale 3600hp ASD Tug For sale in Asia ----------------------------------------------------------------------------------------------
Description

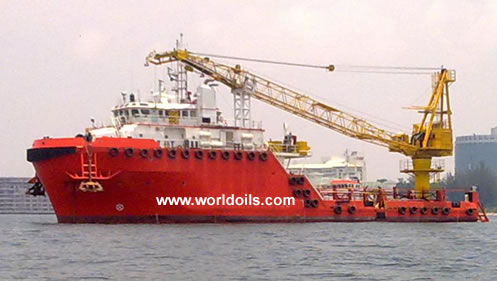

Work Maintenance/Construction Vessel for charter Main Particulars DP0 Maintenance Construction V/L – 90 PAX / 45 SWL 120 Foot Boom Crane Year built keel laid 2008 / Delivered April 2009 Type Steel Hull Twin Screw Call Sign: T2EW3 Length Overall 61.20m LBP 58.70m Breadth Moulded 16.00m Depth Moulded 6.00m Design Draft 4.50m Scantling Draft 5.10m Deadweight 1300 tonne Gross Tonnage 2150 Net Tonnage 645 Deck Loading 7.5 tonne / m² Clear deck area 340 m2 Speed 12.5 knots Endurance About 30days (4500 nautical miles) Classification ABS +A1 (E) Offshore Support+AMS,DP0 Work Maintenance Main Machineries Main Engines Two Niigata 6MG26HLX marine diesels each 2000Ps Total Power 2 X 2000 Ps Propulsion System Nigata Z-peller ZP 31 Azimuth thrusters Bow Thruster CPP with 8t thrust diesel engine drive Generator 2 X 370 kW, 415/3ph/50Hz Emergency Generator 1 X 82ekW, 415V/3ph/50Hz Water making plant Two reverse osmosis type fresh water maker c/w sand filter each capacity of about 30 tonnes / day Two electrically driven feed pumps, one for each FW generator Food waste disposers One disposer of capacity 500kg, One garbage waste disposer of capacity 700 litres Tank Capacity Fuel Oil Tank 640 m3 Fresh Water Tank 540 m3 Water Ballast/Drill 720 m3 Lo Storage Tank 7 m3 Cargo Discharge Rates FO Cargo Pump 1 X 100 m3/hr @ 60m Head FW Cargo Pump 1 X 100 m3/hr @ 60m Head DW Cargo Pump 1 X 100 m3/hr @ 60m Head Deck Machineries Anchors Two AC14 anchors each 1575g high holding power w/o weight reduction Chain cables 2 x 412.5m x 38m dia, grade 2 high strength steel stud link chains Mooring lines 8 x 160m long polypropylene mooring ropes of minimum 100 tonnes breaking strength Anchor windlass 10 tonnes @ 15m/min Capstan 2 x 5 tonnes @ 15m/min Crane Favella Favco crane model 7.5/10k, boom length 36.6m, main hoist – four falls 45 tonnes @ 0-17.2m/min, 30 tonnes @ 0-25.5m/min. This crane is designed and built in accordance with API-2C 6th edition. Four point mooring system Four electro-hydraulic drive self spooling mooring winches, each 50t pull @ 10m/min at 1st layer with brake load of 120t at 1st layer Wire drum capacity to accommodate 1000m x 42mm dia. SWR 4 x 4000 kg high holding power anchor flipper delta anchor c/w anchor rack, Mooring winches are fitted with in line tension meters and line our meters Tugger winches Two electro-hydraulic tugger winches, each 10 tonnes @ 10m/min. Each winch is complete with one wire drum and one warping head (speed at light loads 30m/min) Accommodation Single berth 10 X 1 Berth Double berth 4 X 2 Berth Four men berth 18 X 4 Berth Total complement 90 pax Navigation & Communication Equipment 1 Main Radar, ARPA 96 NM 1 Secondary Radar, 48 NM 2 units-GPS and DGPS 1 Echo Sounder 1 Speed Log 1 Weather Fax Receiver 1 Auto Pilot 1 unit GMDSS extended packaged 1 Navtex Receiver Integrated Internal Communication System 3 sets Portable VHF Transceiver Ship Security Alert System Inmarsat C Satellite Fire Fighting Equipments Spray Boom 6 m length with 1X2" inlet and 7X1/2" outlet spray Fire Fighting Connection 1 X 4-way delivery head Fire Hose 8 X 15 m hose c/w coupling and nozzle Fire Hydrant 8 X 65 mm Fireman's Outfit 2 sets Dry Chemical Powder 2 X 5 kg Dry Chemical Powder 6 X 10 kg Fire Extinguisher 1 X 45 ltr Fire Extinguisher 4 X 9 ltr CO2 Extinguisher 2 X 9 ltr External FiFi 1 x 1500 m3/hr @ 14bar, 2 x 600 m3/hr F/W monitor Life Saving Equipment Rescue Boat 1 X 6 persons Liferaft 8 X 25 persons Lifebuoy 8 sets c/w throwing apparatus Lifejacket 200 sets Breathing apparatus 2 sets c/w recharging compressor Immerson suit 3 sets Pyrotechnic as per Class requirement First Aid Kit 1 unit Gangways One Aluminium gangway 4m Two Aluminium platform access gangways, 15m x 0.9m (less than 2 tonnes in weight) Other Facilities Hot water calorifier 1 X 500 ltr Sewage Plant 1 unit for 90 persons Galley 1 unit c/w equipment and utensile Mess & Conference Room 1 Room c/w entertainment equipment Laundry Room 1 Room c/w 10 kgs of washer and dryer Price & terms : Please enquire using the email form below. If you cannot find the vessel, crane, rig or equipment that you need, please send us an email to mail@worldoils.com stating your requirements and we shall find it for you. We can arrange delivery of equipment and towage of rigs and vessels where needed. The details mentioned above are believed to be accurate but are not guaranteed. ---------------------------------------------------------------------------------------------------------------- Search words(for official use only) : Maintenance vessel for charter Work vessel for charter Accomodation vessel for charter Construction vessel for Charter Workboat for charter Accomodation Crane Vessel For Charter --------------------------------------------------------------------------------------------------------------

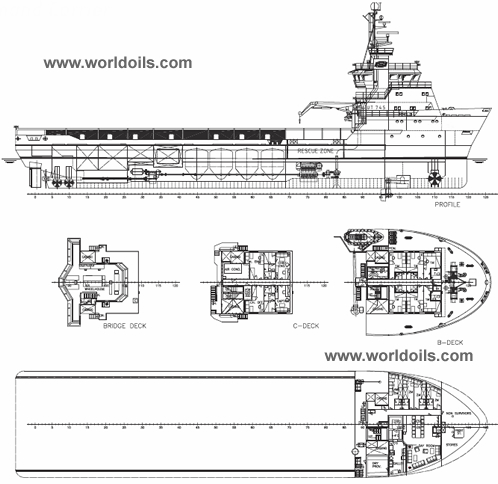

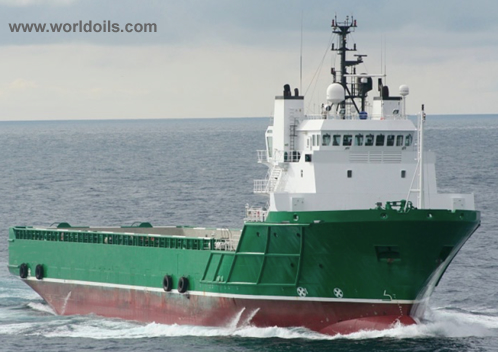

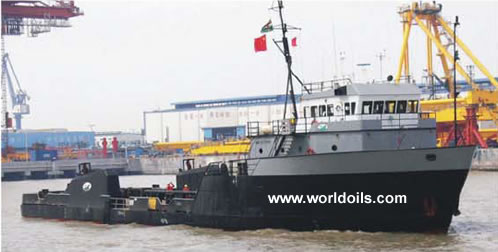

Platform Supply Vessel for sale PSV For sale
Classification : ABS Tonnage : Gross tonnage : 700 tons Net tonnage : 210 tons
Dimensions : Length OA : 54.27 meters Breadth moulded : 12.19 meters Depth, moulded : 4.27 meters Draft, summer : 3.63 meters
Deck Capacity : Deck cargo : 600.0 tonnes Deck area : 312.6 sqm (35.13 meters x 8.9 meters)
Tank Capacities : Dry bulk : 113.20 cbm (4 tanks x 28.3 cbm) Fresh/drill water : 524.80 cbm Fuel oil : 252.10 cbm Liquid mud : 181.60 cbm ( 4 tanks x 45.4 cbm)
Propulsion/Positioning : Main engines : 2 x Cat D399 HP - 2,679 kW-1,998 Fuel type : Marine Diesel Bow thruster : 1 x 300hp, Cat 3406
Generators : Diesel generators : 2 x 210 kW, Cat 3406 Voltage : 440V, 60Hz
Accommodation : Total berths : 18 3 x 1 person cabins 4 x 2 person cabins 1 x 3 person cabins 1 x 4 person cabins
Communication Equipment : Radio station : (1) MF/HF Radiotelephone SEA 330 (1) MF/HF Radio Telex SEA 330 Telex : (1) SEA SAT 3 VHF : (2) VHF SEA 7156 (2) VHF DSC SEA 7157 Portable VHF : (2) VHF Survival Craft sr-103 SART : (1) SimraD SA 50 EPIRB : (1) ACR 406
Navigation Equipment : Radars : One Furuno 1930 One Furuno 1941 Satellite navigator : (1) Furuno Navgator Navtex receiver : (1) JRC NCR - 300A AIS : (1) JHS 182
The details mentioned above are believed to be accurate but are not guaranteed. --------------------------------------------------------------------------------------------------------------------------------- Search words(for official use only) - Platform Supply Vessel for sale PSV for Sale in Dubai, Bahrain, Qatar, Kuwait, Middle East PSV for sale in Asia, Singapore, Malaysia, Indonesia -----------------------------------------------------------------------------------------------------------------------------
Machinery/Propulsion
--------------------------------------------------------------------------- Search words : Offshore Tug For sale Offshore Supply Vessel For Sale OSV vessel for sale Offshore Tug Offshore Supply Vessel --------------------------------------------------------------------------
Passenger Vessel For Sale 1995 Built Passenger Ferry for Sale Built : May 1995 GRT : 693T Class : KST Hull : Steel Length : 55.0m Beam : 10.6m Depth : 3.2m Passenger capacity. : 685Pax(Passenger 660 + crew/others 25) Main Engine : Catapilla 3512 1450hp x 2 Aux. Engine : Cummins 500hp x 2 Speed : Service 15kts(max 17kts) Nav. Equipment : Radar/VHF/AIS/GPS etc. Last SS/DD : Jul.2005 / Feb.2009 Inspection/Delivery : Promptly In Korea Price & terms : Please enquire using the email form below.
The details mentioned above are believed to be accurate but are not guaranteed
-----------------------------------------------------------------------------------------------------------------------------
Search words : Crew Boats for Sale Passenger Ferries for Sale Passenger Vessel for Sale Passenger Vessel 1995 Built for sale ---------------------------------------------------------------------------------------------------------------------

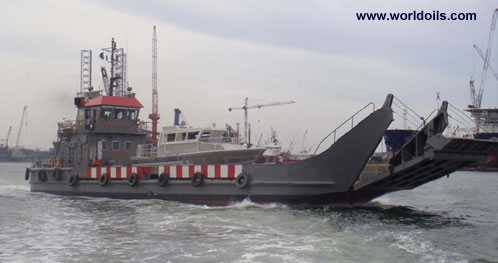

LCT for Sale 37M Landing Craft for sale 1985 built LCT for sale
Technical Specifications :
Craft Type : Twin Screw Steel Ramp Powered Lighter (Landing Craft) Plan approval for major structures was obtained from ABS Not class-maintained.
Year Construction 1985 Length (LOA) : 36.70m Breadth (Moulded) : 8.50m Depth (Moulded) : 2.50m Maximum Draft (up to Loadline mark) : 1,647m Displacement : 334.60 tonnes Maximum Deadweight : 148 tonnes
Propulsion Engine : 2 X M.A.N D2540 MLE Watercooled with keel coolers Direct injection with turbocharger Power output : 320kW at 1800rpm
Rudder Propeller : 2 X Schottel Rudder Propeller SRP 152/151 Generator Engine : 2 X Deutz F6L912 Air-cooled direct injection Power output : 57kW at 1800rpm
Alternator : 2 X AVK, DKBN 32/50-4TS Rated capacity : 54KVA
Main Switchboard : Manufacturer : LK-Nes (SEA) Pte Ltd Type : Marine, multi-cubicle, front and back Access, floor standing design Class : ABS
Battery Charger : E/R battery charger rating : 115V/24V, 40V Wheelhouse battery charger rating : 115V/24V, 20A
Bilge and Ballast : Pump : Desmi self-priming centrifugal pump (Rated capacity : 20cbm /h at 30m head ; Identical pumps with interconnecting piping such that any two can be used for servicing bilge, ballast or fire system) Motor : Electrim SF 132S-4X (7.5hp, 404V, 3 phase, 60Hz, 1750rpm)
Fuel Oil Transfer : Pump : Desmi self-priming centrifugal pump, S-70-50-275 (Rated capacity : 20cbm /h at 30m head Motor : Electrim SF 132S-4X (7.5hp, 404V, 3 phase, 60Hz, 1750rpm)
Fresh Water : Transfer Pump : Desmi self-priming centrifugal pump, S-70-50-275 (Rated capacity : 20 cbm /h at 30m head Motor : Electrim SF 132S-4X (7.5hp, 404V, 3 phase, 60Hz, 1750rpm)
Domestic F.W. : Pump : Sony CK series centrifugal pump Motor : ASEA MT 80A19-2 (1hp, 440 V, 3 phase, 60Hz, 3480rpm)
Ramp Winch : Winches : 2 X Electric Ramp Door Winch KERW-2010 (2-tonne capacity, 10m/min winding speed, 14mm dia X 50m wire size) Motor : Miyako Seisakusho MIC-B-132S (3.7kW, 440V, 3 phase 60Hz, 1150rpm)
Anchor Winch : Winch : Electric Anchor Winch KEAW-2010 (2-tonne capactiy, 10m/mm winding speed, 16mm dia x 190m wire size) Motor : Miyako Seisakusho MIK-B-160M (7.5W, 440V, 3 phase 60Hz, 1150rpm)
Public Address System : Phonico P.A. System p-2700/4 Echo Sounder : NJA-550MII Navigational Radar : Decca 270
------------------------------------------------------------------------------------------------

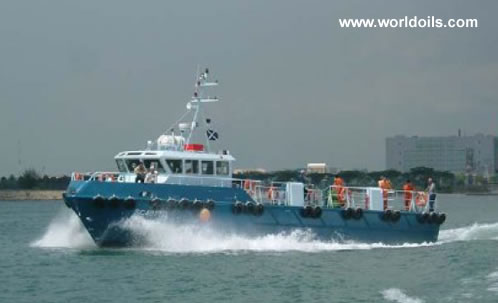

Supply Vessel For Sale 22M Supply Vessel For Sale
Dimensions : Lenght overall : 22.24m Length waterline : 20.47m Beam (maximum) : 5.66m Draught (full load) : 1.10m Depth at sides : 2.75m Weight (full load) : 70 tonnes
Tank Capacities : Fuel oil : 10,000 litres Fresh water : 28,000 litres
Performance : Maximum speed : 20 - 22 knots Crusing : 20 knots
Propulsion System : Main engine : 2 x Cummins KTA 19 - M3 600bhp @ 1800 rpm Continuous duty rating Propulsion : Twin conventional screw
Auxiliary Equipment : Generator : 2 x Perkins (or equivalent) marine diesel generator Rating : 17.5KVA, 230V, 50Hz, single phase Bilge/GS : 4 x TMC submersible bilge pump
Deck Equipment : Anchors : 1 x 60kg Chain : 1 x 1.5m studlink chain Blower : 2 x in-line blower
Joinery and Arrangement of Service Spaces : - Accommodation room for 4-6 persons - Daikin split air conditioning (2 x18,000 BTU) or equivalent - Toilet - Pantry
Hull and Superstructure : - Welded aluminium alloy hull - Structure frame (2 watertight) - Wheelhouse - Welded aluminium tampered/toughened glass windows with frame - Kapur timber deck - Aluminium fuel tank - Aluminium bow rail - Aluminium side rail - Aluminium aft rail - Main deck engine hatch - Aluminium mooring bitt - Aluminium side border - Fully welded strong aluminium engine bed - 12 passenger seat + 2 crew seats - Helmsman chair & commander chair c/w base - Aft lockable door - Stbd side lockable door - Rudder's room hatch - Tank's room hatch - Fender eye plates - Anodes base - 4 clear view - 1 x hydraulic steering systems(forward of wheel house) & 1 x hydraulic steering systems (aft of wheel house) - Wet exhaust system
Nautical, Navigation and Communication Equipment : - Navigation lights and switches - Masthead lights, search light VHF radio : Icon M302 Compass : Magnetic compass GPS : Furuno GP 32 Radar : Ray marine SL 70
Paints and Coatings : Painting to colour with marine polyurethane paint
Fire Fighting Equipment and Life Saving Apparatus : Fire Fighting Equipment : 8 x 9kg ABC dry powder, 1 x 45 litres form trolley, 1 x engine driven pump, 1 x electrical driven pump and 2 x 2" x 15m c/w nozzle fire hose
Life Saving Equipment : Life jacket and 20-pax life raft
Construction Material : Welded Aluminium Hull - Bottom of hull : 8.0mm - Side of Hull : 8.0mm - Main decks : 6.0mm - Superstructure : 6.0mm - Engine bed : 10mm - 12mm

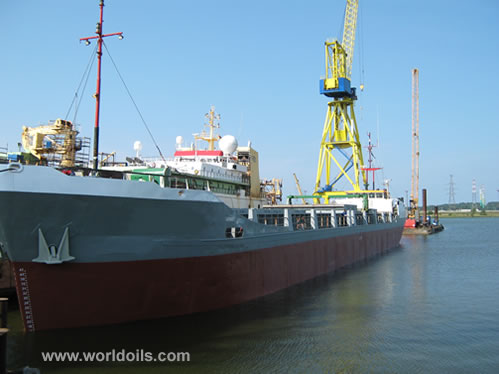

Mini Bulkers for sale 88M Small bulk Carriers for Sale 1985 built Small Bulkers for sale with ready charters Used Bulk Carriers 5 bulk carriers of 2300T dwt each are available as a package for 5.5 million Euros. Ready charters can be arranged for these vessels.
General Year of delivery : 1985 Type : General Cargo Ship Classification : GL + 100 A5 M Str for heavy cargo. Equipped for the carraige of containers + MC AUT Gear/gearless : Gearless
Vessels Particular Length o.a : 87.65 m Length p.p : 82.63 m Beam : 11.10m Draft max summer : 3.92 m Airdraft : 6.40m (ballast) Gross tonnage : 1.543 mt Net tonnage : 860 mt Deadweight : 2.376 mt DWCC Summer : Abt 2.300 mt DWCC Winter : Abt 2.225 mt
Hatch and Hold No. of holds/hatches : 1 hold / 2 hatch Hatch cover type : Poontoon Hold dimensions : Aft 31.60m x 9.20m and forward 31.20m x 9.20m ; height 5.58m Hatch dimensions : 2pcs 31.40m x 8.50m Grain / Bale space : 112.750 / 112.000 cbft Hold ventilation : x airchanges per hour Strength : On tanktop 10mt/sqm On deck : abt 1.50mt/sqm Tweendeck : No Bulkhead : 1 movable in hold no.1
Technical Details Main Engine : Deutz SBV6M 628 Aux Engines : Deutz F5L413 GR. X 2 Shaft Generator : No Emergency / Harbour Generator : Deutz F56 413FR Bowthruster : Scania DS 11 Speed consumption per day : Abt. 10 kn always subject good weather conditions / bf 2/ no swell at sea abt. 4.5mt MGO DMA at port abt 0.3mt MGO DMA Tank capacities : MGO abt. 101 cbm Ballast abt 1630.0 cbm Freshwater abt. 27 cbm
Container Capacities 20 feet or - Hold : 60 Deck : 36 Total : 96 TEU at 14T Reefer plugs : No Stackload : 20' Hold : xmt Decks : xmt 40 feet - Stackload : 40' Hold : xmt Decks : xmt
Other Information Accommodation : 8 persons, 7 cabins P&I Club : Skuld Class : + 1A1 R1 general cargo carrier container HC EO
-------------------------------------------------------------------------------------------------------------------------------------- Search words(for official use only) -
Mini Bulkers for sale 2300dwt Bulk Carriers For Sale in Germany, UK, Europe 88M Small bulk Carriers for Sale 1985 built Small Bulkers for sale with ready charters Used Bulk Carriers Small coastal bulkers Used mini Bulkers For Sale Small bulk Carriers for Sale 2300dwt Bulk Carriers For Sale in Europe 2300dwt Bulk Carriers For Sale in Norway, Sweden, Denmark ----------------------------------------------------------------------------------------------------------------------------------------

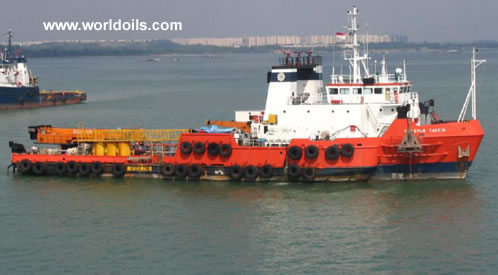

Multi-Purpose Maintenance Vessel For Sale
Description Built : Year 1973, Refurbished & modified in 1995 Call sign : 9WEU2 Class : Bureau Veritas Dimensions Length overall :193' 07" (60.21m) Breadth : 59' 10" (18.00m) Depth : 19' 10" (6.05m) Draft : 18' 5" (5.65m) Gross tonnage : 1,532 Net tonnage : 459 Machinery Main engine : Two B&W Alpha Engines, 16V23HU rated@2,320 BHP each Bow thrusters : 372 BHP developing 5 tons thrust Generators : Three 200KW 220/440V, 60Hz One 45KW 220/440V, 60Hz One 240KW 110/242/380V, 50Hz Propellers : Two variable pitch, in Kort nozzles Speed / Consumption Cruising Speed : 7-8 Knots Maximum : 10 Knots Fuel consumption : 3 100 USG/day Capacities Fuel oil : 127 498 USG (483m3) Potable water : 132 548 USG (501 m3) Ballast/Drill water : 316 960 USG (1200 m3) Drill water : 116 813 USG (442 m3) Lube oil : 3 786 USG (14 m3) Hydraulic oil : 1 624 USG (6m3) Deck Total Deck Area: 420m2 Clear Deck Area: 270m2 Deck cargo : 588 MT Accommodation : 95 (Including crew) Deck Equipment Capstan : Two 5 ton capstans Four point mooring : Two SKAGIT RB90W, double drum, waterfall type, 4 point mooring winches, with 38 mm diameter x 1,000m wire rope, fitted with four x 4,000kg Delta Flipper anchors into four fairleads Main crane : Liebherr 160ton pedestal mounted 130ft telescopic boom Auxiliary crane : One x 5 ton capacity Navigation /Communication Radars : 2 Echo sounder : 2 Gyro compass : 1 Auto pilot : 1 Telex : 1 Navtex : 1 GPS : 1 SSB radio : 2 VHF radio : 4 H/H VHF radio : 3 E-mail : Globe E-mail GMDSS : Equipment for area A1, A2 and A3
Fire fighting / Safety
Two 600 GPM at 12 M, head motor 90kw One unit 25 knots, fast rescue craft Safety equipment in accordance with SOLAS and flag requirements. Miscellaneous Equipment
Fresh water maker
2 Sewage treatment plant 1 Garbage compactor 1 Close circuit TV monitoring system : Mooring winches Tension & payout meters for the 4 point mooring Price & terms : Please enquire using the email form below.
------------------------------------------------------------------------------------------------------------------------------------------- Search words(for official use only) : Multipurpose Maintenance Vessel 1973 Built for sale Offshore vessel for sale 1973 Built Multipurpose Maintenance Vessel Refurbished & modified Offshore vessel for sale --------------------------------------------------------------------------------------------------------------------------------------------------
