Estimated Drilling Depth : 7,200 ft
Estimated Rig Move Loads : 33
Estimated Camp Move Loads : 3
Rated HP : 400


Height : 75.00 ft
Static Hook Load Capacity : 250,000 lbs
Mast Racking Capacity : N/A


Style : Box type
Height : 11.50 ft
Clear Height : 9.50 ft
Casing Capacity : 250,000 lbs
Maximum Setback Load (lbs.) : 250,000

Make : Dreco
Model : 400 PSD
Power Rating : 536hp
Input Power : 1 ea Caterpillar C15
Brake Type - Band or Disc : Band
Drilling Line Size : 7/8"
Auxiliary Brake : eaton 224WC/7323


Make : PDCA Rostel
Model : R150-30SL
Capacity : 150 ton


Engines : 3 ea Detroit Diesel Series 60
Generators : 2 ea Caterpillar SR 4 B
SCR / VFD / DC/DC : Mechanical Rig


Forklift : Caterpillar 930 H
Iron Roughneck : Torohil 90-70
Pipe Arm : International Derrick Services Slant-7


Mud Pumps : 2 ea NOV F-800, 800hp @ 150 spm
Reserve Mud Volume : 0 bbls
Pressure Rating : 5,000 psi
Active Mud Volume : 808 bbls
Shale Shakers : 2 ea Derrick Corporation FLC



Choke Manifold : Quality Valve & Machine Works Inc., 31/8" 5,000 psi
BOP Closing Unit : Oilco, 6 station 3,000 psi

Price & terms : Please enquire using the email form below

If you cannot find the vessel, crane, rig or equipment that you need,
please send us an email to mail@worldoils.com stating your
requirements and we shall find it for you.

We can arrange delivery of equipment and towage of rigs and vessels where needed.

The details mentioned above are believed to be accurate but are not guaranteed.

-----------------------------------------------------------------------------------------
Search words (for official use only) :

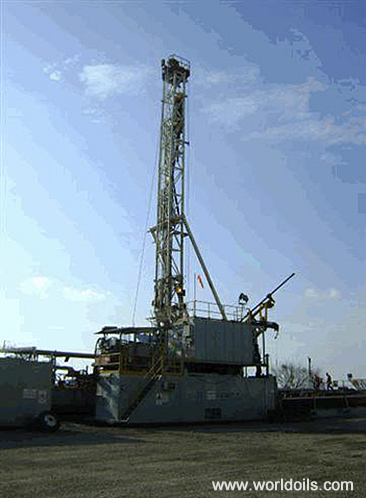

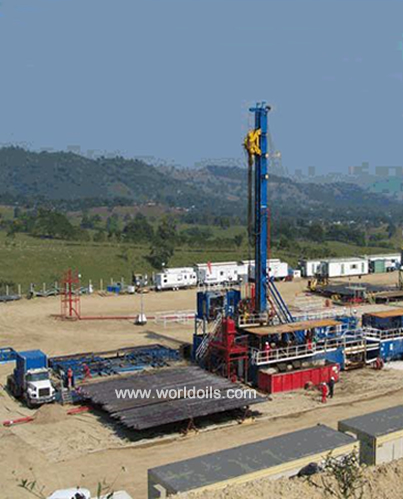

Trailer Mounted Super Single Slant Rig for Sale
Used Drilling Rig for Sale
75ft Height Mast - Trailer Mounted Super Single Slant for sale
Used Trailer Mounted Drilling Rig - for Sale
Super Single Slant Rig - Trailer Mounted - For Sale
Land Drilling Rig - Trailer Mounted For Sale

------------------------------------------------------------------------------------------

Mud Pump for Sale

 Rotary capacity : 425,000 lbs
- Setback capacity : 300,000 lbs
- Height : 16’
- Certified plaque engraved with A.P.I monogram 4F 4th Edition, PSL 1, E2/U2
- Four hydraulic rams to raise and lower sub structure
- Two hydraulic rams to raise and lower side floor wings
- Hydraulic controls six valve bank with flow divider
- Install two snub posts in between main hole and mouse hole
- Install BOP handling system for 11” x 5000 PSI stack


- Supply and install one 17 1/2”Hecker or American Block rotary table
- Rotary Table c/w split Master bushing and insert bowl.
- Supply and install rotary torque system

- Supply and install drop down chain case from rotary

- Supply and install (three) four foot explosion proof fluorescent lights in cellar area


- Fabricate and supply 40’ t sill with all lugs to support the free standing mast

- Fabricate and supply ramp with 4” welded pump line running down the side


- Substructure has been painted gray



- Supply 45ft. catwalk with fold up v-door with pipe cut out


- Supply 160 ton TSM block / hook combination
- Four each 30” sheaves for 1” drill line

- Supply 150 TON TSM Rotary Swivel
- Swivel c/w Kelly spinner stand
- Quill sub 4 ½” Reg. left hand thread – 6 5/8” Reg. Left



- Supply (1) one Caterpillar C‐15 series engines rated at 540 HP

- Supply and install one Allison OFS 4700 Transmission

- Supply one new Gardner Denver PZ‐7 mud pump

- Total building dimensions to be 37’ long 12’ wide
- Supply one oilfield skid 40’ X 12’ using 4 beam 12”@50 lb
- Install ¾”x 7” strapping on bottom of skid runners
- Cross members 10” @ 33 LB flooring to be 3/16” checker plate
- Supply and install pump with 4” valve, 2” pop valve, 2” bleeder valve and type D
mud gauge
- Supply one precharge pumps 60 hp 6 X 5 X 11 with suction screens
- Fabricate all precharge and suction lines from mud tank
- Fabricate all high pressure lines on skids. Pressure test chart and x‐ray done on all
high pressure lines
- Supply 5000 PSI shock hose in between pump and ramp with integral ends
- Supply one liner wash pump and liner wash tank with plumbing
- Supply one K20 dampener and cross
- Supply and install one diesel day tank with hosing for circulating system


- Supply and install (4) four foot fluorescents in each building
- Supply and install one distribution panel

- Mud Pump skid has been painted avocado green


- Total tank dimensions to be 50’ long 12’ wide
- One oilfield skids 53’ X 7’10” using three beam 12” @ 50 lb.
- Cross members 10” @ 33 lb with 1/4” formed plate flooring
- Walls on tank corrugated 1/4” plate tank perimeter tbg frame
- Fabricate 11 gauge building over top of mixing hopper and pumps
- Fabricate and install hopper door access on side of mix building
- Supply and install exhaust fan
- Fabricate and install two doors on front of mud mix building
- All unions for piping on tanks will be hammer style
- All suction lines will have bridge gate valves and be sumped
- Supply and install 30” poor boy degasser
- Suction lines inside tank 10” for pump and 6” for mixing
- One 4” mud roll line with 2” mud guns
- One 6” hopper lines with buttery fly valves
- One discharge manifold for both pumps


- Pill tank 30 bbls.
- Suction tank 120 bbls.
- Settling tank 105 bbls.
- Settling tank 110 bbls
- Shaker tank 100 bbls.
- Sand trap 10 bbls
- Trip tank 25 bbls.

- One DFTS mud conditioner
- Mud cleaner consist of 16 cone Desilter and 2 cone Desander
- Three MA – 10 hp 380 volt RG mud agitators
- Supply and install five jet guns
- Supply and install single hopper mixing system
- One 8” X 6” X 14” 60 HP 460 volt overhead motor driven by belts for Mixing pump
- Two 6” x 5” x 11” 50 HP 380 volt overhead motor driven by belts (Desilter & Desander pumps)
- One explosion proof 10 HP trip tank pump


- Supply and install four fluorescent lighting on telescoping posts
- Supply and install all electrical hard wiring and jumper cords
- Supply and install distribution panel at mixing end of tank
- Supply remote switch for trip tank pump to driller’s panel

- Mud tank skid has been painted avocado green


- Supply Two Caterpillar C‐15 engine rated at 540 HP


- Supply Caterpillar generator prime power is (50Hz) 355 kW

- Supply one transfer switch 600 amps
- Supply one 380 Volt panels with pin and sleeve plugs
- Supply one 380/222 panel with pin and sleeve plugs with 100 amp outlet for lease
accommodation shacks
- Supply and install plug box on building for cord ends
- Supply spare starters and plug in for 60 HP and 30 HP
- Supply and install four foot fluorescents inside building
- Supply and install two sodium vapour lights on roof
- Supply all extension cords from gen building to outside support buildings


- Fabricate triple beam skid 48’ long x 16’‐6” wide from 12” beam
- Install 6” roll ends and cover entire skid with 3/16” checker plate
- Shear, form and stand building 45’ long x 12’‐6” wide x 8’6” high
- Install tubing roof perimeter and sloped roof panels
- Install (3) divider walls inside building for (3) separate rooms
- Supply and install steel doors/frames into each room
- Fabricate 2 ft. wide cable tray on top of combination building
- Install 6x4 bumper posts on both ends of skid

- Lightplant room is 12’ wide x 20” long
- Supply and install (2) two Caterpillar C‐15 – 355 kW, 380V, 3 phase diesel
generators
- Fabricate and install 140 gallon fuel tank in corner of room
- Supply and install Sullivan Palatek 30 hp rotary screw air compressor with 120
gallon tank
- Install hinged door on side of building for electrical cabling access.


- Accumulator room is 12’ 6” long x 12’ wide and 8’ 6”
- Supply and install 4 station 120 gallon Control Technology Accumulator
- 10 each 11 gallon accumulator bottles
- One T‐25 Weatherford triplex charge pump
- Two 8 ½”, 40:1 air pumps


- Combination building has been painted gray



- Oilfield skid dimensions to be 10’ long 6’ wide.
- Supply one single gut 2” X 3” choke manifold c/w manual choke


- Supply one 11” 5000 PSI new Cameron Townsend T‐84 double ram preventer with
one set 3 ½” rams and one set of blind rams

- Supply one 11” 3000 PSI new Cameron (Townsend) T‐90 Annular

- Supply one 3 1/8” SS flanged 30’ 5000 PSI choke hose
- Supply one adapter spool 11” x 5,000 psi – 11” x 3,000 psi
- Supply one 11” 5000 PSI drilling spool with 3 1/8” outlets
- Supply one 3 1/8” 5000 PSI HCR gate valve (hydraulic)
- Supply and install 3 1/8” 5000 PSI manual gate valve
- Supply two 2 1/16” 5000 PSI manual gate valve
- Supply one 2 1 /16” 5000 PSI check valve
- Supply one DSA 2 1/16” X 3 1/8”
- Supply all studs and ring gaskets


- Air operated casing stabbing board


- Supply 100 barrel skid mounted water tank
- Supply and install two 4 x 3 Centrifugal transfer pumps
- Supply and install discharge and suction manifolds
- Tank will be built from ¼” plate
- Tank access hatch and drain plug


- Supply skid mounted fuel tank 100 barrels
- Supply and install two 3/4 hp 110v fuel pumps 1 ¼” X 1”
- Supply and install discharge and suction manifolds
- Supply one fuel water and solids separator
- Tank will be built from 1/4” plate
- Tank access hatch, drain plug and sight glass

- Change room is 12’ wide x 12’ 6” long
- Fabricate and install fold down lunch table
- Supply and install padded bench
- Supply and install 12 change lockers



- 4 ¼” Hex Kelly 37’ overall c/w shipping scabbard.
- Square Drive Bushing for 4 ¼” Hex Kelly & 17 ½” rotary table

Price & terms : Please enquire using the email form below.

If you cannot find the vessel, crane, rig or equipment that you need,
please send us an email to mail@worldoils.com stating your
requirements and we shall find it for you.

We can arrange delivery of equipment and towage of rigs and vessels where needed.

The details mentioned above are believed to be accurate but are not guaranteed.

---------------------------------------------------------------------------------------------------------
Search words (for official use only) :

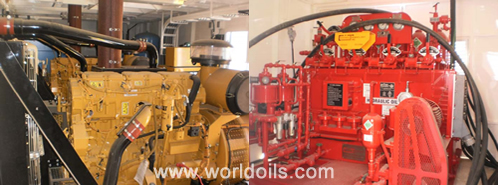

BOP Accessories for sale

Substructure & Accessories for Sale
Generators for Sale

----------------------------------------------------------------------------------------------------------

High Kelly Beam Leg cantilever Triple, 315,000 daN 700,000#
SHL w/12 Lines,racking capacity 5000 m,16,000’– 4-1/2”Drill Pipe.

Substructure Type:

Box on Box, with 20’ clear height, rotary capacity of
311,375 daN  (350 ton). Setback 311,375 daN  (350 ton).
Moves without Cranes

Drawworks :

  Rigmaster™ E90DC, 90,000 Lbs Single Line Pull,
745kW (1200 hp), with Eaton WC 1150 (Double 36”), and Yonge YZ-208X2
drive.

Support Complex Configuration :

Electrical Power Generation:  SCR unit power supplied by 3
Stamford 928 Kw gens powered by Cummins KTA 38-A

Hydraulic Catwalk: Forum™ Hydraulic catwalk

Top Drive: Tesco EXI 600 HP, 311,375 daN  (350 ton)

Travelling Block: 5× 42” 311,375 daN (350ton)

Rotary Table: ZP-275(National)

Pipe Spinner: Spinner Hawk Model 950(Optional)

Mud Tank 187 m3 (1187 bbls) with 6 agitators.

Trip Tank Volume: 3.12 M3, Centrifugal Pumps: 3-6"×5"×11"

Shale Shaker: 2-Brandt King Cobra

Features: Integral Lift roof w / tarps

Mud Pumps

Quantity: 2

Type: CSF-1300 (5000 PSI circulating system)

Power: 960 kW (1300 hp)

Stroke: 305mm (12 in)

Drive: Yonge YZ-208X2

Well Control System

Configuration: Annular Preventor, double gate& single rams,twin choke &
Kill lines

Bop Stack Diamater: 280mm (11") (Optional)

Bop Rating: 35000 kPa (5000 psi)

Bop Trim Type: Nace

Bop Type: Shaffer

Choke Manifold: Double wing 3 1/8" 35mPa (5000psi) Remote choke
compatible

Accumulator: Dong Su, 7 atation (Critical Sour compliant),
680 liters (180 Gal.)

Degasser: Dual Poor-boy degassers & tank

Auxiliary Equipment: Rig Manager accommodation (Skid Load), Tool shack,
Change shack SCR unit combination house, Regent 125 HP Boiler, Misc.sub
containers,Flare line rack.

Major component loads (Excluding pipe tubs & spare parts loads) =@ 20
depending on move parameters @45 total location move loads
BOP Stack & Pipe Tubs negotiable
Drill pipe, Drill collars & HWDP NOT included
Tongs, Slips, Elevators, Bails & Handling tools negotiable
