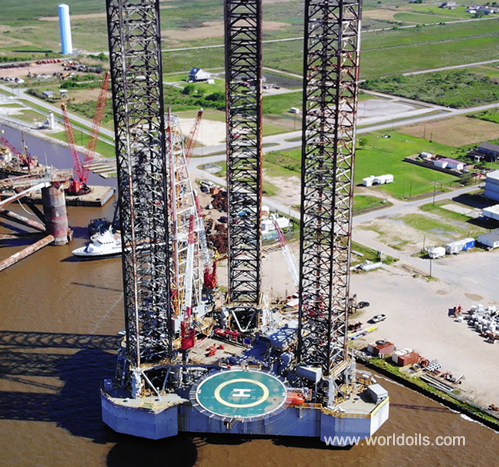

300 FT Jack-up Rig for Sale
300ft Jack-up Rig for Sale
Mobile Offshore Drilling Unit for Sale
2018 built Offshore Rig for Sale
General
Year Re-Built : 2018
Upgrade : 2018 (Overhaul)
ABS Class Notations : A1, Mobile Offshore Drilling Unit (MODU)
Last Inspection (ABS) : January 2019
Main Dimensions
Length : 247 ft -7 in; Breadth : 227 ft -5 in; Depth : 26 ft
Legs : 3 x 410 ft Square Truss
Leg Spacing : Longitudinal leg centers 129 ft; transverse leg centers 142 ft
Spud cans : 46 ft diameter x 24 ft high
Cantilever : Slot dimensions 41 ft x 50 ft
Helideck : S-61; diameter 70 ft
Operational Parameters
Water Depth : 300 ft (17 ft - 300 ft)
Maximum Drilling Depth : 20.000 ft with 5 in DP
Available length below hull including 5 ft margin Air Gap : 80 ft
Transit Speed : 5 knots
Survival Conditions –
Criteria Design; wind : 100 Knots; waves period: 13 sec; wave height: 44 ft
Jacking and skidding system : Marathon LeTourneau AC electric rack and pinion, 90 ft/HR
Drilling Equipment
Derrick : Dreco 170 ft x 30 ft x 30 ft x 1.500.000 lbs.
Cantilever Load : 1.310.000 lbs.
Drawworks : 1320 x UE 2000HP National Oilwell; wire 1 ½”. Electric brake: model 7838 Baylor
Rotary Table : model C-375 National Oilwell 37 ½", driven by 1 D79 EMD motor
Top Drive : model TDS-4H Varco BJ 650 TON, with Pipe Handler model PH-85
Travelling : Continental Emsco 760H 650 TON
Crown Block : National OilWell 760FA
Mud Pumps : 2 National Oilwell modelo 12-P-160 Triplex - 5000 psi. Stand pipe 5 in x 5000 psi
Main Power : 3 EMD 16-645-E8 Engines 6600 HP, generators AB20-N6 x 1,575 kW 600 V
Emergency Power : 1 Cat 3412-TA 719 HP Diesel engine
Cementing Unit : 2 electric triplex pumps. 15000 PSI, 14 BPM
Control System : air/electric powered
Choke and Kill Manifold : 3-1/16" x 10000 psi x 2 HCR & 2 manual
Capacities
Liquid Mud : 1605 bbls
Bulk Mud / Cement : 6240 cu.ft
Sacks : 2500 sacks
Drill Water : 10540 bbls
Potable Water : 1294 bbls
Fuel Oil : 4727 bbls
Base Oil : 563 bbls
Preload Tanks (include combination tanks) : 15542 kips
Mud Equipment
Mud cleaner (4) MI Swaco; Desilter (1) Mi Swaco; Degaser, Rig Vaccum MI Swaco..
Accommodations
88 berths;
Main offices, auxiliary offices;
Mess and galley, meeting room;
Recreation room and gym,
Medical office with observation room and bedroom with eight beds for quarantine cases
Watermaker : model NH75463+APC, FCI
Sewage Treatment : model RF 4000-M; Red Fox
Security Systems
Communication and Navigation System GMDSS
Smoke and Heat detection System
CO2 Extinguishing System;
Water Extinguishing System with Raw Water System.; Portable extinguishing equipment
Toxic Gas (H2S) and Combustible Gas (CH4) Detection System
General Alarm System
Emergency Shutdown System
CCTV System
One Lifeboat (63 Man Cap.),
Two survival capsules (28 Man Cap. each),
Four Liferafts (25 Man Cap. each)
Price & terms : Please enquire using the email form below.
If you cannot find the vessel, crane, rig or equipment that you need,
please send us an email to mail@worldoils.com stating your
requirements and we shall find it for you.
We can arrange delivery of equipment and towage of rigs and vessels where needed.
The details mentioned above are believed to be accurate but are not guaranteed.
------------------------------------------------------------------------------------
