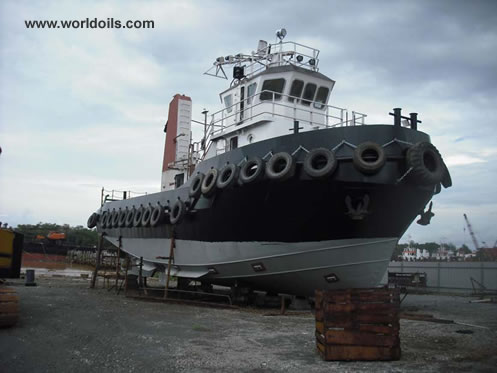

1200bhp Towing Tug For Sale Newbuilding 1200bhp Towing Tug For Sale Principal Particulars Class : NKK Length Overall : 23.500m Length B.P. : 21.322m Breadth Moulded : 7.315m Depth Moulded : 3.200m Draft Moulded : 2.700m Trial Speed : approx 10 knots Machinery Main Engine : Cummins KTA19-M3, 2 x 600BHP / 1800 rpm Gear box : Twin Disc MG5170, Ratio: 5.00:1 Propeller : 2 x Solid Fixed Pitch Propellers Main Generator : 2 x Cummins / Yanmar 24kw Tankage Fuel oil : 82.70M³ Fresh water : 25.00M³ Ballast : 29.00M³ Deck Machinery Anchor : 2 x stockless bower anchors (360kg) Chain Cable : 17.5mm Nine (9) lengths of Grade U2 chain Anchor Windlass : 17.5mm anchor windlass Towing Hook : 1 x 20 tons Navigation & Communication Equipment Echo sounder : 1 GPS : 1 Radar : 1 6” Compass : 1 4” Spare compass : 1 SSB Transceiver : 1 ICOM VHF IC-M45 : 1 EPIRM : 1 Klaxon horn : 1 Battery clock : 1 Barometer : 1 Binocular : 1 Clinometer : 1 Marine clock : 1 Ship bell : 1 Floodlight : 4 Searchlight : 1 Auxiliary Equipment F.O. Transfer pump : 1 x 4HP Wonder three phase induction motor c/w self-priming pump 2DV Y100L-4 Bilge & Ballast pump : 1 x 4HP Wonder phase induction motor c/w self-priming pump 2DV Y100L-2 GS pump & fire pump : 1 x 4HP Wonder three phase induction motor c/w self-priming pump 2 DV Y100L-2 Oily water separator : 0.25M³/hr Fire Fighting System 2½ IB Fireman Axe : 1 set Three Foam : 1 unit Extinguisher fire buckets : 3 sets Fire extinguisher : 8 sets Portable diesel fire pump : 1 set Life Saving Equipment Life Raft : 8 sets Life Buoy light : 4 sets Fireman outfit : 1 set Life Jackets with lights : 14 sets Parachute distress : 12 units Smoke signal : 2 sets 10 men Liferaft with Hydrostatic release units : 2 sets Accommodation Total Complement : 10 Crews
Price & terms : Please enquire using the email form below.
If you cannot find the vessel, crane, rig or equipment that you need, please send us an email to mail@worldoils.com stating your requirements and we shall find it for you.
We can arrange delivery of equipment and towage of rigs and vessels where needed.
The details mentioned above are believed to be accurate but are not guaranteed.
-------------------------------------------------------------------------------------------------------------------------- Search words(for official use only) : Newbuilding 1200bhp Towing Tug For Sale Towing Tug For Sale 1200 bhp Towing Tug in Singapore 1200 bhp Towing Tug in Malaysia 1200 bhp Towing Tug in Far East ---------------------------------------------------------------------------------------------------------------------------
Double Hull New Building Bulk Carriers available For Sale Double Hull Bulk Carriers for Sale New Building Bulk carriers available - slots
Bulk Carrier - 38,000MT - 1 slot
Type : Bulk Carrier Hull Configuration : Double hull-box type Quantities : 1 Deliveries : November 2010 Class : LR Class DWT (Metric Tons) : 38,000 mt Charter : Charter back option available Day rate : Please enquire ---------------------------------------------------------------------------------------- Bulk Carrier - 7,500MT - 2 slots
Type : Bulk Carrier Hull Configuration : Double hull-box type Quantities : 2 Deliveries : October 2010, December 2010 Class : I + hull + Mach bulk carrier (esp unrestricted navigation) Classing body : DNV DWT (Metric Tons) : 7,500 dwt Charter : Charter back option available Day rate : Please enquire ----------------------------------------------------------------------------------------------------------------- Bulk Carrier - 25,000MT - 3 slots
Type : Bulk Carrier Hull Configuration : Double hull-box type Quantities : 3 slots Deliveries : March 2011, July 2012 and October 2012 Class : RIMI Class DWT (Metric Tons) : 25,000 mt Charter : Charter back option available for one year Day rate : Please enquire
The details mentioned above are believed to be accurate but are not guaranteed. ------------------------------------------------------------------------------------------------------------------------------------- Search words(for official use only) - Double Hull New Bulkers for sale New Building Bulk carriers available - slots Bulk Carrier slots available at shipyards New Bulk Carrier Slots for Sale Double Hull New Building Bulk Carriers available For Sale Double Hull Newbuilding Handy Size Bulkers For Sale Handymax Double Hull Newbuilding Bulkers For Sale Double Hull Bulk Carriers for Sale New Building Double Hull Bulkers For sale Double Hull Newbuilding Mini Bulkers For Sale ------------------------------------------------------------------------------------------------------------------------------------------

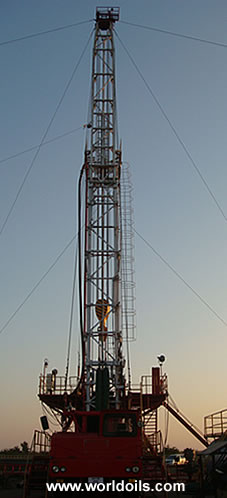

550hp Workover Rig for Sale 2008 built Workover Rig Used Workover Rig
Service Conditions : The rig is capable for undertaking work over operations in Oil/ Gas / Injection / Effluent disposal wells/CBM wells etc. up to depth of 3000 mts approximately with tubing string of 2 7/8" to 3-1/2" in 5" to 9 5/8" casings, depending on the weight of completion equipment. The work over jobs include but are not limited to servicing/ installation of artificial lift equipment, cleaning of well bore, gravel packing, sand screening, stimulation, well abandonment, transfer of horizons, water shut off, gas shut off, water injection profile modification and re-completion, retrieval of gravel pack assembly, fishing & releasing of stuck up, multi-layer testing, casing repair etc. in vertical/deviated/horizontal multilateral / ERD / USRD wells etc.
1. Workover Rig The Rig XJ 550 is a brand new self propelled rig and capable of workover / testing / completion/service upto 5800m using 2 7/8 " drill pipe and and 4500m using 3 1/2" drill pipe. The rig is having the hook load capacity of 135 ton and manufactured as per latest API standards applicable in the oilfield Industry.
The rig is equipped with : a) Four leg leaning type, Hydraulically telescoping, two section, foldable, SJ Petroleum Machinery Co., China make, Model JJ135/34 Mast with clear height of 112 ft from ground level and rated static hook load capacity 135 T with 8 lines strung on traveling block.
The mast is designed as per latest API 4E/4F standard code and practice. The Mast can is equipped with suitable Finger Board which can accommodate 5200 mts of range-II, 2 7/8" tubulars in doubles.
b) Twin safety device (floor-o-matic and crown-o-matic) is available. c) Top man escape device will be provided. d) Suitable locking system would be provided with additional safety manual lock for telescoping of mast to full height. e) The mast is designed to withstand wind speed of minimum 60 knots as per Clause 6.2.3 of API 4F with full pipe/ setback with all guy ropes properly placed as per standard API pattern. f) Hydraulic Cat works : For make up & breakout consisting of hydraulic make up (spinning) cylinder providing 10000lbs (4444kg) minimum line pull and hydraulic break out cylinder to develop a minimum line pull of 20000lbs. Control for make up & breakout is located at Driller's console. g) Draw works with suitable rating for handling 100MT hook load capacity, equipped with suitable auxiliary hydromatic brake for safe running in of the string. The Draw works should have sufficient range of forward speed and one reverse speed.
XJ 550 Draw Work Input HP rating 550 HP. Nominal depth rating 2000 mts with tubing, fitted with compatible mechanical brake system and driven by a suitable Detroit make diesel engine. Draw works having 4 forward and one reverse speed. Draw works drum having main drum Lebus Groove for 1 1/8” line. Main drum brake having maximum wrap around feature energizing type brake. Crown-o-matic protection device to protect the Crown is also provided. g) The draw works is powered by 1 no. of "CATERPILLAR"make, model C-15 ACERT diesel engine of 540 HP at 2100 rpm with ALLISION make, heavy duty transmission consists of torque converter, model "M5610AR" and suitable power trend through compound/chain drive and gear boxes.
The power pack is perfectly suitable for effective hook load of 135 MT and to work on 5000m deep well. The power pack is completed with standard gauges, meter, safety equipment and spark arrestor. Engine is equipped with independent interlock pneumatically operated starting system during the workover mode and the electric starting system during the roading.
h) SJ Petroleum Machinery Co. make Model "YG-150"hydrahook with combination block having 4 nos. of sheavesof 30" diameter. The hook has built in hydraulic snubber,conventional rotation lock and safety positioner etc.,rated capacity is 150 tonne and is capable to operate 2-7/8" to 3-1/2" tubing and 2-7/8" to 3-1/2" drill pipes up to required depth.
j) Racking Board is of adjustable type and completed with topman emergency escape device from monkey board to ground, railings & safety belts. The Racking Board is having sufficient provision to rack 3 1/2" / 2 7/8" tubulars/drill pipes for 5000m Drill pipe/ 6000m tubing and having provision for height adjustment at three different convenient positions.
2. Substructure S J Petroleum make Sub-Structure,made as per API-4F rigid type, completed with all respect to carry out drilling jobs, 13' below the rotary beam. Substructure having sufficient space to accommodate the 3 stack BOP (one Pipe Ram + One Blind Ram+ one Annular) with riser nipple in workover mode. The structure is completed with rotary beam, railing,side platform, setback area and stair way. The sub-structure can accommodate 17 ½” Rotary Table on it.
3. Rotary Equipment SJ Petroleum Machinery Co., China make, Model "ZP175"or equivalent rotary table with 17.5" opening without master bushing.
The table is completed with master bushingand kelly bushing.The rotary table is driven by chain-sprocket and the mechanism is powered by the drawworks.
4. Kelly 40 feet Square / hexagonal Kelly 3" size as per API 7 suitable for working upto 350 kg / cm2 (5000 psi) working pressure with required connections along-with saver subs will be provided. Upper and lower Kelly cock of suitable size with pressure rating of 5000 psi will also be available.
5. Swivel a) SJ Petroleum Machinery Co., make, Model "SL-135", rotary swivel having static/dead load capacity of 135 tonnes and working pressure rating 5000 psi and completed with bail bumper support, goose neck connection to rotary hose etc. Swivel bottom pin connection 6 5/8" API regular left hand.
(b) With 3” diameter quick change goose neck assembly with working pressure 5000 psi.
6. Hydraulic Winch The Rig is provided with minimum 1 no. of hydraulic winch with catline for handling tubulars having pulling capacity not less than 3MT.
7. Mud System Mud system is capable to handle drilling mud Sp. Gr. upto approximately 1.8.
7.1 Mud Pump (a) BOMCO China Make, model "F-500" triplex slush pump rated at 500 HP, unitized to a reputed Make diesel engine having sufficient capacity, through belt drive compound with shaft or chain drive is acceptable and 5 speed heavy duty gear box with Centrifugal supercharging pump, having pulsation dampener, safety relief valve, pressure gauge etc.
Mounted on a steel oil field skid, 20 gallon, heavy duty Type-F 6000 psi mud gauge, Pumps dressed with 3 1/2" to 6" liners as per operational requirement. The pump is capable of handling work over operation in 5 1/2"casing with 2 7/8" tubular upto a depth of 6500 mts. with mud of specific gravity- 2.3.
(b) Capacity of Pump Discharge : Minimum 12 cbm / hr. at 5000 psi. Minimum 52 M3 / hr. at 2000 psi.
7.2 Discharge System a) Rotary hose of suitable size having working pressure of 350 Kg/Cm2 (5000 psi) with suitable connections will be provided. b) Suitable end connections of suction line and delivery manifold will be provided. c) Stand pipe of suitable size and pressure rating along with pressure gauge is also present.
7.3 Mud/Work over fluid storage/ Handling arrangement i) Tanks having capacity (volume) not less than 80 cubic meter with permanent level markings from bottom will be provided. ii) Arrangement is provided for brine/mud preparation, mud mixing, mud agitators / bottom gun jets of best engineering iii) Transfer pump for working fluid / mud from tankers into tank and tank to tank and back to tanker (if required) along with pumping system. iv) Necessary system lines wherever required. v) Calibrated mud hopper of suitable size with butterfly valve and proper line connection will be provided with gunning arrangement. vi) One trip tank of approximately 8 m3 with suitable connections and valves will be available. It will be equipped with sufficient capacity of centrifugal transfer pump & motor suitable for hazardous area. vii) Skid mounted / portable filtration unit for brine to get the out let brine solution of 5 micron quality at flow rate 40M3/hr at working pressure 10Kg/cm2 after fine filter with suitable motor for hazardous area .
8. Fuel Storage Sufficient fuel storage to undertake the workover operations will be provided
9. Water Storage Tank with storage Capacity of 40 m3 equipped with transfer pump of suitable capacity with necessary hook up lines/ system will be provided.
10. Well Control Equipment The following well control equipment will be provided : a) Hydraulically operated Cameron / Shaffer / Hydril make, one double ram type Blow Out Preventor of 7-1/16" X 5000 PSI working pressure having one set of blind ram and one set pipe rams to handle size 3-1/2" and 2-7/8". b) Hydraulically operated Cameron / Shaffer / Hydril make, one annular Blow Out Preventor of 7- 1/16"X5000 PSI working pressure. c) Or one no of 3 stack unitized BOP containing items as mentioned at a) & b) above. d) One set of stem & wheel for manually closing BOP as per OISD standard-174. e) One. No of shanghai shenkai petroleum chemical equipment, 6/8 bottle hydraulic control unit, capable of operating the BOP with suitable Pneumatic and electric motor driven pump. The system pressure is 3000 PSI. Necessary 1" BOP control hose to connect BOP with control unit.
1 (one) nos., of remote control unit placed on drillers console. Unit will have two charging systems i.e. Pneumatic and electric with auto start and stop facility. Flame proof DGMS approved motor will be used. One set of stem and wheel to operate the BOP mechanically.
f) Adapter flange/ spool/dummy spools of following size will also be available :- Change over spool 7-1/16" 5000 psi x 7-1/6" 10000 psi - 1 no
g) 1 no. BOP test plugs or Cup tester/ accessories will also be provided.
h) Plug valves, tubing shut off valve and FOSV of 5000 PSI having necessary connections and changeovers for 2-7/8" & 3-1/2" NU /EUE tubings/ Drill pipes will also be provided.
11. Choke and Kill Manifold Choke & Kill manifold is as per API of size minimum 2-1/16" having minimum 5000 psi WP along with sufficient quantity of flexible steel piping of minimum 5000 psi WP of suitable size fitted with NRV in kill lines. It has a suitable combination of valves having provision to flow the well through fixed choke, variable choke and one bypass also. There is also a provision to kill the well through kill line as well as one additional line for making connection through cementing.
12. Handling tools as per API 8C a) Center latch elevator for minimum 100MT capacity and minimum 01 no. for each category will also be provided.
Sizes 2-7/8" : Upset Tubings 2-7/8" : Plain Tubings 3-1/2" : Plain Tubings 2-7/8" : I.F Drill Pipe 3-1/2" : I.F Drill Pipe 3-1/2" : Upset Tubing b) Elevator links Elevator links-forged as per API 8C, rated capacity-minimum 100MT, size 1-3/4"x72". qty 2 nos will be provided.
c) Power (Pneumatic) slips We will provide Light Weight pneumatic slip/spider, with sufficient spares, inserts suitable for 2-7/8" and 3-1/2" tubing and drill pipes along with all associated connections, hoses and Couplings. Operating valve at driller's console.
d) Hydraulic tubing tong (Qty-1) A Light weight hydraulic tubing tongs as per relevant API for 2 7/8" and 3-1/2" tubings with replaceable jaws minimum torque rating 8000 ft lbs along with sufficient spares would be provided.
e) Heavy duty Tong. (Qty-02) Range 2-3/8" to 4-1/2", and to handle all fishing tools and milling tools as per relevant API, torque rating minimum 35000 ft-lbs with hanger arrangement along with sufficient spares will also be provided.
f) Handling Tools for Sucker Rods and Polished Rods Tongs & elevators for handling 5/8", 3/4", 7/8", 1", 1-1/8" & 1-1/4" sucker rods and polished rods will be provided.
13) Cross Over Subs Bit subs, cross over subs and all necessary subs to handle work with 2-7/8" & 3-1/2" tubing and drill pipe string or their combinations will be provided.
14) Rig instrumentation suitable for Hazardous area. a) Deadline weight indicator with sensator/ load cell on driller console/control panel, indicating load on hook for the designed capacity of the rig will be provided. b) Suitable recorder for recording hook load will be provided and it will be mounted in weight indicator box c) Mud pump pressure indicator would be complete, on drillers console/control panel. 0- 6000 PSI. d) Mud pump pressure gauge is mounted on stand pipe of 0-6000 PSI. e) SPM indicator for mud pump discharge at drillers console/ local mud pump control panel. f) Indicators for B.O.P rams open/close for blindram, pipe rams & annular BOP on drillers console/control panel is provided.
15. Safety Equipment The rig is equipped with following fire fighting & safety equipment : I. Fire fighting system as per OISD standard -189 :- Para 6.0 i) Fire water storage facilities with fire pump. ii) Portable Fire extinguishers. Para 11.0 - Material specification of Fire water system. Para 12.1 - Fire alarm system. II. Explosion proof rig lighting at all hazardous locations as per Indian Oil Mines Regulation in force. III. Flame proof portable lamps (minimum 2 nos.) IV. Emergency Kill system for derrick engine (control from driller's panel). V. Electrical system will have suitable ELR (Earth leakage relay) VI. First aid box with stretcher facilities as per OISD standards - 204 para 6.5 and Annexure - H. VII. Safety kits & liveries (as per standard statutory body) will be provided for operating personnel. Top man safety belt also to be provided. VIII. All the rotating parts must have proper safety Guards.
16. Drill String a) Drill pipes 2-7/8" OD IF Right Hand, G grade of 10.4 ppf, premium Class I, Range II, 3000 meter will be provided with rig along with latest NDT certificate. b) Drill collars of sizes 3-1/2" of total length 50m with cross over to run 2-7/8" & 3-1/2" drill pipe will be provided.
17. Other Equipments The following equipment will also be provided : a) Air system: Air compressor system of suitable capacity with air tank for operating pneumatic Cellar pump, Hydraulic pump of BOP control unit etc. b) Rig warehouse and POL store. c) Rig In-charge Office. d) One A/C bunk house for coordinator. e) One bunk house for Contractor's operating personnel. f) V door & cat walk with pipe racks on both sides. g) Necessary transport equipment for movement of rig from one location to another. h) Cellar pump- Air operated (Pneumatic) with suction hose of sufficient length. i) Circulating head 5000 psi working pressure for 3-1/2" and 2-7/8" Drill pipes and tubings with necessary change over j) All trailor mounted equipments including rig trailor will meet the RTO regulation including Registration k) POWER GENERATOR: 2 nos. 125 KVA power generators, powered by Kirlosker/ Cummins or equivalent make diesel engine with "STAMFORD/JYOTI" make alternator and properly designed control panel for rig operation and illumination of work area with each other. l) Sufficient number of suitable flanges, chicksens/ flexible joints and rubber hoses for making all types of connections for working pressure 5000 psi will be available, m) Welding machine/ Welding transformer powered by contractor's Gen Set along with all associated welding and oxy - acetylene cutting accessories, gases and consumables etc. n) Potable water storage, filter and water cooler, o) One no of red aviation light flickering type fitted with lamp at crown block shall be available having independent circuit. p) Mud balance q) All rig equipments and facilities like bunkhouse store etc. will have effective double distinct earthing system as per IER 1956. Price & terms : Please enquire using the email form below.
The details mentioned above are believed to be accurate but are not guaranteed. ----------------------------------------------------------------------------------------------------------------------------- Search words (for official use only) : 550hp Workover Rig For Sale in India Used Workover Land Rig 550 HP Workover Rig For Sale in the Middle East 2008 built Workover Rig for sale in India Used Workover Land Rig 550 HP For Sale Land Workover Rig For sale - 2008 built Workover Rig - 550hp - 2008 built Used Workover Rig for Sale in the Middle East -----------------------------------------------------------------------------------------------------------------------------

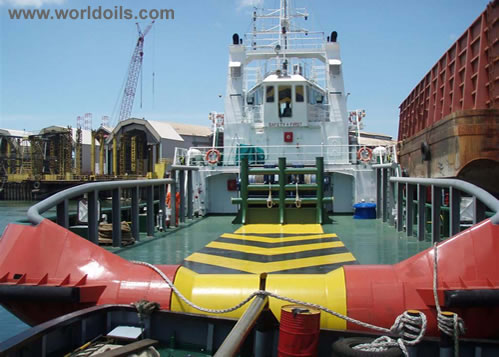

Utility Tug For Sale - 4000bhp 4400bhp Tug For Sale
Particulars Length O.A : 37.000M Beam Mld : 11.40M Depth Mld : 4.95M Design draft : 4.05M F.W capacity : 80 m³ approx. F.O capacity 320m³approx. Class : NKK Year built : 2008
Accomodation 2 x 1- Berth Cabins: 2men 3 x 2- Berth Cabins: 6men 1 x 6- Berth Cabins: 6men Total : 14men
Propulsions System Main Engine : Two(2) units of Cummins QSK60 high speed diesel engines, each producing 2200BHP at 1800rpm, Gearbox : C/W two(2) units of gearboxes with ratio 7:1 Generator : Two (2) 150kW, diesel driven generators, 415/3/50, 3wire. Propeller : Two(2) solid propellers 2900mm approx. diameter, 4-bladed Kaplan type manganese bronze.
Deck Machinery Towing Winch : Double drum towing winch. Pull at first layer: 50tonnes at 10.6M/min Brake holding force: 150tonnes Anchor Windlass : Hydraulic anchor windlass with capacity 6tonnes at 12M/min double gypsies suitable for 30mm dia. stud link chain.
Steering Gear Electro-hydraulic steering gear of about 5 T-M 2x35 degree rudder angle c/w emergency hand hydraulic steering. (Joystick Type+ Emergency Helm)
Radio and Navigational Equipment 1) One(1) HF/MF transceiver 2) Two(2) VHF-FM transceiver, Furono Model: FM-8500 3) Two(2) Inmarsat-C 4) One(1) EPIRB 5) One(1) unit radar transponder 6) Weather Facsimile receiver 7) One(1) Navtex receiver 8) One(1) GPS Navigator 9) T.V. antenna 10) Sound powered phones 11) One(1) unit loud hailer 12) One(2) Echo sounder(or equal) 13)One(1) X-band daylight type Radar 14) One(1) 6” Standard magnetic compass c/w Reflector 15) Two(2) units Clinometer 16) One(1) set Autopilot/Gyro compass 17) Two(2) 1000W Searchlights 18) Two(2) Rudder Indicator
--------------------------------------------------------------------------------------------------------------------------- Search words(for official use only) : 4400bhp Tug for sale in Singapore Used Utility Tug For Sale 4400bhp tug in Asia 4400bhp Tug for sale in Malaysia 4000bhp Tug ForSale ----------------------------------------------------------------------------------------------------------------------------------

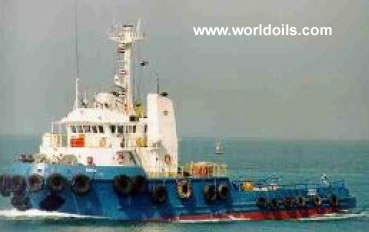

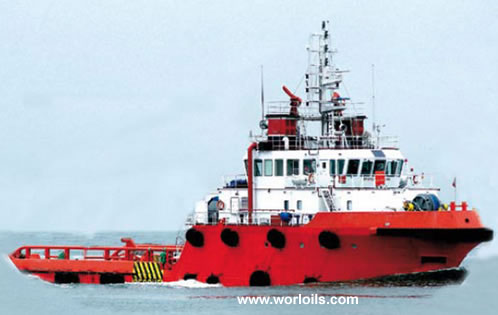

Anchor Handling Tug for sale 2009 Built 40m 5000 BHP Anchor Handling Tug AHT For Sale - 5000bhp 5000BHP Anchor Handling Tug For Sale Principal Particulars Classification : Bureau Veritas Year Built : 2009 Length Overall : 40.00m Length B.P. : 36.46m Breadth Moulded : 11.80m Depth Moulded : 4.60m Summer Draft : 4.000m
Capacities Gross Tonnage : 480 tons Net Tonnage : 144 tons Load Displacements : Fuel Capacity : 425cbm Fresh Water : 100cbm Speed : 13.7 knots
Range Bollard Pull : 62 Tonnes @100% MCR Fuel Consumption : 8.850 litres/day (Max Speed) 7.920 litres/day (Cruising Speed) Accommodation : 22 persons LSA Certificate : 22 persons
Machinery & Equipment Main Engines : 2 x NIIGATA 6MG28HX (1118.75KVA/1838Kw/2500BHP each at 750 rpm) Generators : 2 x Cummins 6BT (100KVA/265KW/107.28BHPeach at1500rpm,3 ph,415V) Gearboxes : Twin Disc (6: 1) Propellers : 2 x 4-Blades Kaplan Towing Winch : 40 Tons Break Holding Towing Wire : 40mm diameter 800m long Fire/Salvage Pumps : 60 m3/hrs + portable pumps Fire Monitors : Nil Foam Tank : Nil Navigational Aids & Communications : 1 Radar, 1 AIS, 1 SART, 1 GPS, 1 SSB, 2 VHF, 1 EPIRB, 1 Walkie Talkie
-------------------------------------------------------------------------------------------------------------------- Search words(for official use only) - Anchor Handling Tug for sale AHT of 5000BHP for Sale 5000bhp 40m AHT for sale AHT for Sale in Singapore AHT for Sale in Malaysia 5000bhp 40m AHT for sale AHT for Sale in Asia 5000bhp Anchor Handling Tug For Sale ----------------------------------------------------------------------------------------------------------------------------
Location : East Med. Price & terms : Please enquire using the email form below.

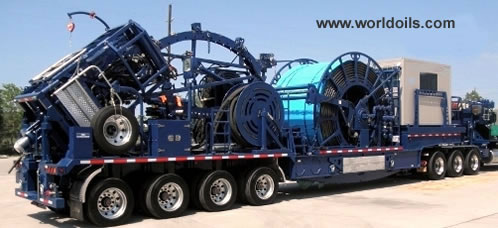

Coiled Tubing Unit for Sale CTU for Sale
2013 Built Trailer Mounted Coiled Tubing Unit
1.0 General Description 1.1 All components are brand new and not used. 1.2 All equipment has reasonable load distributing. The whole equipment has the capacity of shock resistance and rough road running. The unit is suitable for driving in rough terrain of oil fields and common highway. 1.3 Control system, instrument box and related devices have nice sealing performance, water proof and shock resistance. 1.4 All equipment is capable of operation in ambient temperatures of -30°C to 45°C. 1.5 All equipment is located reasonable, which is easy for operation, checking and maintenance, caution marks for deck equipment and completed protection device for uncovered running components and high temperature components. All discharging ports point to safety position and are built under standard of HSE. 1.6 All related documents will be provided. 1.7 All equipment is built under the quality standards of API/ASME/NEC/ISO. 1.8 All equipment is well designed and constructed for safety operation of operators. Welding department should have nice quality and enough strength. Self-lock nuts should be use as much as possible. 1.9 All electrical circuits have code marks and all hoses have S/No. labels, which is easy for connection with related connector. 1.10 All hoses and electrical wires are packed steadily, complete with clips for support and fasten.
2.0 General Structure and Technical Specification
The Trailer Mounted Coiled Tubing Unit is composed of four axle trailer,hydraulic system, reel, power pack,injector, injector control hose reel, injector power hose reel, lubrication system, electrical system, control system, instrument control cabin, wellhead control equipments and so on. The Trailer Mounted Coiled Tubing Unit is used for many oilfield services applications like gas lift, acidizing , fracturing and so on.The operation of the Trailer Mounted Coiled Tubing Unitis centralized in or around the control panel in control cabin, which can ensure the operator can easily and clearly monitor all control switches, instruments and the working condition for all systems. Lights are installed above the reel and engine, which are easy for night working.
CTU Performance Parameters :
3.0 Trailer Frame Rating : 66,000kg (145,500lbs) maximum capacity without trailer Dimensions : 15,240mm(length) X 2,600mm(width) (600in X 102in) Gooseneck : 3.5? kingpin Axles : four axles, 22,700 Lbs /axle. capacity Tires : sixteen (16):275/70 R22.5 Other : equipped with ABS Voltage : 12V
4.0 Power Pack DDC S60 turbocharged diesel engine,525hp@2100rpm,4 stroke, 6 cylinder, detailed specification is as following : - Electronic Engine Management System - Equipped with starter(Anti-explosive battery. Air starter for diesel lubrication of starting device and 30 gal air receiver tank?12 CF air compressor fixed with engine.Alternator - Horizontal muffler,with rain cap - Heavy duty air cleaners (for desert) with restriction indicator - Equipped with emergency kill - Bendix 0.37m3/min air compressor and air system that will include an air receiver, air dryer, water separator, air filter, bleed valves, check valves, control valves, gauges and hoses. Air compressor will maintain 0.8 Mpa in the air receiver tank.In addition, a connection will be provided for remote charging of the air tank. - Spark arrestor and Emergency shut off system - Diesel oil tank Volume: 500L - Hydraulic system: - Main hydraulic system: injector is driven by variable displacement, axial hydraulic pumps. - Tubing reel driven hydraulic system: independent hydraulic pump will provide power for the coiled tubing reel drive motor. - Auxiliary hydraulic system: separate pressure compensating pump provides power for following system : hose reel hydraulic motor, level wind hydraulic motor, level wind lifting hydraulic cylinder, injector traction and tension system, BOP control system. Level wind compelling hydraulic motor Level wind height control hydraulic cylinder Flexible Hose hydraulic motor Control cabin lifting cylinder BOP hydraulic cylinder Injector chain tension system Injector chain traction system Injector speed adjustment system
Handle pump system: handle pump system is installed in control cabin, which is used to provide emergency power for BOP ram, stripper and injector chain traction system - Energy accumulator system: this system is installed in hydraulic power pack. 4 high pressure nitrogen reservoirs can provide spare power for BOP control system. - The capacity of each accumulator is 10 gallons ( 37.85L) - Except above mentioned parts, the hydraulic system also contains followings : Hydraulic Oil tank with temperature gauge and level indicator. Gauges of hydraulic pressure Oil cooling system Hydraulic system returning loop filter Necessary pressure relief valve, safety valve and hydraulic hose - The hydraulic power pack is skid mounted and has a four point lift protective frame. - Carbon steel hydraulic oil tank capacity: 650L
5.0 Control Cabin - The unit will be fully operational from the operator’s control cabin with the use of mechanical, hydraulic and pneumatic controls. - The control cabin will have four hydraulically lift cylinders to elevate the cabin for ease of visibility over the tubing reel. - Long type control cabin. The long type cabin is professionally designed for quiet comfort and to provide a safe operating environment for the operator and customer. - This control cabin design will feature : - Door will have heavy duty lockable latch - Safety glass installed on all four sides of control cabin : front window with safety guard screen and windscreen wiper, the back side door with fixed window and both sides supplied with large area emergency slide windows - A complete lighting and electrical system with all necessary plugs and switches will be installed. - Operator’s chairs, etc. will be installed in the control cabin. - Heavy-duty rubber insulated floor covering, fire resistant. - The Control Cabin will be heated and cooled by a high capacity rear mount air conditioning and heating unit. The air conditioning and heating unit shall provide adequate cooling and heating for the operating temperature range of the unit. - Four (4) flood work lights will be installed on the outside of the Control Cabin (two (2) at the rear facing the tubing reel and two (2) in the front). - Standard equipment in the control cabin will be : Stainless steel console and panels - LED Internal indirect lighting system - Captain’s chair mounted behind control console - Control cabin is equipped with external alarm horn controlled from the control cabin. - All hydraulic connections to and from the control cabin will be via a hydraulic bulkhead. - An air driven pump used to deliver 5,000 psi to the stripper over the 3000 psi system pressure. This pump also has a handle and can be used as a second manual back-up pump. - A full control console will be installed in this cabin. This console will be of stainless steel construction and be fully labeled with all gauge and control information. The panel will be mounted on an engineered fabricated housing that incorporates the back-up pump, hydraulic valves, interface, etc. - The following controls and gauges will be installed in this control console: Weight indicator to be Metric (Kilograms) and pounds Well head pressure gauge in Megapascals or PSI Circulation pressure gauge in Megapascals or PSI Engine controls and gauges : Engine EDM Display Module to provide the following information : tachometer/hourmeter readout engine oil pressure & temperature readouts water (coolant) temperature readouts Engine throttle Engine normal stop Engine emergency stop System air pressure Fuel level gauge
- Injector controls : In/out control hydraulic joystick with friction detent - Speed control regulator valve for maximum and minimum injector motor displacement contr - Three sets of the traction circuit valves to secure the traction of the coiled tubing. These valves are indicated as upper, middle and lower allowing - Each traction control valve has an individual pressure gauge - Traction pressure regulator valve with regulated pressure indicator - Chain tension control valve with individual pressure indication, “Pressure, Run and Dump” - Chain tension regulator valve - Injector drive pressure gauge glycerin filled - Injector Emergency Brake control
BOP controls : - BOP ram/auxiliary control bank valve – quantity of nine (9). - BOP safety control valve - Stripper packer hydraulic control valve and a quantity of two (2) pressure gauges - Installed at base of control panel will be two (2) hydraulic hand pumps with auxiliary hydraulic reservoirs - Tubing reel controls and gauges : Tubing weight indicator Tubing reel tension (speed) control valve Tubing lubricator control Additional cabin controls and information: Light switch All pressure gauges to be Metric (Megapascals) or PSI
6.0 Tubing Reel Tubing reel is installed in the trailer and adopts embedded structure. The parameters are : Tubing Reel Flange O.D. – 150″ Core Dia. of Drum: – 78″ Tubing Reel Width – 78″ Max. Reel Capacity 2″– 6300m
Reel Support Frame The reel supports are fixed a-frames that are skid mounted and attached to the trailer via pins. Each a-frame includes a bearing carrier which is pad mounted on the top each a-frame upright to provide spool change capability. This feature allows the reel to be either raised out of or lowered into operating position from one location.
Reel Drive The driving system of the tubing reel includes motor and gearbox, which are installed on the road side of the trailer. Complete with one quick joints connection plate, which is easy for the connection of the reel and hydraulic power.
Rotating Joint and High Pressure Manifold The high pressure manifold includes swivel joint, piping. Rotating swivel joint and piping will have a maximum working pressure of 15,000 psi, integral figure 1502 union will be flanged to inside of pump-through shaft for connection to tubing. Level Wind : Level wind assembly will allow tubing angle to vary from a minimum of 10° up to a maximum of 85° elevation (from horizontal), and is raised and lowered via hydraulic cylinders. Pivoting guide is designed to allow easy tubing installation. Pivoting guide can be used with either mechanical or electronic encoder for counting tubing depth metering. The tubing counter will adopt a “V” Roller design to accommodate tubing sizes from 1 ¼″to 2 7/8″O.D. tubing. The mechanically controlled level wind system will track down from 1 ¼″to 2 7/8″ tubing during pay-in / pay-out operations and includes a manual override control. Lubrication System : A remote control pneumatic tubing lubrication system mounted at the rear of the counter. The lube oil reservoir is located between the tubing reel and power hose reel.
7.0 Hydraulic Power Hose Reel and Hose - One BOP control hose reel has 20 ports. Length of the control hose is 40 m (130 feet). - One injector control hose reel has 20 ports. Length of the control hose is 40 m (130 feet). - One injector power hose reel has 2 sets 1-1/2″X 40m (130 ft), 5000psi hose. - This hose reel is hydraulic driven with local hydraulic control valve.
8.0 Injector Head - Model：JR-ZRT80K - Continuous Pull Capacity：80,000 lbs - Continuous Snubbing Capacity：40,000 lbs - Maximum Speed：190ft/min
Patent grippers adopt removable design. Suitable for coiled tubing size from 1.25″to3.5″. This injector is capable of 2″OD Coiled Tubing.
- Out frame support can bear 90,000lbs snubbing or pulling load. - Dual planetary gear transmissions are designed specifically for coiled tubing unit application. - 2 sets of variable displacement, axial piston hydraulic motors. - Counterbalance safety valves are installed in hydraulic motor or distribution manifold.
Modular brakes are mounted between the motors and gearboxes and are spring applied/pressure released.
- All chain gears have induction high hardness gear. - Spline top drive has fixed axis and chain gears. - Inline bearing traction system is suitable for traction strength reaches top and the grippers will have no dislocation. - 3 sets（6 each traction oil cylinder adopt inside installation design. - Pocket accumulator is installed in traction loop. Injector chain lube system is activated by chain running. Completed with measuring pump can realize best lubrication and less lube oil waste. - Fold down walkways will be provided. - A fall protection device will be provided on the injector - 100″gooseneck
9.0 Wellhead Equipment (Optional) All the wellhead control equipments are J&N make.
9.1 BOP -4.06" For 2” Coiled Tubing Working Pressure：10,000 PSI H2S service. All metals in contact with well fluids per NACE MR-01-75 Top End：4.06” 10,000 BX-155 Studded Flange Lower End：4.06” 10,000 BX-155 Open Flange Side Outlet：2.06” 10,000 BX-152 Studded Flange
9.2 Side Door Stripper- 4.06" For 2” Coiled Tubing Working Pressure：10,000 PSI H2S service. All metals in contact with well fluids per NACE MR-01-75
10.0 Digital Data Acquisition Package (CTDASP) - JK-CTDASP integrates standard Coiled Tubing Data Acquisition System with a personal computer interface and is preloaded with report software and designed for operator convenience and portable applications in harsh oil field environments. - This new system provides customers with a single integrated solution where previously a DAS suitcase, a laptop PC computer and related software programs were required to perform the same job. - This CTDASP system, with the software that is installed is capable of accepting/processing the following data from the unit mounted sensors : Coil Tubing Depth and Speed Circulating Pressure Well head pressure Fluid Pumping Rate/Total Any other additional information
- Data Acquisition Software have the following features: Local real time data and time indication Real-time recording Append and pause files during operation Multiple channels input User-defined X-Axis Zoom and scroll functions on graph Elapsed time and reset Process real time/replay data
10.1 Software Function - Display real time data by real time numerical value - Display real time data by curve - Download historical data in memory card - Separate historical data into different data document according to time interval - Display curve by horizontal and vertical ordinate, user can choose favorite one - Check data easily: the real time data and historical data display by curve and data - Dynamic loading historic data, reappear site job condition - Easy for choosing coordinate axis - Coordinate axis can be added and deleted, no effect for data curve - Data curve can be adjusted to display and hide, easy for data analysis - Coordinate axis can be zoomed and rolled, check data curve by rolling coordinate axis - Supply command of Zoom to Fit for all coordinate axis - In support of common printer, as well virtual PDF printer, can print curve and data into PDF Form
11.0 Painting Procedure: - All steel parts will be sand blasted to white metal - Primer will be zinc rich - Middle paint - Surface will be industrial polyurethane paint - The painting color will be confirmed by customer. the control cabin color is white
12.0 Documentations - Operation and maintenance manual for skid mounted coiled tubing unit. - OEM Operation and maintenance manual for diesel engine. - Manufacturer’s installation operation and maintenance literature for all CTU’s major parts. - Qualified certificate of equipment conformance to customer specifications. - Qualified inspection certificate of equipment.
13.0 Tools and Spare Parts Digital Multimeter 1 Pc 13 pieces electron tools kid 1 Set Metric Combination Wrenches Kit (8-24mm ) 1 Set English Combination Wrenches Kit(1/4"-7/8" ) 1 Set Metric Inner Hexagon Spanner Kit(1.5-14mm) 1 Set English Inner Hexagon Spanner Kit(1/16”-3/8”) 1 Set Monkey Wrench(12”) 1 Pc Special Handle Grease Gun 1 Pc Hydraulic Oil Tank Return Oil Filter Element 1 Set Hydraulic Oil Tank Suction Filter 1 Set Engine Oil Filter 1 Set Engine Diesel Filter 2 Set Engine Air Filter 1 Set
14.0 Warranty Warranty period for the unit is one year (from the day the unit arrived at the customer’s).
15.0 After sales services We will provide After-Sales Service in the capacity of spare parts procurement. In the event that parts become obsolete, We will assist in locating suitable replacements.
CT Unit for Sale 2013 Built CTU for Sale Trailer Mounted Coiled Tubing Unit Coiled Tubing Unit 2013 Built for Sale --------------------------------------------------------------------------------------------------------------------

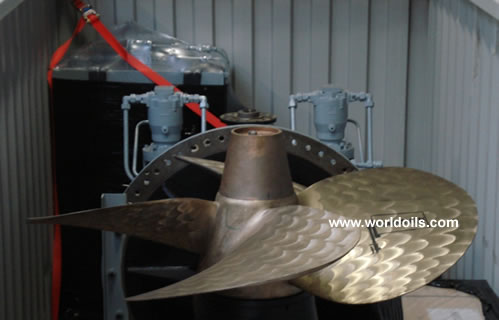

Schottel Rudder Propellers SRP 505 Steerable Z-Drive for sale Schottel Rudder Propellers for sale 6 x Schottel Rudder-Propellers SRP 505 steerable Z-Drive (reconditioned - sold as is, where is) Max Power input : 1000 KW Normal input torque : 7300 NM Max r.p.m input : 1650 rpm Including : - 3 x Clutches - 6 x Electric-hydraulic full follow up 24 Volt remote control steering systems - Bronze Propeller - Mounting plate - Seal and oilheader tank - Dome with powerpack Available: : Europe
------------------------------------------------------------------------------------------------------------------------------- Search words(for official use only) : Schottel Rudder Propellers SRP 505 Steerable Z-Drive for sale Recon Schottel Rudder Propellers SRP 505 Steerable Z-Drive for sale Used Schottel Rudder Propellers SRP 505 Steerable Z-Drive for sale Schottel Rudder Propellers for sale Rudder-Propellers for sale ------------------------------------------------------------------------------------------------------------------------------------
Diving Support Vessel For Sale DSV for Sale Survey Vessel For Sale
Dimensions Length Overall: 49.0 m Breadth moulded: 12.2 m Depth moulded: 4.5 m Summer Draft: 3.65 m GRT / NRT 783/234
Registration Built: 1982 Class: DNV +A1(E) + MAS Ocean going towing service
Machinery Main Propulsion: 2 x 1500 BHP Yanmar T260-ET Schottel/ Thruster: 1 x 485 BHP 3.5 ton Any direction Generators: 3 x 160 kW, 440V, 60Hz
Capacities Fuel oil: 495 m3 Fresh water: 234 m3 Clear deck area: 236 m2 250 ton 16.0 x 8.5 m
Deck Machinery Crane: Sekigahara Hydraulic Telescopic Capacity: 3 tonnes @ 12 m outreach Weather Anchoring System : 2 x electro-hydraulic 7.5 tonne @ 9m/min windlass with 2 x 1315 kg anchors with 520 m x 32 mm chain Capstan: 1 x 5 tonne
Accommodation (Total 30 berths) Cabins / Berths: 4 x 1 berth 3 x 2 berth 5 x 4 berth Other: Galley, mess / recreation room Optional Accommodation :1 x 4 Berth Porta-Cabin
Diving Support Workshop : Lathe, drill, grinder, arc welder – 25kVA Diving Air Comp 167 m3 /hr @ 14 kg/cm2
Electronics Radars: Furuno FR-2115 x 72 miles Auxiliary Radar: Furuno FR7111 x 72 miles Auto Pilot: Tokyo Keiki with Sperry ES11 Gyro Compass Satellite Navigation: GPS RS5700 Shipmate Furuno DGPS receiver Communications GMDSS: 1 VHF: 2 VHF Portable: 3 SART: 1 EPIRB: 1 Navtex: 1 Inmarsat M : 1 Iridium : 1
Miscellaneous Deck : Wood Sheathed Main Deck FRV/Workboat: Zodiac Inflatable Safety Equipment: Statutory Life buoys, jackets, pyrotechnics Air Diving System: Optional Insp. Class ROV: Optional Work Class ROV: Optional
Performance Speed : @ 100% - 13 kts @ Economic – 10 kts Consumption : @ 100% MCR: 8.5 tonne/day @ Economic: 7 tonne/day @ ROV Ops: 2.5 tonne/12 hours
-------------------------------------------------------------------------------------------------------------------------- Search words(for official use only) : Diving/ROV/Survey support vessel for sale DSV for Sale Dive Support Vessel for sale Diving Support Vessel For Sale Survey Vessel For Sale Diving Support Vessel ----------------------------------------------------------------------------------------------------------------------------

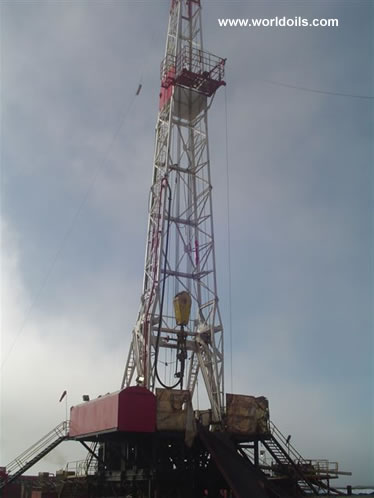

Brewster N-10 Single Drum Drawworks, S/N-N/A, 1,000-HP, Grooved f/1-1/8" Drilling Line, Make-up & Breakout Catheads, Rotary Table Drive, PARKERSBURG 46" Hydromatic Brake, Driller’s Console with Controls.
2-Engine In-Line Compound, p/b (2) DETROIT Series 60 Diesel Engines, 550-HP, S/N-N/S, Each with starter, Radiator, Gauges, Torque Converters, QUINCY 350 Air Compressor, Skidded.
FPI, INC., (LC MOORE Design), 18’6" W x 131’L Cantilever Mast, 450,000" SHL, 10 Line Crown Block with Sheaves, Fastline Sheave, Grooved f/1-1/8" Line, Crown Safety Platform, Racking Board, Tong Counter Weights, Standpipe, Standpipe Manifold with Values.
DSI 16’ H x 17’10"W x 42’6"L Box-On-Box Structure, S/N-N/A, 350,000# Setback Capacity, with 12" x 18" Rotary Beams, Deadline Anchor, Stairs, Safety Rails, Skidded, 13’6" Clear Height.
WEATHERFORD MP-10 Triplex Mud Pump, S/N- #W-105, 1,000-HP, with Steel Fluid End, Quick Change Valve and Cylinder Head Caps, Suction & Discharge Manifolds, WEATHERFORD Pulsation Dampener, Centrifugal Charging Pump p/b 50-HP Electric Motor, O-Drill 3" Shear Relief Value, Master Skidded, p/b CAT D398 Diesel Engine, S/N-66B03715, 1,000-Hp, with Air Starter, Radiator, Gauges, Pump Drive, Air Clutch, Skidded.
-------------------------------------------------------------------------------------------------- Search words (for official use only) : National OS-105 Hydraulic Pedestal Crane for Rent or Sale 45 ton Marine Offshore Crane for Sale National OS-105 Hydraulic Pedestal Crane - 45 Ton Used Marine Offshore Crane - 45 ton Used Hydraulic Pedestal Crane - For Rent or Sale Hydraulic Pedestal Crane - 45 Ton Marine Offshore Crane for Rent or Sale Used National OS-105 Hydraulic Pedestal Crane Hydraulic Pedestal Crane for Rent --------------------------------------------------------------------------------------------------
Single Ram BOP 11" for sale - refurbished 5000 psi Single Ram BOP for sale Single type BOP 11” x 5K WP Top and bottom flanged 11” – 5K 2 each outlets
------------------------------------------------------------------------------- Search words(for official use only) :
BOP - Refurbished for sale Refurbished 5000psi single ram BOP Single Ram BOP 11" for sale - refurbished 5000 psi Single Ram BOP for sale
-------------------------------------------------------------------------------

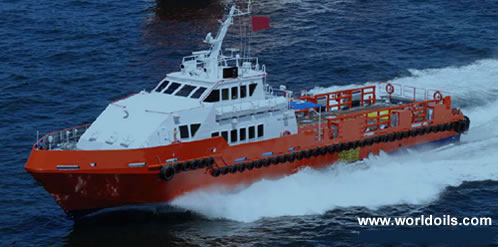

For Sale : 2 X Newbuilding Crew Boats Subject to continued availability
Deck load max. 30 mt. Max speed is 25.5-26 knots with 100 pct engine power Max cruising speed is 24 knots Recommended normal full ahead speed 22-23 knots.
Bow thruster fitted
Crew Boat for Sale 85 Feet Crew Boat 1991 Built Crew Boat for Sale Built Year : 1991 Class : American Bureau of Shipping (ABS)
Dimensions Length overall : 85.00 FT Breadth : 20.00 FT Depth : 07.00 FT Draft loaded : 05.90 FT Gross tonnage : 89.19 Ton Net tonnage : 28.00 Ton
Machinery Main engines : 2 x Detroit Diesel 12 V 71 T1 x 510bhp Propellers : 2 fixed pitch Generators : 2 x KATO 120/208 V, 60 Hz, 40 kW each
Speed Maximum/Cruising : 18/16 knots Fuel/Stby : 12 ltr/hour
Capacities Fuel oil : 14,000 Ltrs Water : 3,000 Ltrs Free deck space : 50 M2 Deck cargo capacity : 20.00 LT Accomodation : 6 crew, 21 pax (reclining seats) fully air conditioned
Navigation / Communication Radar : 1 x Furuno, FR 8050D, Range 48 NM 1 x Furuno 1830 Echo sounder : 1 x Raytheon 420 Magnetic compass : 1 x Ritchie Mode C 453 Satellite navigation (GPS) : 1 x Koden - KGP 910 SSB radio : 1 x ICOM IC-M700 VHF radio : 2 x Sailor RT 144C Gyro Compass : 1 x Sperry-SR-50-Mod-1 Depth Sounder : Datamarine 3000
Fire Fighting/ Safety Monitors : NA Pump capacity : NA Safety Equipment as per SOLAS, Flag and Class Soceity requirement
Fuel Consumption Max speed : 190 ltrs/hrs Cruising speed : 180 ltrs/hrs Price & terms : Please enquire using the email form below.
-------------------------------------------------------------------------------------------------------------------------------- Search words(for official use only) : Crew Boat for sale 85FT Crew Boat for Sale Crew Boat in Asia for sale Crew Boat 1991 Built for sale 1991 built Crew Boat for Sale 21pax crew boat ------------------------------------------------------------------------------------------------------------------------------------
Showing 2065 to 2112 of 2127 results
.png)
.png)
.png)
.png)
.jpg)
.png)
.png)
.png)
.png)
.png)
.png)
.png)
Search Here
1628163456345.jpg "18,000 LPG Propane Tank - 1995 Built - for Sale")
1628163456345.jpg "18,000 LPG Propane Tank - 1995 Built - for Sale")

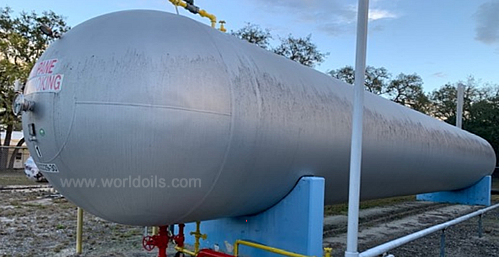

1629112234329.jpg "LPG Propane Tank - 1973 Built 30,000 Gallon for Sale")
